Filling And Pressing Machine

Filling And Pressing Machine

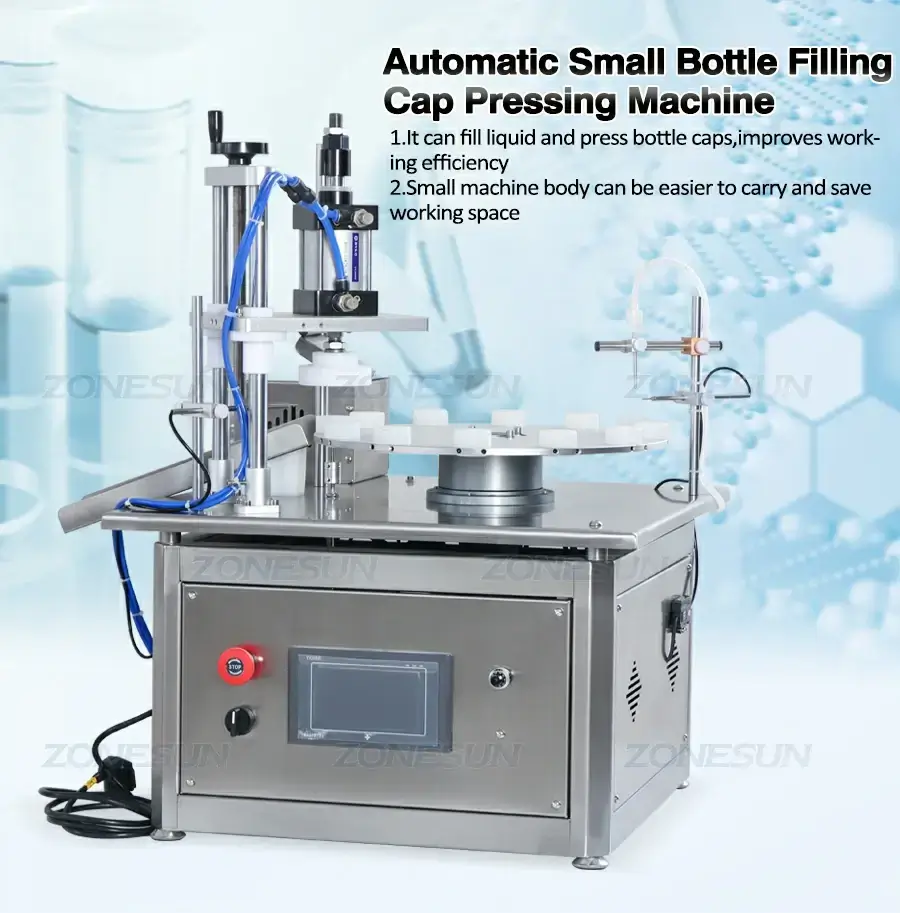

This rotary filling and capping machine is in small design which is more convenient to carry and save production space.It is equipped with high quality magnetic pump and can fill low viscosity liquid accurately.This machine is widely used in chemical industries.

Product Detail

Product Tags


Filling And Pressing Machine-ZONESUN TECHNOLOGY LIMITED

Description:

This rotary filling and capping machine is in small design which is more convenient to carry and save production space.It is equipped with high quality magnetic pump and can fill low viscosity liquid accurately.This machine is widely used in chemical industries.

Filling And Pressing Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

Machine modelZS-AFC1C
Voltage110/220V

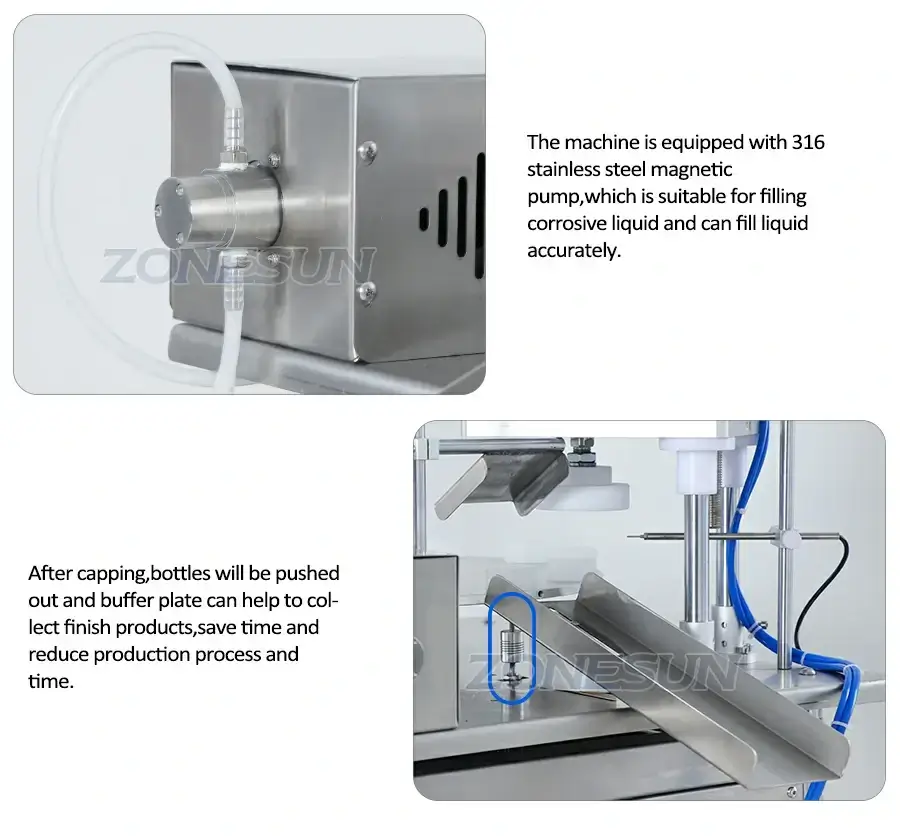

Filling pumpMagnetic pump
Machine power500W
Bottle diameter10-40mm
Filling range≤100ml
Bottle height≤120mm(Can customize for higher bottles)
Cap diameterCustomize

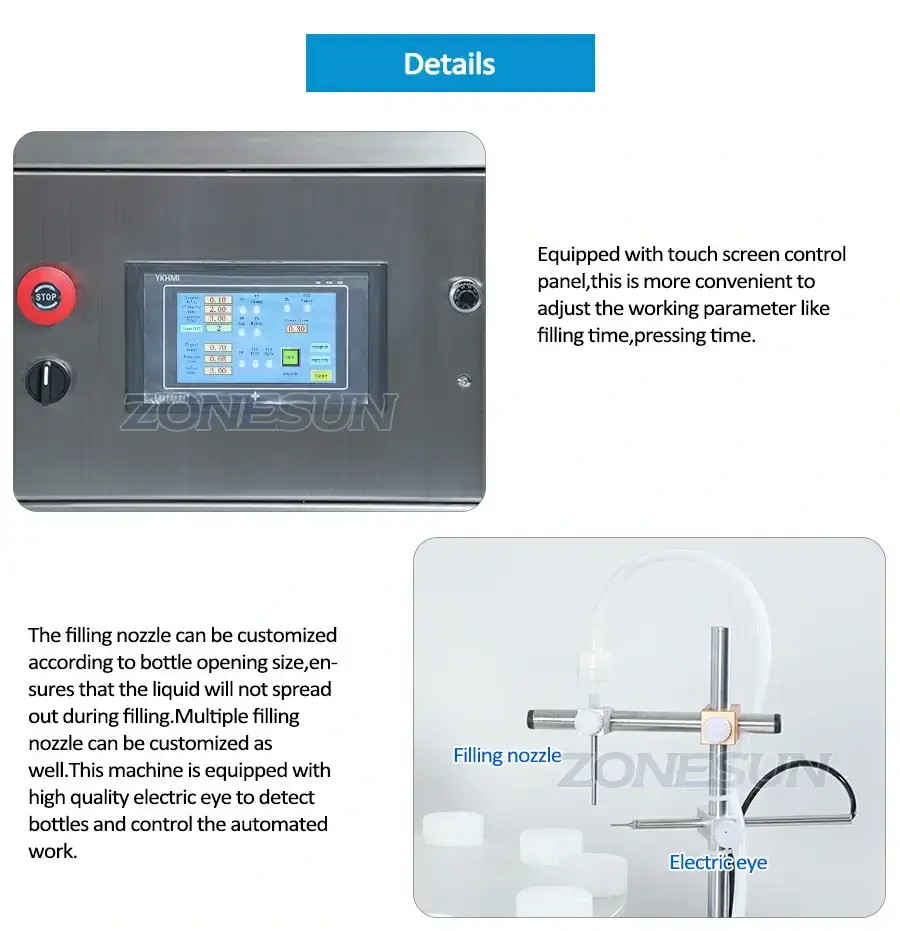

Size of filling nozzleOD 2mm
Working speed20-50bottles/min(depends on liquid and bottle size)
Machine sizeAbout 580*580*800mm
Machine weightAbout 52kg
Package sizeAbout 800*670*990mm
Package weightAbout 77kg
