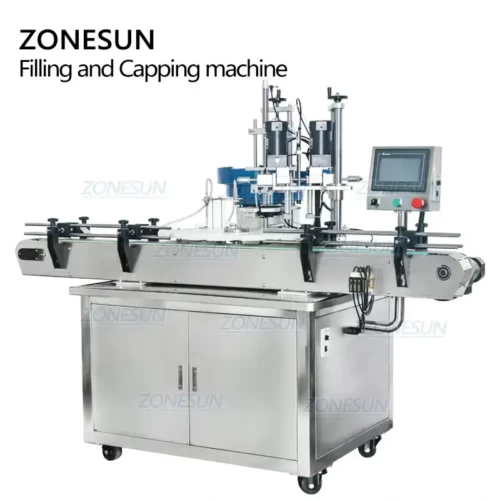

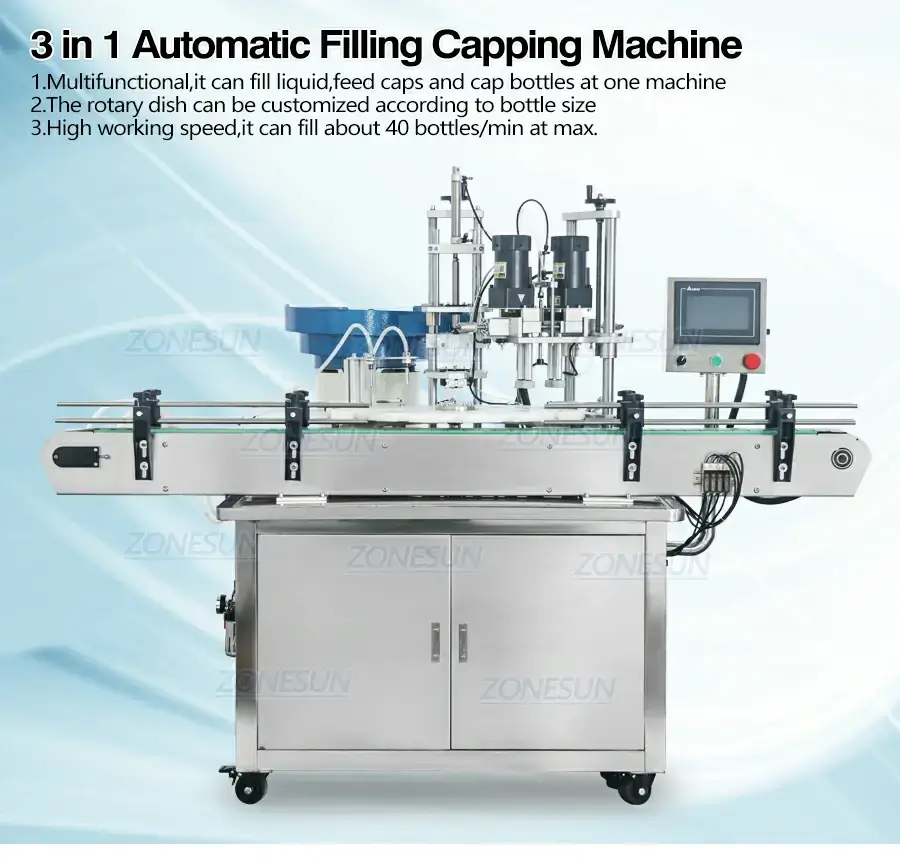

Liquid Filling Capping Machine

Liquid Filling Capping Machine

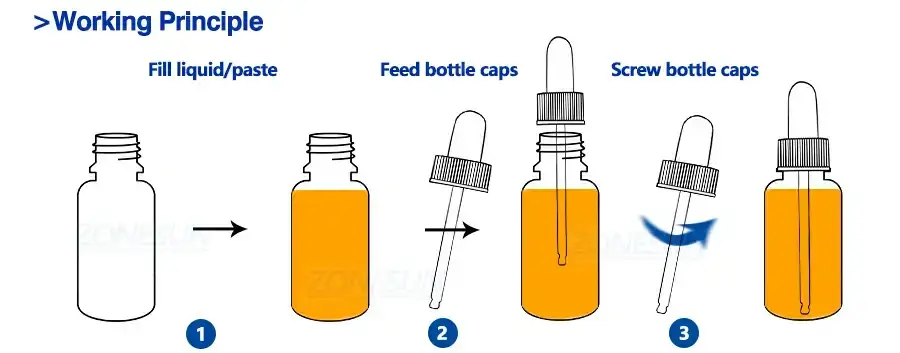

This machine is with functions of filling liquid,feeding caps and cap bottles.Multifunctional machine help you save production cost.The rotary dish of the machine can be customized according to product diameter.This machine is widely used in daily chemicals,cosmetics industries.

Product Detail

Product Tags


Liquid Filling Capping Machine-ZONESUN TECHNOLOGY LIMITED

Description:

This machine is with functions of filling liquid,feeding caps and cap bottles.Multifunctional machine help you save production cost.The rotary dish of the machine can be customized according to product diameter.This machine is widely used in daily chemicals,cosmetics industries.

Liquid Filling Capping Machine-ZONESUN TECHNOLOGY LIMITED
Parameter:
Machine modelZS-AFC1
Machine voltageAC220V/110V 50-60HZ
Bottle diameter25-50mm(Can Customize)
Bottle height50-350mm
Working speed0-40 bottles/min.(depending on liquid,bottle and caps)
Max power300W
Air pressure0.4-0.6MPa
Capping torsion4-9kgf/cm
Conveyor sizeAbout 2000*100mm(L*W)
Machine sizeAbout 1015*800*1560mm
Machine weightAbout 341kg
Package sizeAbout 2210*980*1740mm
Package weightAbout 411kg
