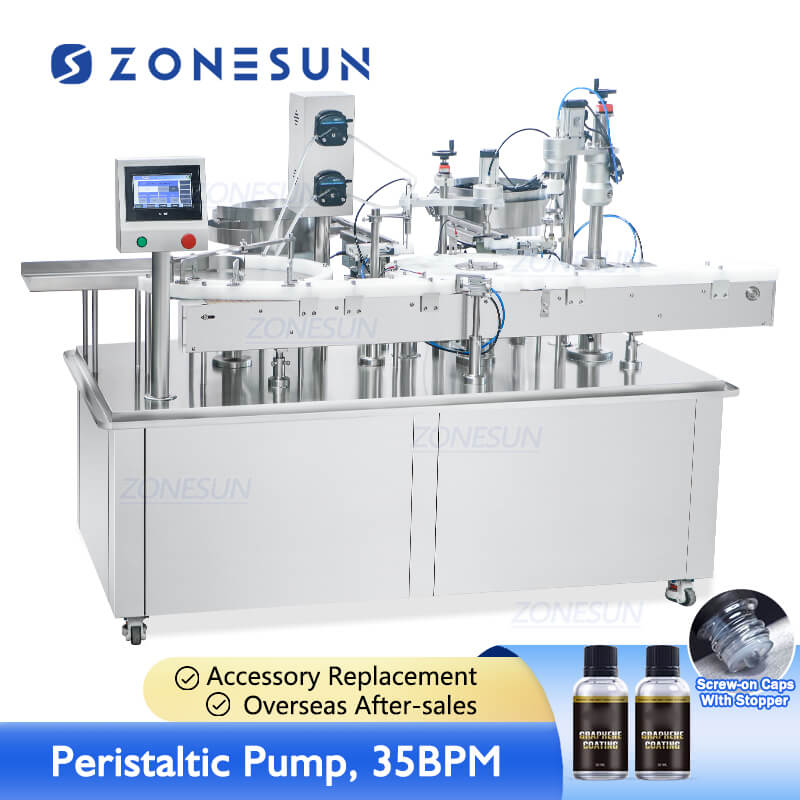

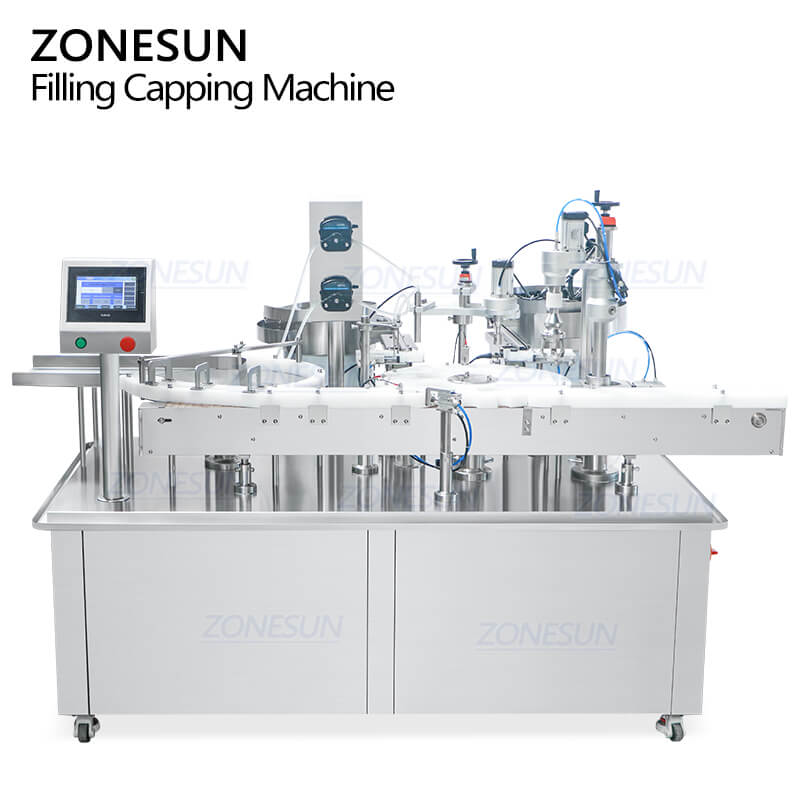

Liquid Bottles Automatic Filling Capping Machine
This filling capping machine is suitable for packaging bottles with inner stopper and screw-on caps like essential oil, skin toner, brake fluid etc.This monoblock machine is controlled by cam system, each working station can work at the same time to improve working efficiency.
Share to
Product Description:
This filling capping machine is suitable for packaging bottles with inner stopper and screw-on caps like essential oil, skin toner, brake fluid etc.This monoblock machine is controlled by cam system, each working station can work at the same time to improve working efficiency.
Product Parameters:
| Machine model | ZS-AFC43 |
| Voltage | 110/220V 50-60HZ 3KW |
| Filling pump | Peristaltic pump |
| Working capacity | 30-45BPM(based on filling range) |
| Filling accuracy | ±1% |
| Suitable bottle size | Customizable |
| Suitable cap size | Customizable |

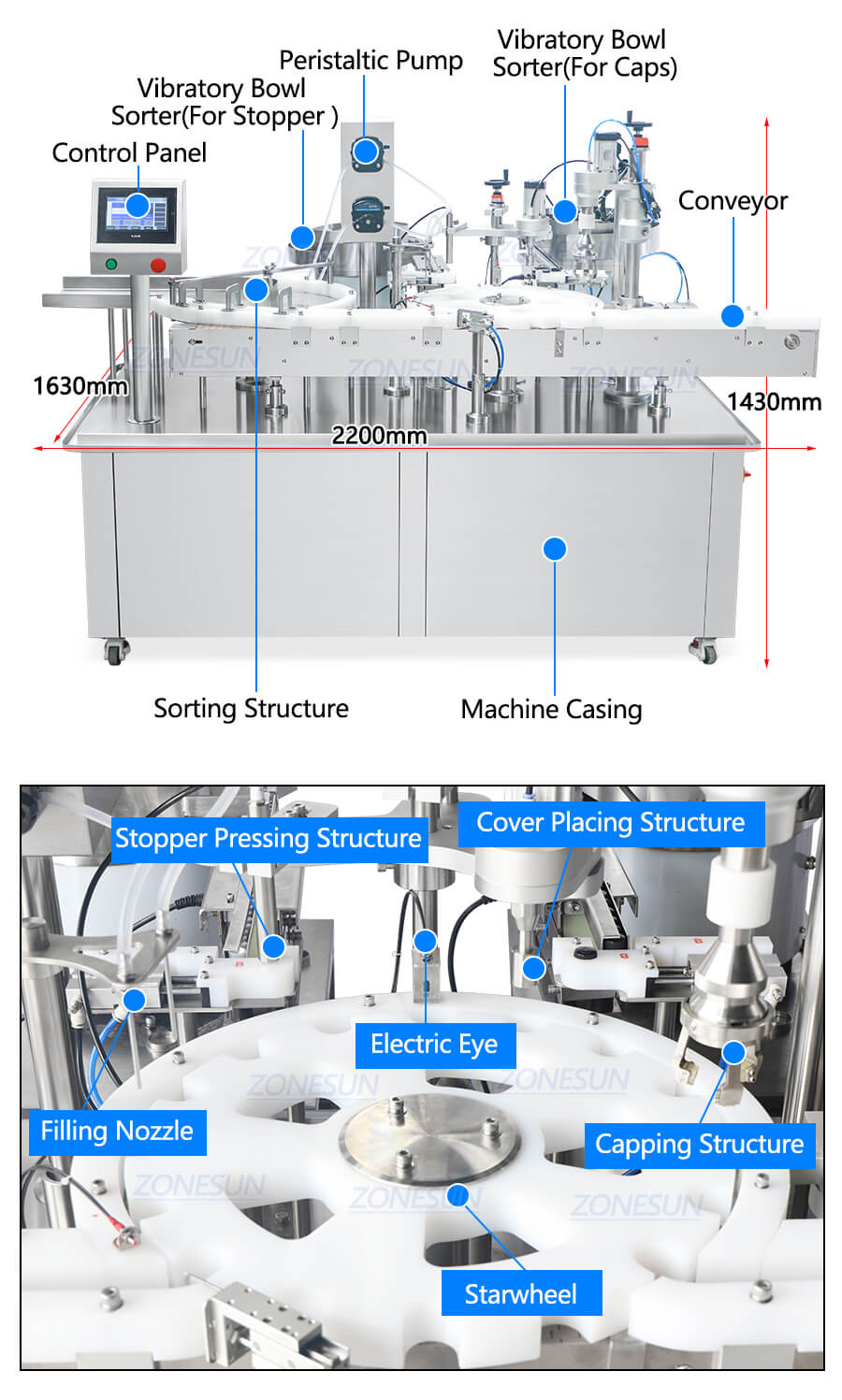

| Machine size | About 2200*1630*1430mm(Main Machine) About 605*455*1040mm(Vibratory Bowl Sorter For Stopper) About 605*455*1070mm(Vibratory Bowl Sorter For Caps) |
| Total Machine weight | ≤ 600kg |
Product Details:

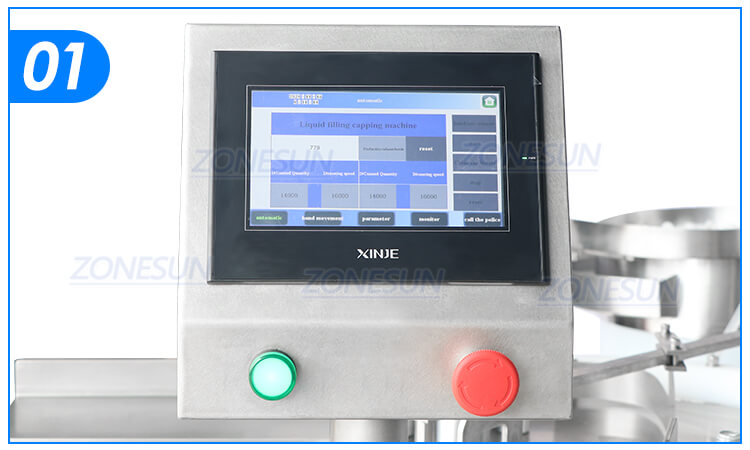

Control Panel
PLC touch screen control panel, machine debugging and operating will be more intuitively.

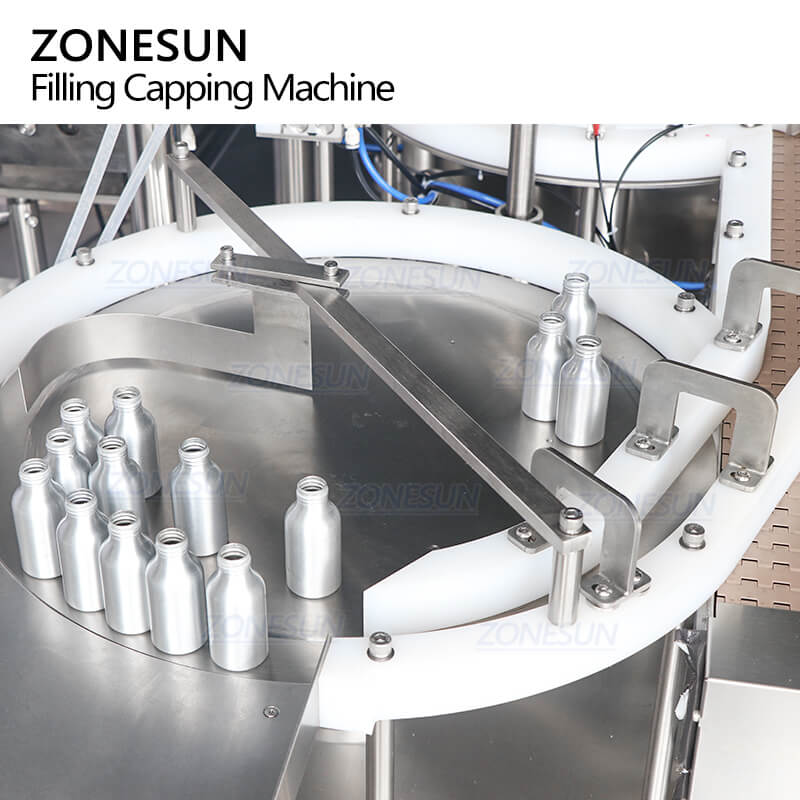

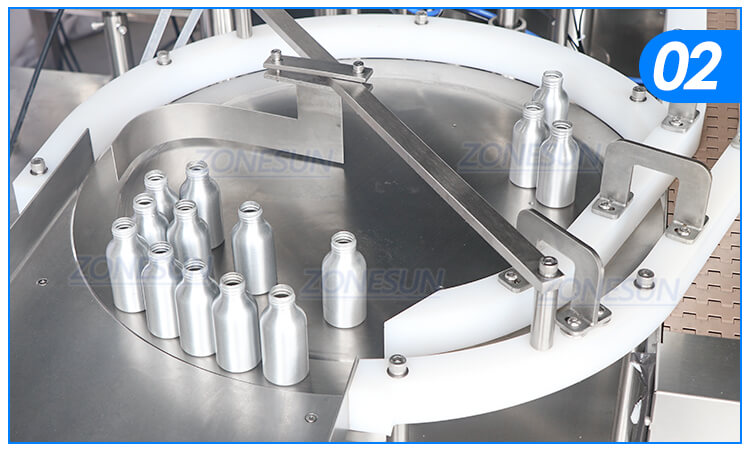

Bottle Sorting Structure
Make bottles be in order before filling & capping work, saves working space.

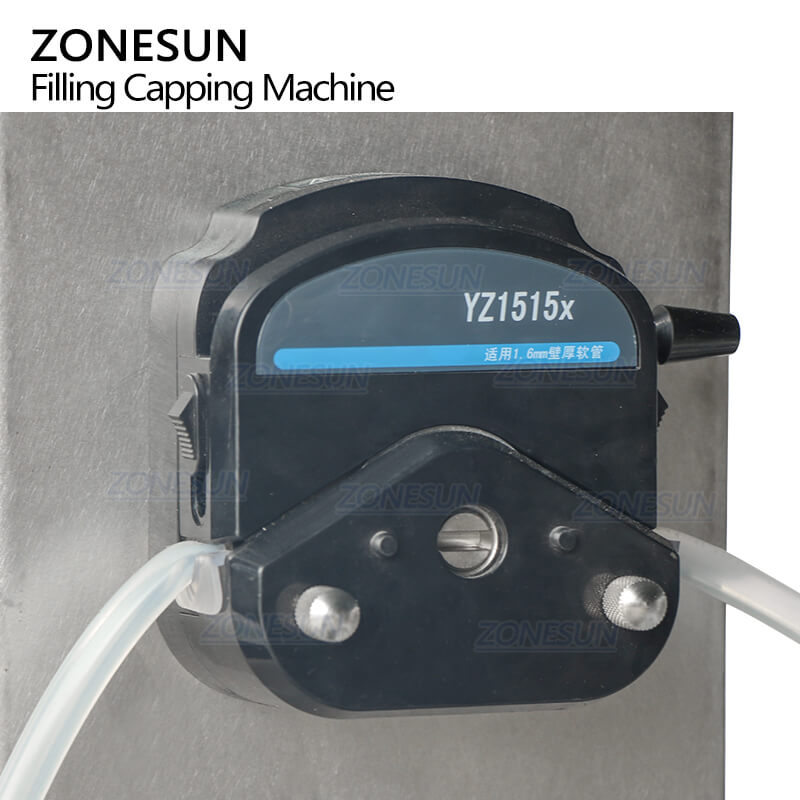

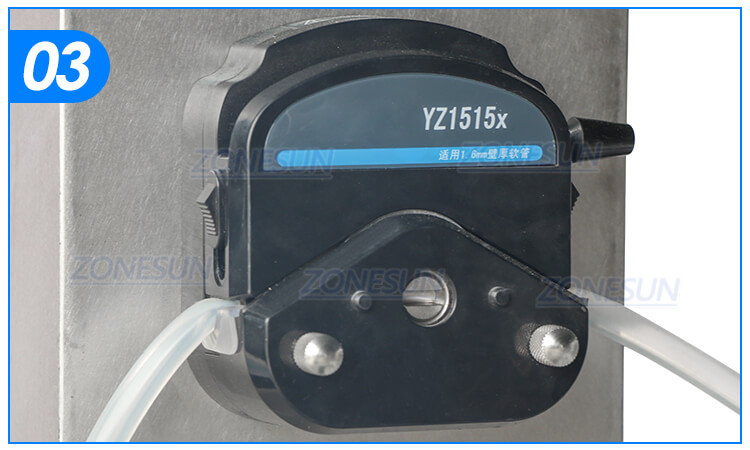

Peristaltic Pump
Liquid only pass through filling hose, improves packaging quality.

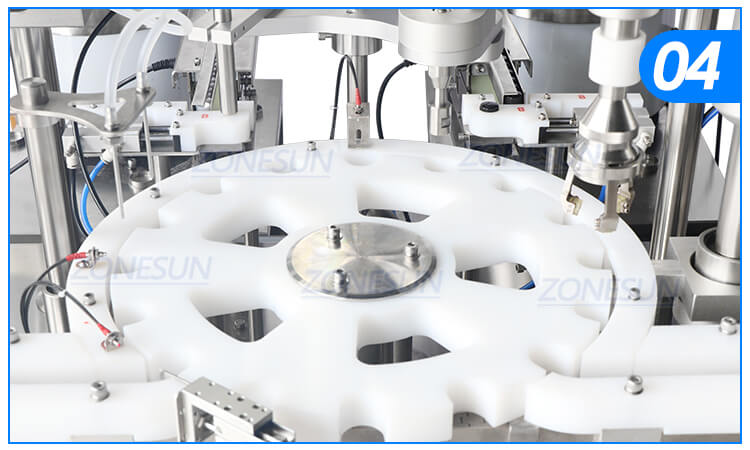

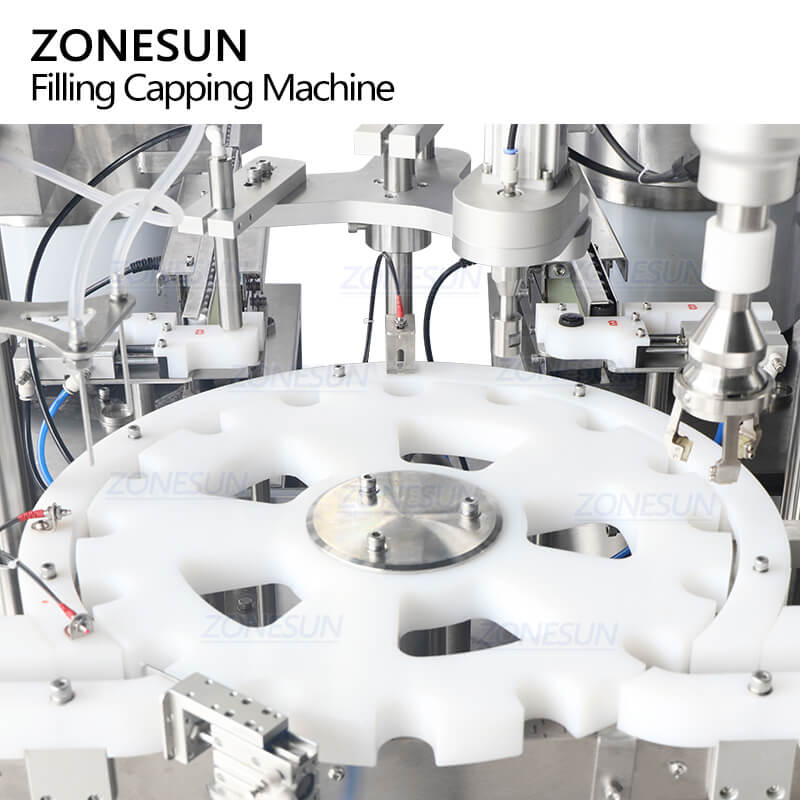

Cam System
Use cam system to control filling & capping work, each working station can work at the same time to improve efficiency(35-40BPM)

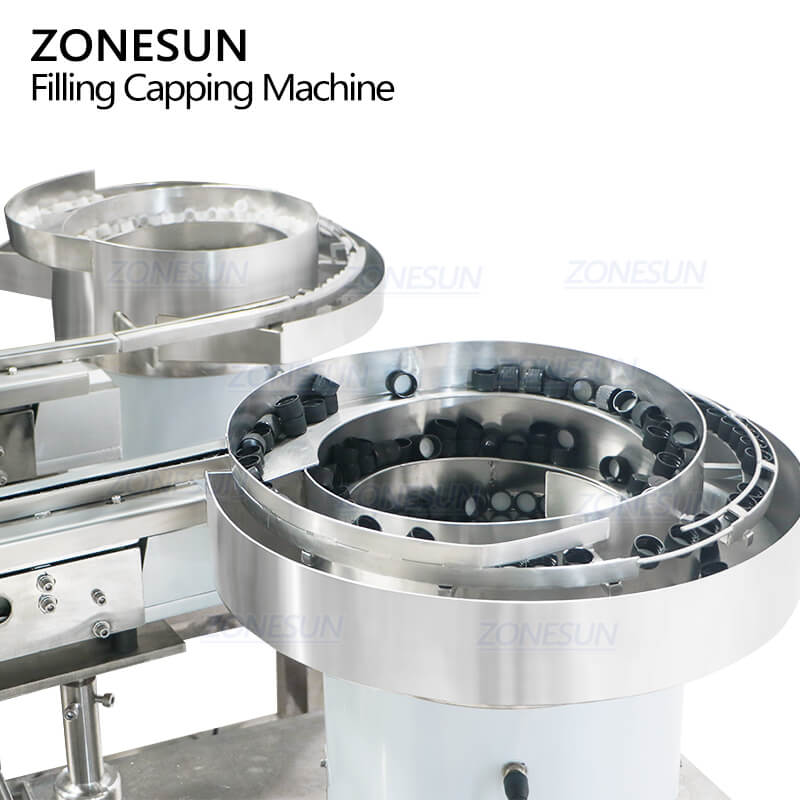

Vibratory Bowl Sorter
Double vibratory bowl sorter to arrange stoppers & caps orderly, these are customizable.
