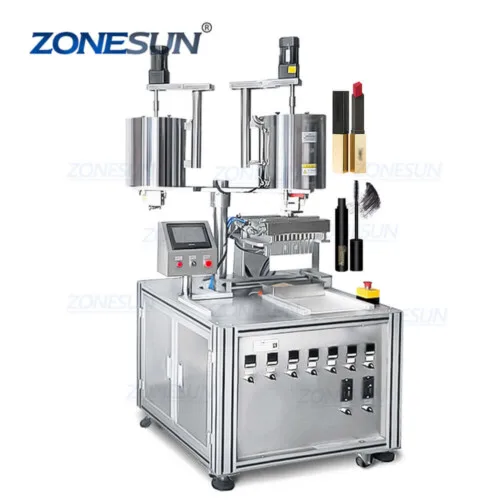

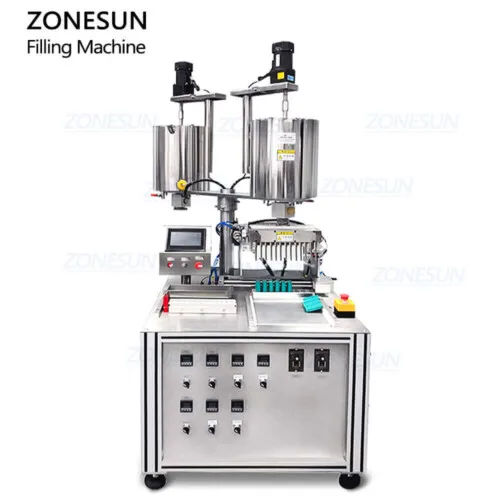

Lipstick Filling Machine

Lipstick Filling Machine

This machine is designed for liquid paste cosmetics,such as lipstick,pen lipstick,eyebrow pencil,lip oil,lip gloss,etc.Independent barrel mixing and temperature control design to meet the demand of diversified raw materials.

Machine Video Click Here:

Product Detail

Product Tags

Lipstick Filling Machine-ZONESUN TECHNOLOGY LIMITED

Description:

This machine is designed for liquid paste cosmetics,such as lipstick,pen lipstick,eyebrow pencil,lip oil,lip gloss,etc.Independent barrel mixing and temperature control design to meet the demand of diversified raw materials.

Lipstick Filling Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

Machine ModelZS-GTL12
Voltage380V 50Hz
Total Power7.5kW
Heating Tube2kW*2
Working CapacityAbout 450mould/h (based on 12-hole mould)
Filling Range1-11ml
Filling PumpPiston Pump
Temperature Range0-140℃
Hopper Capacity20L*2
Stirring Speed0-90r/min
Height of Worktable720mm
Machine SizeAbout 970*1000*2000mm
Machine WeightAbout 320kg

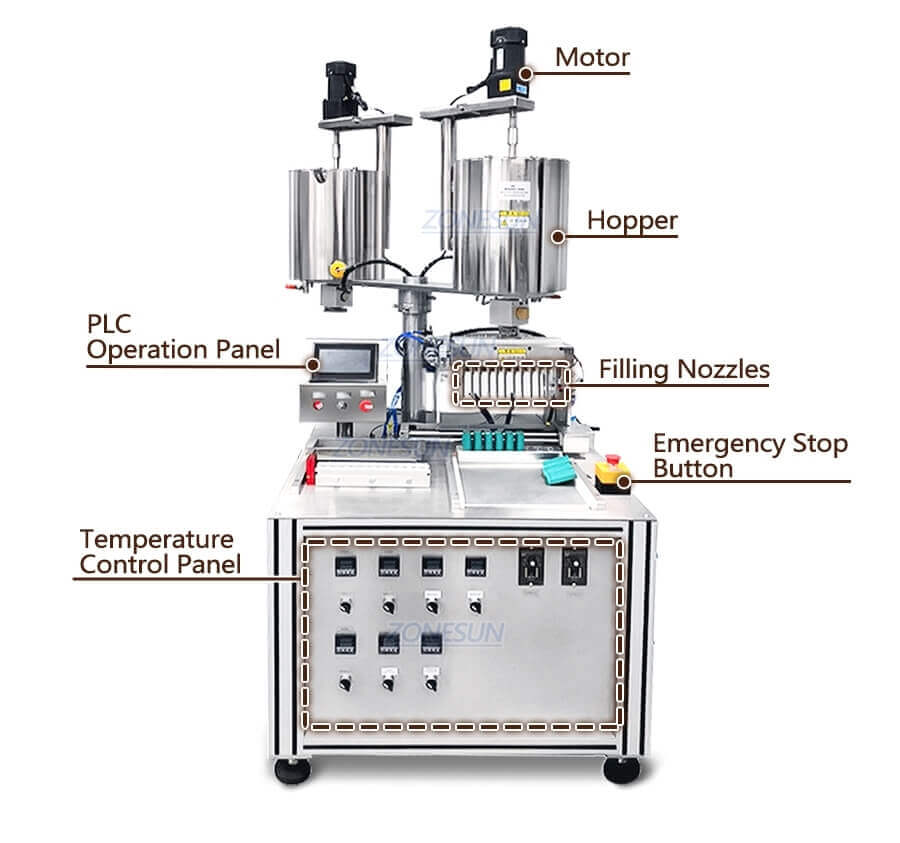

Machine Configuration
Machine ComponentBrandOrigin
PLCXINJEChina

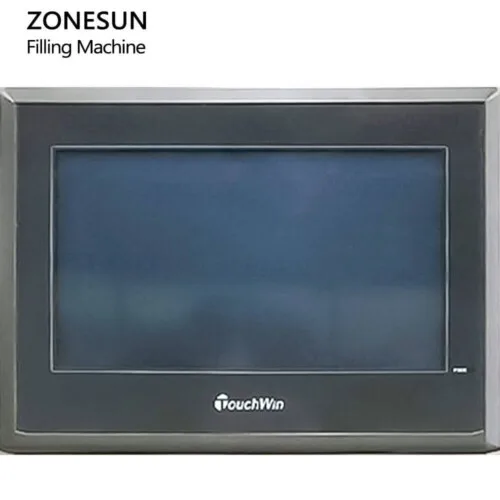

Operation ScreenXINJEChina
Air CylinderAirTacTaiwan,China
RelayCHNTZhejiang,China
SensorAirTacTaiwan,China
Filling Motor(Stepper Motor)XINJEChina

Lipstick Filling Machine-ZONESUN TECHNOLOGY LIMITEDLipstick Filling Machine-ZONESUN TECHNOLOGY LIMITED
