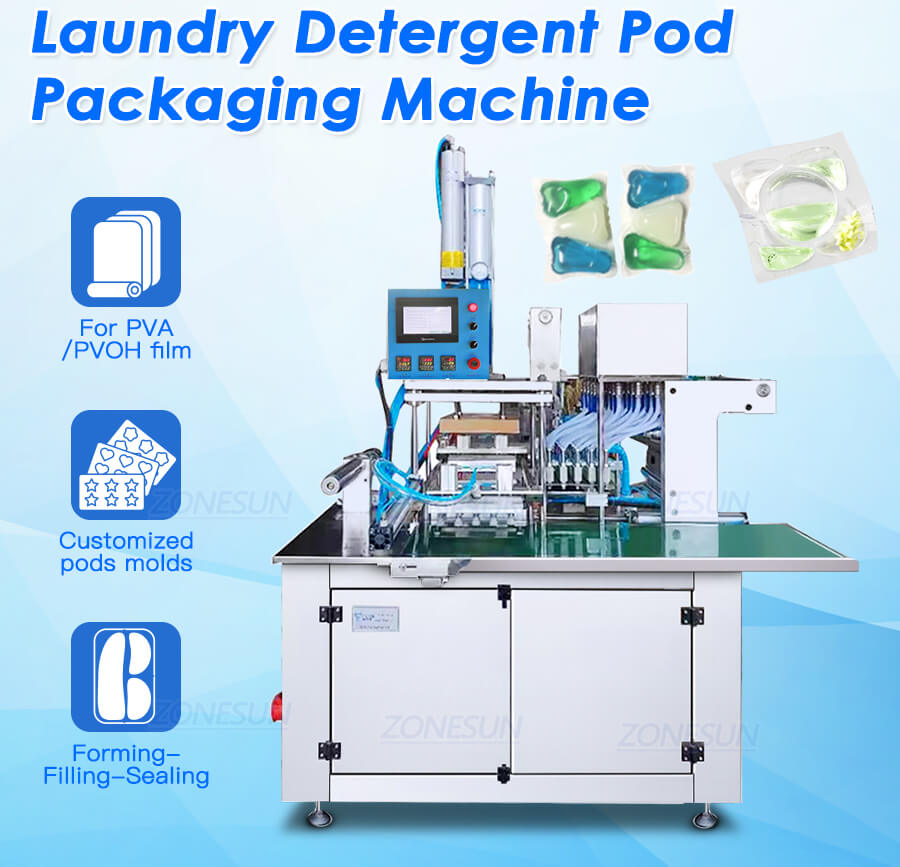

Laundry Detergent Pods Filling Sealing Machine
This packaging machine is a specialized piece of equipment designed to automate the process of packaging laundry detergent pods. These machines handle various tasks including forming the pod’s packaging, filling it with the detergent and sealing it.
Share to
Product Description:
This packaging machine is a specialized piece of equipment designed to automate the process of packaging laundry detergent pods. These machines handle various tasks including forming the pod’s packaging, filling it with the detergent and sealing it.
Product Parameters:
| Machine model | ZS-FS130 |
| Machine voltage | 220/380V 50-60HZ 7KW |
| Filling volume | 5-35g(can be customized) |
| Packaging capacity | About 32 bags/min |
| Filling accuracy | 1.5% (based on filling material) |
| Film roll diameter | 70-80mm＜φ＜400mm |
| Suitable packaging film | PVA/PVOH |
| Film thickness | 75±5μm |
| The width of the lower film | 340mm(will be different according to different chamber) |
| The width of the upper film | 300mm(will be different according to different chamber) |
| Machine size | About 1480*1910*2120mm |
| Machine weight | About 700kg |
Product Details:

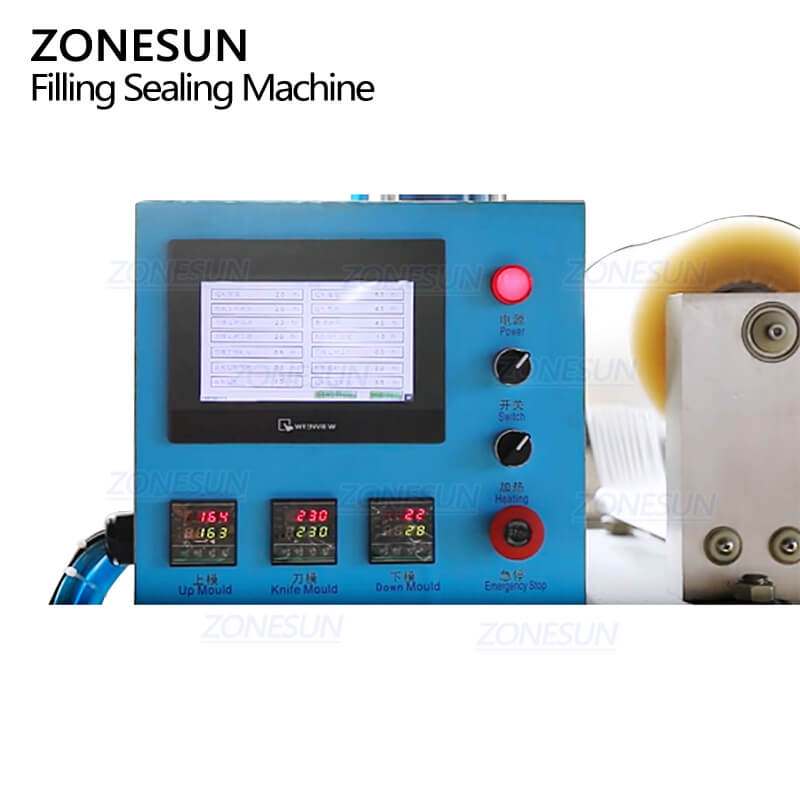

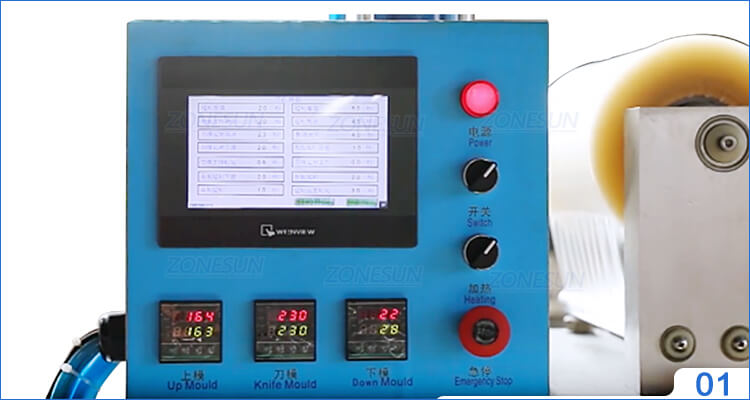

PLC Touch Screen Control Panel
Customizable interface makes parameter setting more directly, simplifies machine operation.

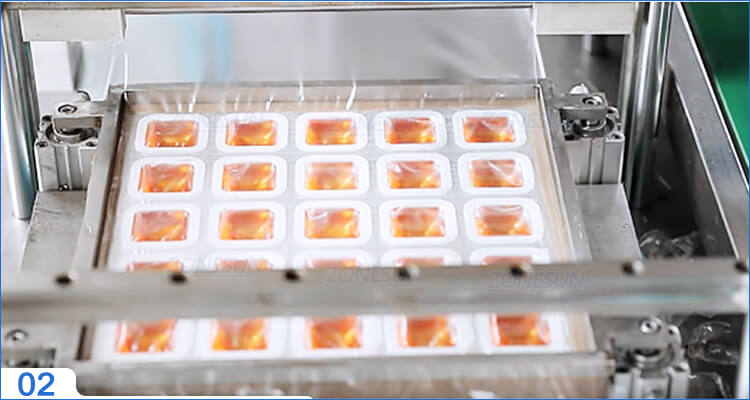

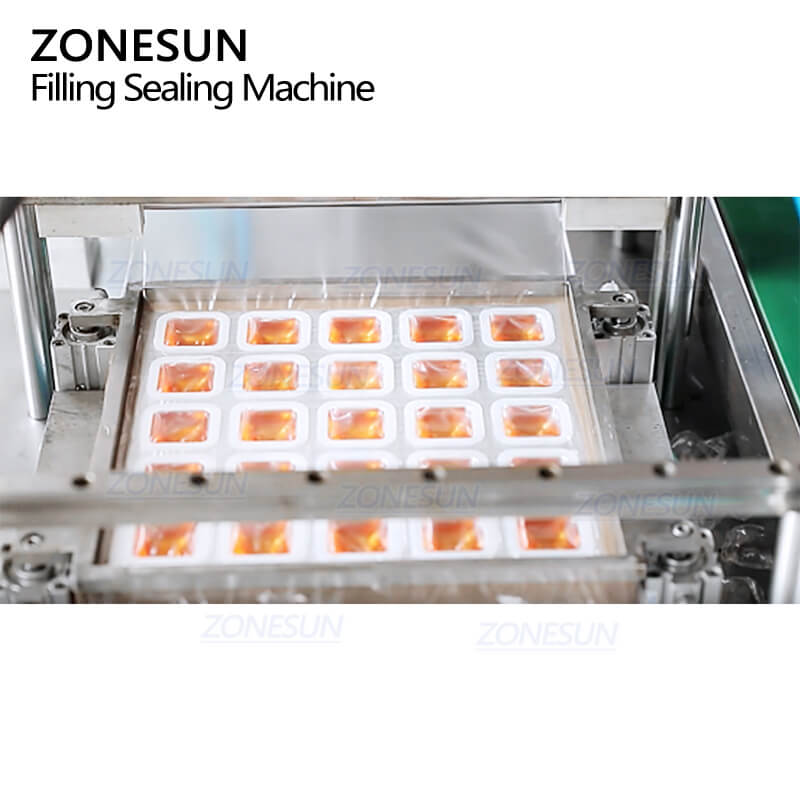

Customized Pod Molds
Different shape and size can be customized as production need.This machine suits PVA and PVOH packaging film.

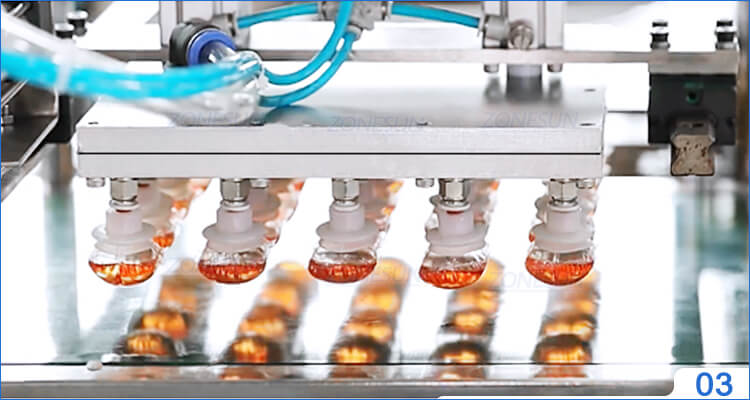

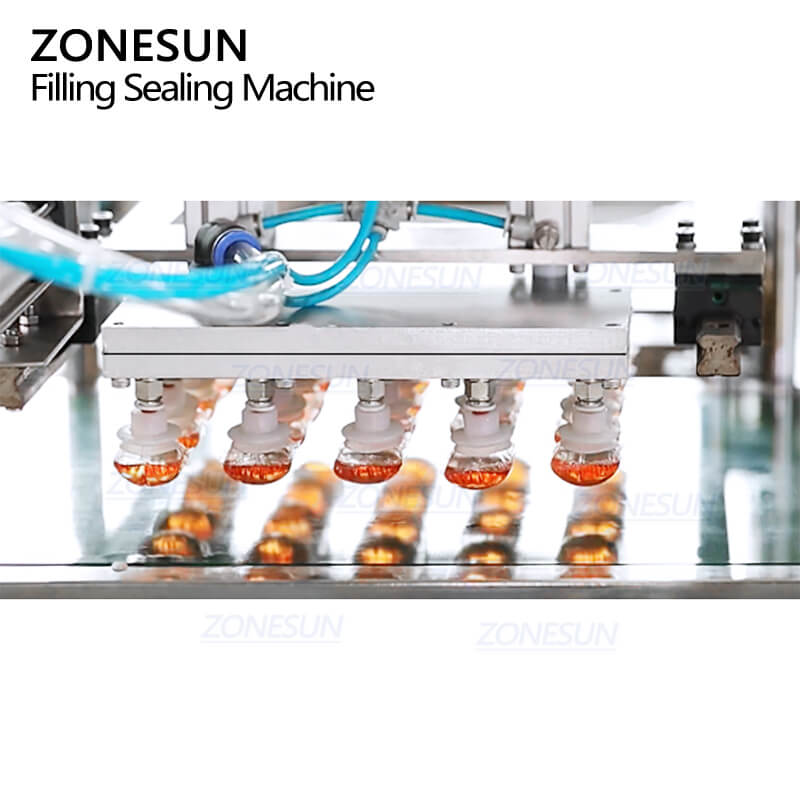

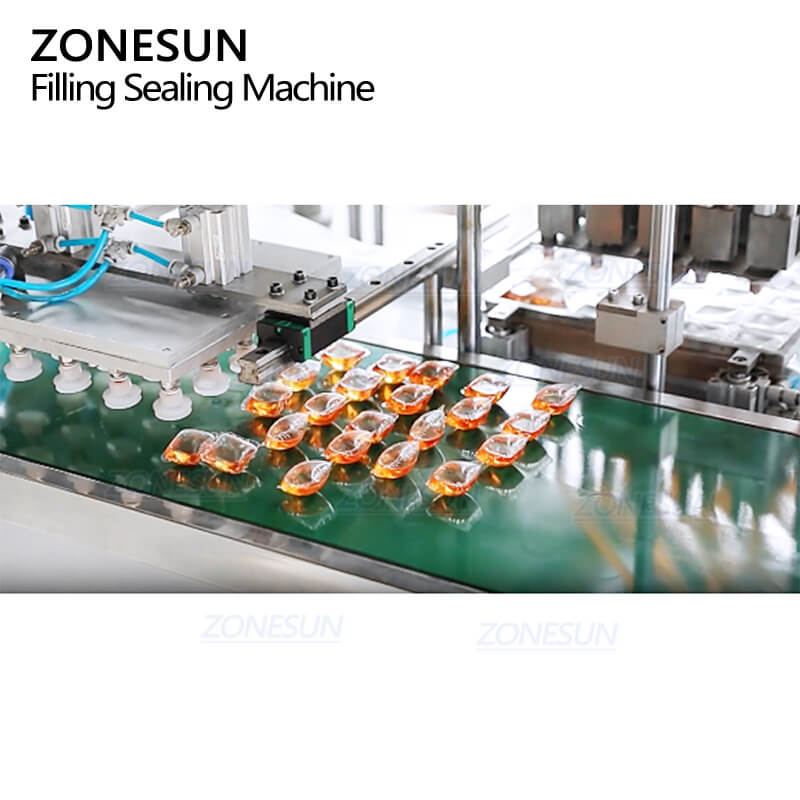

Air Nozzles
Can pass finsihed pods to the conveyor, it realizes automated production.

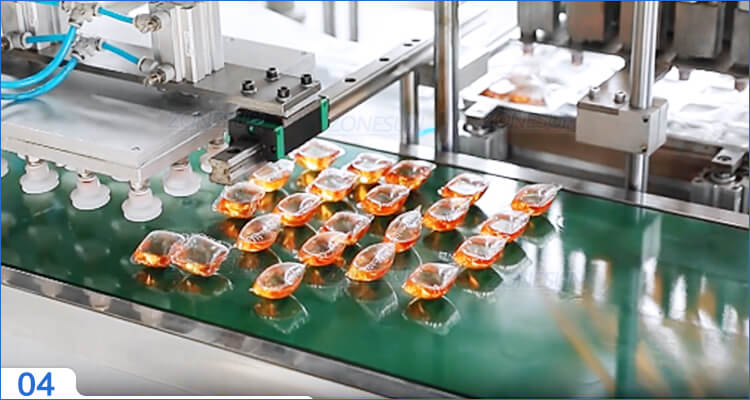

Conveyor
Width and length are customized according to production need.
