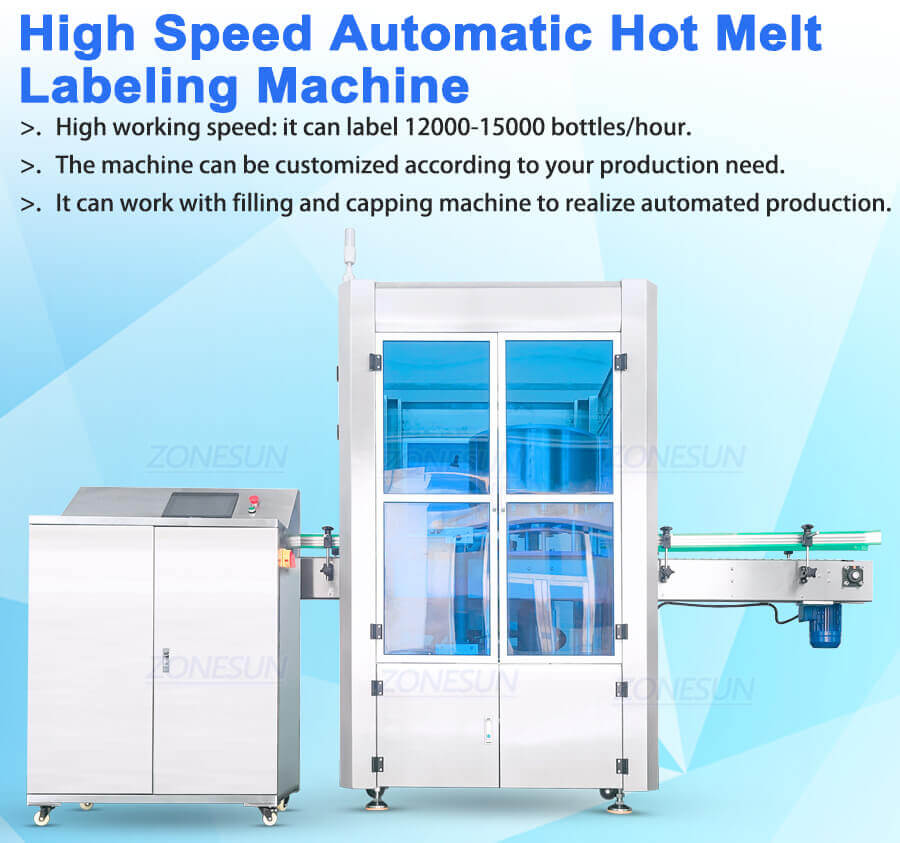

Hot Melt Glue Labeling Machine
1.High working speed:it can label 12000-15000 bottles/hour.
2.The machine can be customized according to your production need.
3.It can work with filling and capping machine to realize automated production.
Share to
Description:
1.High working speed:it can label 12000-15000 bottles/hour.
2.The machine can be customized according to your production need.
3.It can work with filling and capping machine to realize automated production.
Parameter:
| Machine Model | ZS-GTB12 |
| Voltage | 380V 50Hz 3 Phase |
| Power | 8kW |
| Station | 12 Stations(Can be customized) |
| Labeling Speed | About 12000-15000BPH |
| Labeling Accuracy | ±1mm |
| Max Label Size | 140mm(W)*430mm(L) (Can be customized) |
| Label Roll Outer Diameter | Max 600mm |
| Label Roll Inner Diameter | 152mm |

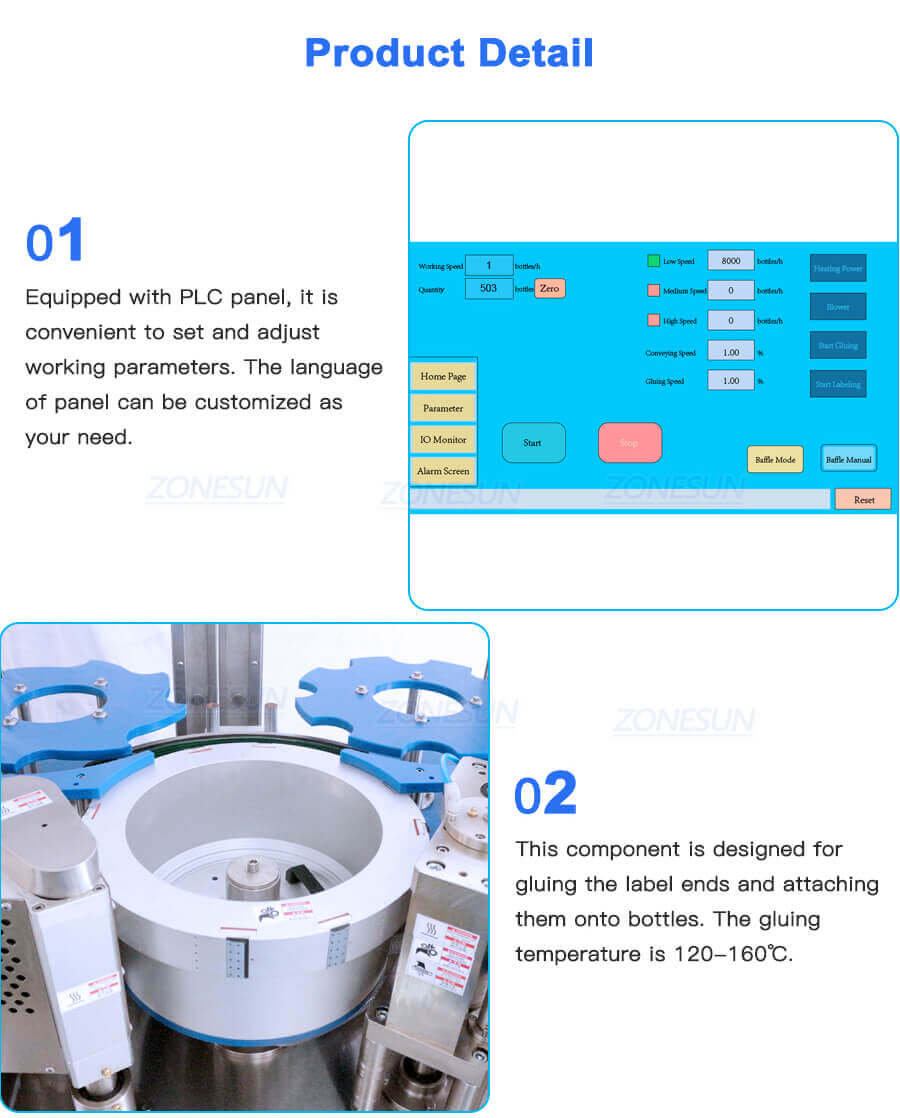

| Gluing Temperature | 120-160℃ |
| Type of Labels | OPP film labels,paper-plastic composite film labels,paper labels. |
| Conveyor Height | 1050±30mm(Adjustable) |
| Conveying Speed | 30m/min(Adjustable) |
| Machine Weight | About 2000kg |
| Machine Size | About 3100*1350*2100mm(L*W*H) |
| Machine Configuration | ||
| Machine Component | Brand | Origin |
| Label Feeding Servo Motor | VMMORE | Shenzhen,China |
| Inverter | Delixi | Zhejiang,China |
| Relay | Schneider | France |
| Air Switch | Schneider | France |
| Switching Power Supply | Delta | Taiwan,China |

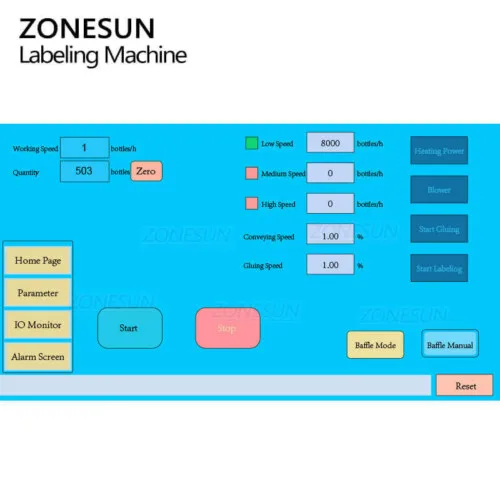

| Operation Panel | WEINVIEW | Taiwan,China |
| PLC | XINJE | China |

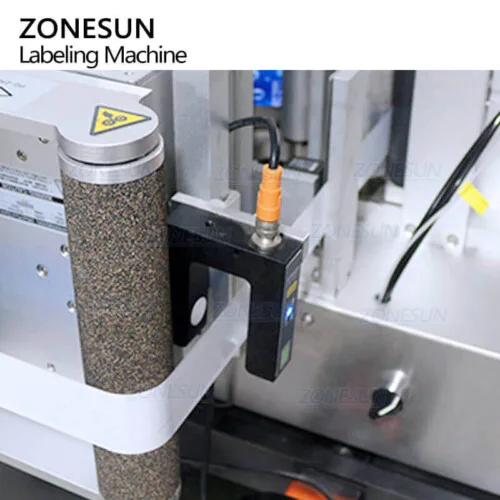

| Label Sensor | Panasonic | Japan |
