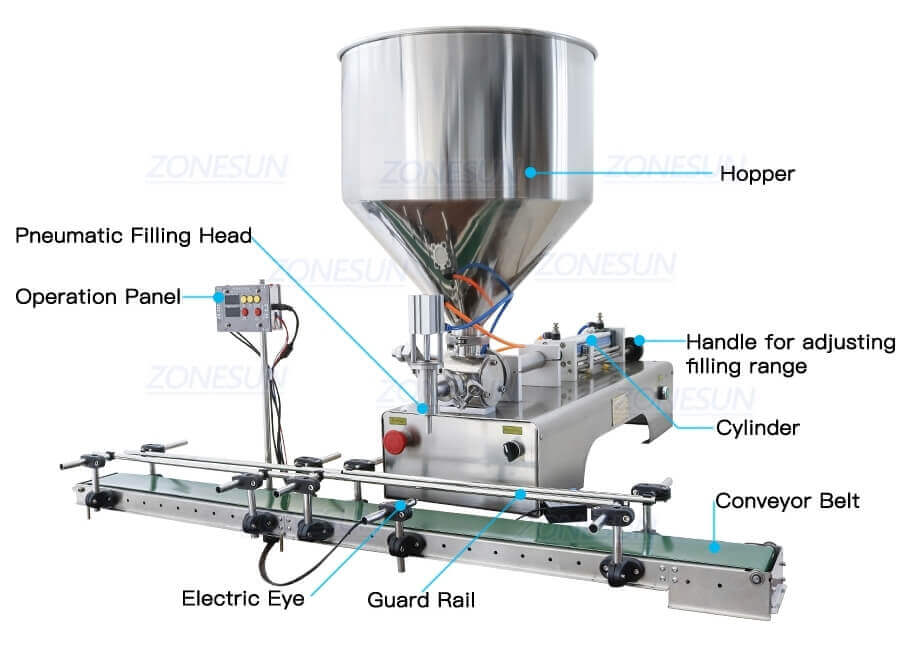

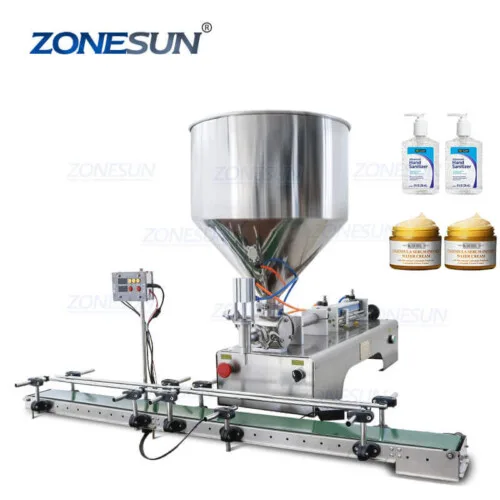

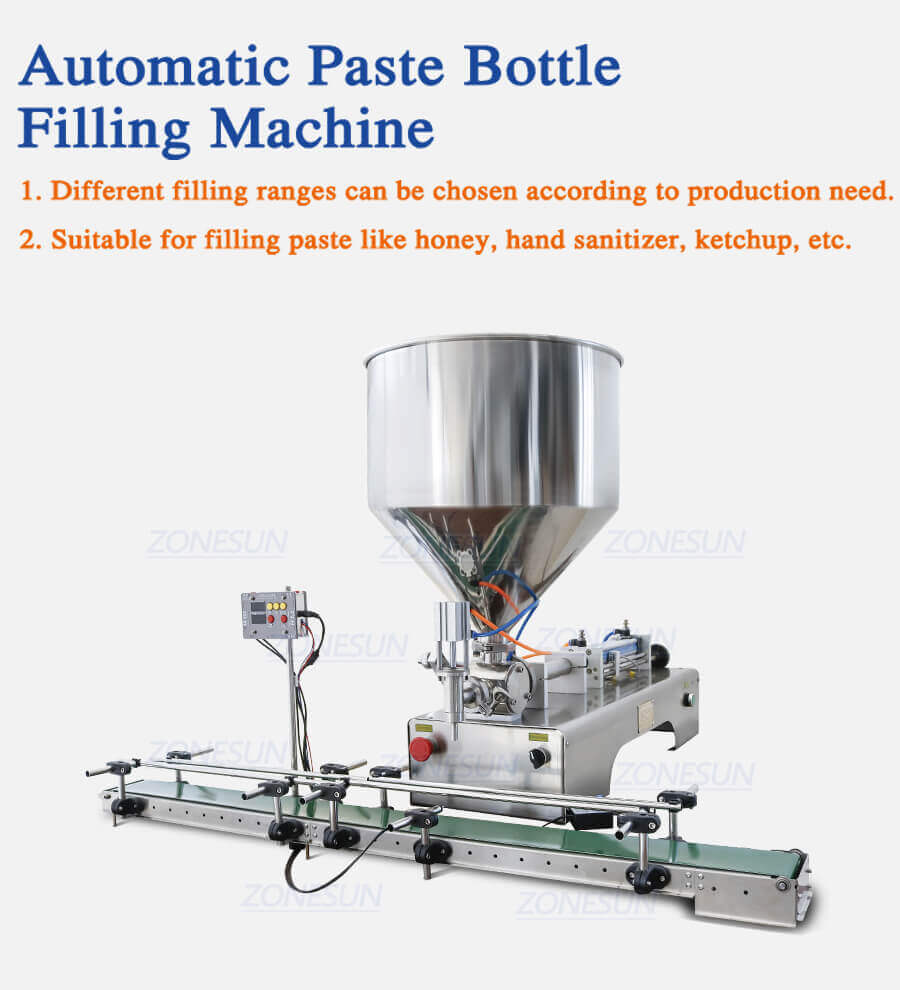

Horizontal Paste Filling Machine
This series filling machine is foreign advanced filling machine technology transformation and innovative products,its structure is simple and reasonable precision,easy to operate,user-friendly design more in line with the requirements of the modern enterprise.Widely used in pharmaceutical,cosmetic,food and special industries,is a high-viscosity fluid,paste quantitative filling the ideal equipment.
Share to
Description:
This series filling machine is foreign advanced filling machine technology transformation and innovative products,its structure is simple and reasonable precision,easy to operate,user-friendly design more in line with the requirements of the modern enterprise.Widely used in pharmaceutical,cosmetic,food and special industries,is a high-viscosity fluid,paste quantitative filling the ideal equipment.
Parameter:
| Machine Model | ZS-DTGT1P |
| Power Supply | 110/220V 50-60Hz 60W |

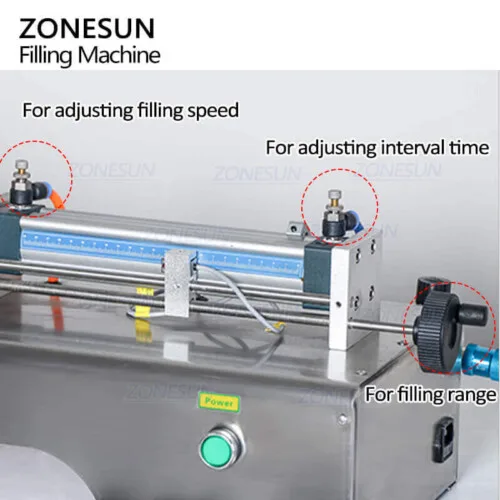

| Filling Range | 10-100ml/50-500ml/100-1000ml |
| Filling Speed | 10-15bottles/min (based on 100ml Gel) |
| Filling Accuracy | ≤±0.5% |

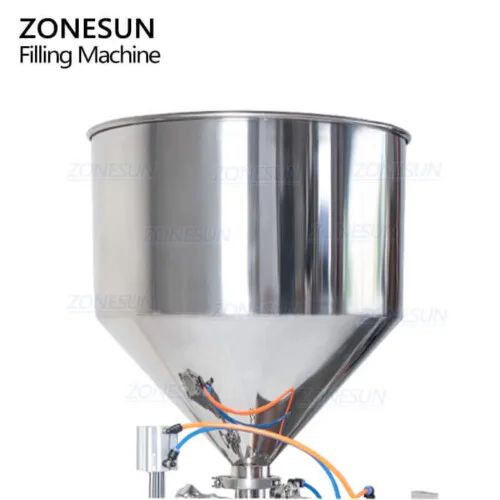

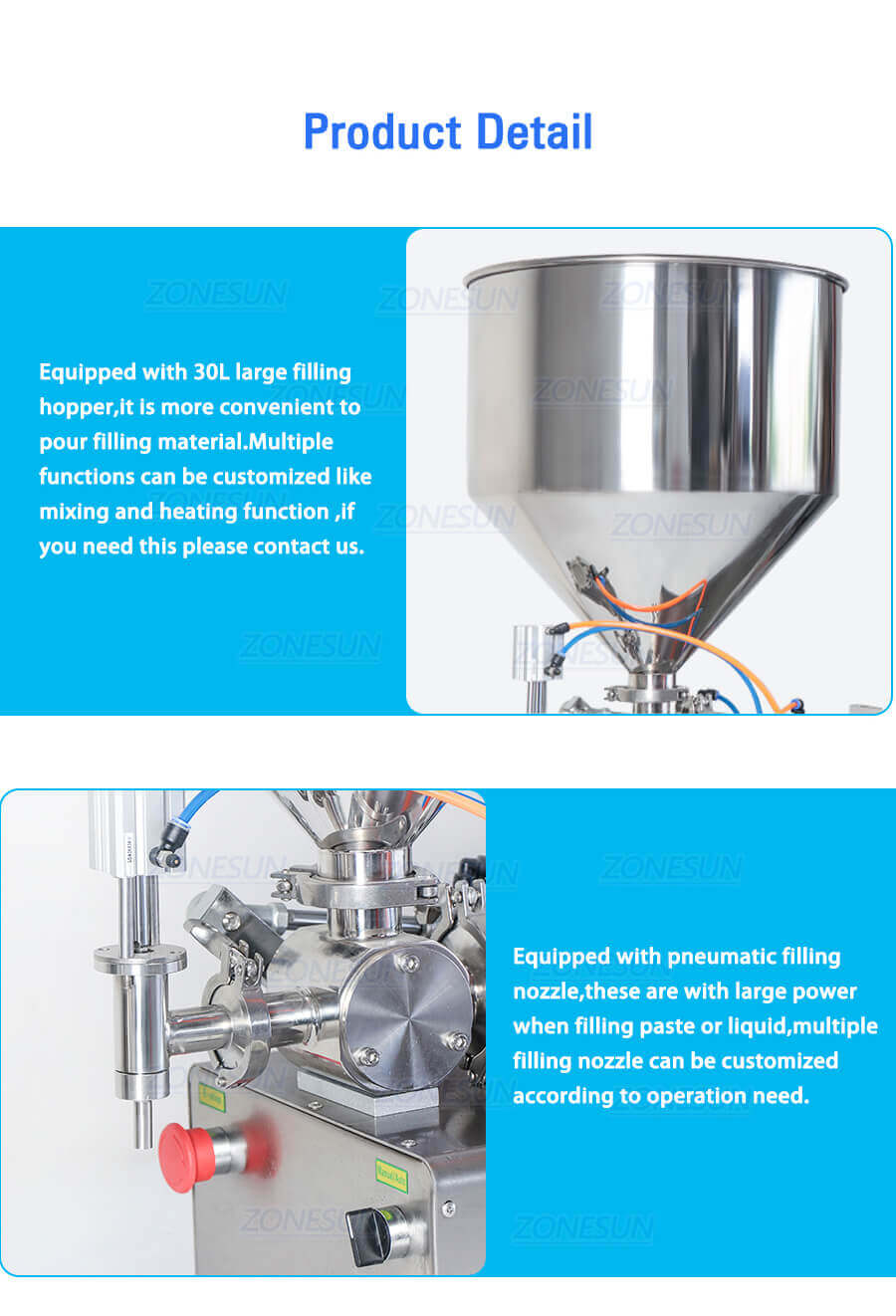

| Hopper Capacity | 30L |

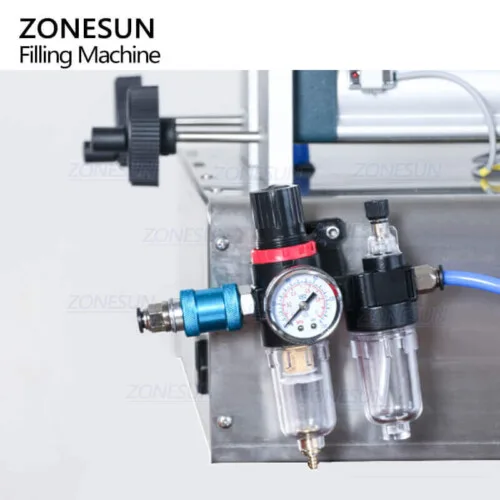

| Air Pressure | 0.4-0.9Mpa |

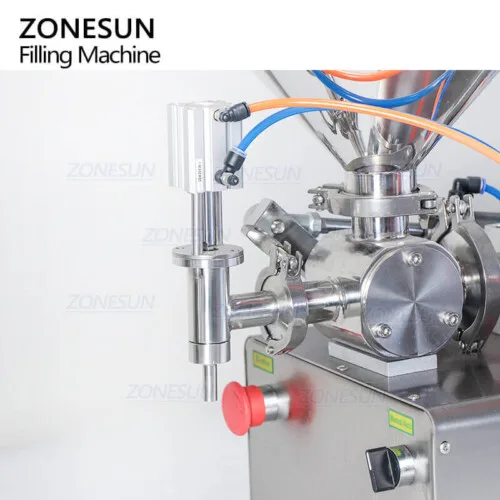

| Filling Nozzle Size | OD 10mm |

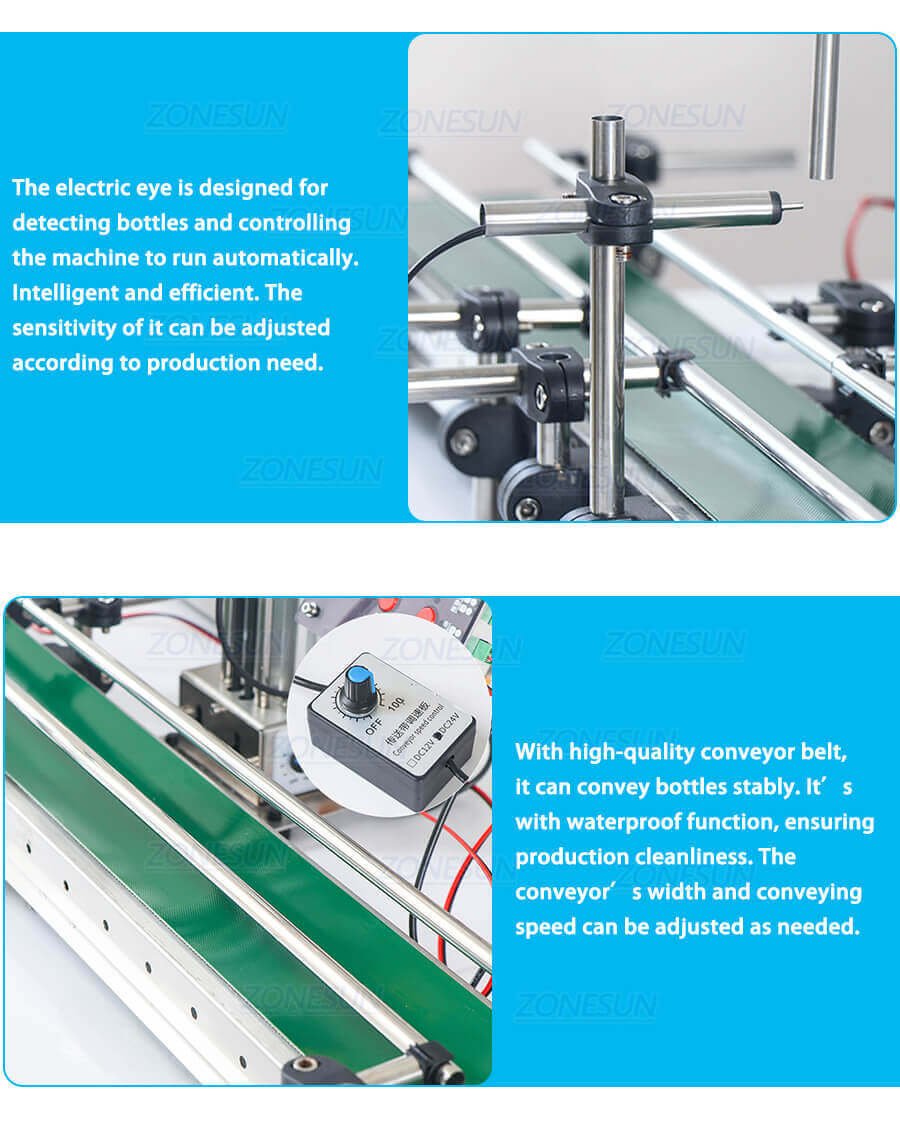

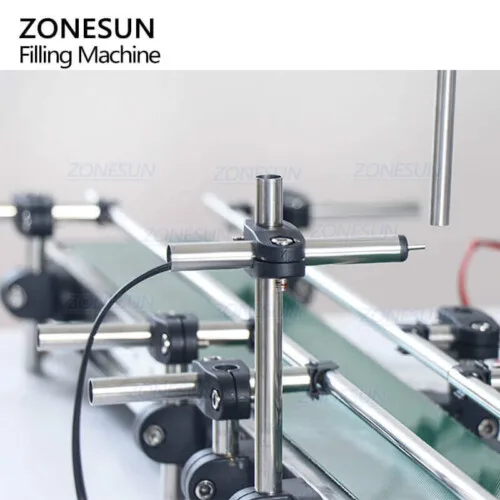

| Conveyor Size | 1200mm(L)*100mm(W) |
| Conveyor Loading Capacity | Max 6kg |

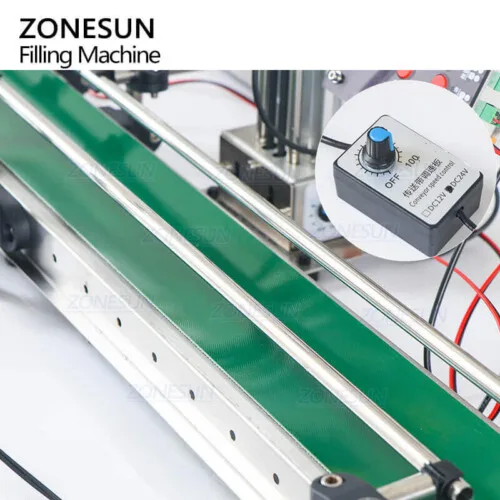

| Conveying Speed | Adjustable |
