Horizontal Liquid Filling Machine

Horizontal Liquid Filling Machine

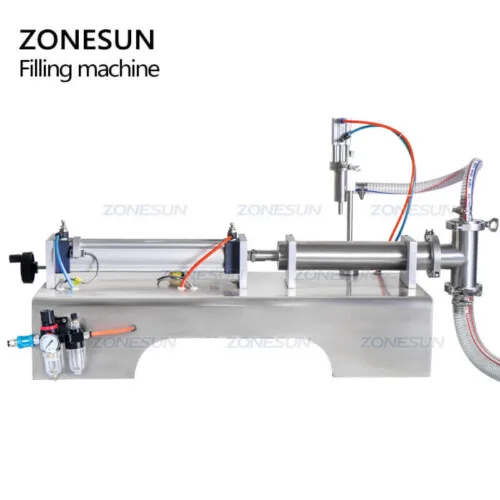

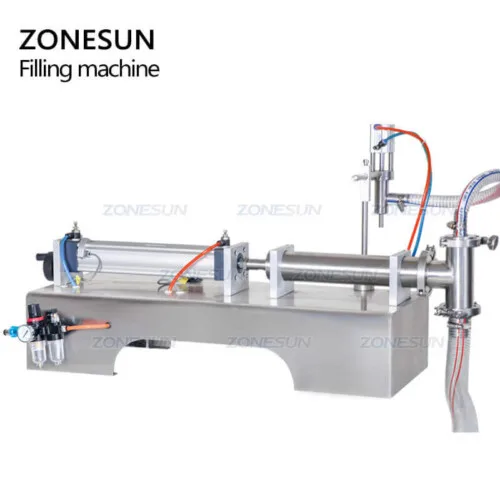

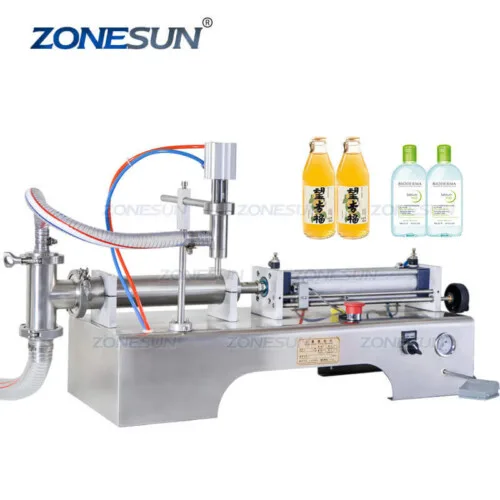

Piston pump filling machine is work with air compressor,it has larger power which makes it suitable for filling shampoo,engine oil,laundry detergent.The filling speed and filling range can be controlled.We can customize the machine and make it with mixing or heating function.It is widely used in beverage,cosmetics and daily chemical industries.

Product Detail

Product Tags

Horizontal Liquid Filling Machine-ZONESUN TECHNOLOGY LIMITED

Description:

Piston pump filling machine is work with air compressor,it has larger power which makes it suitable for filling shampoo,engine oil,laundry detergent.The filling speed and filling range can be controlled.We can customize the machine and make it with mixing or heating function.It is widely used in beverage,cosmetics and daily chemical industries.

Horizontal Liquid Filling Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

Model
ZS-YT1
Voltage
220V/50Hz or 110V/60Hz (Optional)
Power
10W
Flling Speed
About 1-25 bottle/min
Flling Range
10-100ml/10-200ml/30-300ml/50-500ml/100-1000ml/500-2500ml/1000-5000ml
Accuracy
≤±1%
Air Prassure
0.4-0.6Mpa
Air Consumption
≥1m³/min

Horizontal Liquid Filling Machine-ZONESUN TECHNOLOGY LIMITEDHorizontal Liquid Filling Machine-ZONESUN TECHNOLOGY LIMITEDHorizontal Liquid Filling Machine-ZONESUN TECHNOLOGY LIMITED
