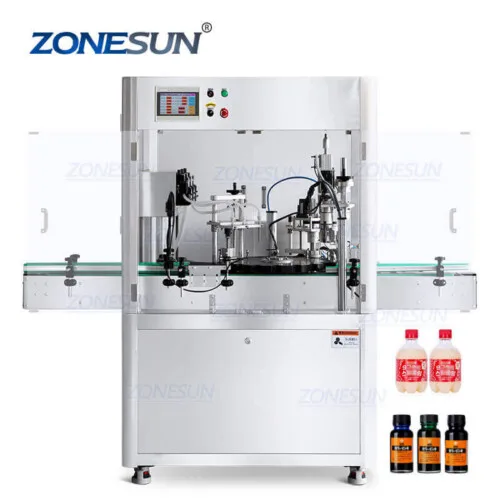

High Speed Filling And Capping Machine

High Speed Filling And Capping Machine

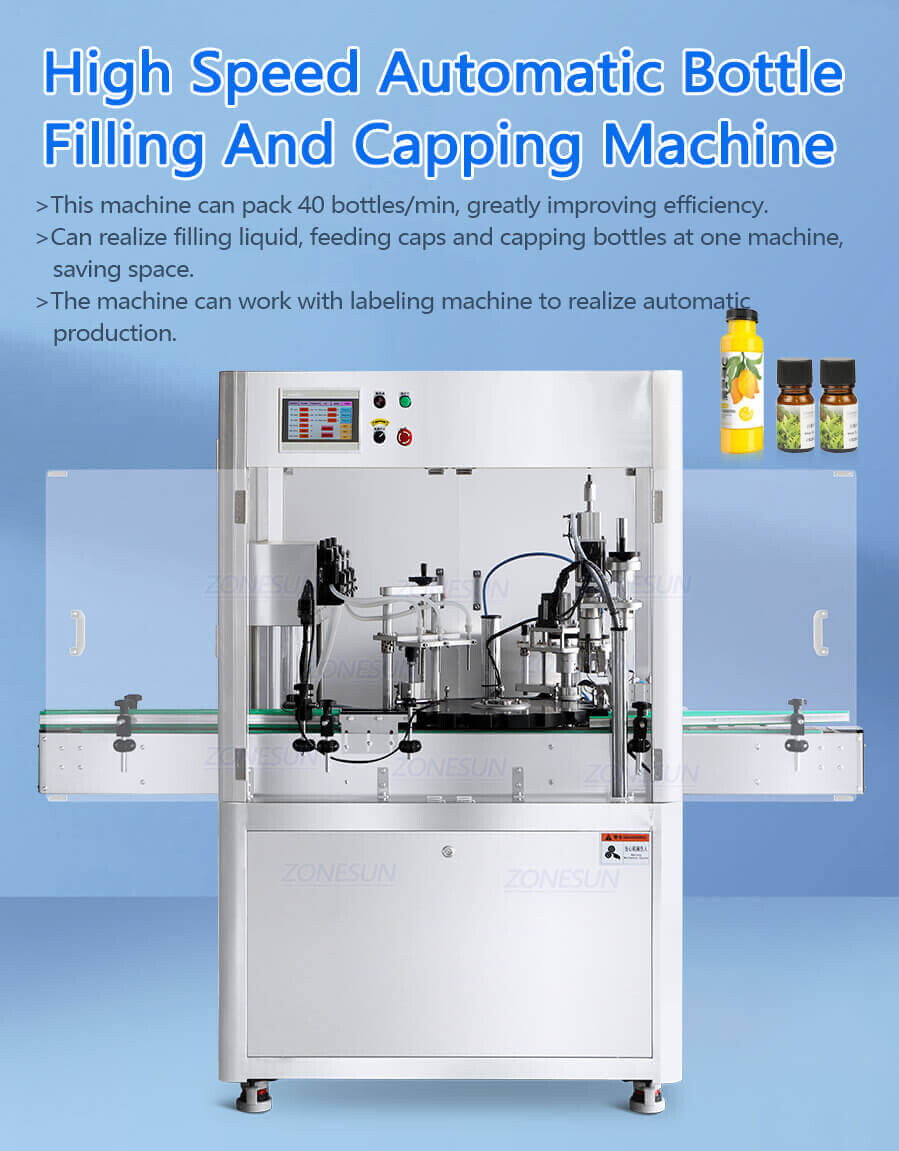

>This machine can pack 40 bottles/min,greatly improving efficiency.
>Can realize filling liquid,feeding caps and capping bottles at one machine,saving space.
>The machine can work with labeling machine to realize automatic production.

Machine Video Click Here:

Product Detail

Product Tags

High Speed Filling And Capping Machine-ZONESUN TECHNOLOGY LIMITED

Description:
>This machine can pack 40 bottles/min,greatly improving efficiency.
>Can realize filling liquid,feeding caps and capping bottles at one machine,saving space.
>The machine can work with labeling machine to realize automatic production.

High Speed Filling And Capping Machine-ZONESUN TECHNOLOGY LIMITED

Machine ModelZS-AFC28
Voltage220V/110V 50-60Hz
PowerAbout 3kW
Production SpeedAbout 40 bottles/min

(depending on bottle size and filling materials)

Filling Range10-100ml (Can be customized)
Filling PumpPeristaltic Pump
Max Flow Rate6L/min(based on water)
Suitable Bottle SizeCan be customized
Bottle Cap SizeCan be customized
Air Pressure0.5-0.7MPa
Machine SizeAbout 2050*1800*1500mm
Packagine Size
About2080*1000*1960mm(Filling Machine)

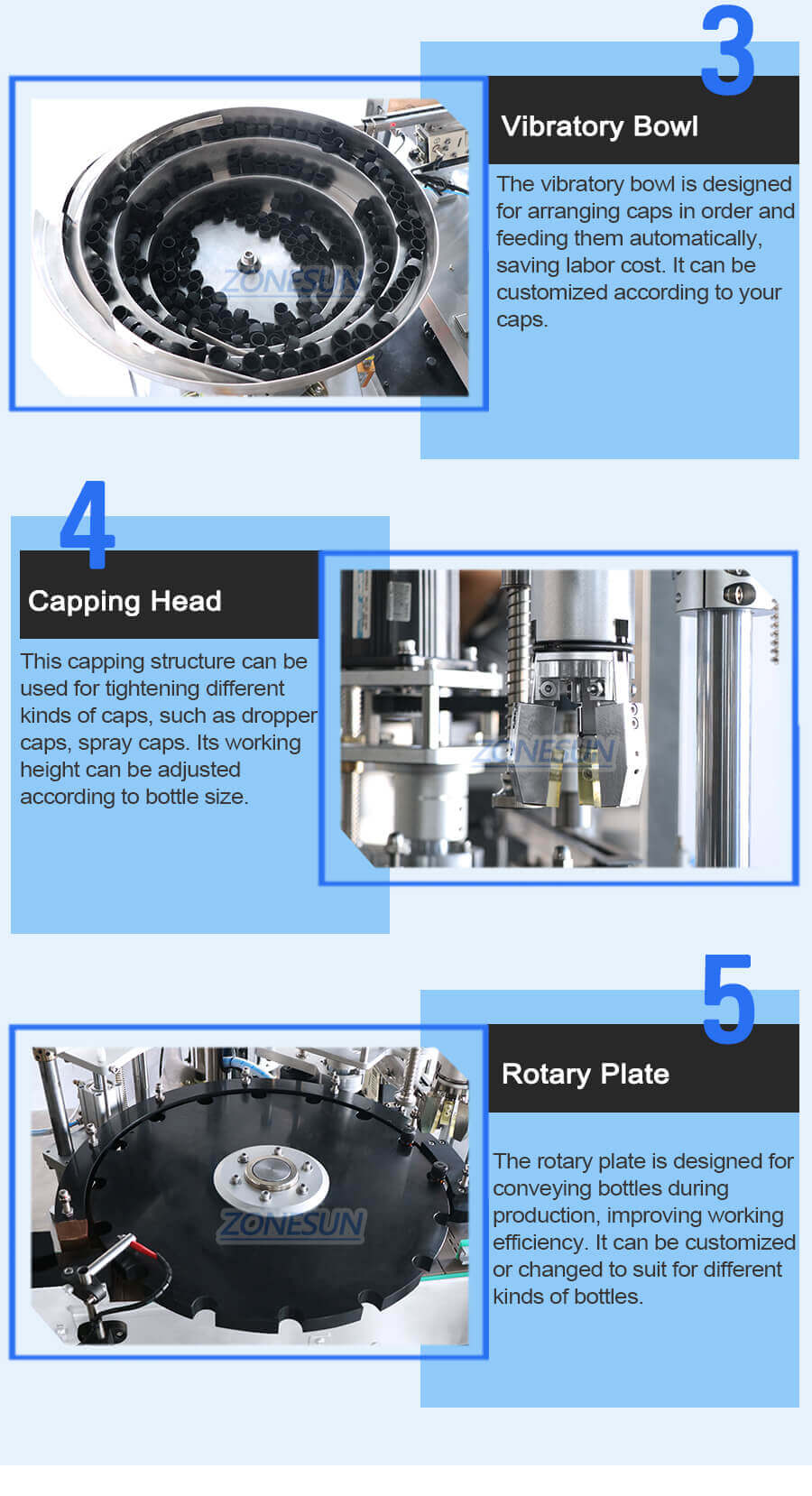

About 1020*610*580mm(Vibratory Bowl)
Packagine WeightAbout 725kg(Filling Machine)
About 78kg(Vibratory Bowl)
