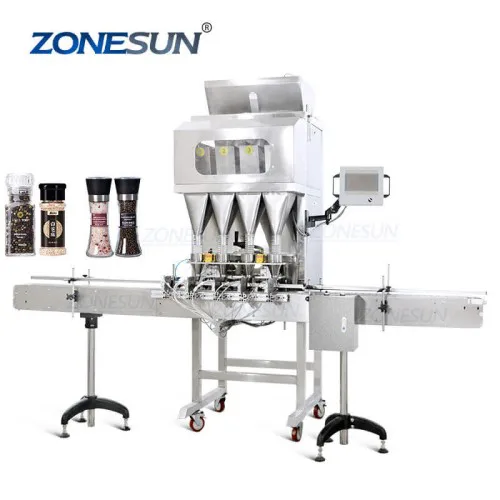

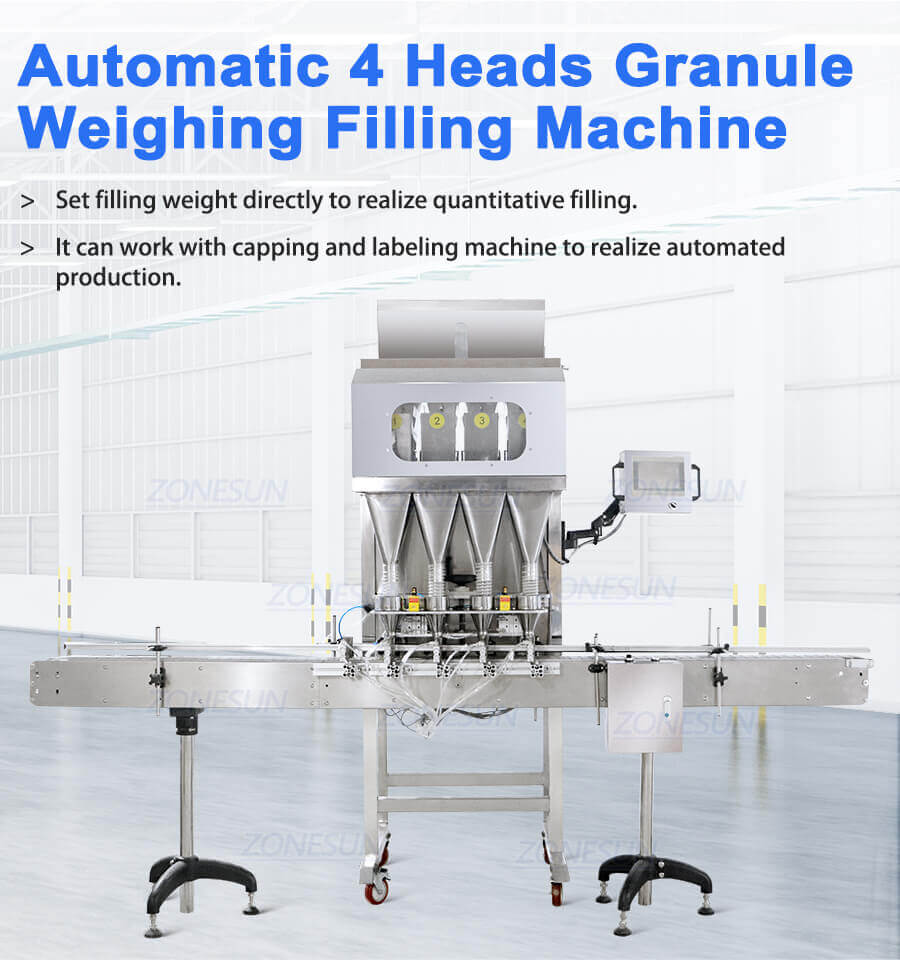

Granule Weighing Filling Machine
This automatic granule filling machine can control filling volume by setting filling weight,it can pack granular with high density and nonviscous,and good for industries such as food,daily chemicals,and agriculture.
Price range: $5,619.00 through $6,599.00
Share to
Thisautomaticgranulefillingmachinecancontrolfillingvolumebysettingfillingweight,itcanpackgranularwithhighdensityandnonviscous,andgoodforindustriessuchasfood,dailychemicals,andagriculture.
| Machine Model | ZS-GW4 |
| Voltage | 220V 50-60Hz |
| Power | About 3kW |
| Working Speed | About 20-30 bottles/min
(depending on bottle size and filling material) |
| Weighing Range | 20-100g per bottle |
| Weighing Error | ±1% |
| Air Pressure | 0.4-0.6MPa |
| Package Size | About 1980*980*2010mm/ About 78.0*38.6*79.1 inch |
| Package Weight | About 360KG |

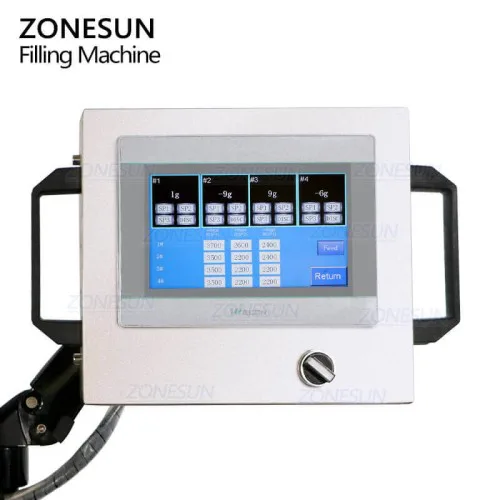

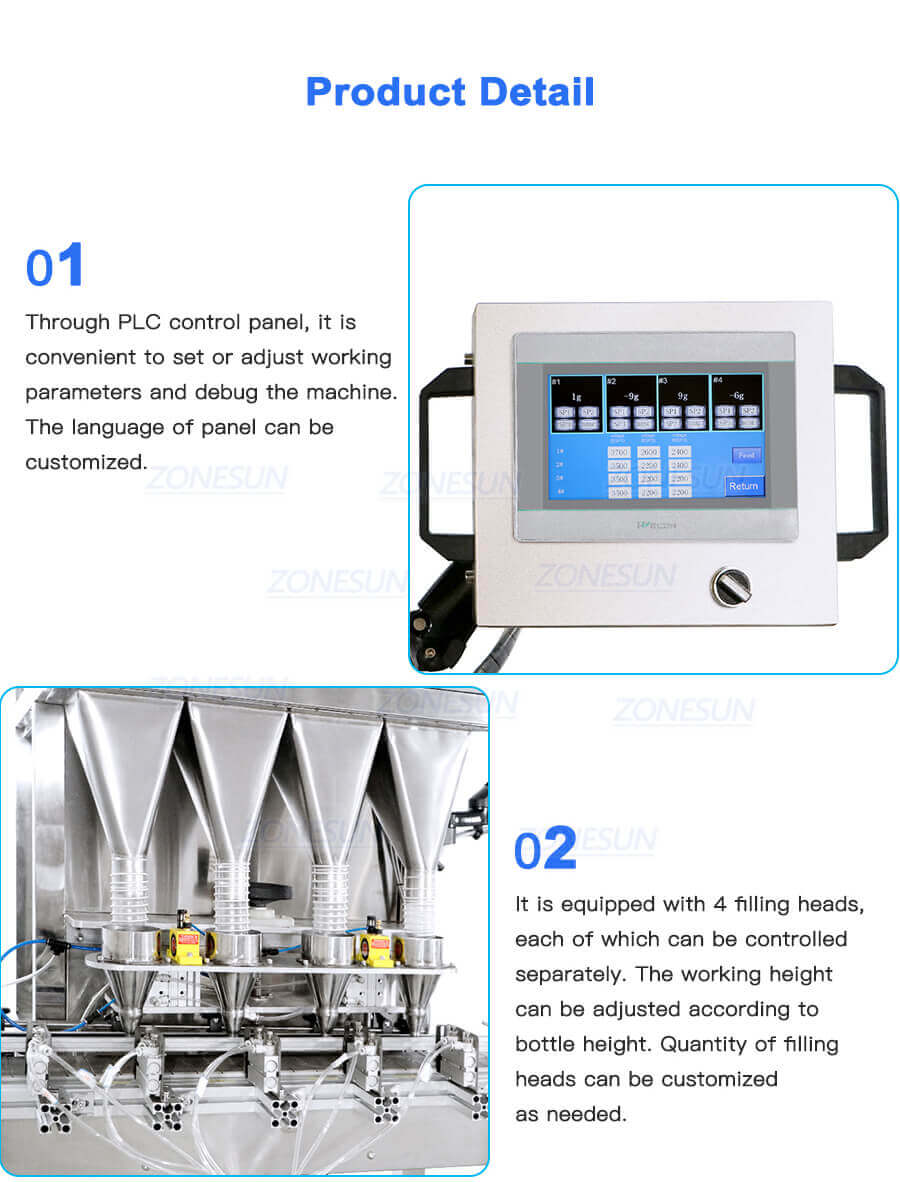

Touchscreen Panel
The touchscreen panel allows for direct adjustment of working parameters such as filling weight. Customization of multiple languages is also available.
4 Filling Heads
The four filling heads can be operated independently. We can customize the number of filling heads as per your requirements.

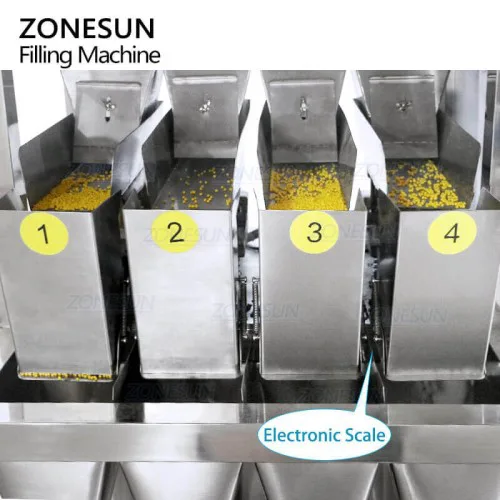

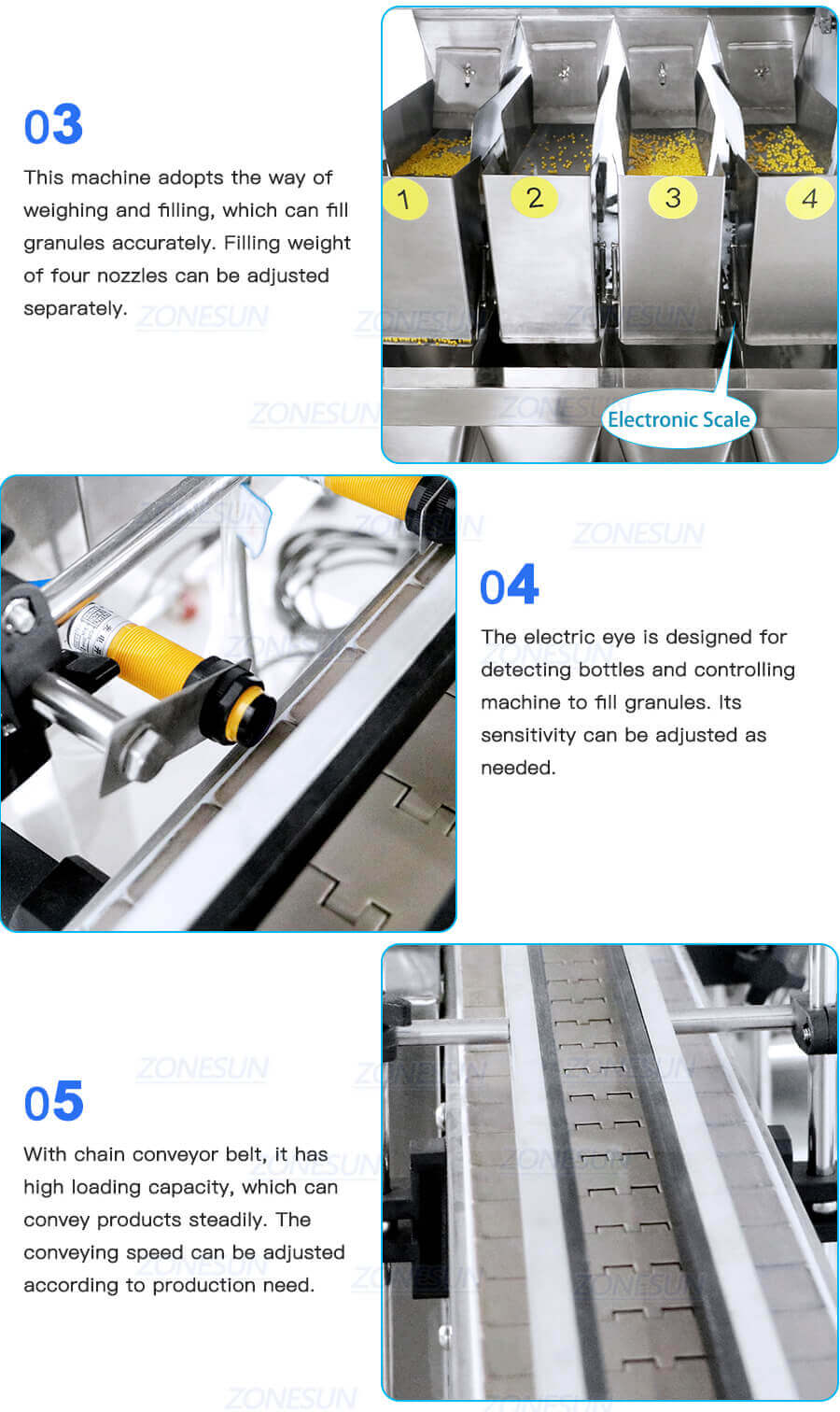

Weighing Scales
This machine utilizes a weighing and filling method, ensuring the accurate and quantitative filling of granules.

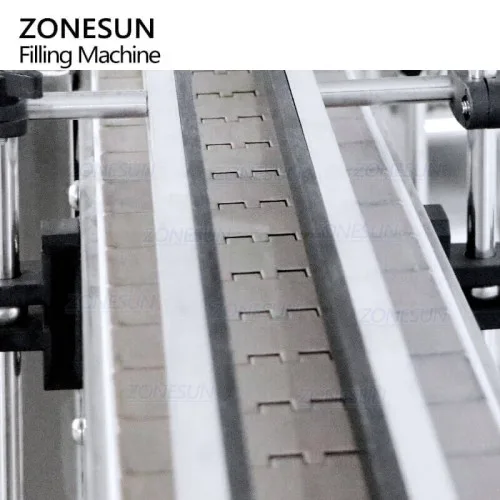

Conveyor Belt
Chain conveyor belt has high loading capacity. The width and length of conveyor can be customized.
