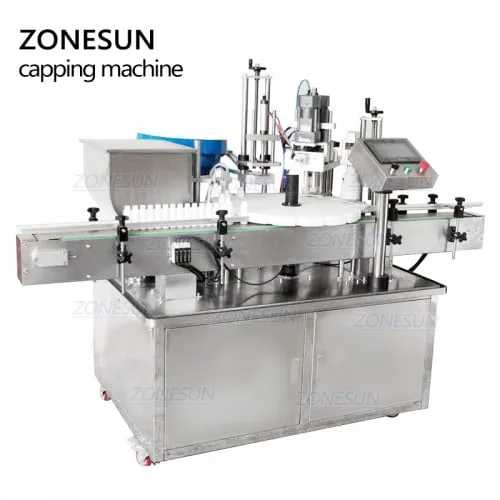

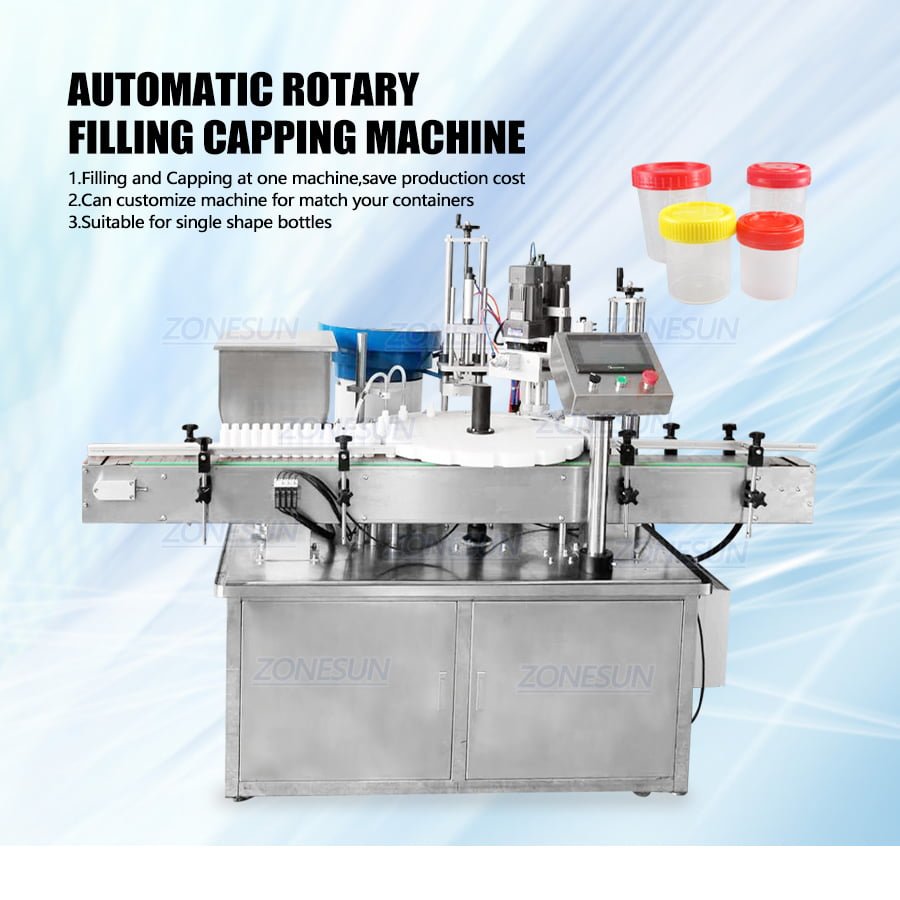

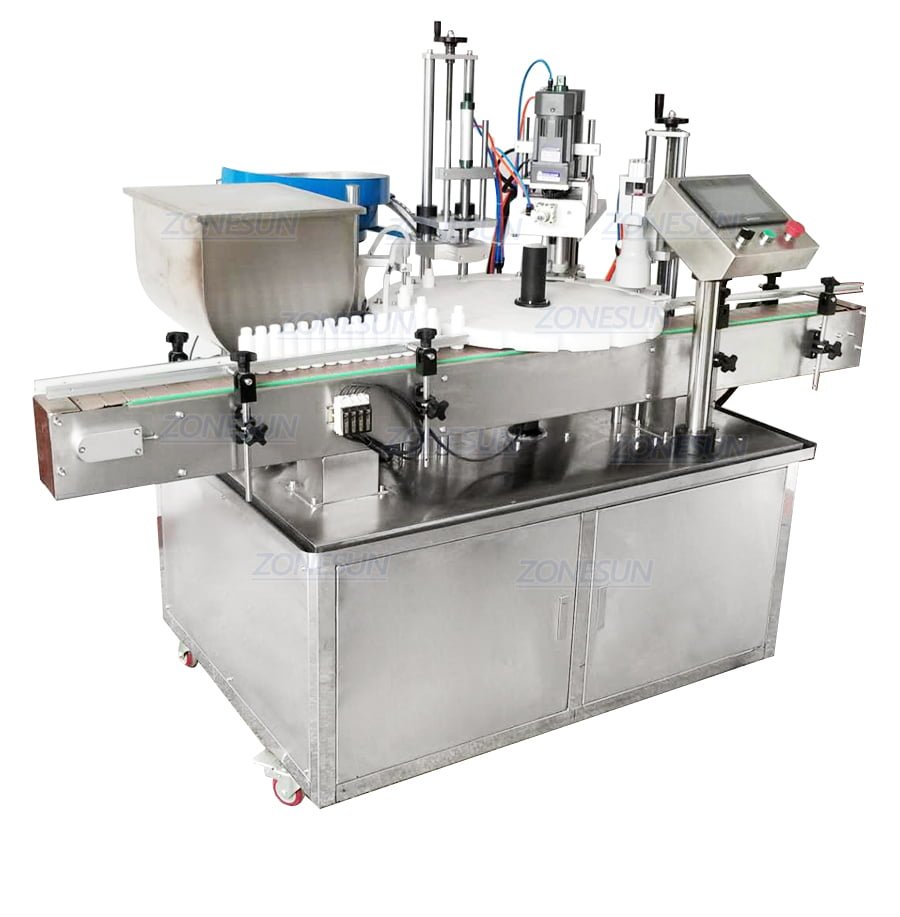

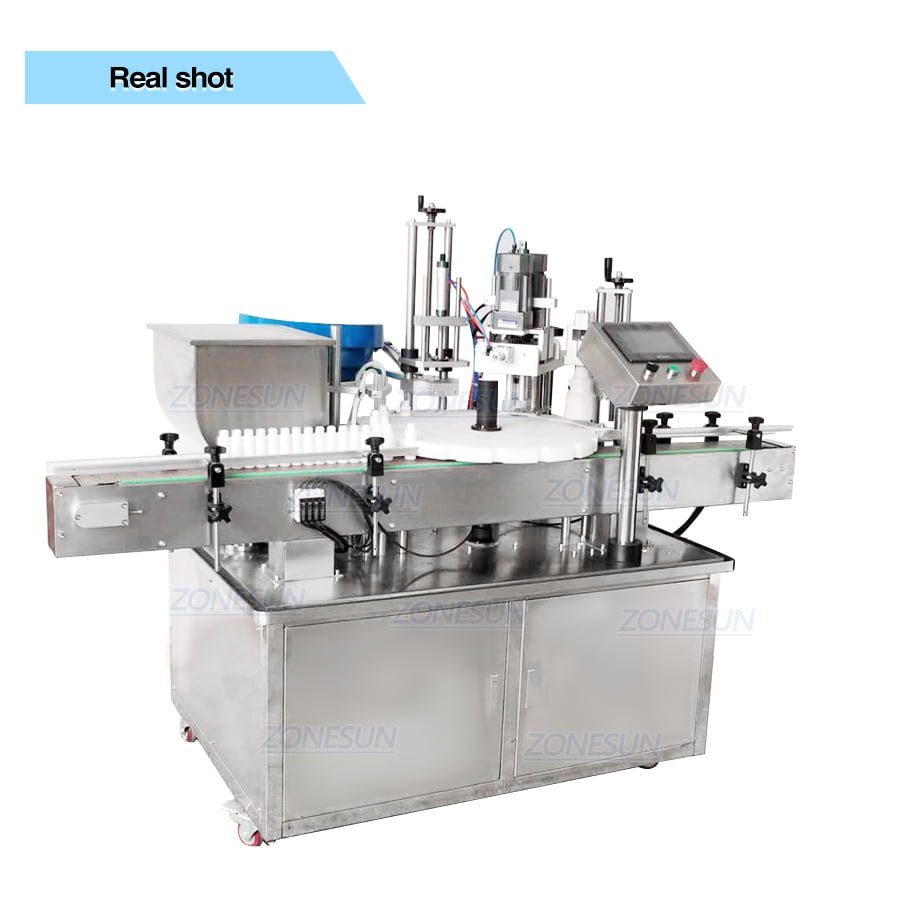

ZONESUN Full Automatic Rotary Bottle Filling Capping Machine

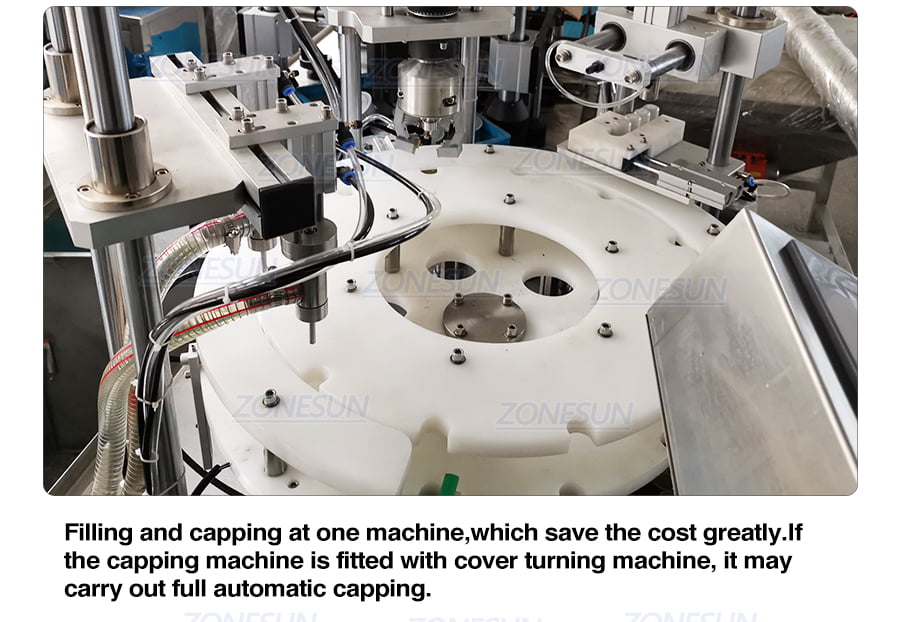

This machine is suitable for filling and capping single shape bottles. Compared with semi automatic and manual capping machine, it is in the higher producing speed, and can match with other automatic machine to form a whole production line.
Description:
This machine is suitable for filling and capping single shape bottles. Compared with semi automatic and manual capping machine, it is in the higher producing speed, and can match with other automatic machine to form a whole production line.
Application:

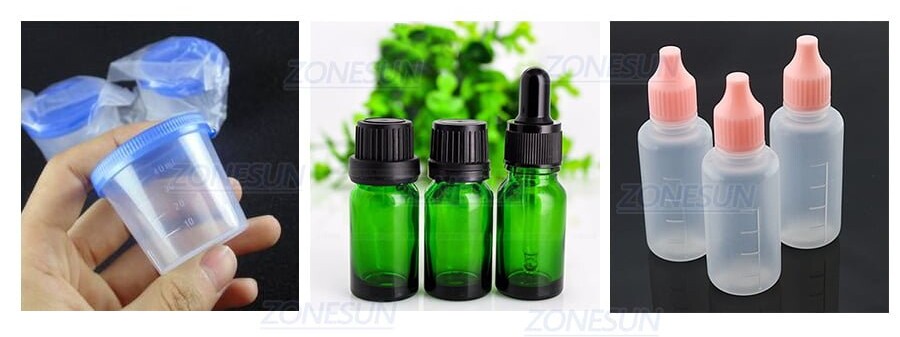

The automatic capping machine is suitable for various shapes of bottles in the industrials of food,daily chemical,cosmetics etc.
| Bottle height | 50-350mm |

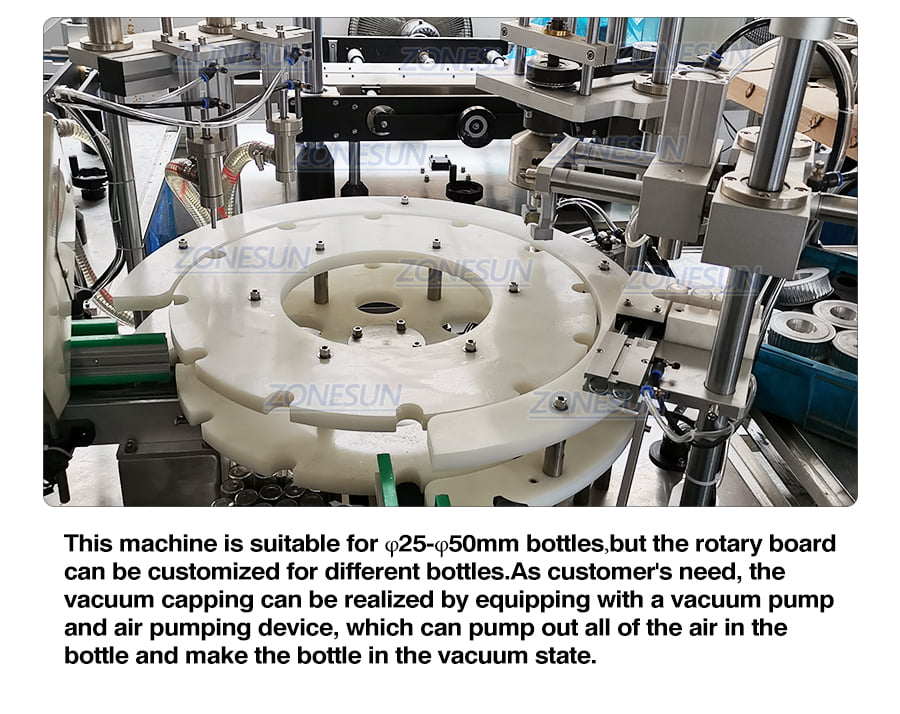

| Bottle diameter | 25-50mm(Can Customize) |
| Working speed | 0-40 bottles/min.(depending on bottle and caps) |
| Working voltage | AC220V/110V 50-60HZ |
| Max Power | 300W |
| Air Pressure | 0.4-0.6MPa |
| Capping Torsion | 4-9kgf/cm |
| Packing size | About 1900*470*1240mm |
FAQ:
Q:Is there any limitation of bottles?
A:Yes,the bottle height should be in 30-350mm.
Q:Can I use this machine for filling and capping different kinds of bottles?
A:No,this machine only can be used for one shape of bottles.But machine can be customized according to your bottle size.
Q:Is there any limitation of bottle caps?
A:The normal cap size is dia 25-50mm.but we can customize the machine as customers’ need.
