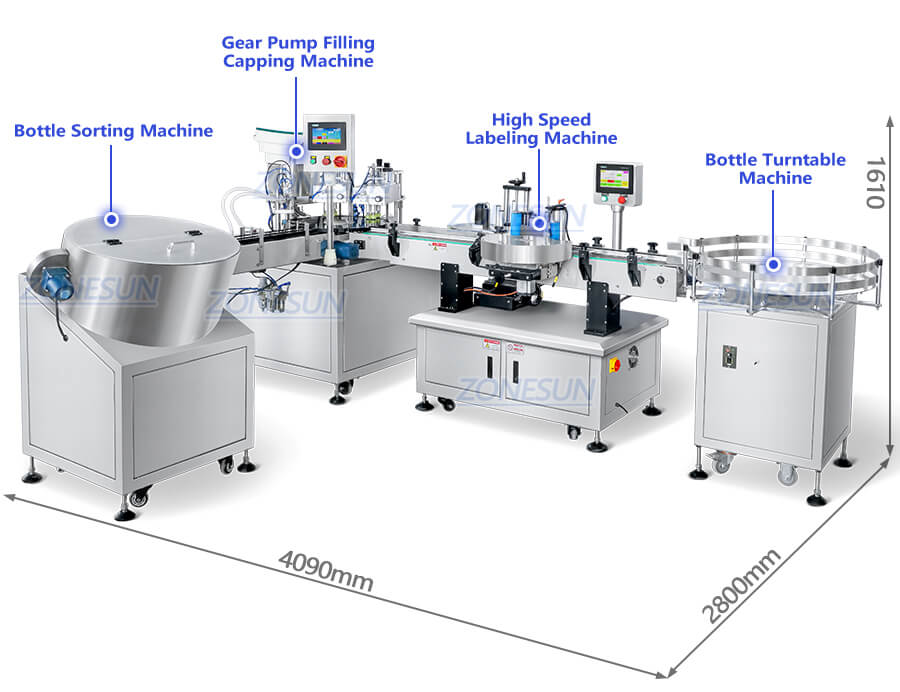

Product Description:
This filling production line can sort bottles, dispense liquid into small bottles, tighten bottle caps and label self-adhesive stickers onto bottles, it is suitable for packaging liquid pigment, ink, massage oil, solvent etc.

Product Parameters:

Bottle Sorting Machine

Machine model	ZS-LP750
Machine voltage	110/220V 50-60HZ
Machine power	< 500W
Rotary plate diameter	755mm
Suitable bottle diameter	Customized according to your bottles
Working speed	20-80 bottles/min
Machine size	About 570*685*1325mm
Machine weight	About 177kg
Package size	About 1110*1080*1490mm
Package weight	About 208kg

Gear Pump Filling Capping Machine

Machine model	ZS-AFC40
Machine voltage	110/220V 50-60HZ 4KW
Cover size	Customized
Bottle size	Customized
Filling capacity	20ml (based on syrup)
Filling pump	Double heads servo gear pump
Filling accuracy	About ±1%
Machine contact part material	SUS304 & food grade plastic
Production efficiency	2700-3000BPH(based on filling volume and filling material)
Working air pressure	0.6-0.8MPa

High Speed Labeling Machine

Machine model	ZS-TB700
Power supply	AC220V 50H-60HZ 2000W
Labeling capacity(bottles/min)	60-100 bottles/min(depends on bottle size)
Labeling accuracy(mm)	±1.0mm
Suitable Bottle Diameter	Φ30-100mm H 30-120mm
Label size(mm)	(L)20-300mm (H)15-130mm(Can be customized)
Roll inside diameter(mm)	Φ76mm
Roll outside diameter(mm)	Φ350mm
Conveyor Size	112*2000mm(W) (Can be customized)
Machine size	About 2100*1230*1380mm(L*W*H)
Machine weight	About 200kg
Package size	About 2060*1070*1550mm(L*W*H)
Package weight	About 304kg

Bottle Turntable Machine

Machine model	ZS-SP800S
Bottle specifications	Square bottle/round bottle
Conveying speed	0-20 revolutions per minute(adjustable)
Voltage	220V 50Hz (110V can be customized)
Power supply	200W
Turntable diameter	800 mm Available
Dimensions	About 550*550*990mm
Package size	About 1050*1000*1130mm
Net weight/Gross weight	About 93kg/120kg

Product Details:

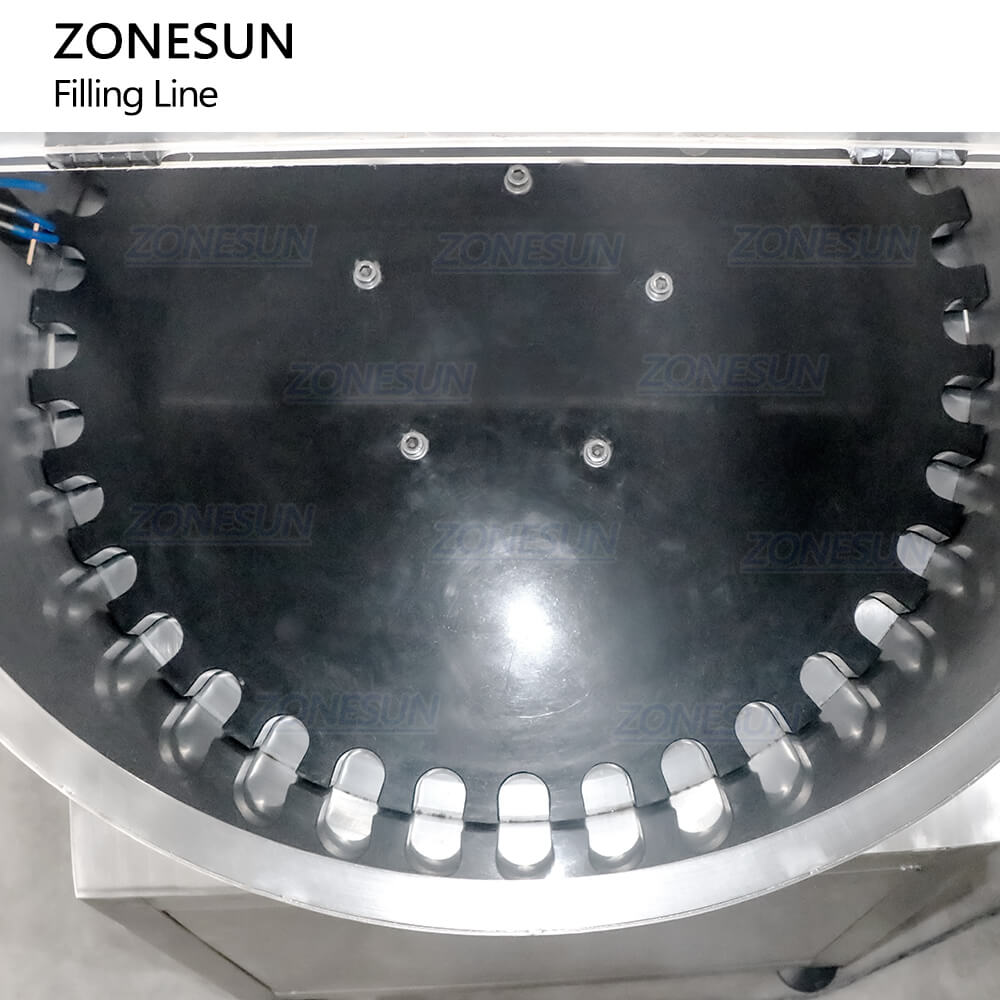

Bottle Sorter
Suits plastic bottles, it can be customized according to bottle size.

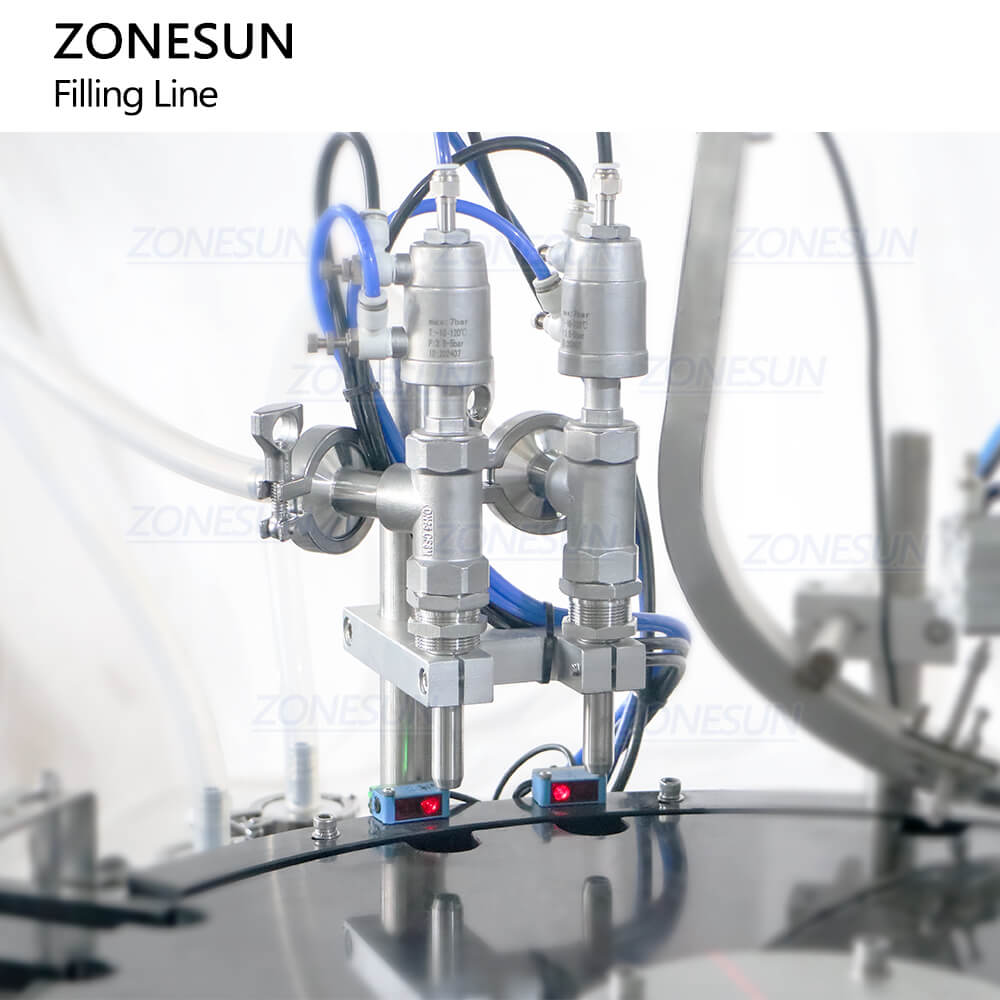

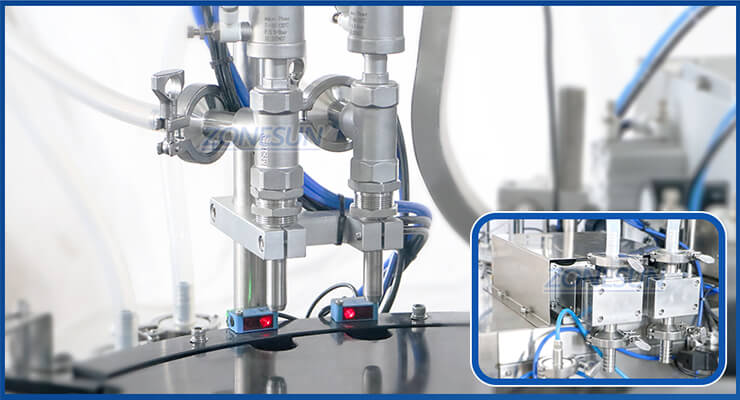

Filling Structure
Filling work is controlled by servo gear pump, anti-dripping filling nozzles can prevent liquid from spraying out.

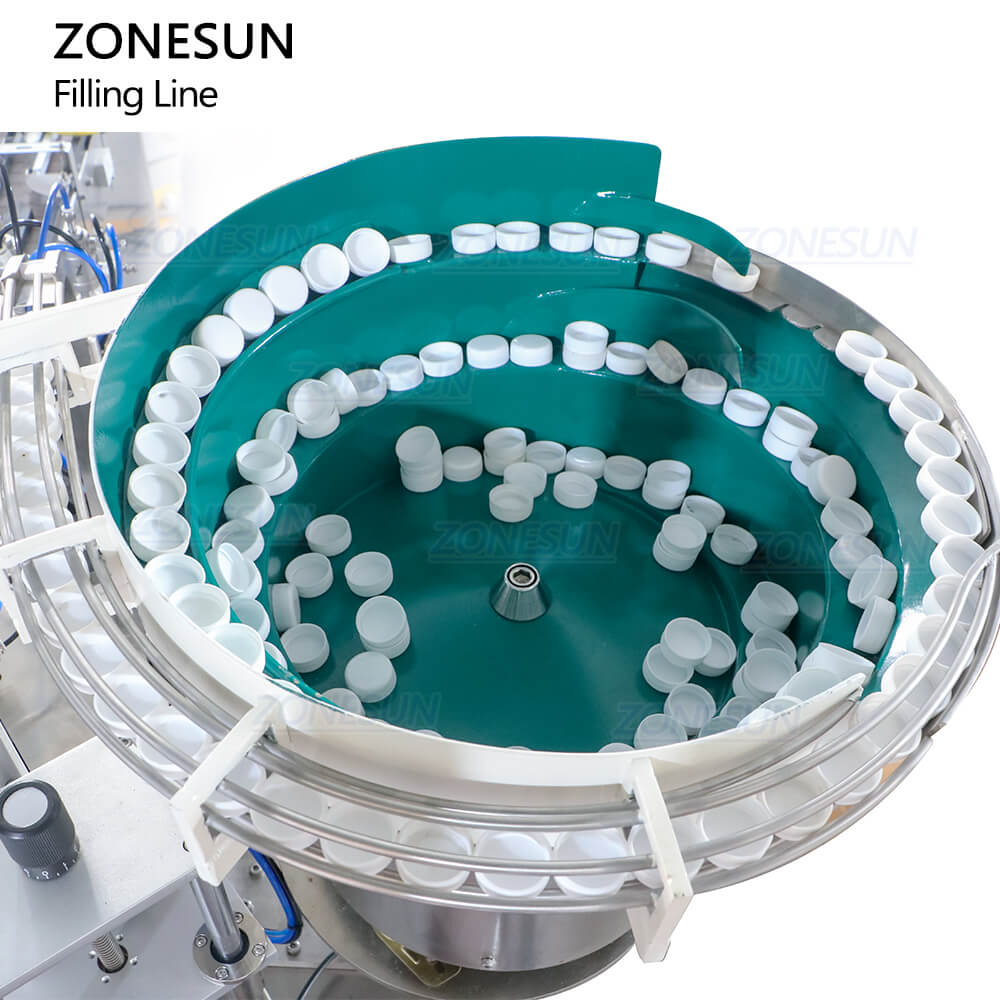

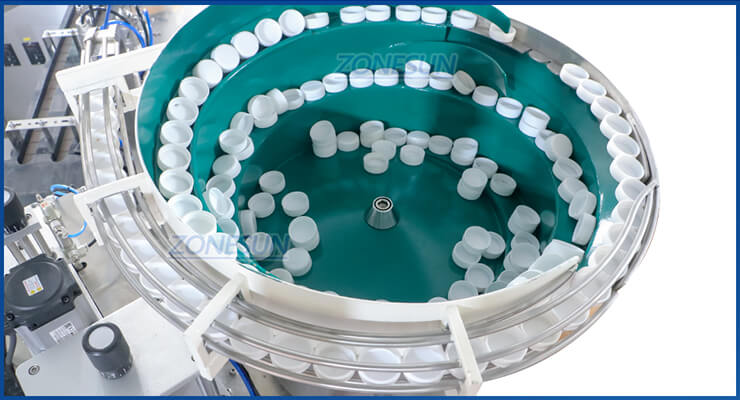

Vibratory Bowl Sorter
Vibratory bowl sorting machine is used to feed caps orderly to save working labor, it is customized based on cap size.

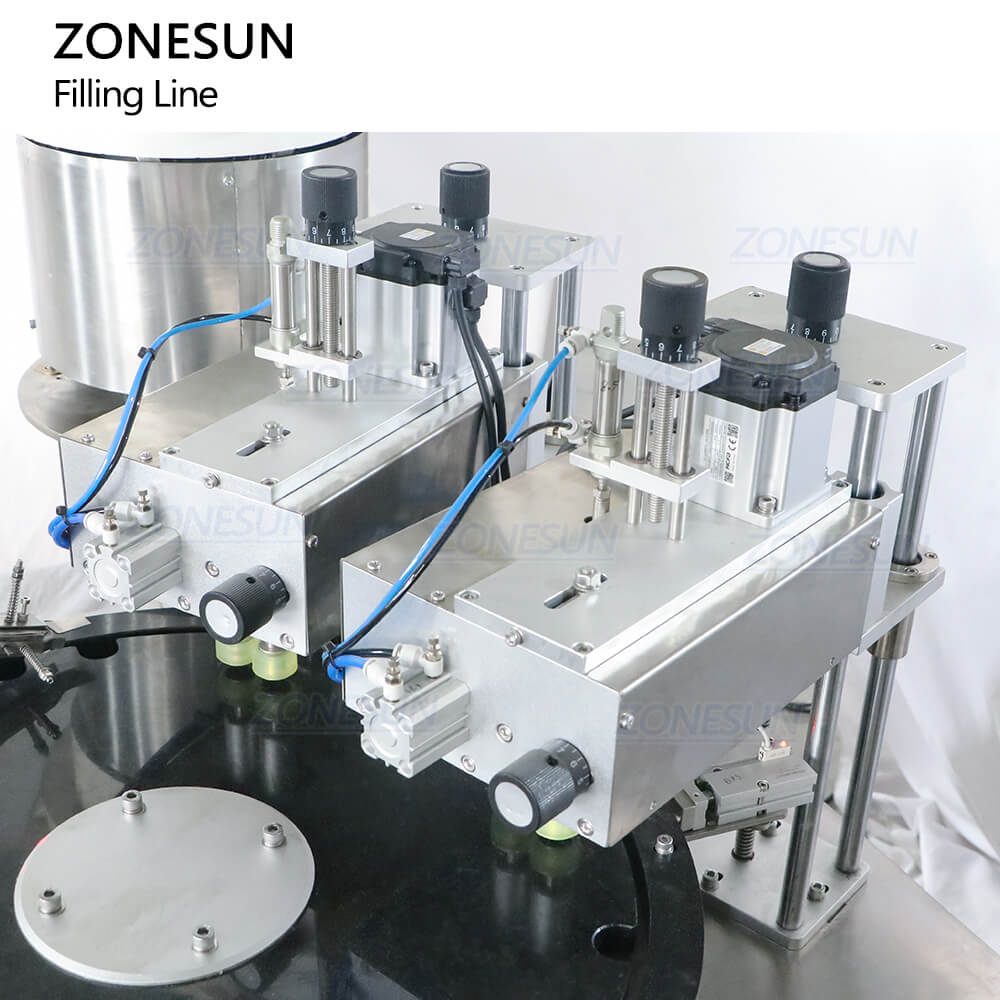

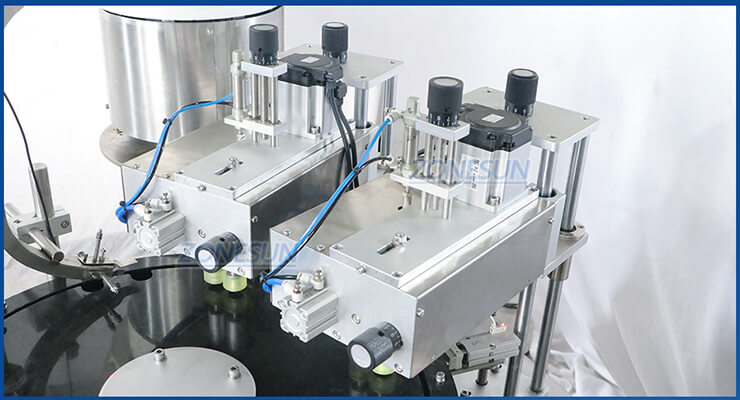

Capping Structure
Capping work is controlled by servo motor, capping torsion can be adjusted easily.It suits screw-on caps.

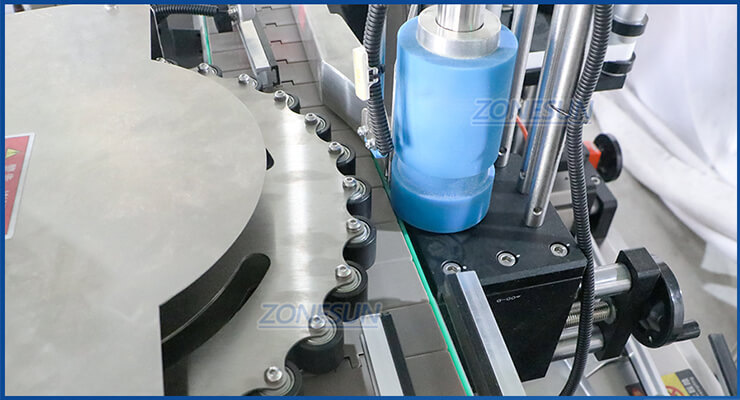

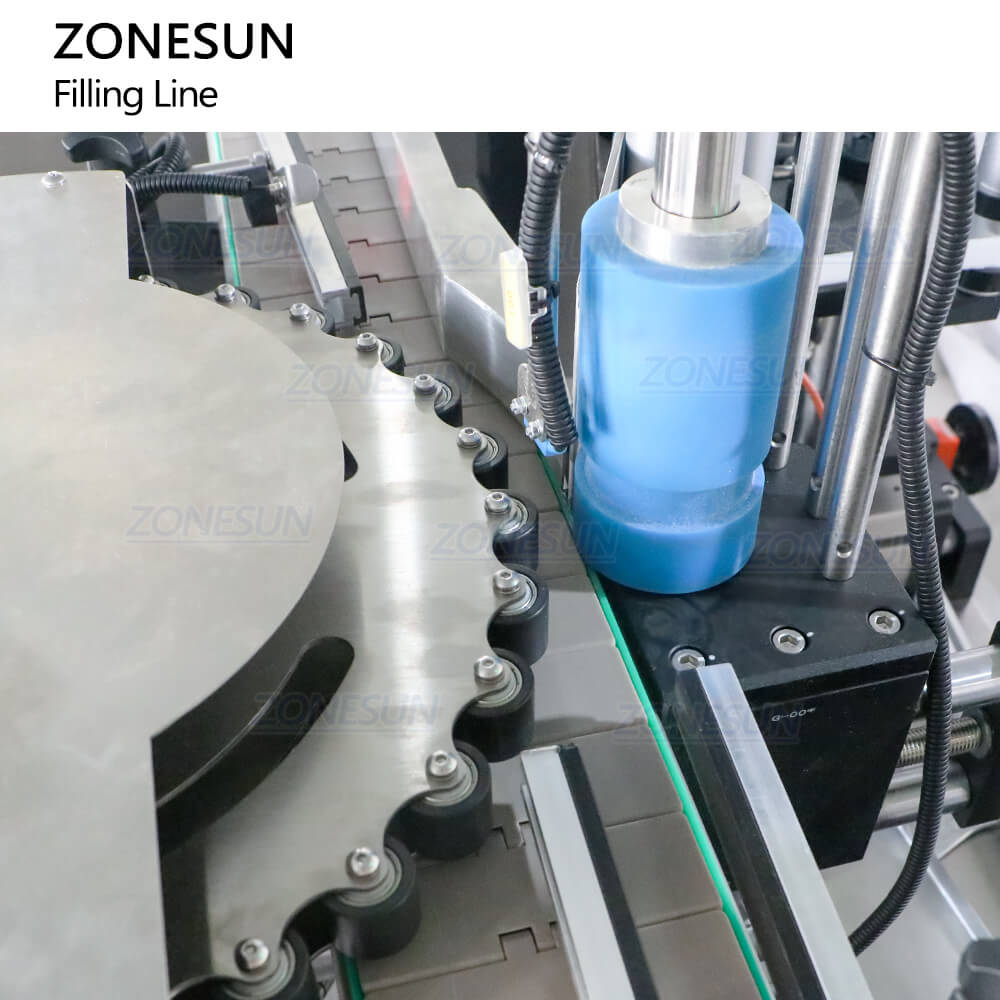

Customized Labeling Structure
Using starwheel to replace the bottle baffle to separate bottles,it has higher working capacity(60-100BPM).
