Filling Machine With Mixing Tank

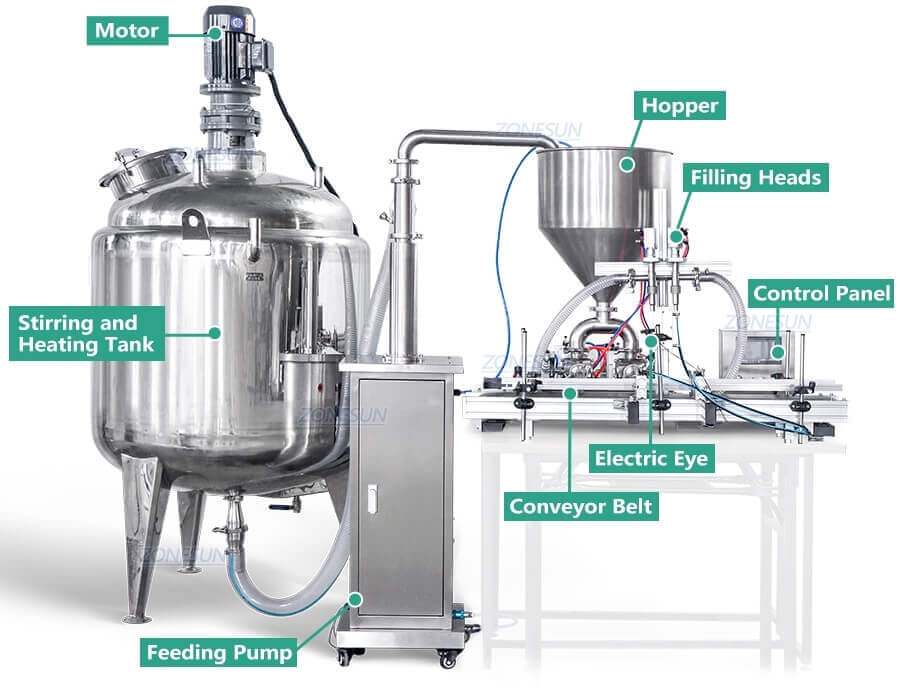

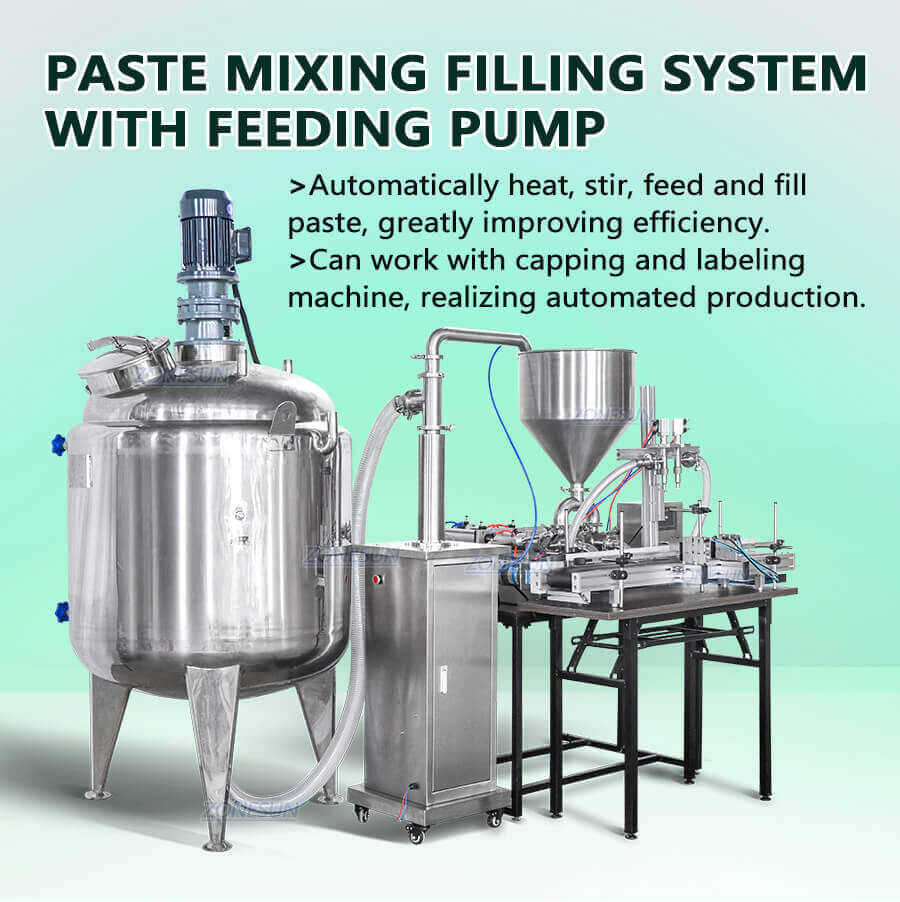

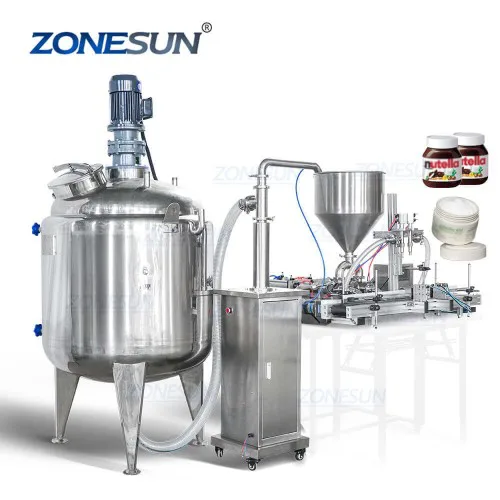

This filling system is consist of mixing tank,feeding pump and filling machine.The mixing tank can be customized with heating,mixing and emulsifying function.The feeding pump can transport filling material in closed environment.And the filling machine can be customized with multiple filling nozzles.This filling system is suitable for packaging face cream,lotion,shampoo etc.
Description:
This filling system is consist of mixing tank,feeding pump and filling machine.The mixing tank can be customized with heating,mixing and emulsifying function.The feeding pump can transport filling material in closed environment.And the filling machine can be customized with multiple filling nozzles.This filling system is suitable for packaging face cream,lotion,shampoo etc.

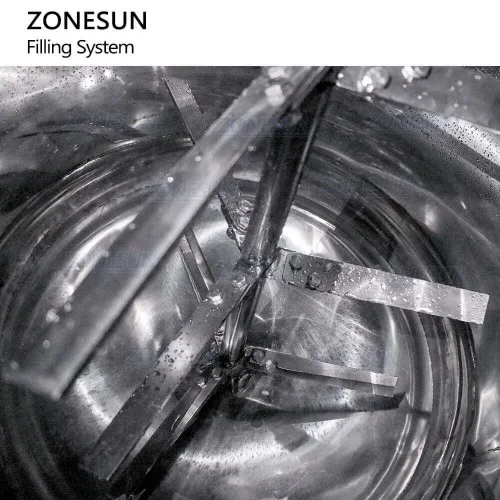

Mixing&Heating Tank:
| Machine Model | ZS-MB400LH |
| Voltage | 220V 50-60Hz |
| Tank Capacity | 400L(Can be customized) |
| Tank Size | Diameter: 800mm, H: 1000mm |
| Stirring Motor | 1.1kW |
| Rotating Speed | 40r/min |
| Heating Power | 12kW |
| Machine Material | 304 Stainless Steel |
| Package Size | About 1300*1100*2160mm |
| Gross Weight | About 403kg |

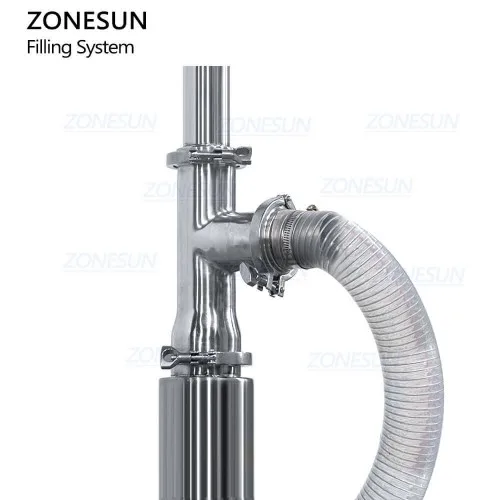

Feeding Pump:
| Machine model | ZS-FP1 |
| Contact part | SUS304&PVC pipe |
| Pneumatic part | AIRTAC |
| Cover | SUS304 |
| Height | 1800mm |
| Hose length | 1.5m |
| Transfer speed | 1L/time |
| Machine size | About 500*500*1800mm |

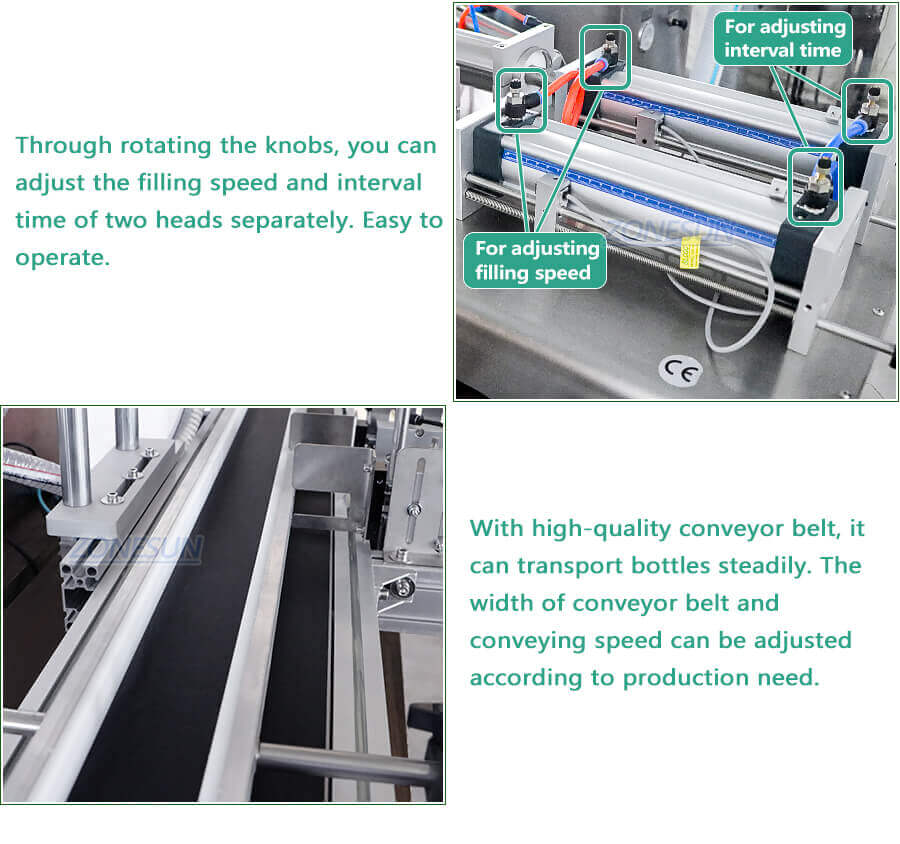

Filling Machine:
| Machine Model | ZS-DTGT2 |
| Voltage | 220V/110V 50-60Hz |
| Power | 130W |
| Filling Range | 10-100/10-200/30-300/50-500/100-1000/50-2500/1000-5000ml |
| Filling Speed | About 800-900bottles/h(based on 300ml ketchup) |
| Applicable Bottle Diameter | About 53-100mm |
| Filling Accuracy | ≤±1% |

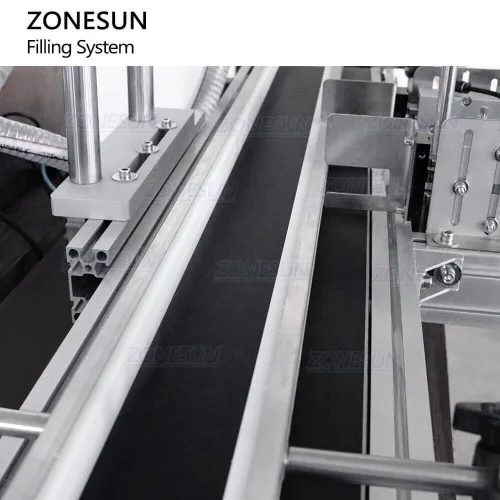

| ConveyorBeltSize | 1020*140mm(L*W) |
| MachineSize | About 1020*1160*870mm(L*W*H) |
