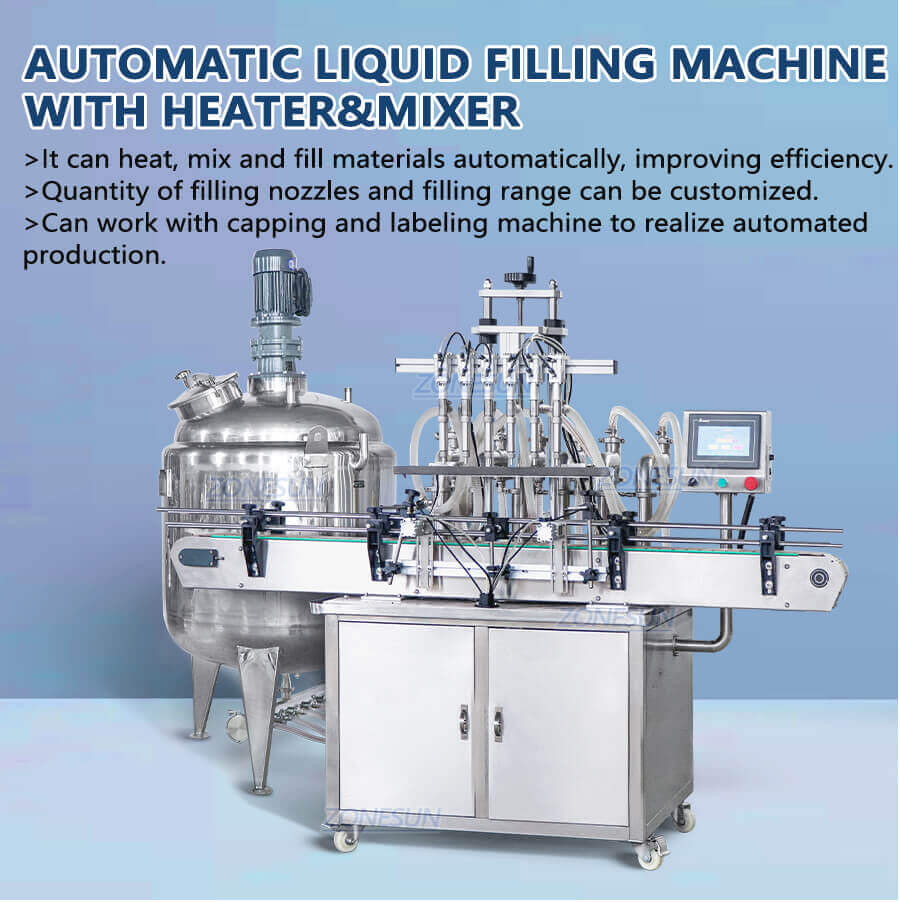

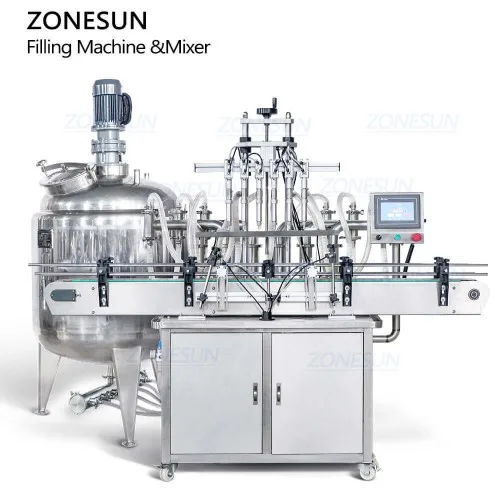

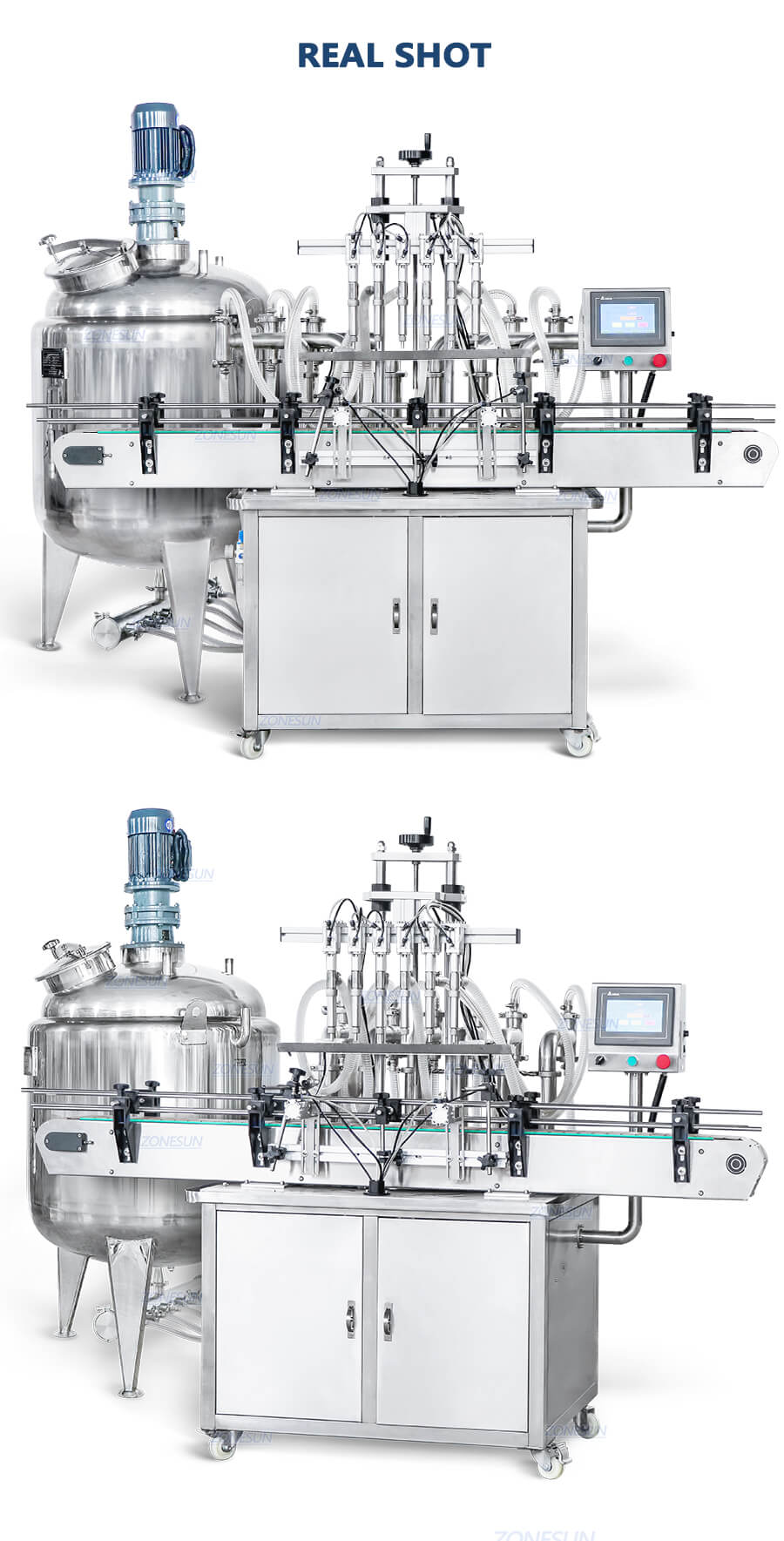

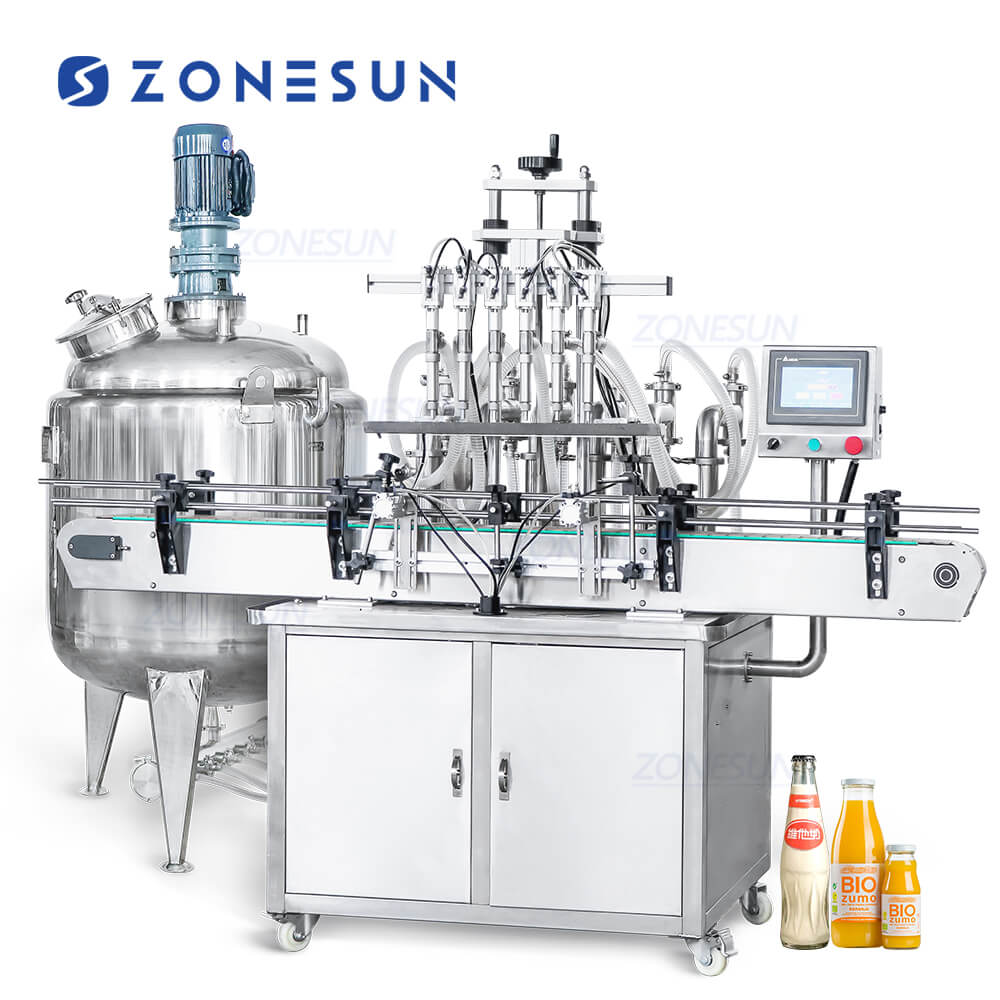

Filling Machine With Mixing Tank

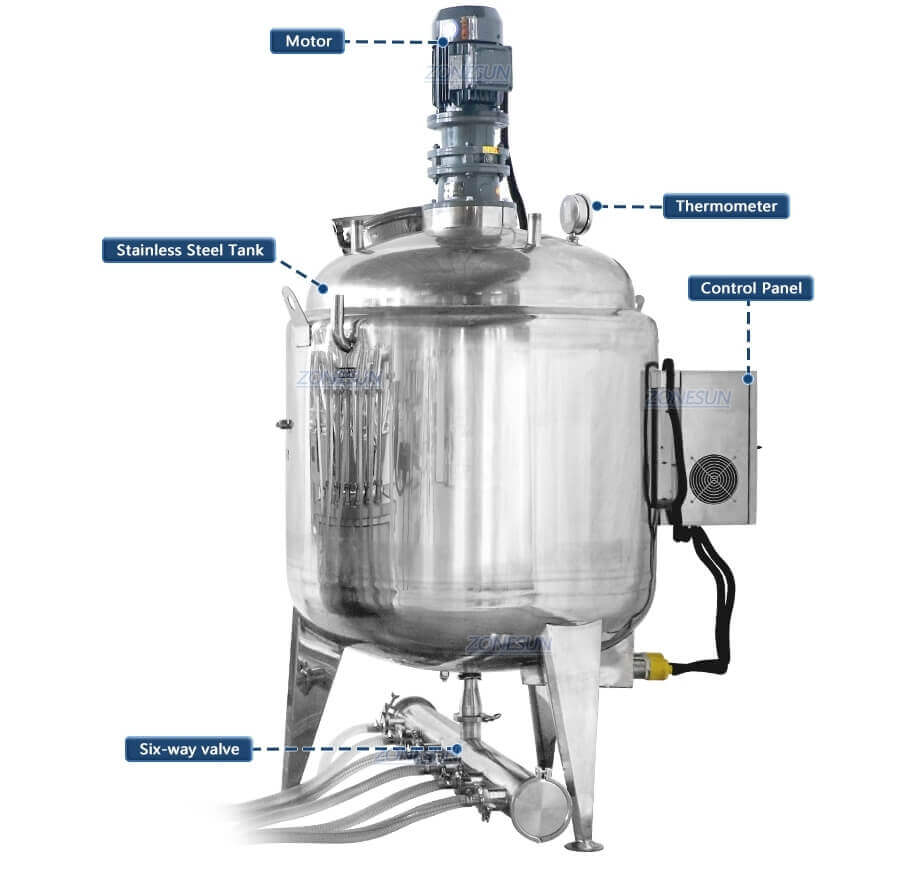

This filling machine is equipped with six-way valve and mixing tank,the machine tank can help to realize the preparatory work of the filling material like emulsifying or mixing.The six-way valve can ensure the material is transported to the filling machine in a closed condition. improves production quality.
Description:
This filling machine is equipped with six-way valve and mixing tank,the machine tank can help to realize the preparatory work of the filling material like emulsifying or mixing.The six-way valve can ensure the material is transported to the filling machine in a closed condition. improves production quality

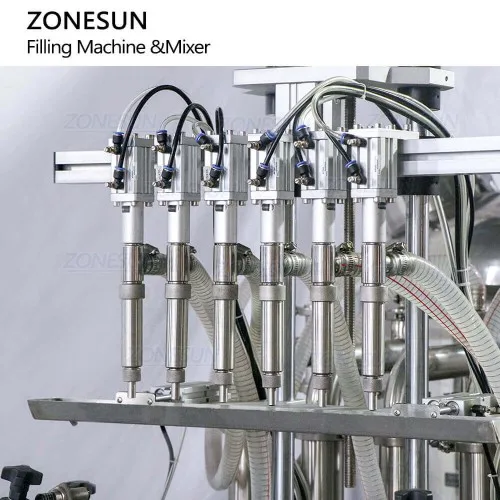

Filling Machine:
| Model | ZS-YT6T-6Y |
| Voltage | 110/220V 50-60HZ 800W |
| Filling Range | 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
| Working Speed | 30-40bottles/min(depending on materials and bottle size) |
| Filling Accuracy | ≤±1% |
| Air Pressure | 0.5-0.7MPa |
| Size Of Air Compressor Connector | φ10mm |

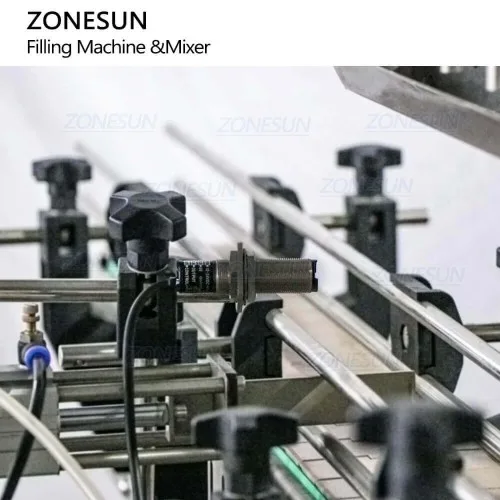

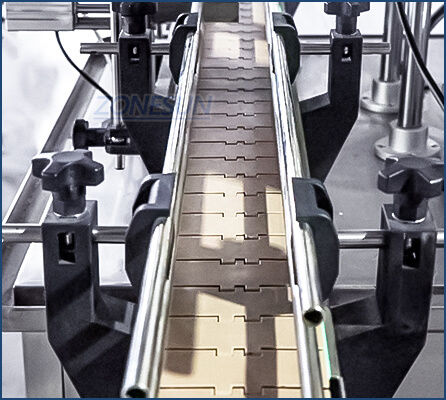

| Conveyor Length | 2050mm(standard) / 3050mm(wider version) |
| Conveyor Material | Plastic(standard) /Stainless steel(custom version) |
| Package Size | About 2110*2010*1000mm(100-1000ML) |
| Package Weight | About 476kg(100-1000ML) |

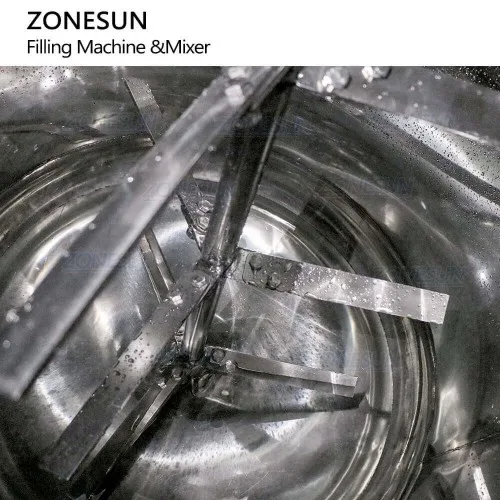

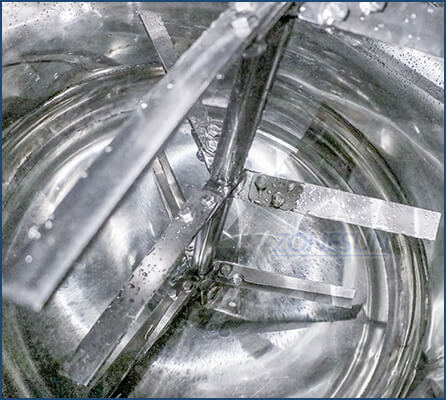

Mixing&Heating Tank：
| Machine Model | ZS-MB400LH |
| Voltage | 220V 50-60Hz |
| Tank Capacity | 400L(Can be customized) |
| Tank Size | Diameter: 800mm, H: 1000mm |
| Stirring Motor | 1.1kW |
| Rotating Speed | 40r/min |
| Heating Power | 12kW |
| Machine Material | 304 Stainless Steel |
