Eyedrop Filling Line

Eyedrop Filling Line

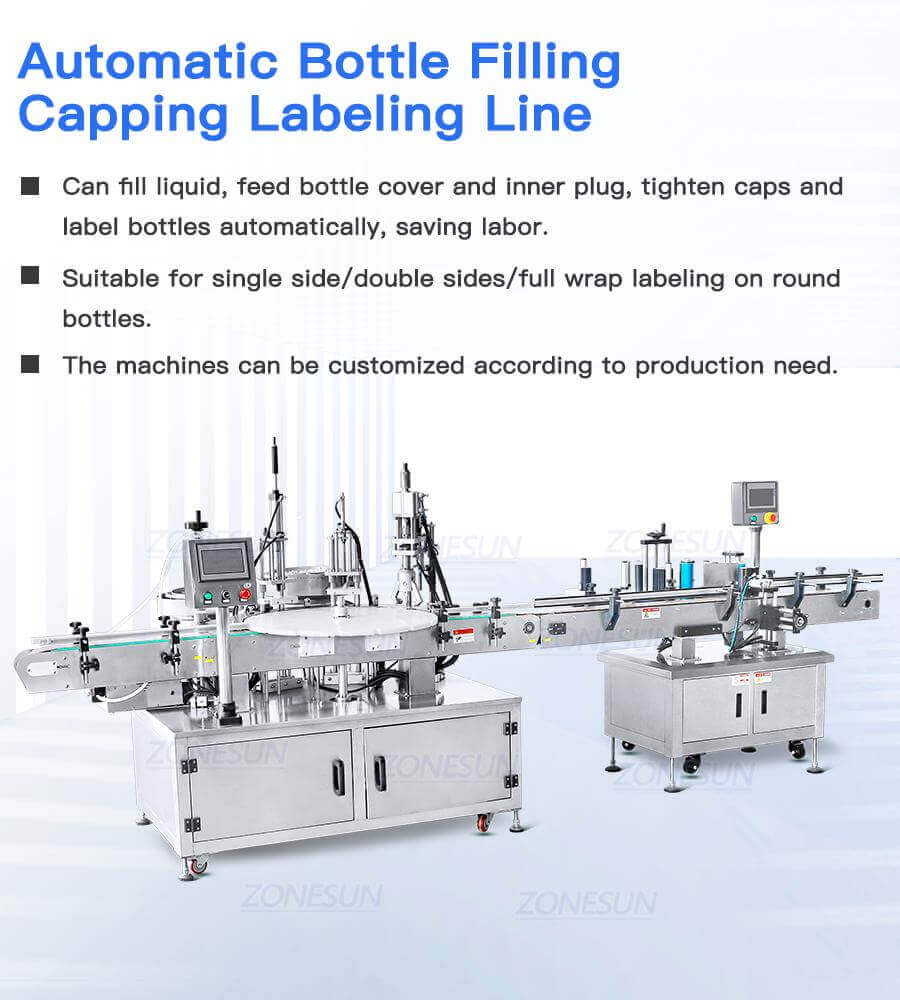

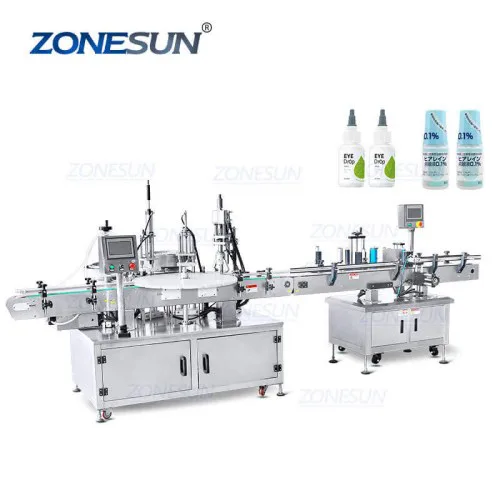

This automatic production line is designed with multiple function,it can arrange bottles,fill liquid,feed bottle plugs and caps,cap bottles and label stickers automatically.This is suitable for essential oil,eyedrops,skin toner etc.We can customize the machine and make it can work for different sizes of containers at the same time.

Product Detail

Product Tags

Eyedrop Filling Line-ZONESUN TECHNOLOGY LIMITED

Description:

This automatic production line is designed with multiple function,it can arrange bottles,fill liquid,feed bottle plugs and caps,cap bottles and label stickers automatically.This is suitable for essential oil,eyedrops,skin toner etc.We can customize the machine and make it can work for different sizes of containers at the same time.

Eyedrop Filling Line-ZONESUN TECHNOLOGY LIMITED

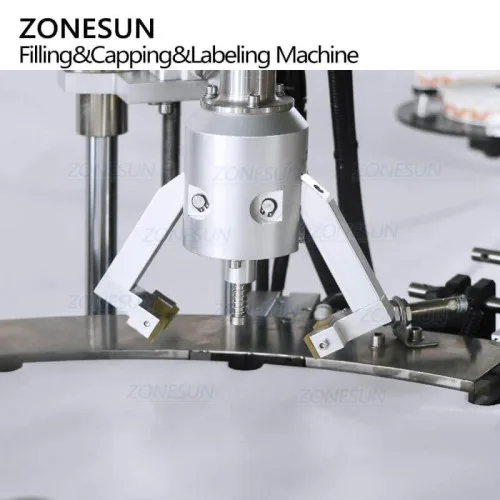

Rotary Filling Capping Machine:

Machine ModelZS-AFC13
Voltage220V/110V 50-60Hz
Power1000W

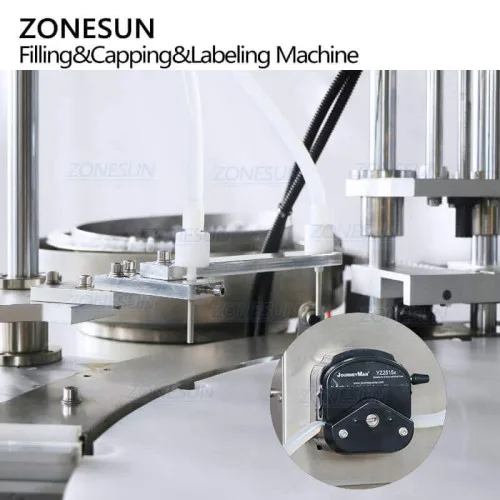

Filling PumpPeristaltic Pump
Working SpeedAbout 15-20 bottles/min(depending on bottle size and liquid)
Max Flow Rate2L/min(each nozzle and based on water)
Suitable Bottle SizeCan be customized
Bottle Cap DiameterCan be customized
Air Pressure0.6-0.8MPa
Package SizeAbout 1800*1070*1760mm
Gross WeightAbout 445kg

Eyedrop Filling Line-ZONESUN TECHNOLOGY LIMITED

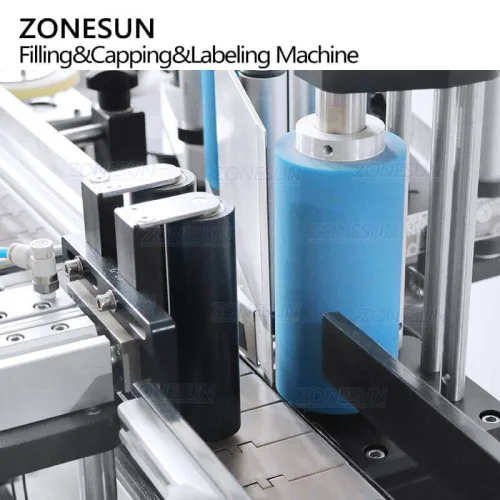

Labeling Machine:

ModelZS-TB260R
Power SupplyAC220V 50Hz/60Hz 1000W
Labeling Capacity25-50 bottles/min(dependingon bottle size)
Labeling Accuracy±1.0mm
Suitable Bottle Diameterφ12-100mm
Label Size(L)20-300mm (H)15-150mm
Roll Inside Diameterφ76mm
Roll Outside Diameterφ350mm
Conveyor Size112*2000mm(W)
Machine SizeAbout 2000*820*1380mm
Net WeightAbout 180kg
Packing SizeAbout 2100*890*1520mm
Gross WeightAbout 250kg

Eyedrop Filling Line-ZONESUN TECHNOLOGY LIMITEDEyedrop Filling Line-ZONESUN TECHNOLOGY LIMITEDEyedrop Filling Line-ZONESUN TECHNOLOGY LIMITEDEyedrop Filling Line-ZONESUN TECHNOLOGY LIMITED
