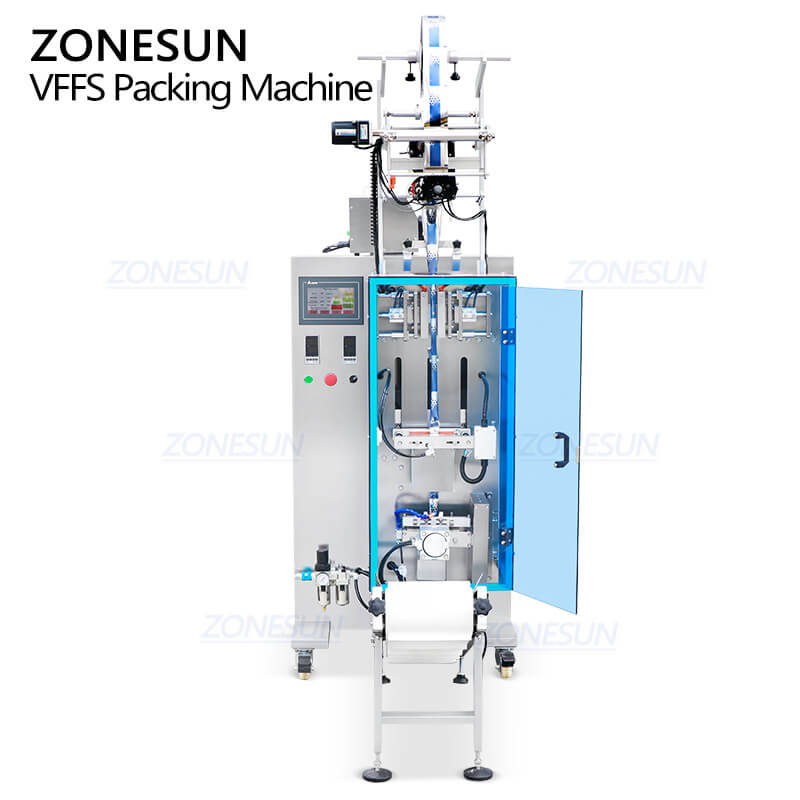

Product Description:

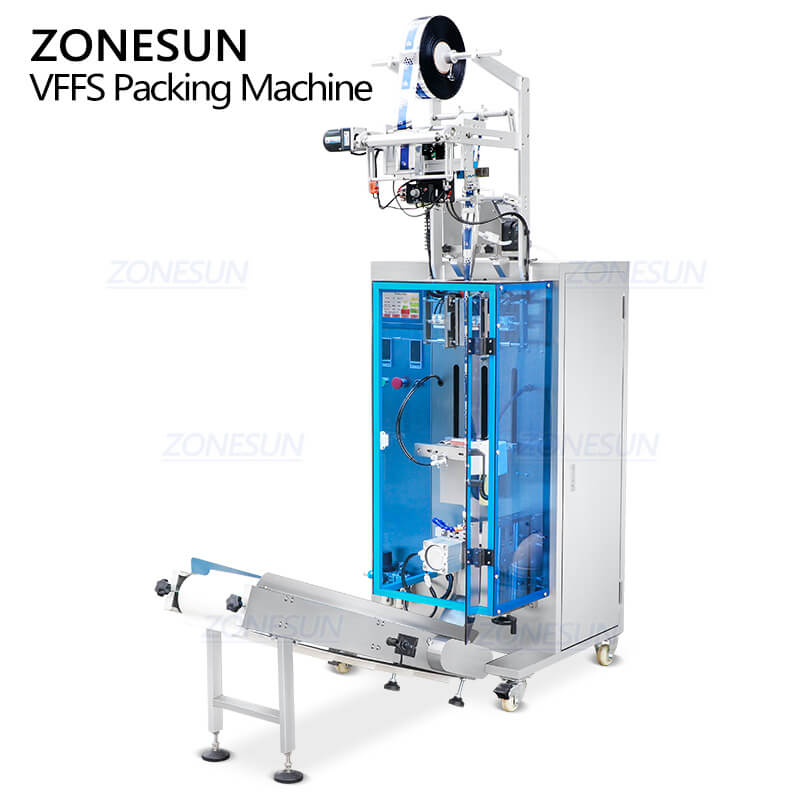

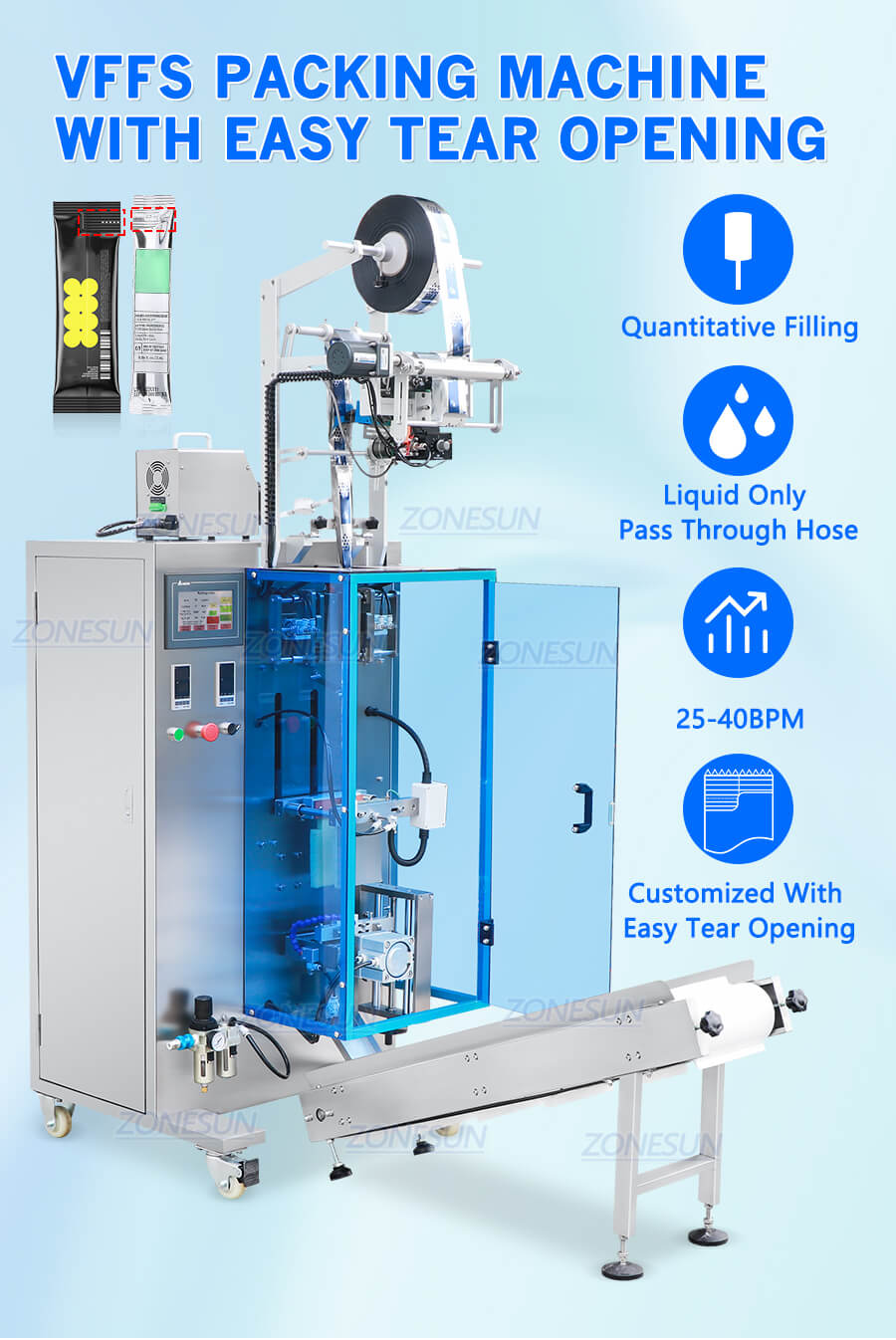

This packaging machine is designed for packing liquid into stick sachet and create the easy tear opening.It is equipped with peristaltic pump, liquid only pass through hose during filling work, it is good for packaging energy drinks, mineral supplement drinks etc.

Product Parameters:

Machine model	ZS-FS240P
Machine voltage	110/220V 50-60HZ 2.5KW
Filling range	1-100g(Can be customized)
Filling method	Peristaltic Pump
Sealing type	Back side sealing with easy tear opening (can be customized)
Control system	PLC control
Packaging speed	25-40bags/min
Bag size	40-200mm(L)*20-110mm(W)
Bag material	Heat sealable bags
Machine size	About 850*960*2100mm
Machine weight	About 300kg
Package size	About 1020*920*2200mm
Package weight	About 353kg

Product Details:

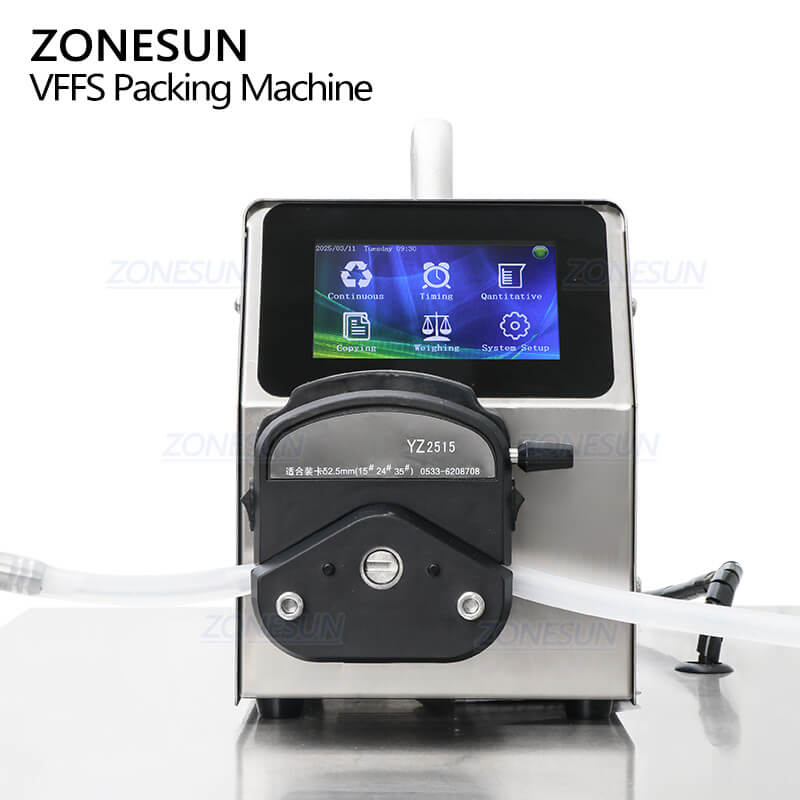

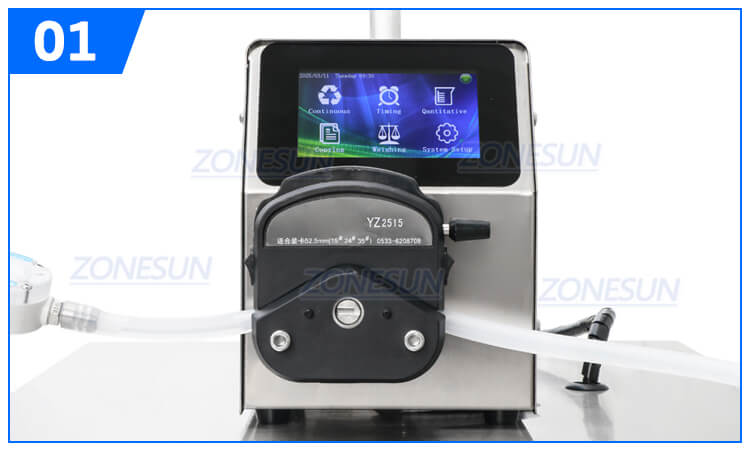

Peristaltic Pump
Liquid only passes through the hose, quantitative filling ensures accurate liquid dosing,set filling volume directly.

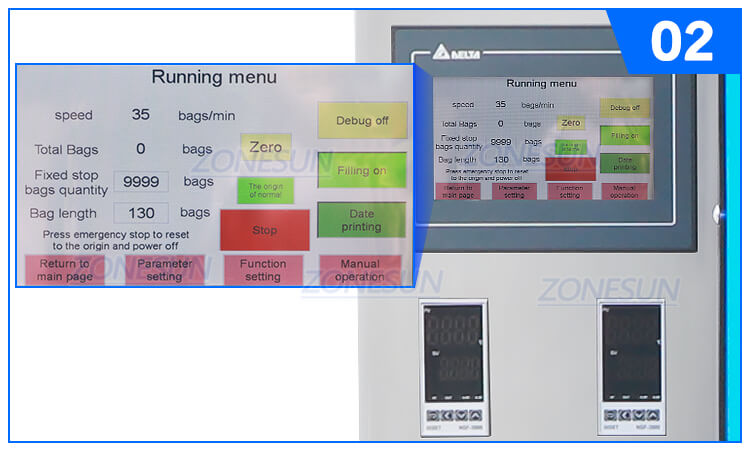

PLC Control System
User-friendly touch screen control panel for easy operation.

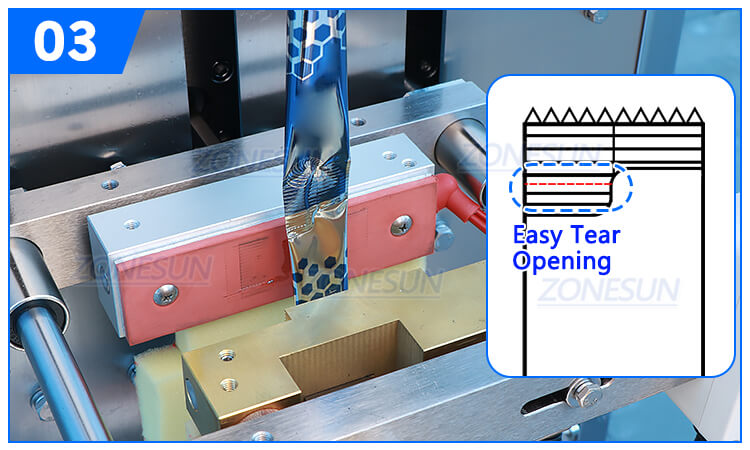

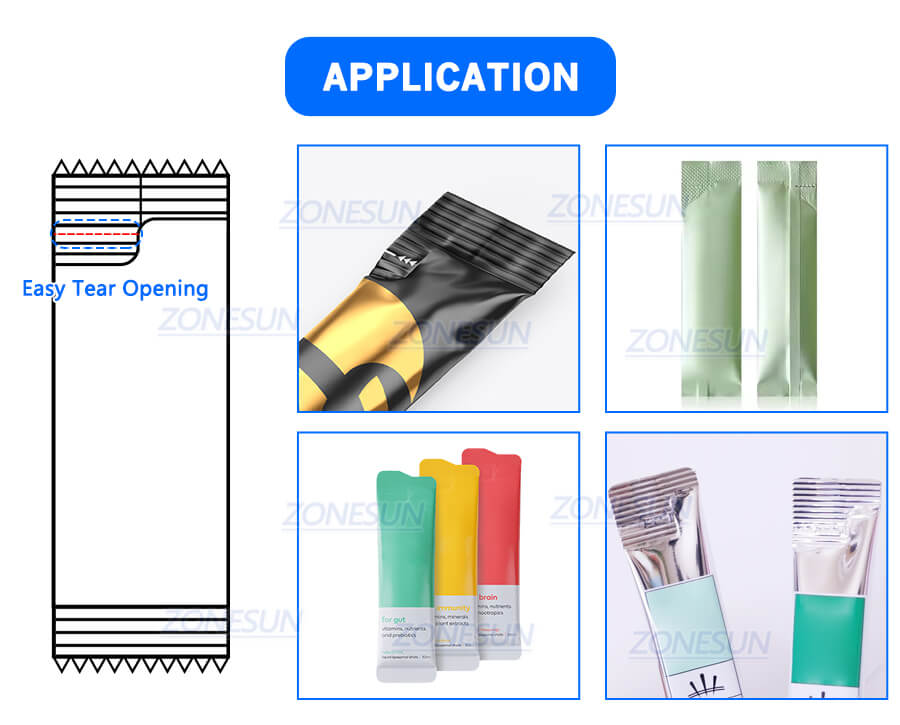

Customized Pouch Design
Supports easy tear opening and other irregular pouch shapes.

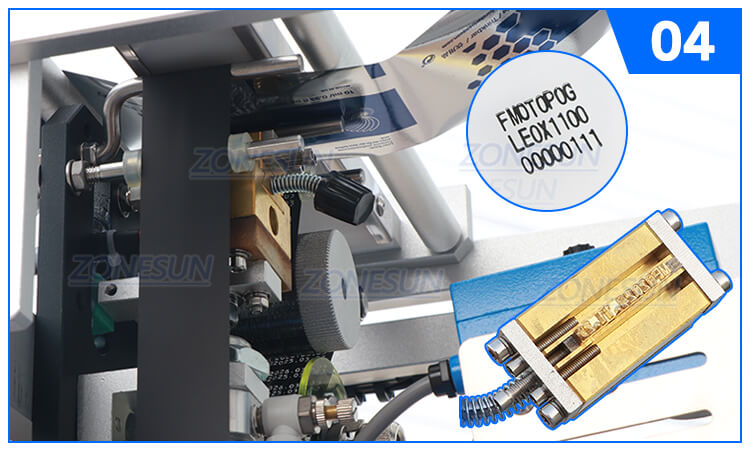

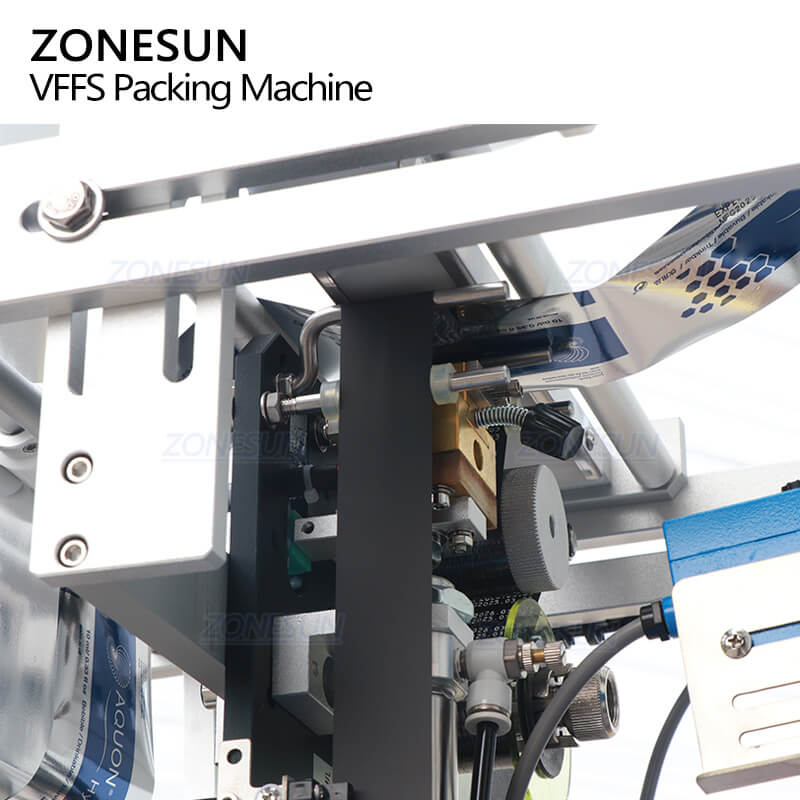

Date Coder
For printing batch number or production date on pouches, improves working efficiency.

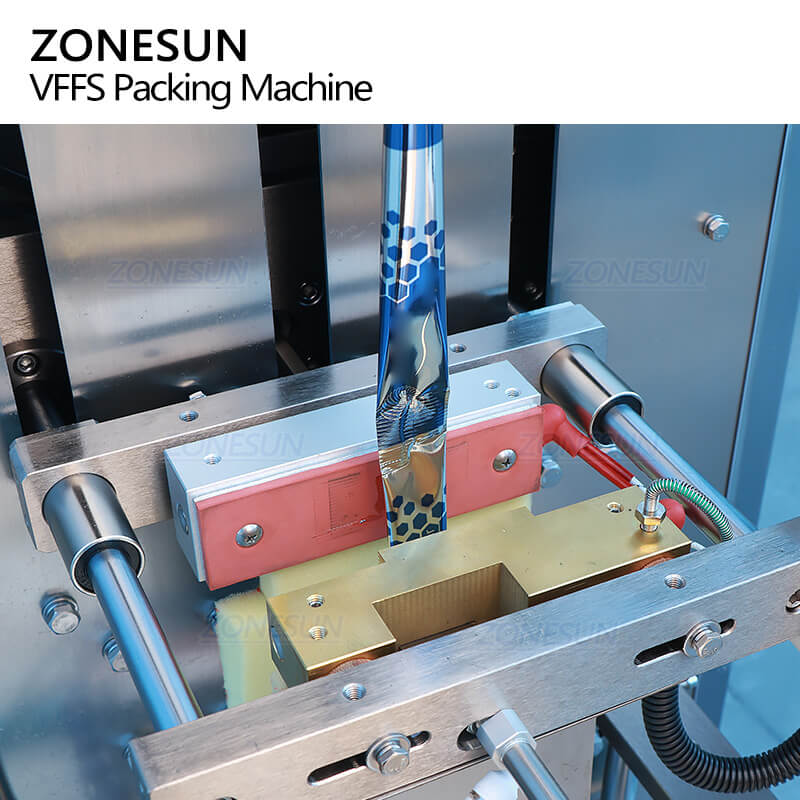

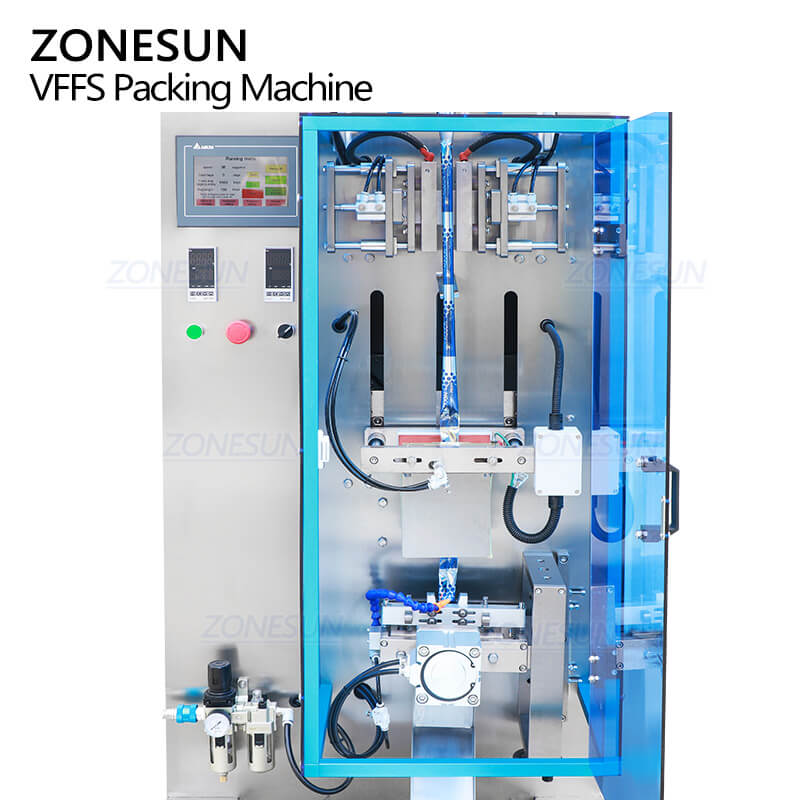

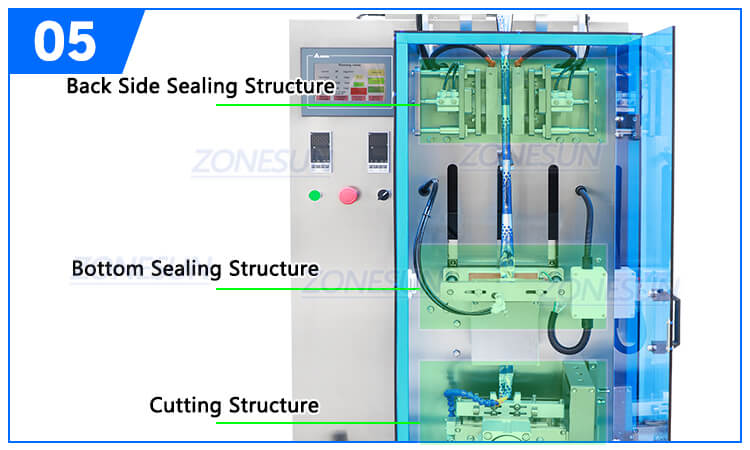

Working Structure
Automatic sealing & cutting, it can reach 25-40BPM.

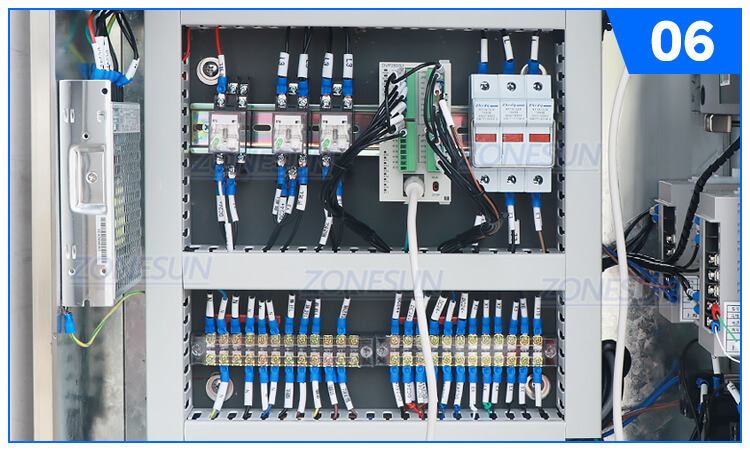

Electric Circuit
Using branding components, these are arranged neatly to ensure smooth working.
