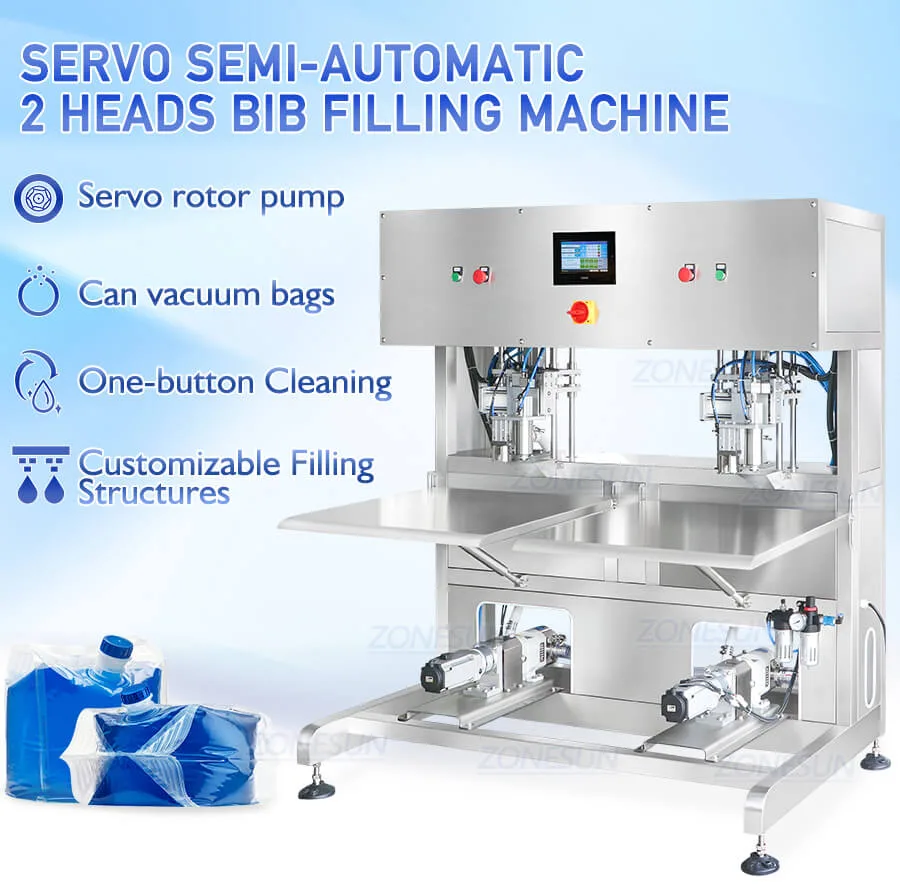

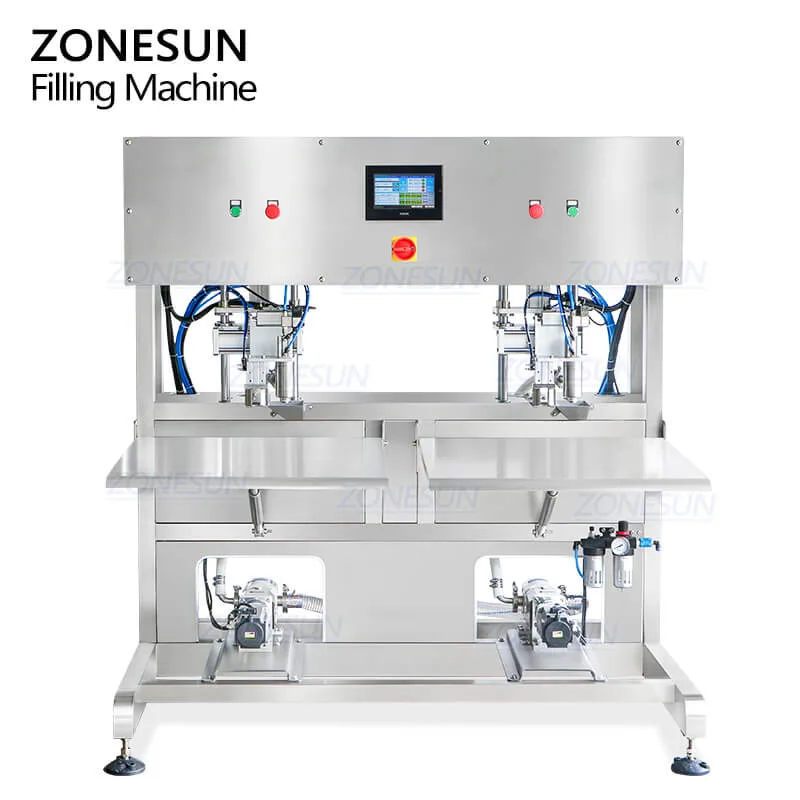

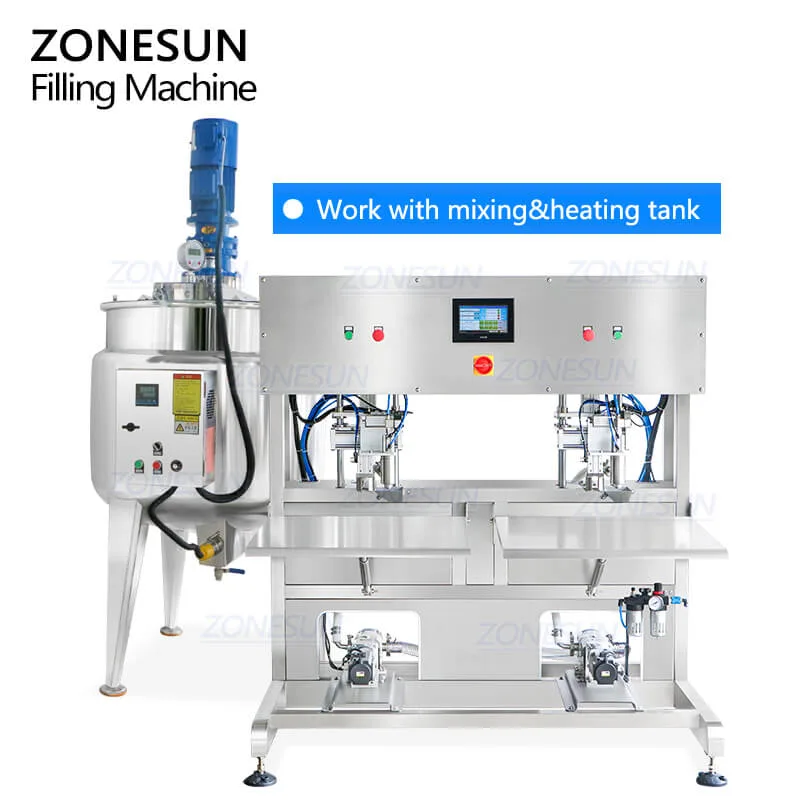

Double Heads Bag In Box Filling Machine

Double Heads Bag In Box Filling Machine

A Bag-in-Box (BiB) filling machine is a piece of equipment used to fill bags (usually made of plastic) with liquid products such as wine, water, juice, oil, milk, etc., and then place them into a box. Nitrogen filling or air extraction system can be customized as production need.

Machine Video Click Here:

Product Detail

Product Tags

Product Description:
A Bag-in-Box (BiB) filling machine is a piece of equipment used to fill bags (usually made of plastic) with liquid products such as wine, water, juice, oil, milk, etc., and then place them into a box. Nitrogen filling or air extraction system can be customized as production need.

Product Parameters:

Machine Model ZS-BIB01D
Voltage 220V/110V 50-60Hz
Power About 2.3kW
Production Speed About 450bags/h(based on 3L filling volume)
Filling Range 1-30L(Can be customized)
Filling Accuracy
±0.5%(for uniform materials like peanut butter)
±1%(for particle-containing materials like jam, chili sauce)
Filling Pump Servo Rotor Pump
Optional Function Nitrogen dosing function
Air Pressure 0.6-0.8Mpa 0.5m³/min

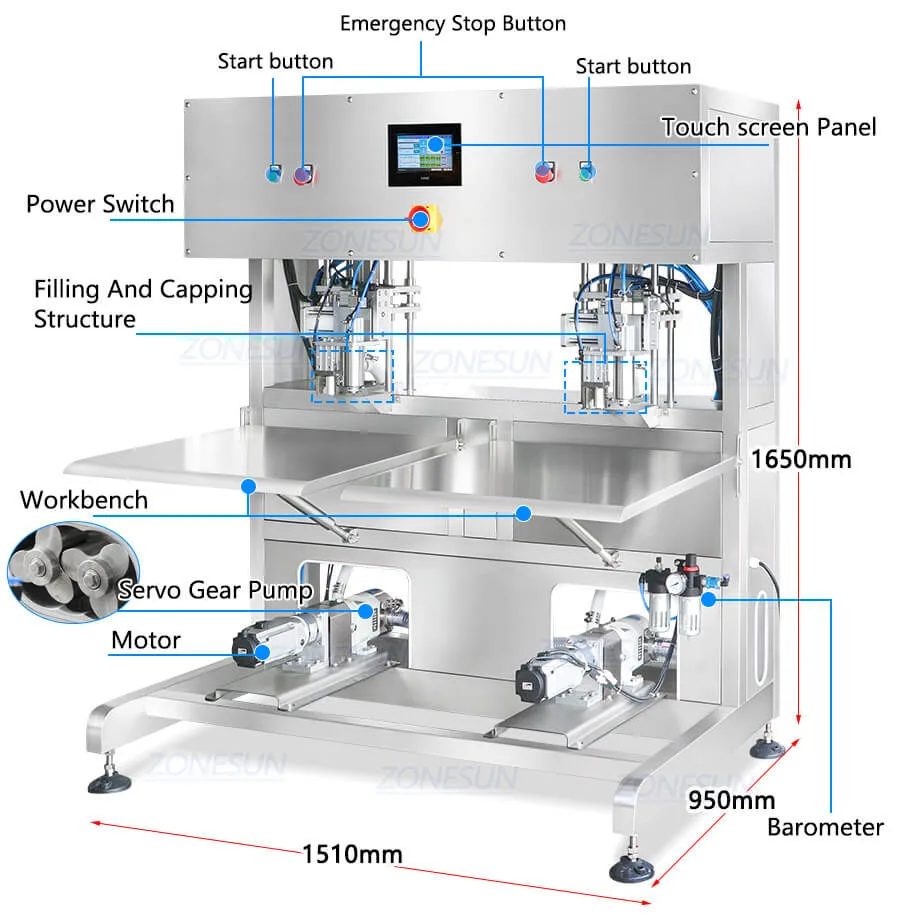

Machine Size About 1510*950*1650mm
Package Weight About 286kg
Package Size About 1600*1400*1770mm

Product Details:

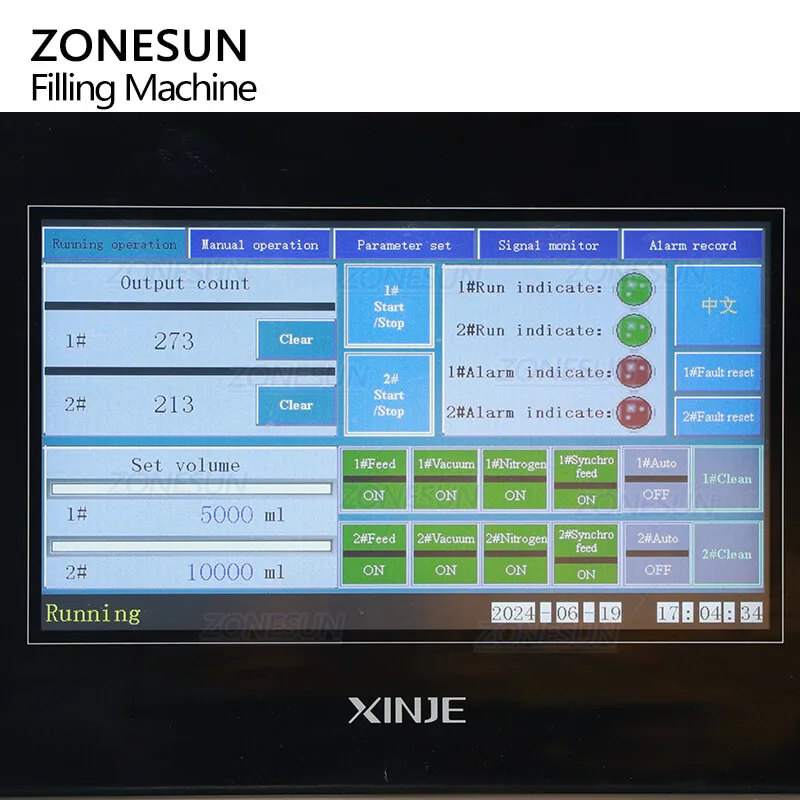

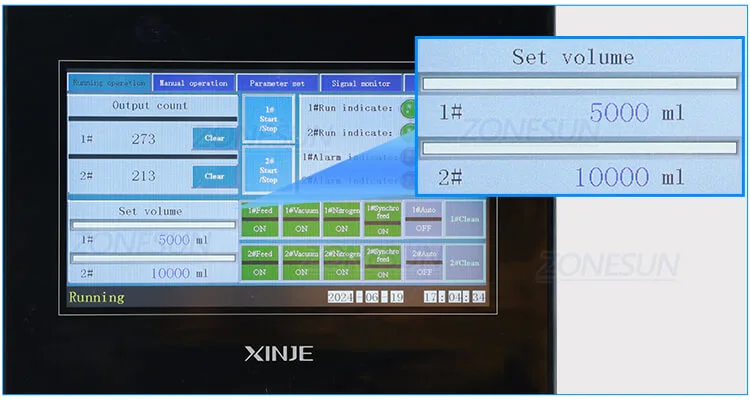

Touch Screen Panel
Intuitive interface for parameters setting. It can be customized into different languages.

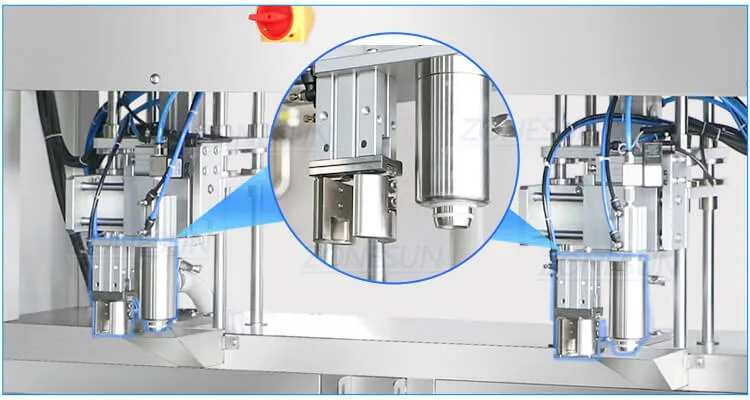

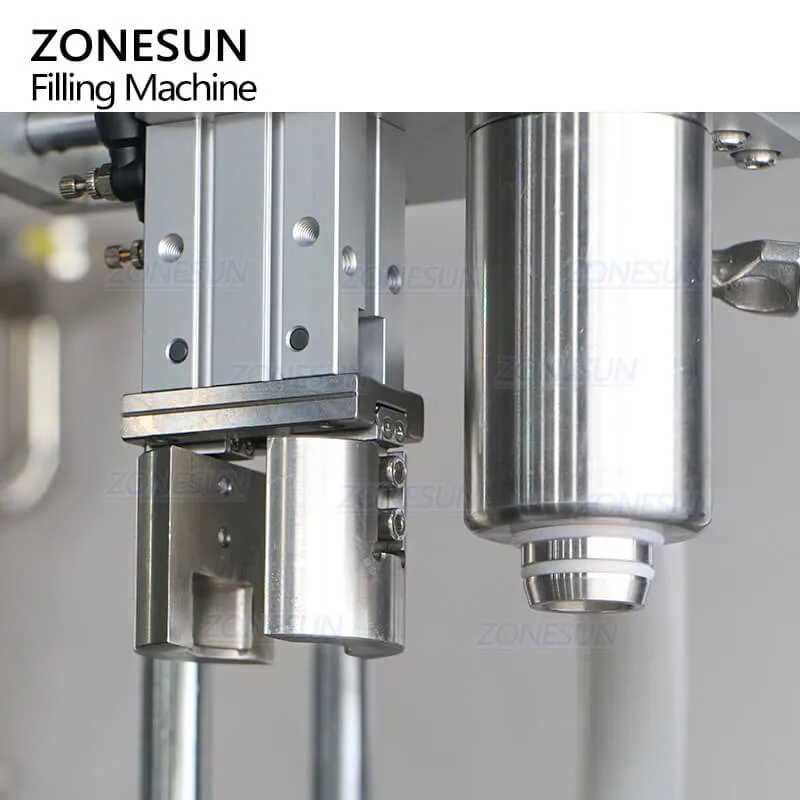

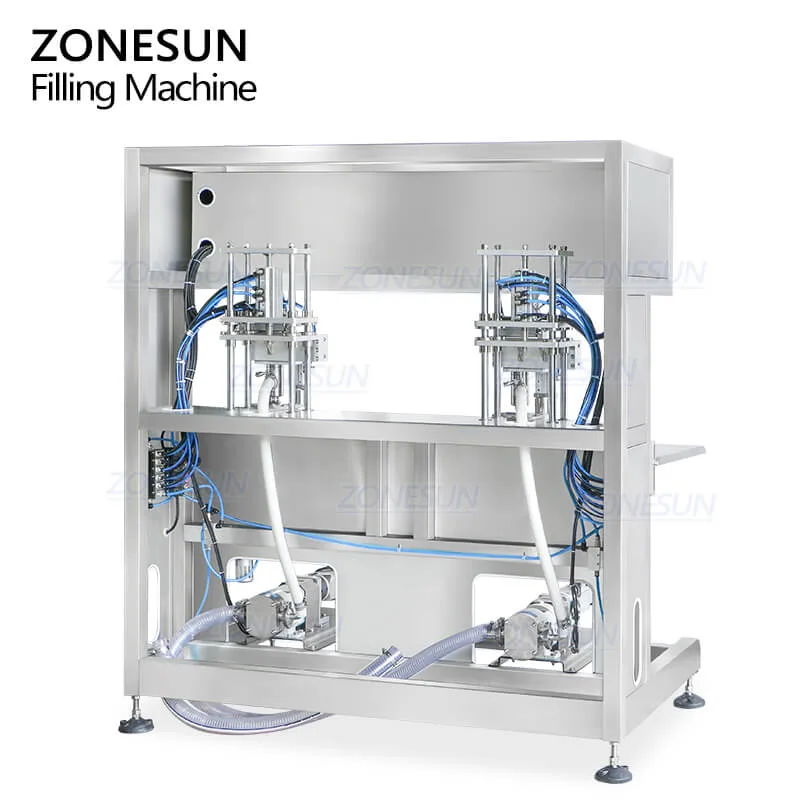

Double Filling Structures
Can take out caps,vacuum bags,fill liquid,and put in caps. The quantity of filling structures can be customized.

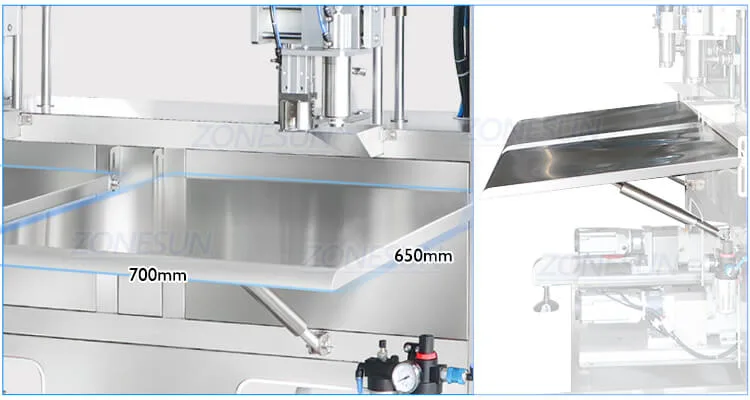

Larger Workbench
The working height and tilt of workbench can be adjusted as needed. Its size is 700*650mm(L*W).

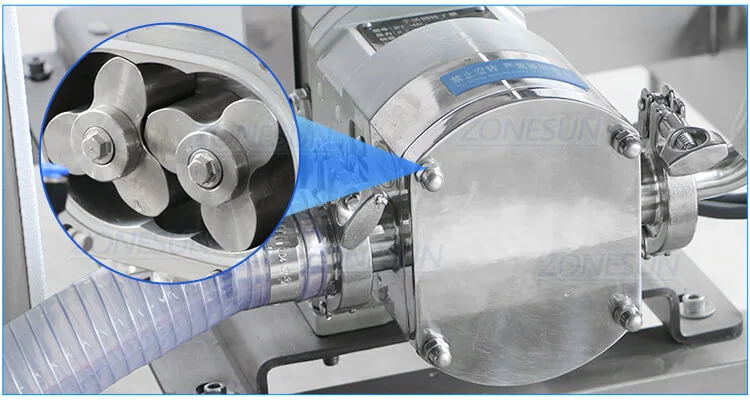

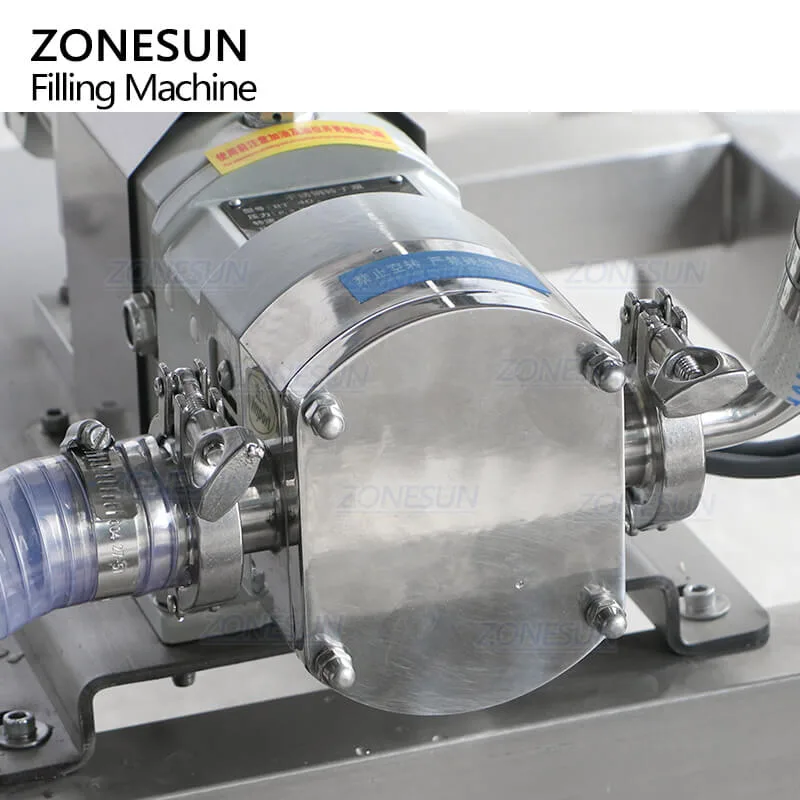

Servo Rotor Pump
Can handle liquid or viscous paste like wine, syrup. Servo motor driven, it has high filling accuracy.

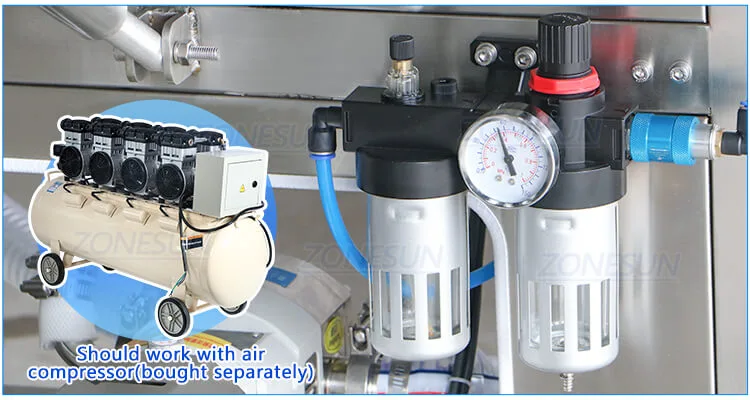

Barometer
Can watch air pressure in real time and adjust it as production need.
