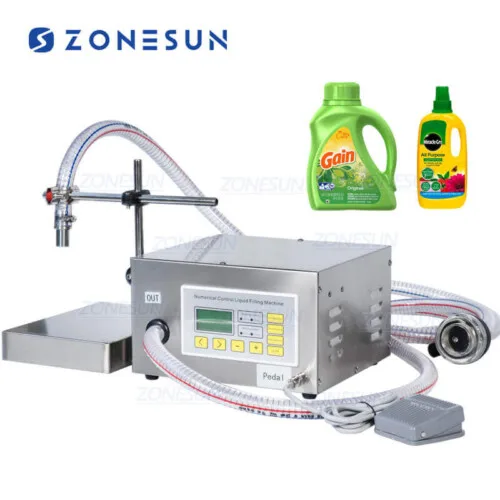

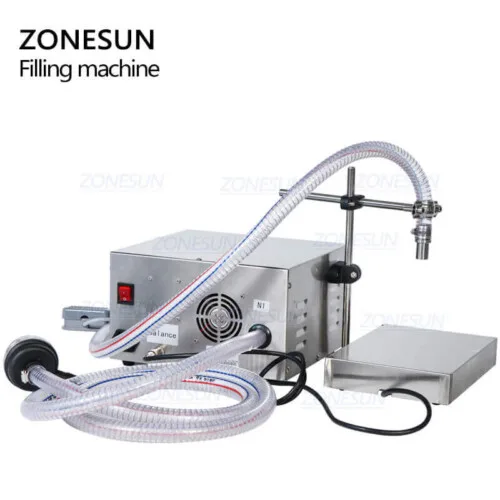

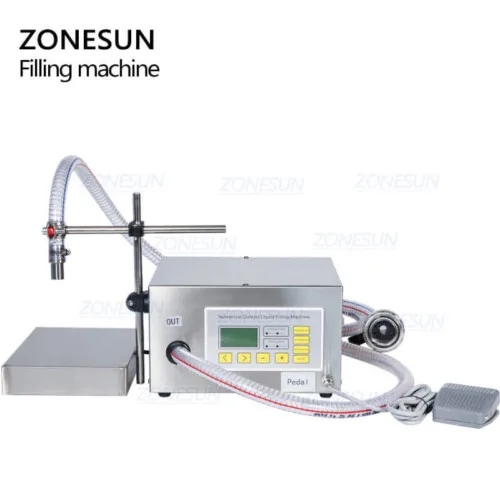

Diaphragm Pump Weighing Fillinng Machine

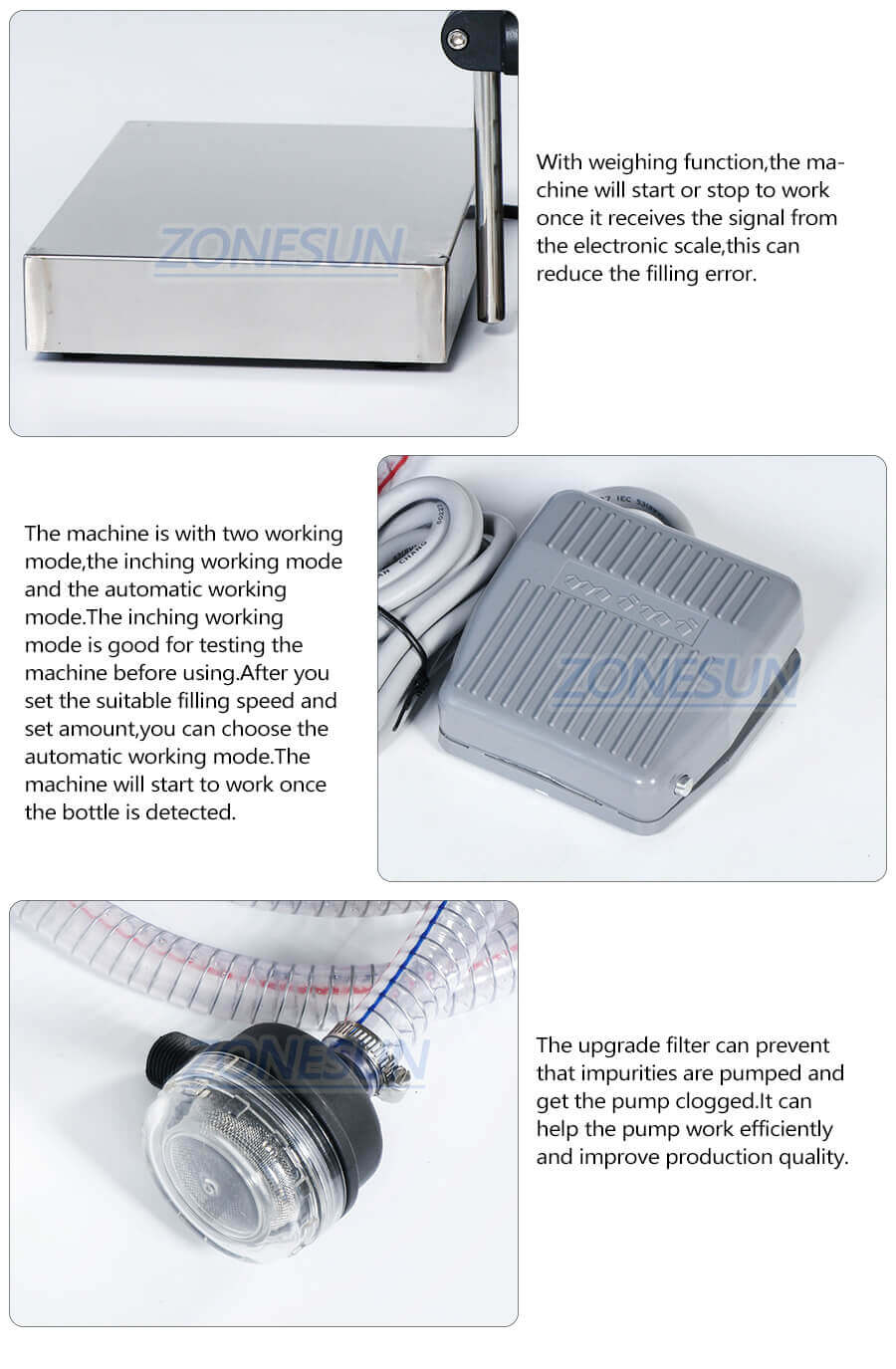

This semi automatic filling machine is equipped with diaphragm pump which is suitable for filling low viscosity liquid like water, milk, juice, perfume etc. It is with weighing function, the electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kinds of machine can fill liquid more accurately.

Machine Video Click Here：

Send email to us

Product Detail

Product Tags

Diaphragm Pump Weighing Fillinng Machine-ZONESUN TECHNOLOGY LIMITED

Product Description:

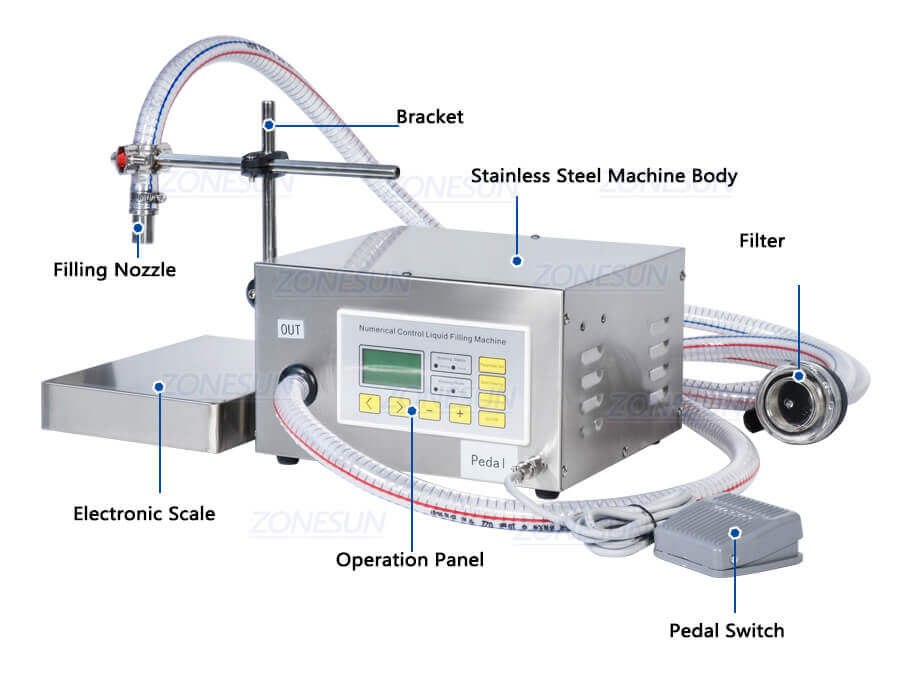

This semi automatic filling machine is equipped with diaphragm pump which is suitable for filling low viscosity liquid like water, milk, juice, perfume etc. It is with weighing function, the electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kinds of machine can fill liquid more accurately.

Diaphragm Pump Weighing Fillinng Machine-ZONESUN TECHNOLOGY LIMITED

Product Parameters:

Machine Model	ZS-DP621W
Machine Power	110/220V 50-60Z 210W
Pump	Diaphragm Pump
Max Flow Rate	17L/min
Filling Range	150ml-17L
Weighing Range	150g-10kg
Filling Error	About ±10g
Hose Diameter	19mm( ID ) /25mm( OD )
Hose Length	2m( inlet ) /1.5m( outlet )

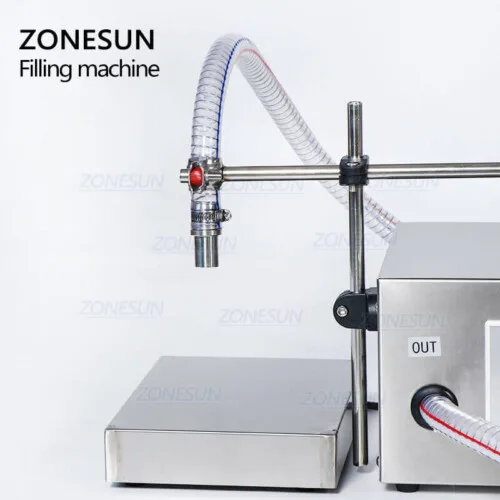

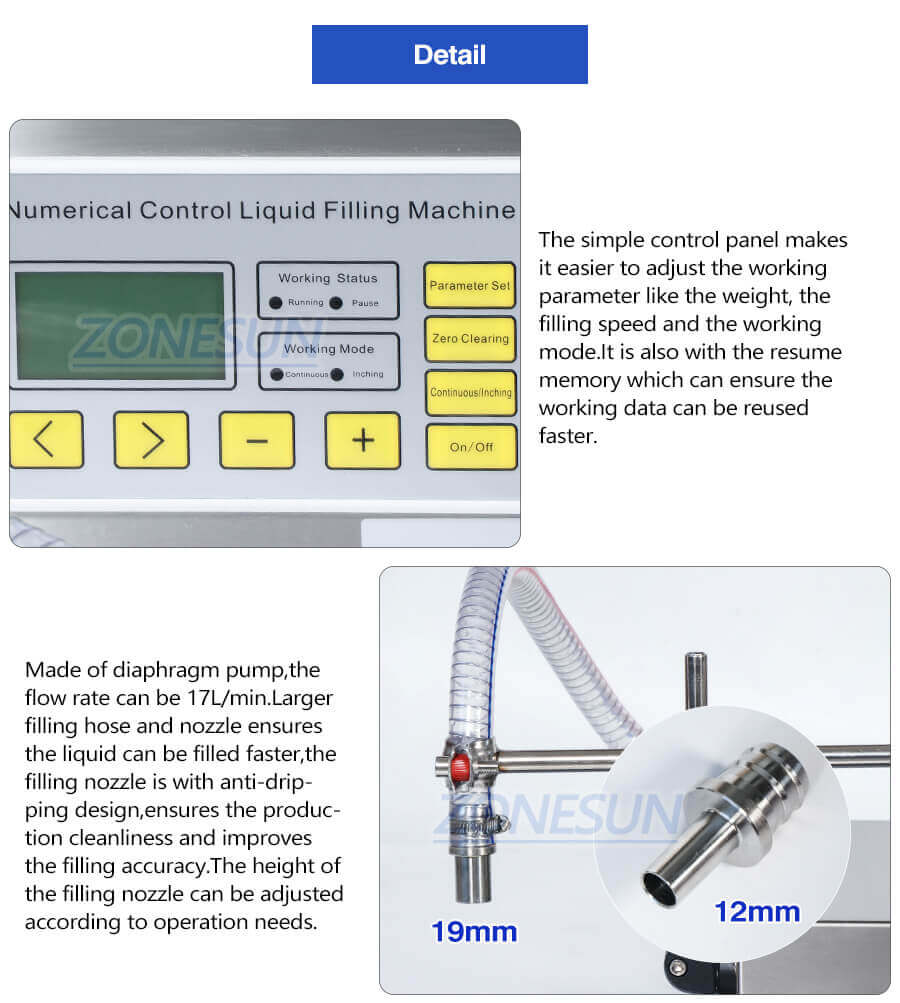

Filling Nozzle Diameter	12mm /19mm
Liquid Temperature	<75℃
Max Suction Distance	3m
Max Head of Delivery	5m
Suitable Liquid	ink,cooking oil,water,juice,perfume
Machine Size	About 280250170mm
Machine Weight	About 9.8kg
Package Size	About 400370240mm
Package Weight	About 10.5kg
