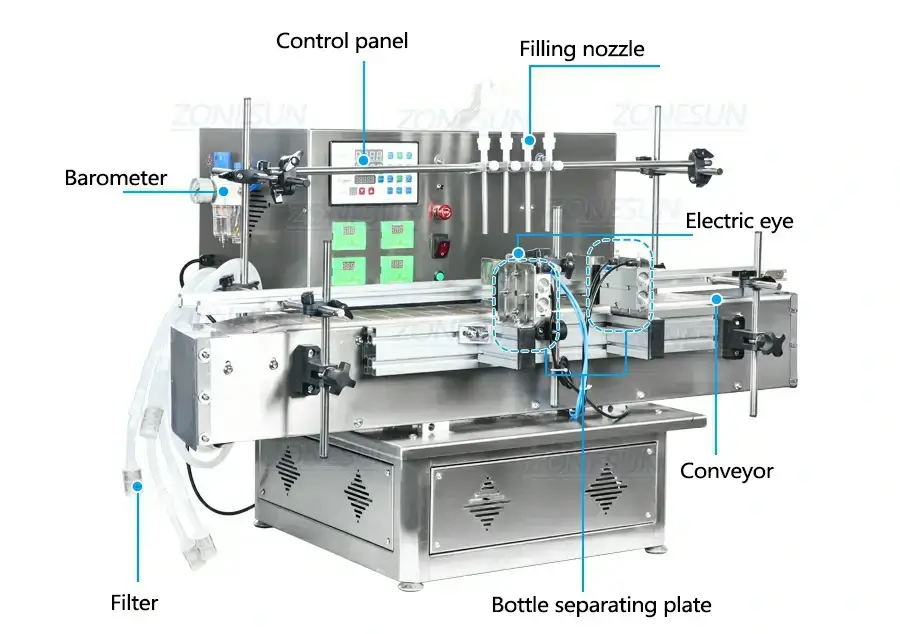

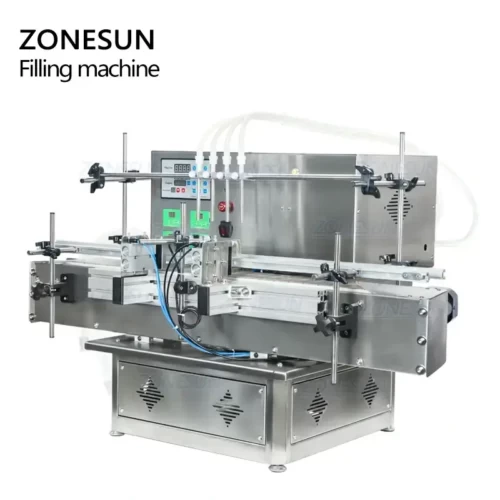

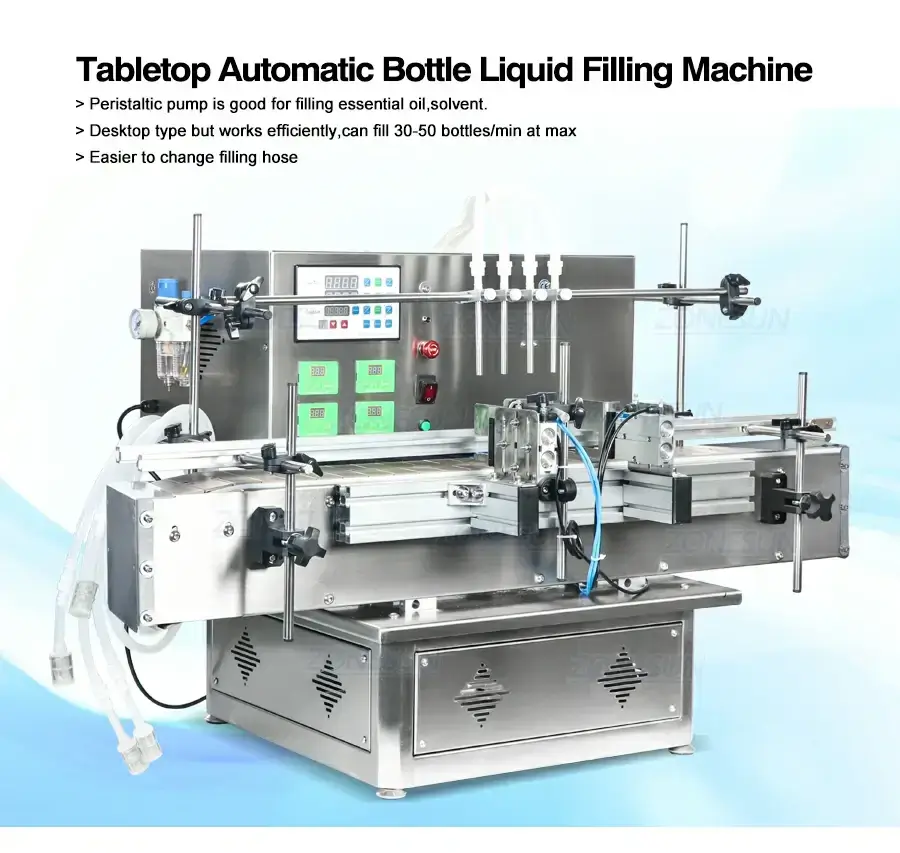

Desktop Peristaltic Pump Filling Machine
Description:

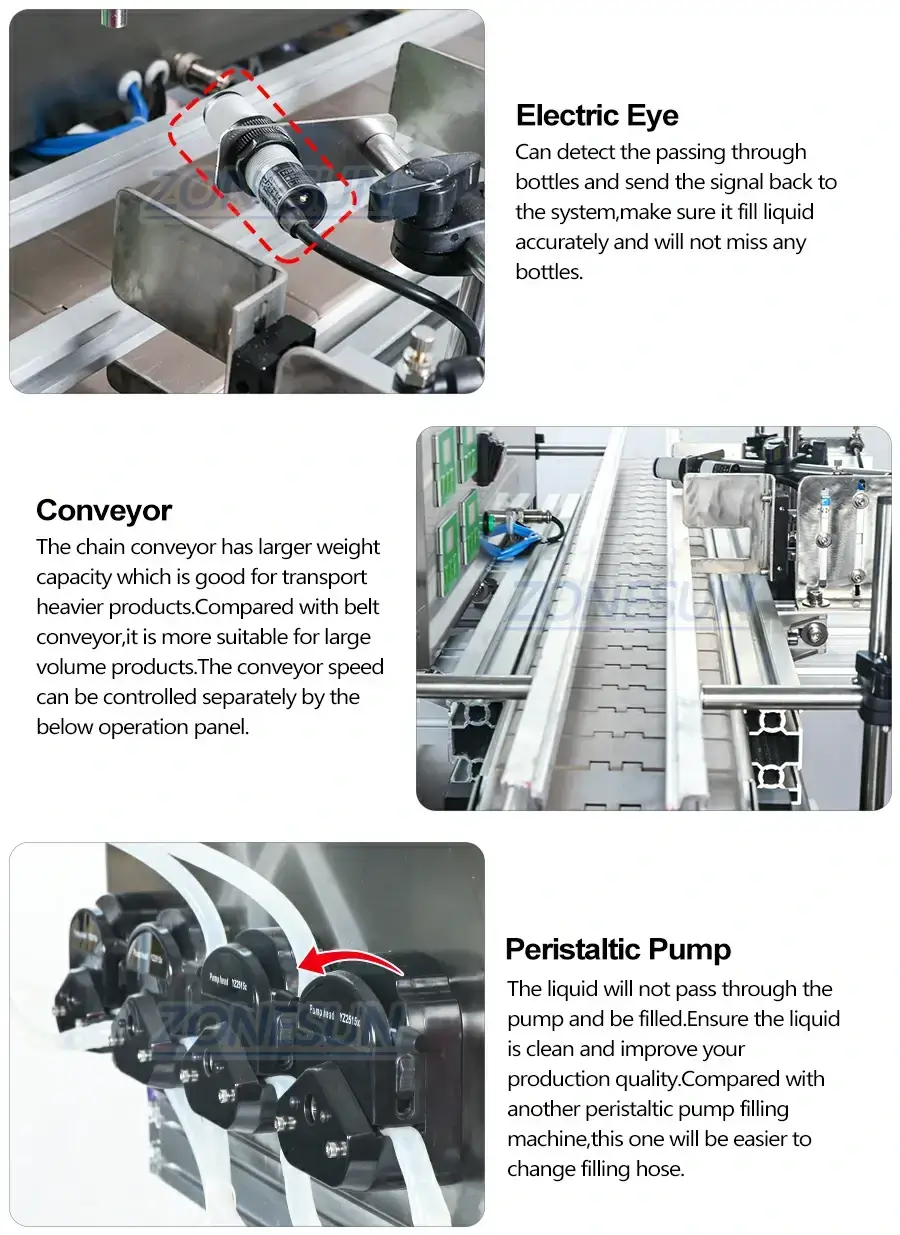

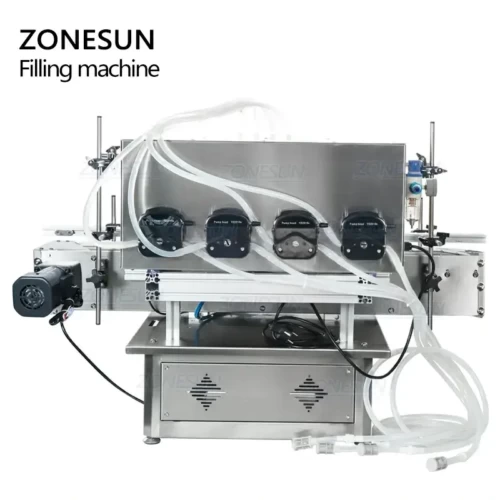

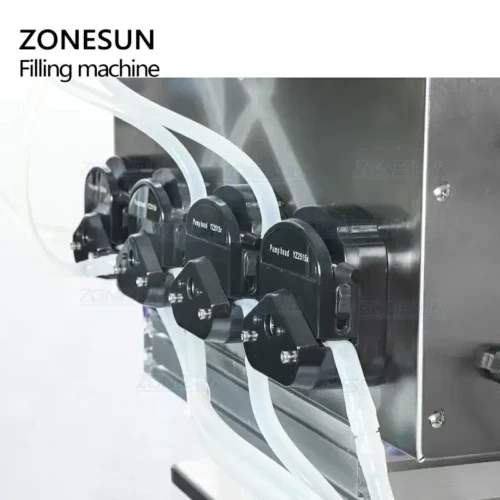

Desktop full automatic machine is very efficient with high cost performance.It is widely used in medicine, daily chemical and other industries such as essential oils, perfumes, juice liquid etc.Machine with peristaltic pump is easy to change tube. Liquid won't pass through the pump.It is good choice for strong corrosive liquid such as biological liquid, eye drops,sulfuric acid, hydrochloric acid,disinfectant,etc.To replace with fluorine rubber tubes,it can also use to essential oils,solvents,etc.
Parameter:
| Machine model | ZS-DTPP4C |
| Power supply | AC110V/220V 50Hz-60Hz 60W(Each Pump) |
| Filling range | 2500ml/min |
| Maximum flow | 2500ml/min for each nozzle (based on water ) |

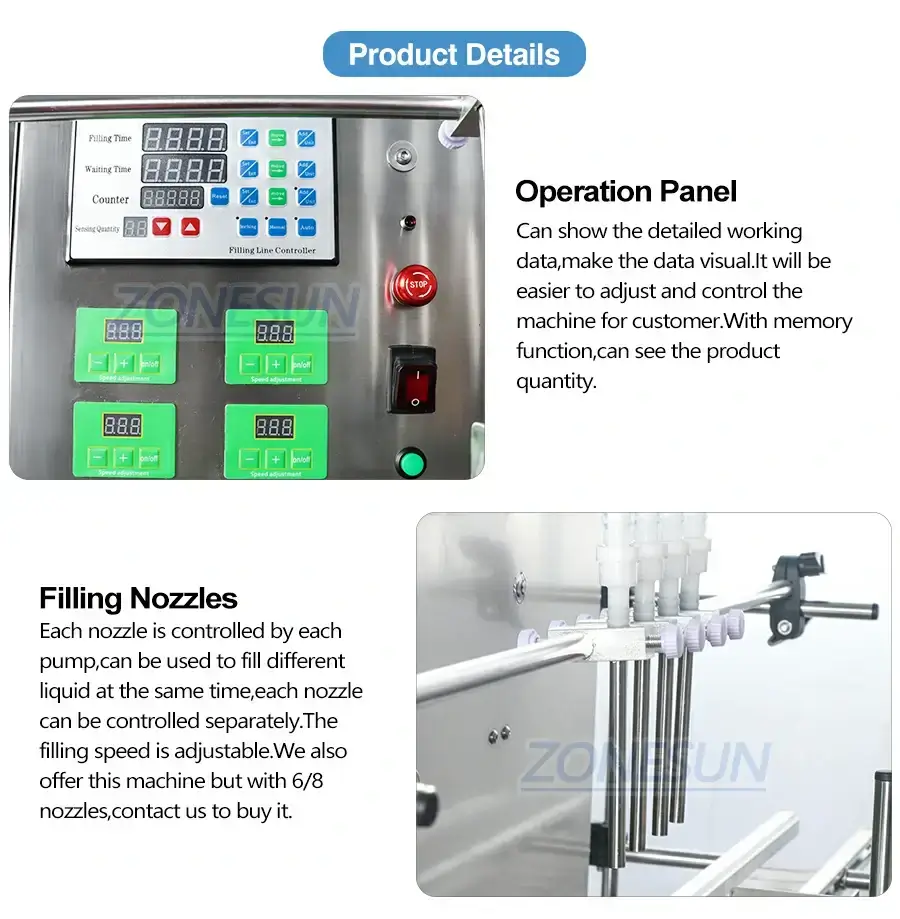

| Filling nozzles | 4(we can customize the nozzles based on your demands) |
| Working speed | 30-50 bottles/min(based on bottles and liquids) |
| Air pressure | 0.3-0.4MPa |
| Filling accuracy | ≤±1% (For water) |

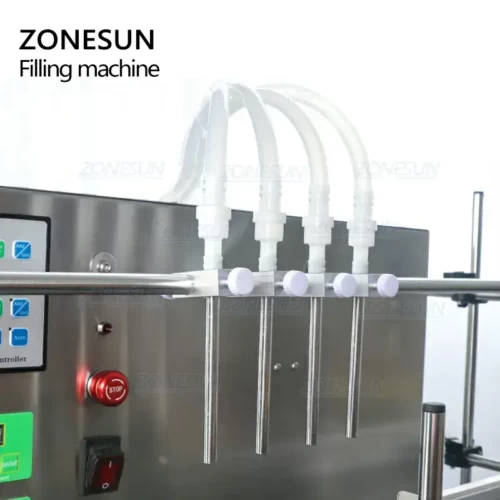

| Diameter of filling nozzle | 6/8mm |
| Delay range | 0.01-999.9s |
| Belt length | 1.0m |
| Size of air compressor connector | OD8mm |
