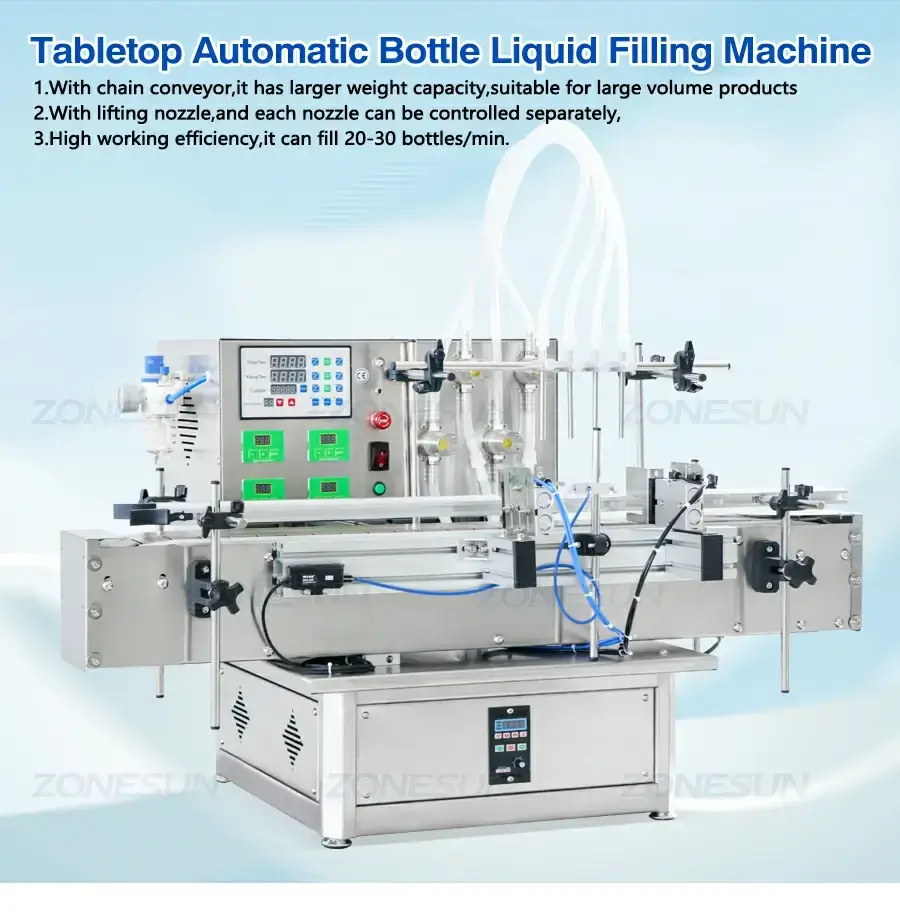

Desktop Liquid Filling Machine

Desktop Liquid Filling Machine

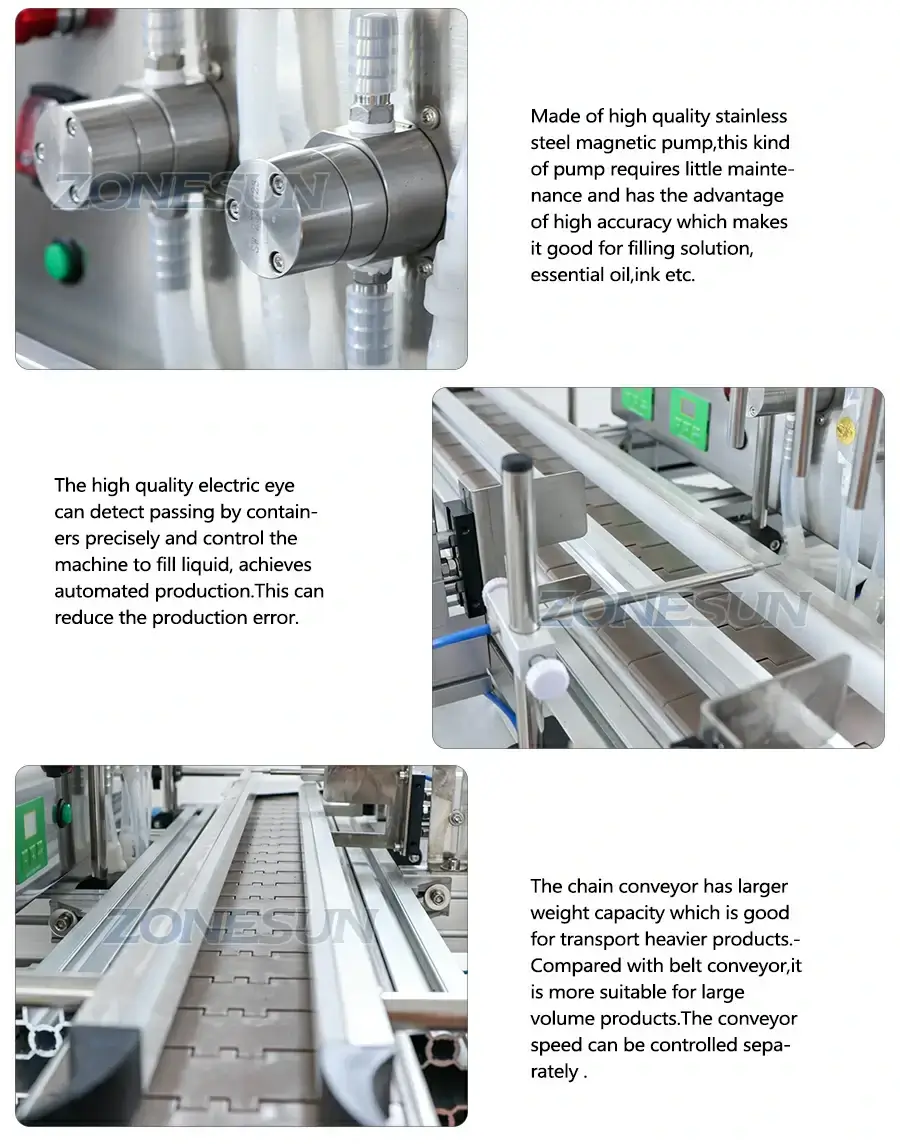

Desktop full automatic machine is very efficient with high cost performance.It is widely used in medicine daily chemical and other industries such as essential oils,perfumes,juice liquid etc.Machine with magnetic pump is a good choice for low viscous,a little foamy liquid.316 stainless steel pump can use for very high temperature liquid fill.

Product Detail

Product Tags


Desktop Liquid Filling Machine-ZONESUN TECHNOLOGY LIMITED

Description:

Desktop full automatic machine is very efficient with high cost performance.It is widely used in medicine daily chemical and other industries such as essential oils,perfumes,juice liquid etc.Machine with magnetic pump is a good choice for low viscous,a little foamy liquid.316 stainless steel pump can use for very high temperature liquid fill.

Desktop Liquid Filling Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

Machine modelZS-DTMP4Y
Power supply110/220V 50-60HZ 300W
Maximum flowvelocity6000ml/min (Each nozzle and based on water )
Working speed20-30 bottles/min
Air pressure0.3-0.4mpa
Filling accuracy≤±1%( for water)
Dimension of filling nozzleStandard 8mm and 6mm
Delay range0.01s-999.9s
Count range1-99999 times
Size of air compressor connectorOD 6/8mm

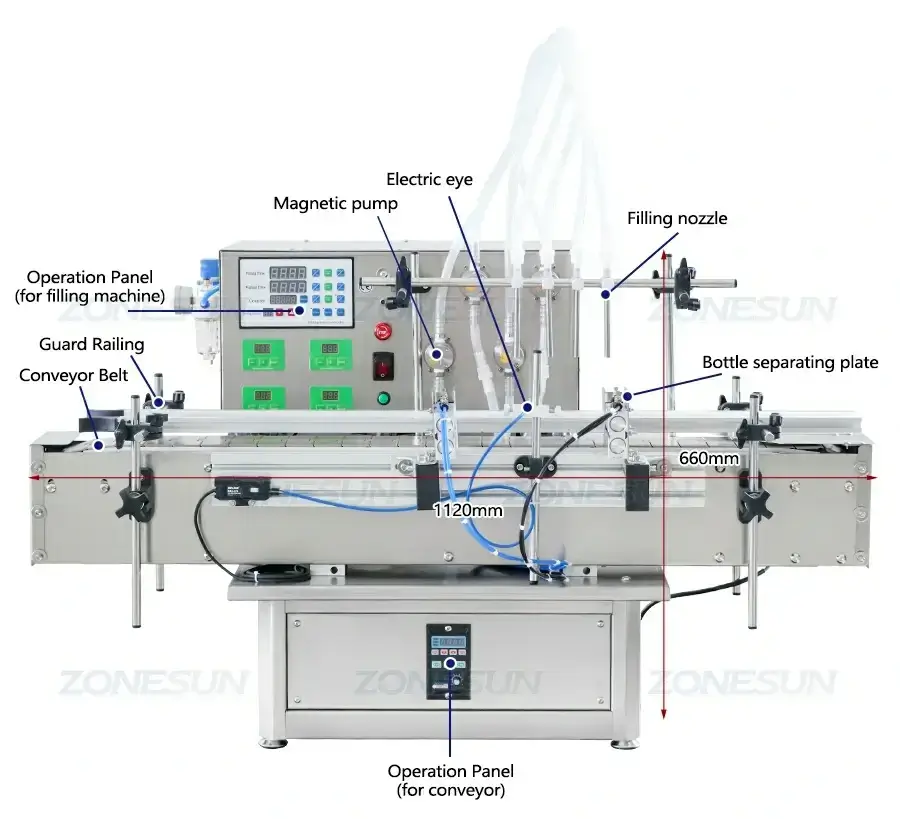

Package sizeAbout 1150*650*820mm
Net weight/Gross weightAbout 59kg/89kg

Desktop Liquid Filling Machine-ZONESUN TECHNOLOGY LIMITEDDesktop Liquid Filling Machine-ZONESUN TECHNOLOGY LIMITEDDesktop Liquid Filling Machine-ZONESUN TECHNOLOGY LIMITED
