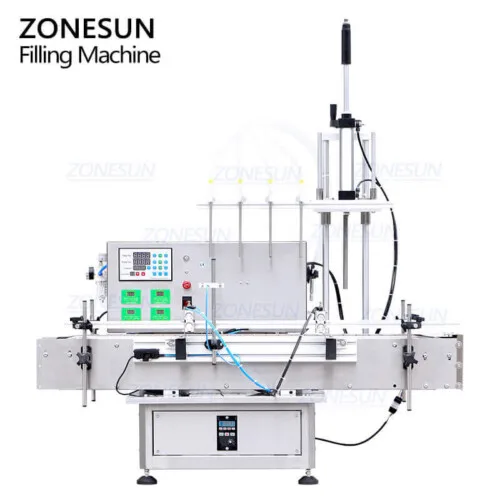

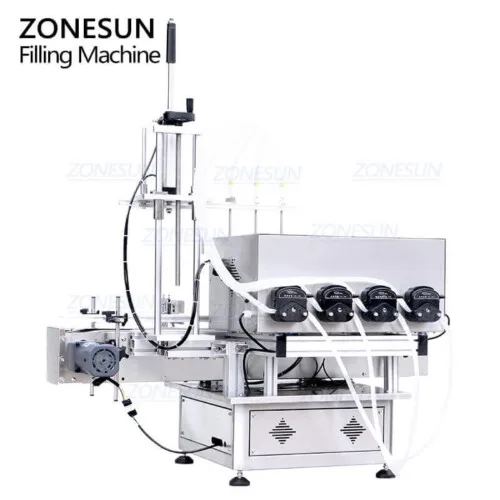

Desktop Filling Machine

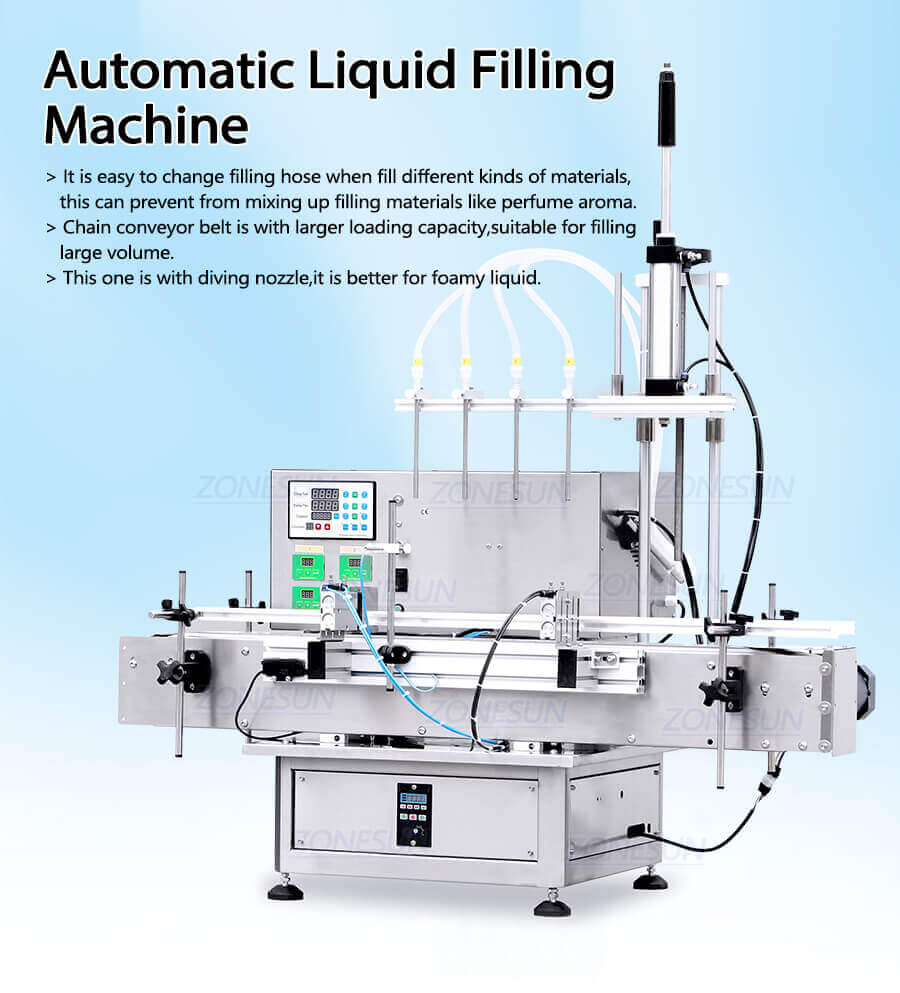

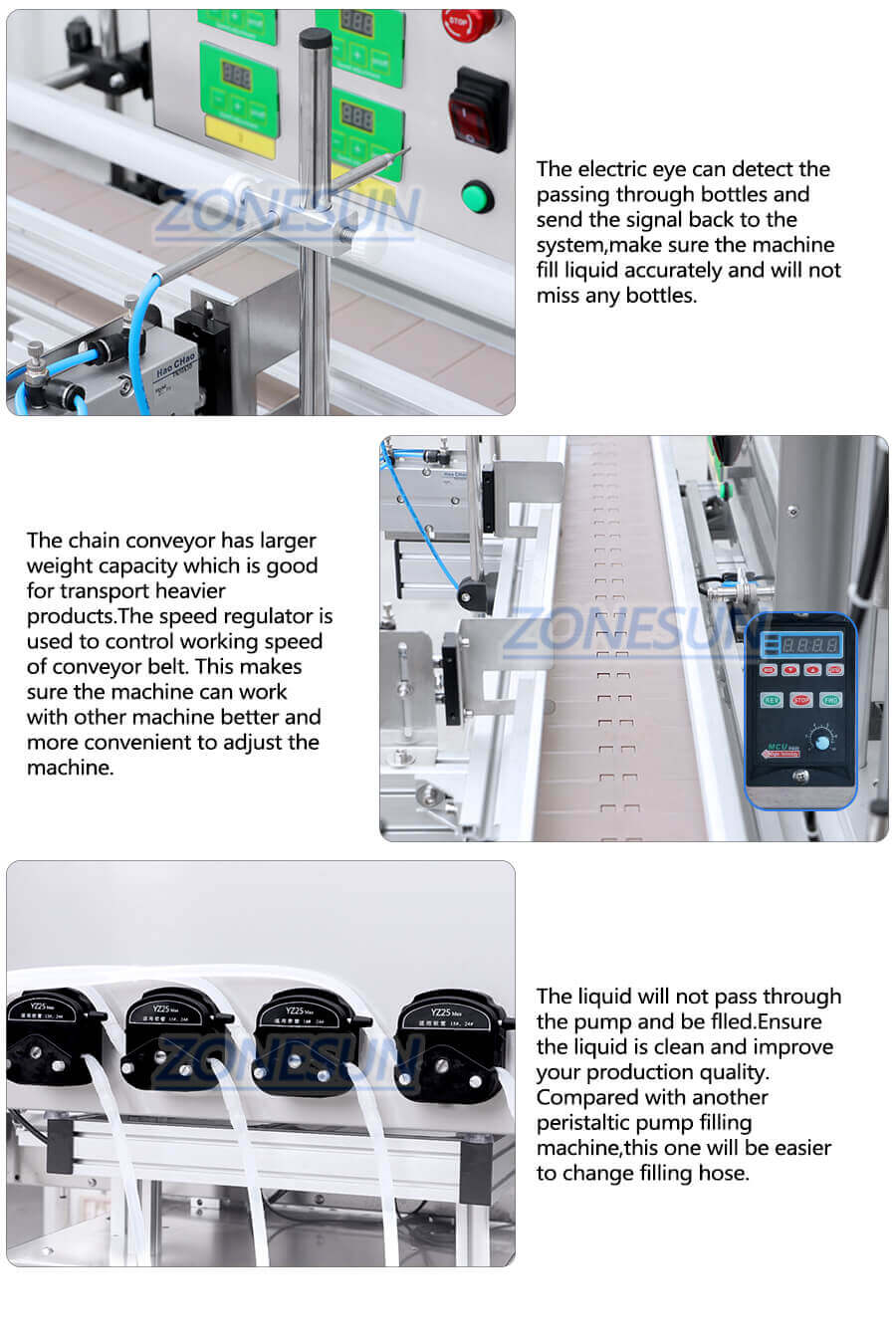

Desktop full automatic machine is very efficient with high cost performance.It is widely used in medicine,daily chemical and other industries such as essential oils,perfumes,juice liquid etc.Machine with peristaltic pump is easy to change tube. Liquid won’t pass through the pump.It is good choice for strong corrosive liquid such as biological liquid,eye drops,sulfuric acid, hydrochloric acid,disinfectant,etc.To replace with fluorine rubber tubes,it can also use to essential oils,solvents,etc.

Machine Video Click Here:

Send email to us

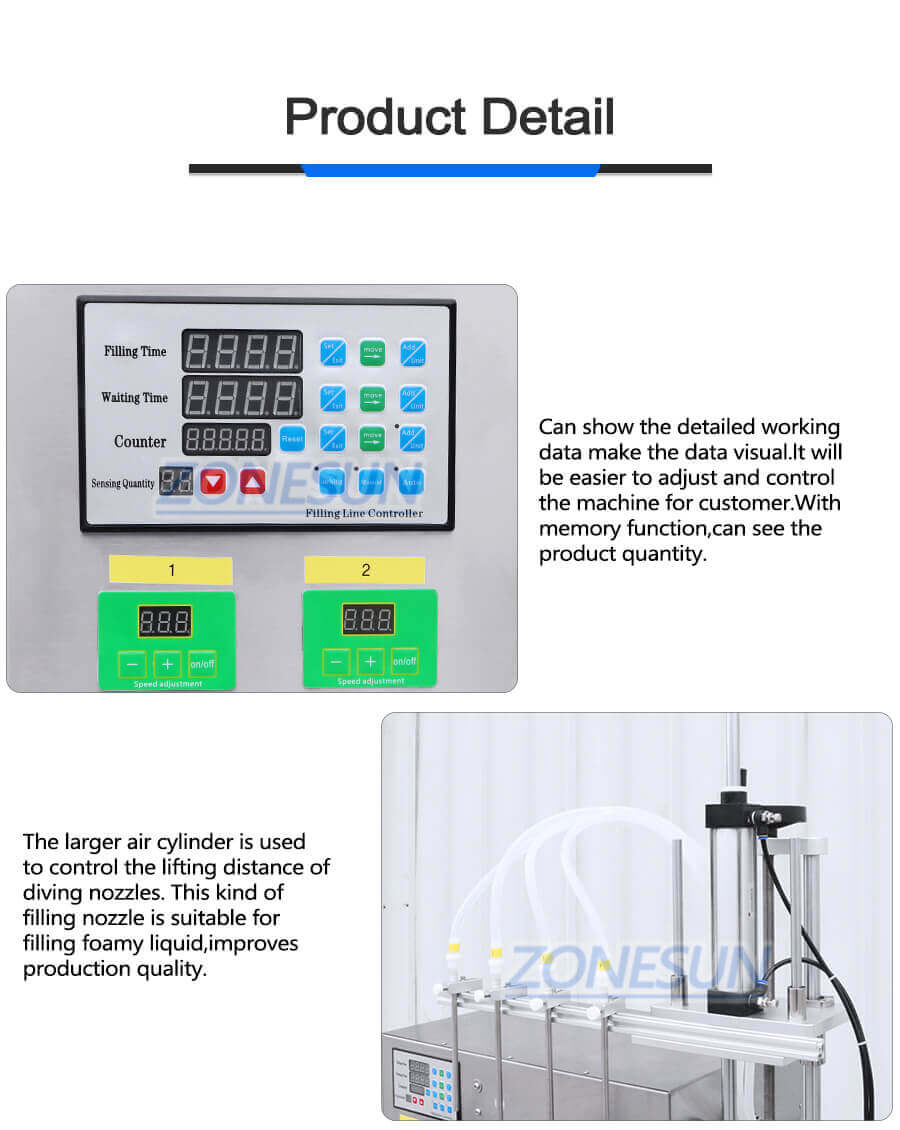

Product Detail

Product Tags

Desktop Filling Machine-ZONESUN TECHNOLOGY LIMITED

Description:
Desktop full automatic machine is very efficient with high cost performance.It is widely used in medicine,daily chemical and other industries such as essential oils,perfumes,juice liquid etc.Machine with peristaltic pump is easy to change tube.Liquid won't pass through the pump.It is good choice for strong corrosive liquid such as biological liquid,eye drops,sulfuric acid, hydrochloric acid,disinfectant,etc.To replace with fluorine rubber tubes,it can also use to essential oils,solvents,etc.

Desktop Filling Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

Machine model	ZS-DTPP4D
Power supply	AC110V/220V 50Hz-60Hz 60W(Each Pump)
Filling Range	2500ml/min
Maximum flow	2500m/min for each nozzle (based on water )
Filling nozzles	4(we can customize the nozzles based on your demands)
Working speed	30-50 bottles/min(based on bottles and liquids)
Air pressure	0.3-0.4MPa
Filling accuracy	≤±1% (For water)
Diameter of filling nozzle	6/8mm
Delay range	0.01-999.9s
Belt length	1m
Size of air compressor connector	OD8mm
Package size	About 1150770840mm
Package weight	About 110kg
