Product Description:

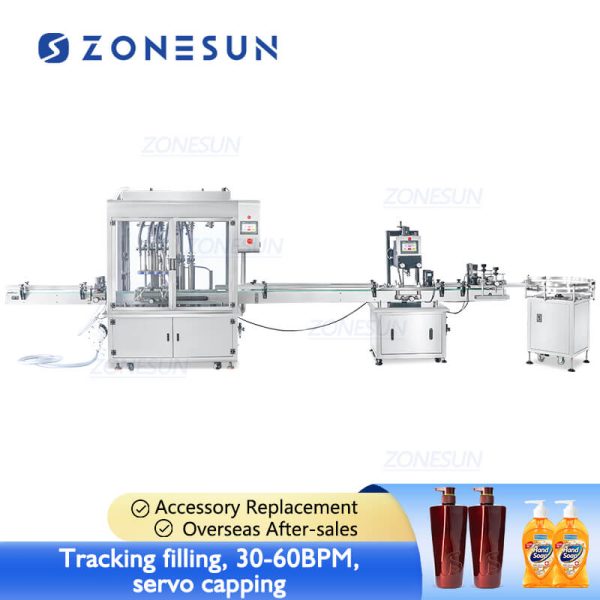

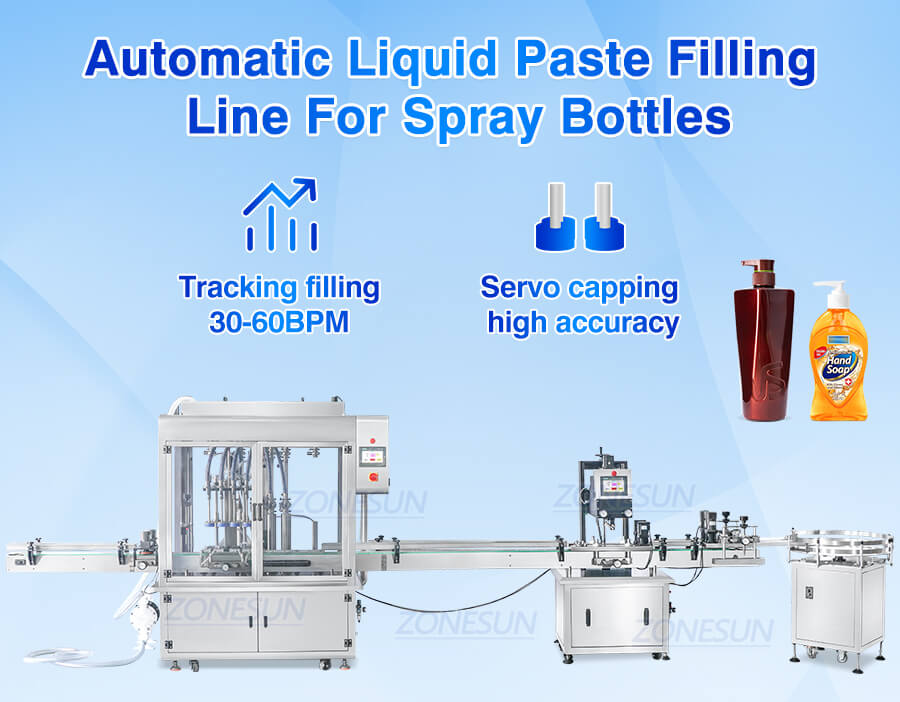

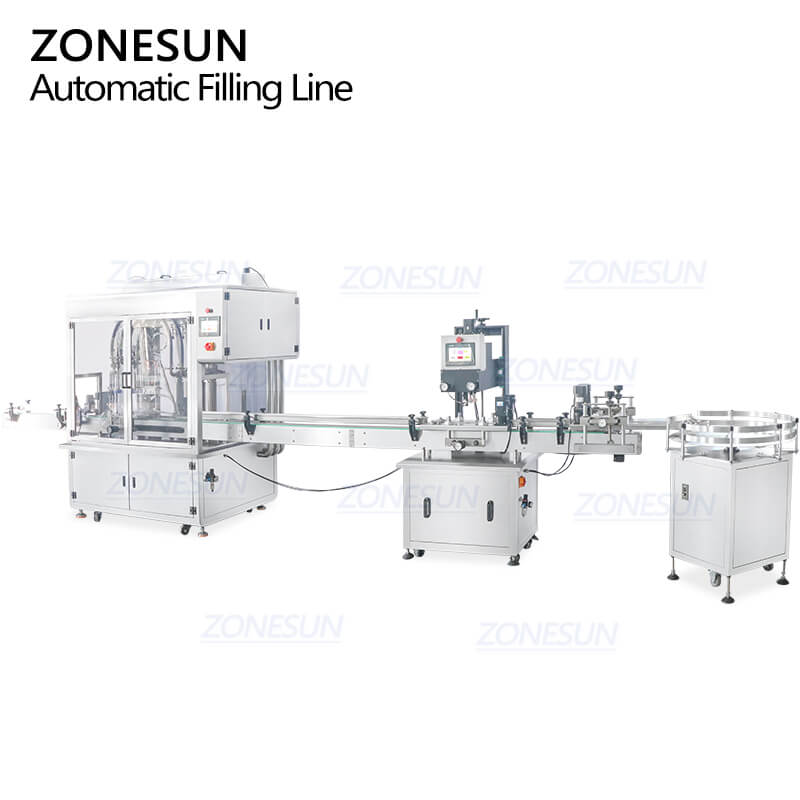

This filling line is consist of tracking filling machine, servo capping machine and bottle turntable machine for packaging different shapes of bottles like liquid soap, shampoo, body lotion etc.

Product Parameters:

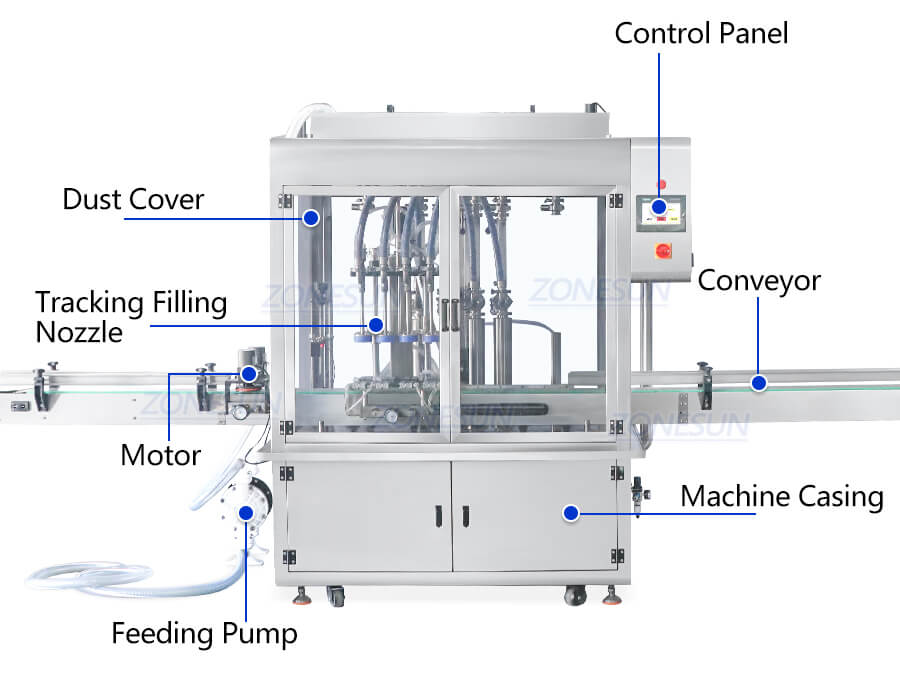

Tracking Filling Machine

Machine model	ZS-SV4X
Voltage	110/220V 50-60HZ
Machine power	2KW
Filling range	5-100m/10-300ml/50-500ml/100-1000ml
Filling pump	Piston Pump
Bottle height	40-250mm
Bottle diameter	30-100mm
Working speed	30-60 bottles/min
Package size	About 2210*1260*2220mm
Package weight	About 950kg

Servo Capping Machine

Machine model	ZS-XG440S
Voltage	110/220V 50-60HZ
Machine power	About 2.8KW
Suitable bottle size	H=50-300mm φ=30-120mm
Suitable cap size	φ=20-60mm
Working speed	About 30-100 bottles/min
Machine size	About 2000*750*1650mm
Machine weight	About 300kg

Bottle Turntable Machine

Machine model	ZS-SP800S
Bottle specifications	Square bottle/round bottle
Conveying speed	0-20 revolutions per minute(adjustable)
Voltage	220V 50Hz (110V can be customized)
Power supply	200W
Turntable diameter	800 mm Available
Dimensions	About 550*550*990mm
Package size	About 1050*1000*1130mm
Net weight/Gross weight	About 93kg/120kg

Product Details:

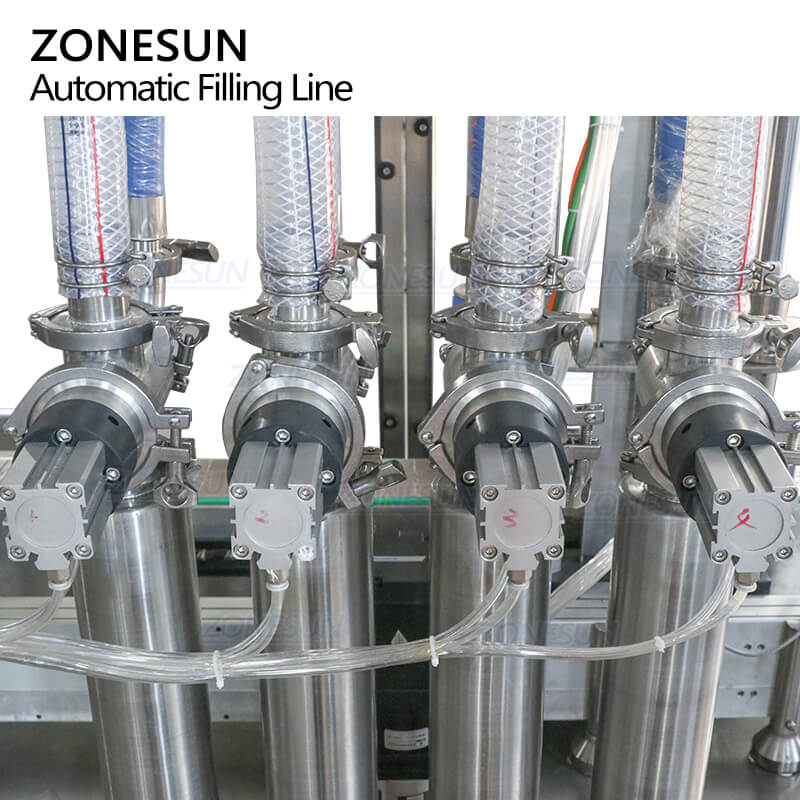

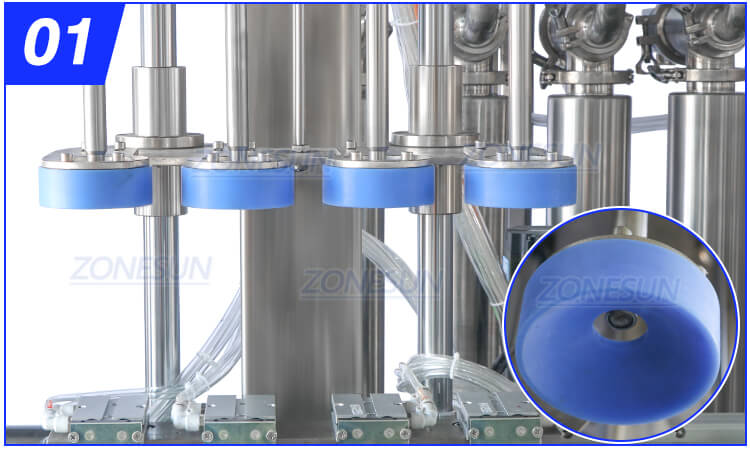

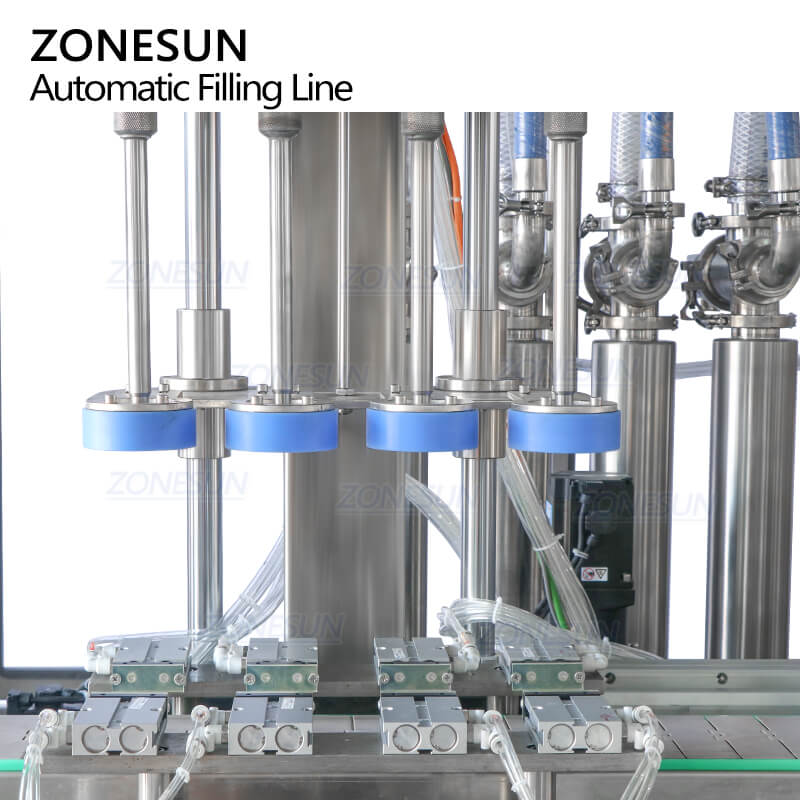

Tracking Filling Nozzle
Multi filling nozzles are customizable, nozzles will follow bottles during filling to improve filling accuracy.

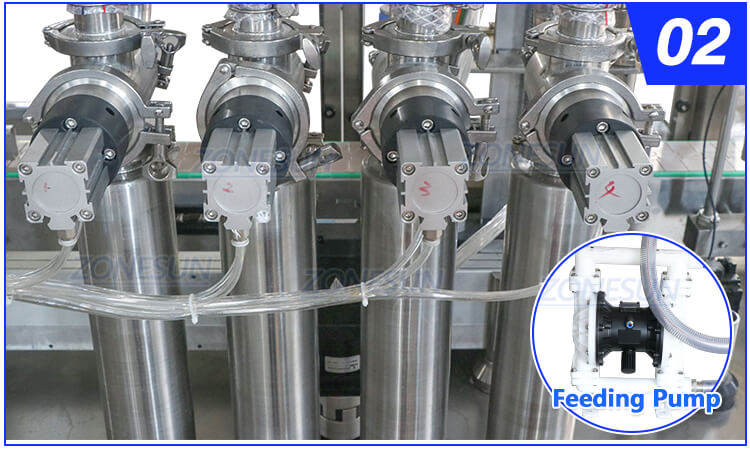

Material Feeding System
Using diaphragm pump to supply filling material in time, saves time and labor.

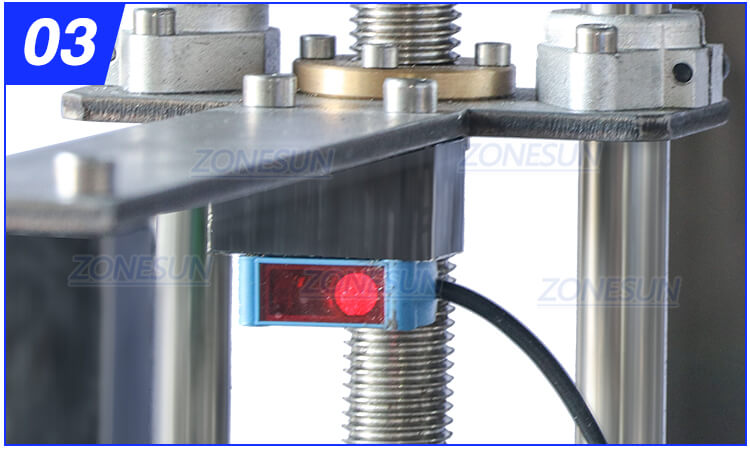

Electric Eye
It can detect passing by bottles to realize automated production.

Bottle Separating Wheel
These can adjust the distance between bottles and bottles, ensure the smooth filling work.

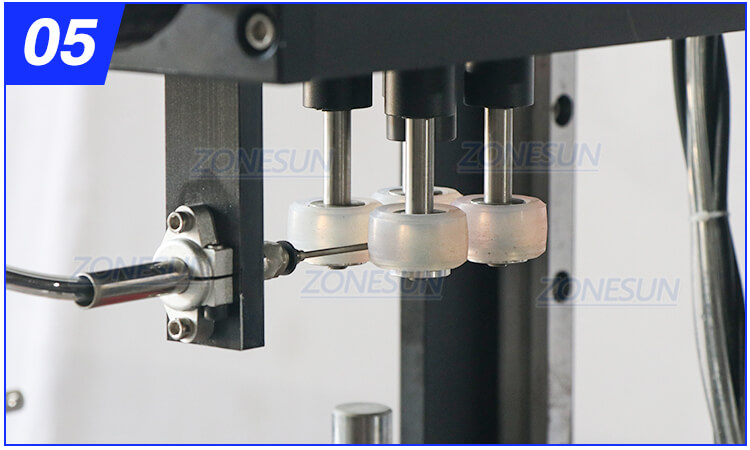

Servo Capping
Servo motor control capping work to improves working accuracy, it suits bottles with screw-on caps.

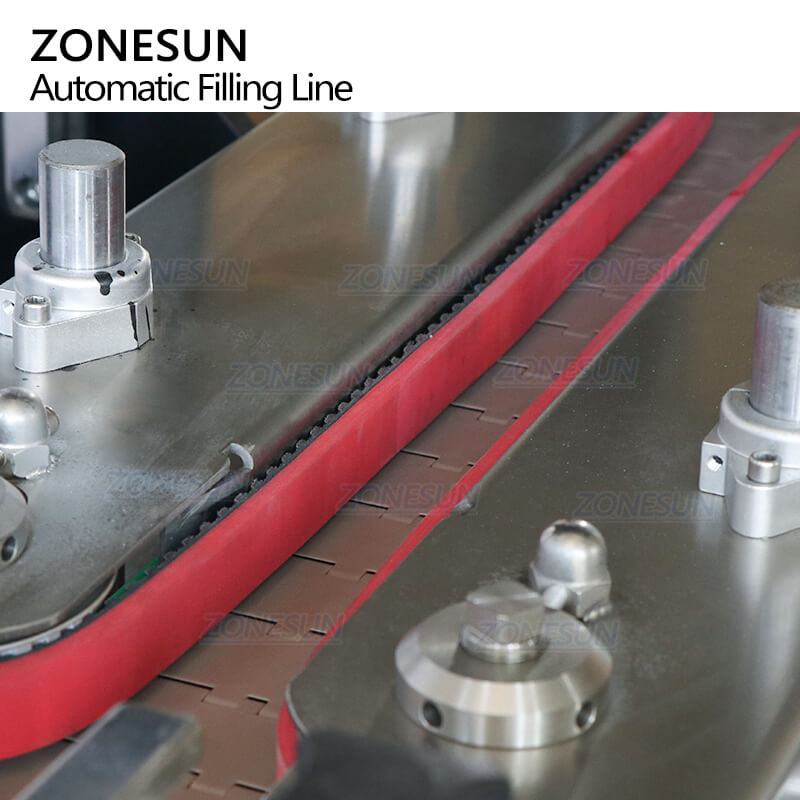

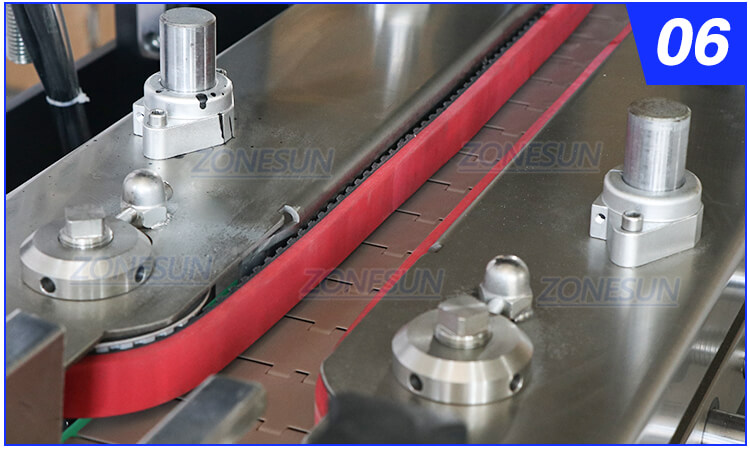

Guiding Conveyor
Prevent bottles from falling down during capping work, it is adjustable based on production need.

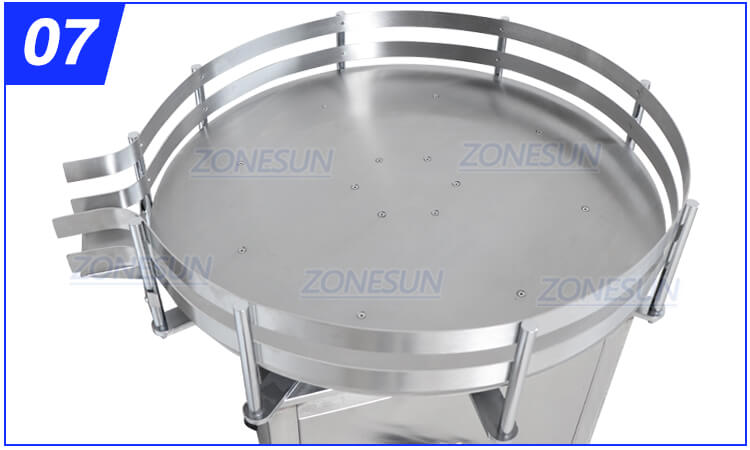

Bottle Turntable Machine
Size of bottle turntable machine is customizable based on production need, can integrate with filling, capping or labeling machine.
