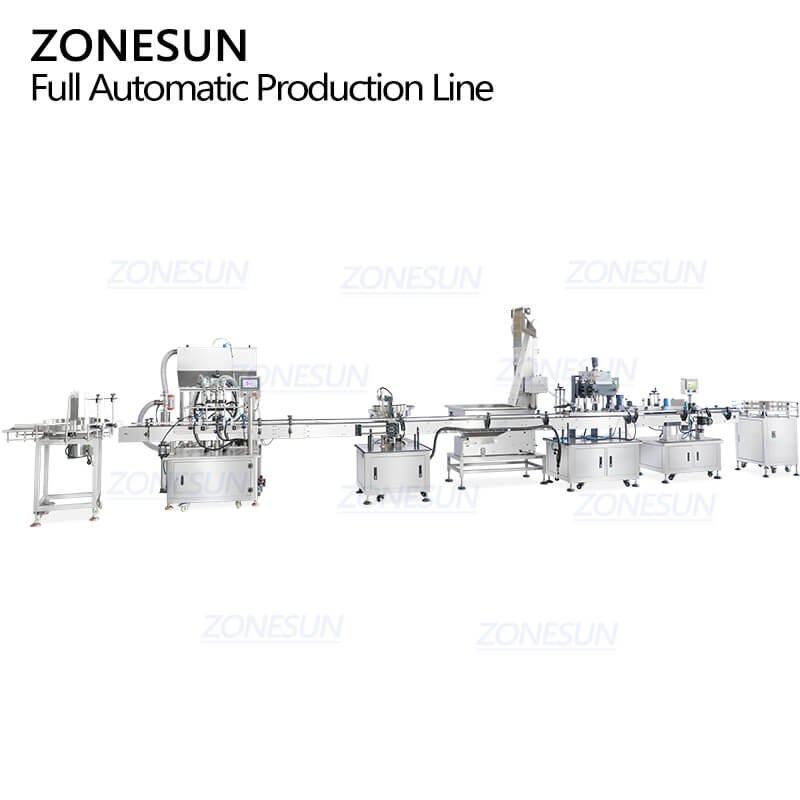

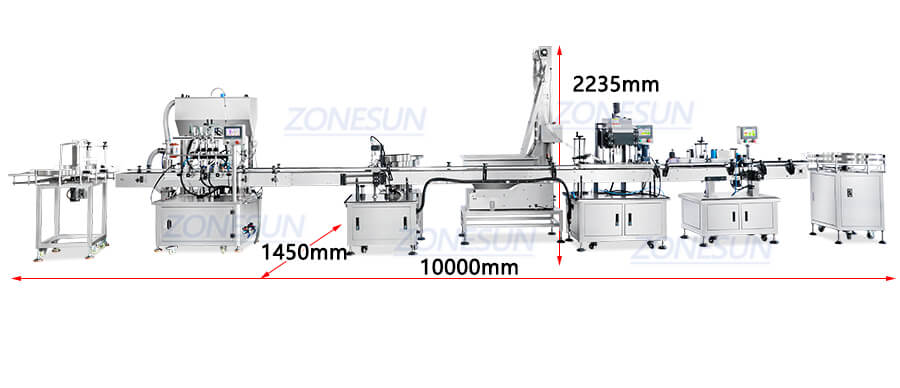

Cosmetic Face Cream Jar Filling Line

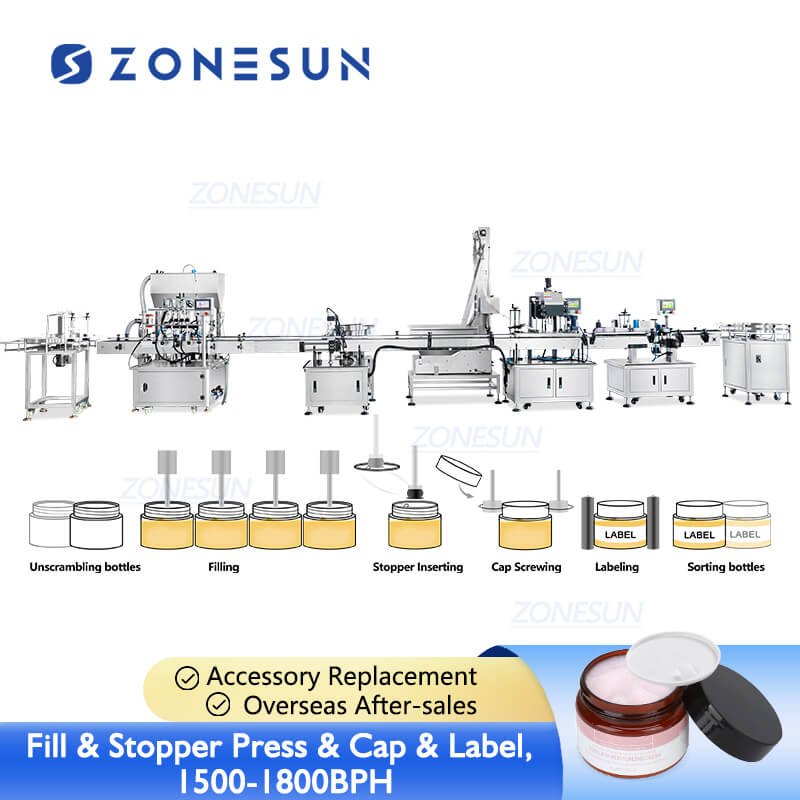

This filling line is consist of bottle turntable machine, servo filling machine, stopper inserting machine, bottle capping machine, label applicator and bottle sorting machine, it is suitable for small & medium scale production of cosmetic cream, ointment, cosmetic serum.
$25,149.00
Share to
This filling line is consist of bottle turntable machine, servo filling machine, stopper inserting machine, bottle capping machine, label applicator and bottle sorting machine, it is suitable for small & medium scale production of cosmetic cream, ointment, cosmetic serum.

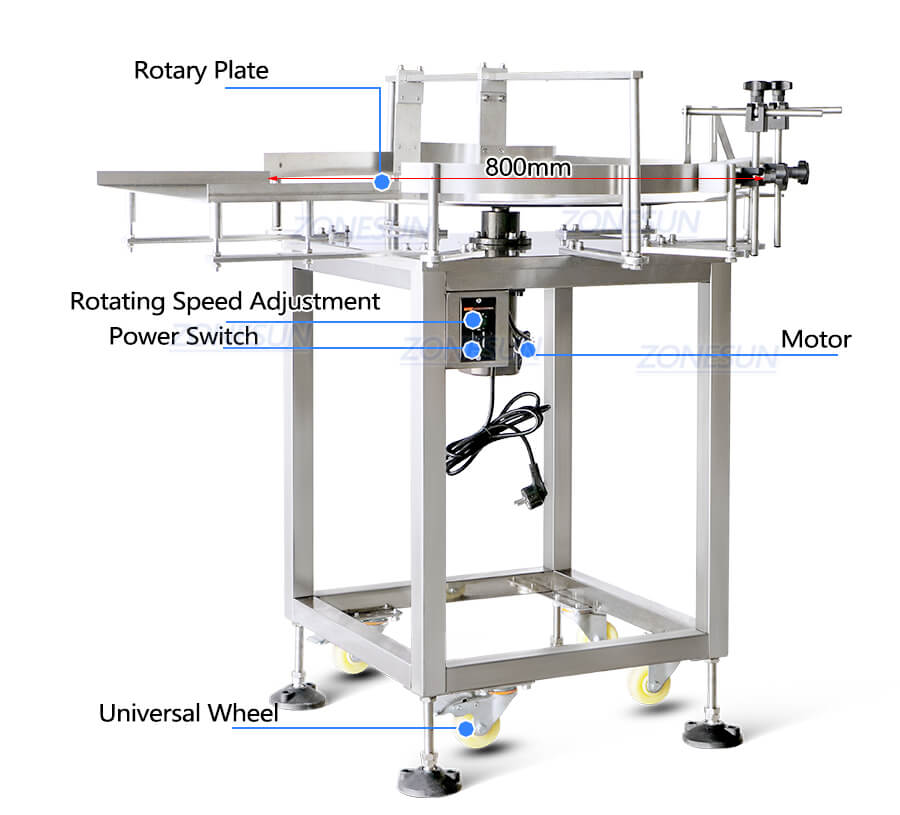

Infeed Turntable Machine
|
Machine Model
|
ZS-LP800N
|
|
Power Supply
|
220V/110V 50-60Hz 200W
|
|
Turntable Diameter
|
800mm
|
|
Suitable Bottle Diameter
|
20-100mm
|
|
Suitable Bottle Height
|
30-250mm
|
|
Working Speed
|
40-60 bottles/min(depending on bottle size)
|
|
Package Size
|
About 1230*1010*1260mm
|
|
Gross Weight
|
About 141kg
|

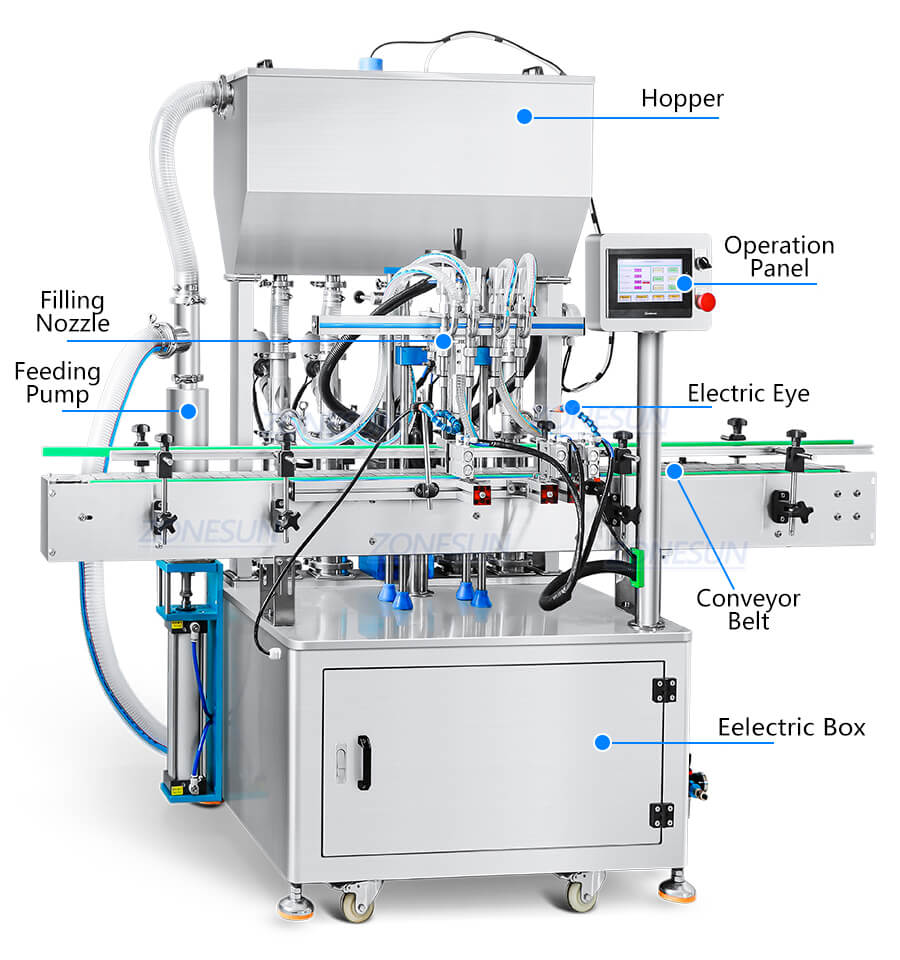

Servo Filling Machine
|
Machine model
|
ZS-YT4T-4PX
|
|
Voltage
|
110/220V 50-60HZ 1KW
|
|
Filling range
|
10-180ml/30-500ml/100-1000ml
|
|
Working speed
|
About 30-50bottles/min
|
|
Filling pump
|
Piston pump
|
|
Air pressure
|
0.6-0.8MPa
|
|
Filling accuracy
|
±1%
|
|
Filling Nozzle
|
4(can be customized)
|
|
Machine size
|
About 2000*800*1800mm
|
|
Machine weight
|
About 200kg
|
|
Packaging size
|
About 2070*960*2010mm(100-1000ml)
|
|
Packaging weight
|
About 392kg(100-1000ml)
|

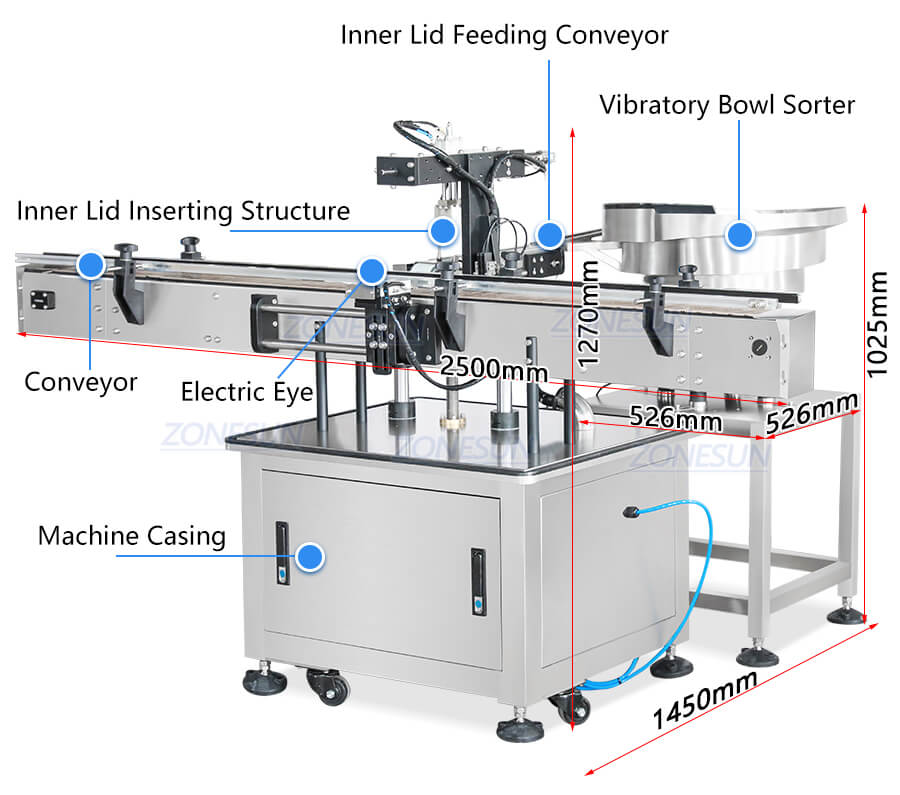

Stopper Inserting Machine
|
Machine model
|
ZS-WIM04
|
|
Voltage
|
110/220V 50-60HZ
|
|
Power
|
About 300W
|
|
Working speed
|
About 40pcs/min
|
|
Machine size
|
About 2500*1450*1270mm(Main Machine)
About 526*526*1025mm(Vibratory Bowl Sorter )
|
|
Package Size
|
About 2060*990*1460mm
|
|
Package Weight
|
About 277kg
|
Servo Capping Machine
|
Machine model
|
ZS-XG440RS
|
|
Power supply voltage
|
AC 110/220V 50-60HZ
|
|
Power
|
2KW
|
|
Suitable cover diameter
|
30-80mm(can be customized)
|
|
Working pressure
|
0.5-0.7MPa
|
|
Working speed
|
25-60 bottles/min
|
|
Machine size
|
About 2000*900*1600mm
|
|
Net weight
|
About 250kg
|

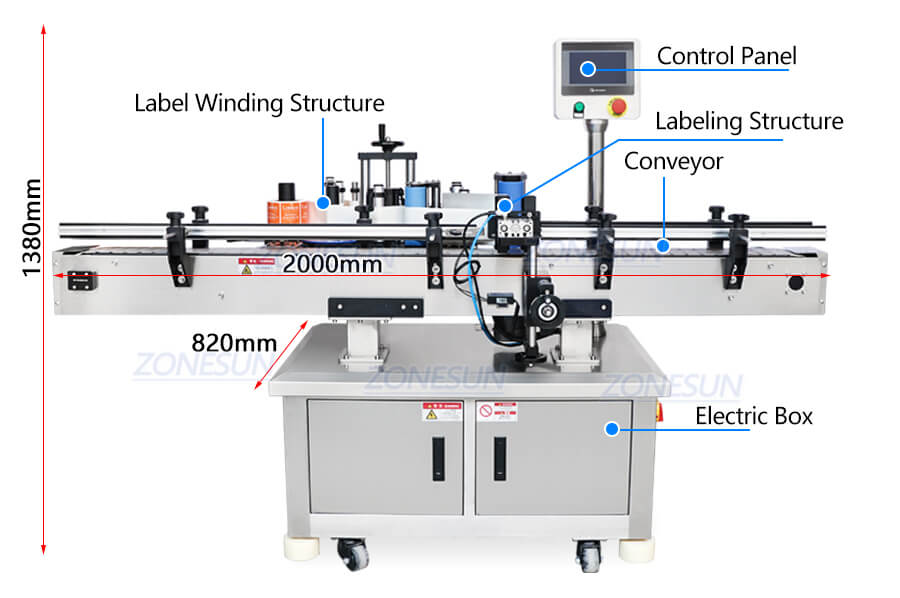

Labeling Machine
|
Model
|
ZS-TB260R
|
|
Power supply
|
AC220V 50Hz/60Hz 1000 W
|
|
Labeling capacity
|
25-50 bottles/min(depends on bottle size)
|
|
Labeling accuracy
|
±1.0 mm
|
|
Suitable Bottle Size
|
Φ=30-100 mm H=30-200mm
|
|
Label size
|
(L)20-300 mm (H)12-130 mm(Can be customized)
|
|
Roll inside diameter
|
Φ76mm
|
|
Roll outside diameter
|
Φ350mm
|
|
Conveyor Size
|
112*2000mm(W)
|
|
Machine size
|
About 2000*820*1380mm
|
|
Machine weight
|
About 180kg
|
|
Packing Size
|
About 2100* 890*1520mm
|
|
Package weight
|
About 250 kg
|

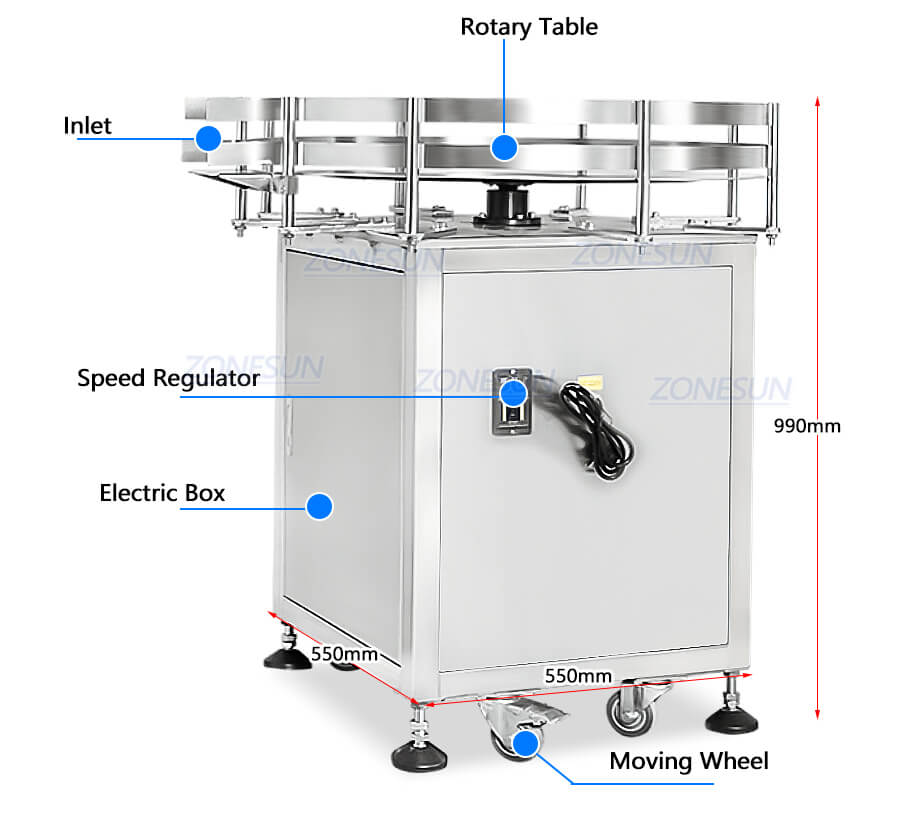

Outfeed Turntable Machine
|
Machine model
|
ZS-SP800S
|
|
Voltage
|
220V 50Hz (110V can be customized)
|
|
Power supply
|
200W
|
|
Bottle specifications
|
Square bottle/round bottle
|
|
Conveying speed
|
0-20 revolutions per minute(adjustable)
|
|
Turntable diameter
|
800mm (Customizable)
|
|
Dimensions
|
About 550*550*990mm
|
|
Package size
|
About 1050*1000*1130mm
|
|
Net weight/Gross weight
|
About 93kg/120kg
|

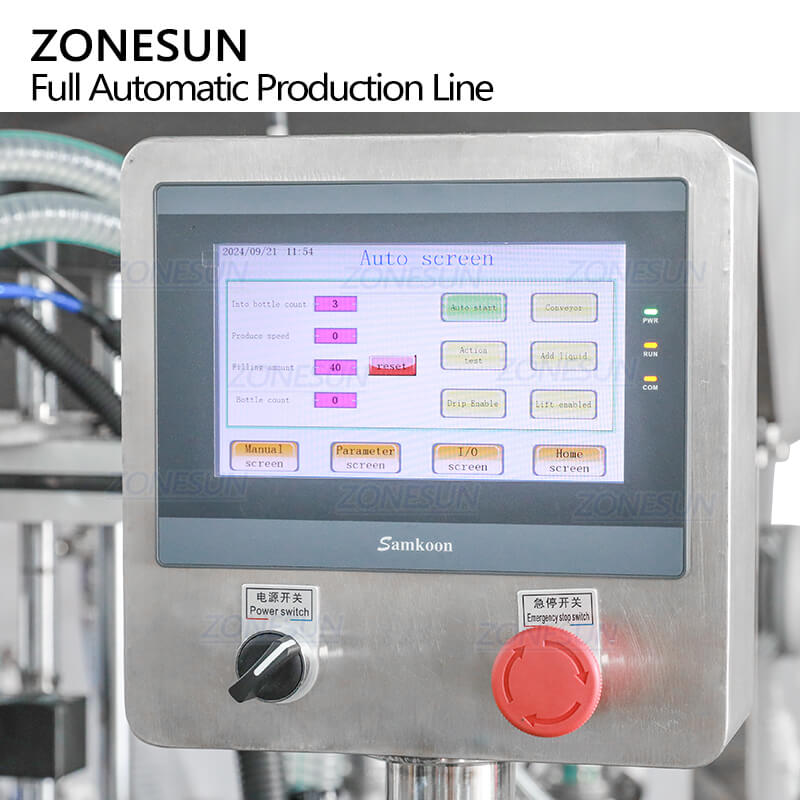

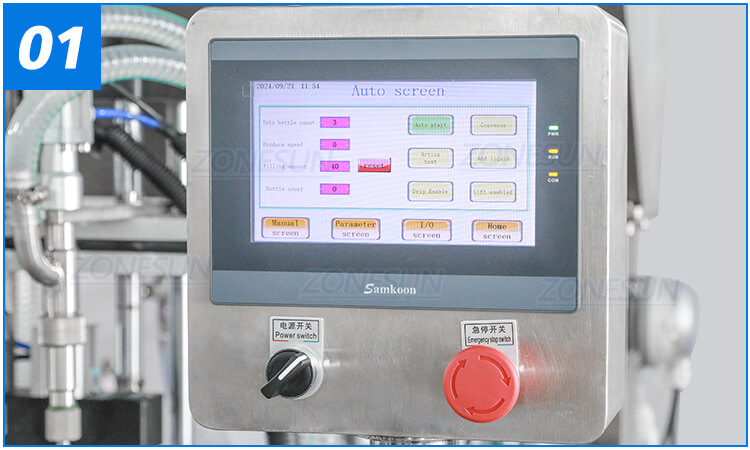

Touch Screen Control Panel
Shows parameter setting more intuitively, easy to debug machine.

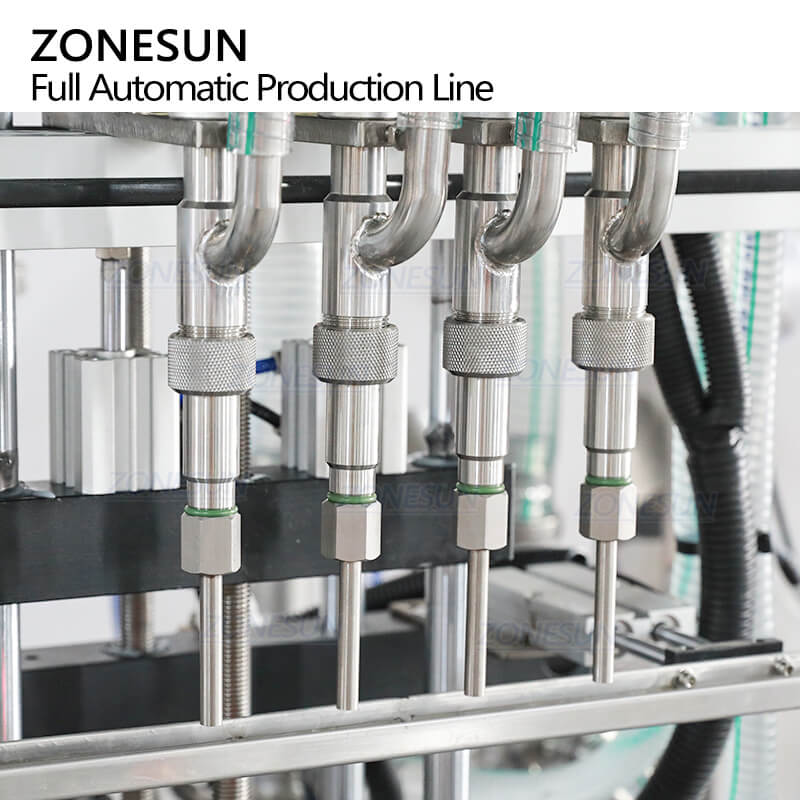

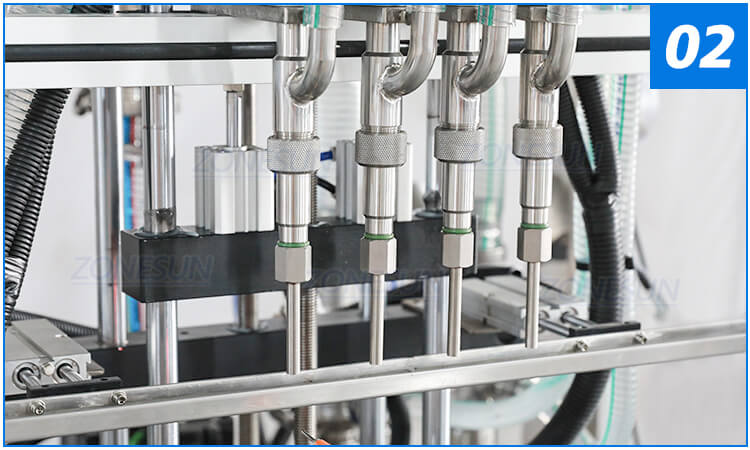

Filling Structure
Servo motor controls filling work, filling nozzles are customizable based on production need.

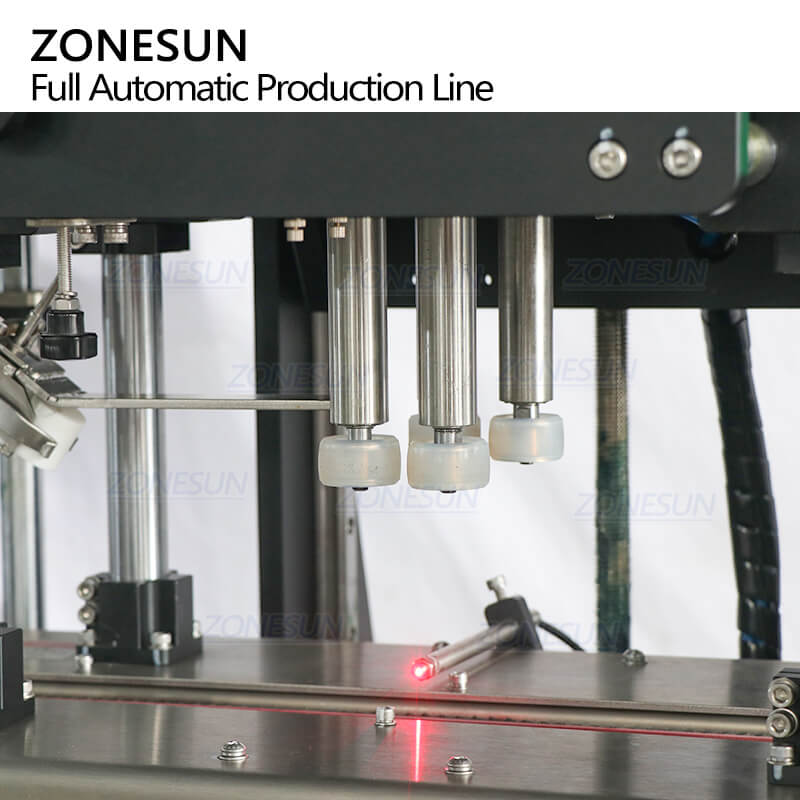

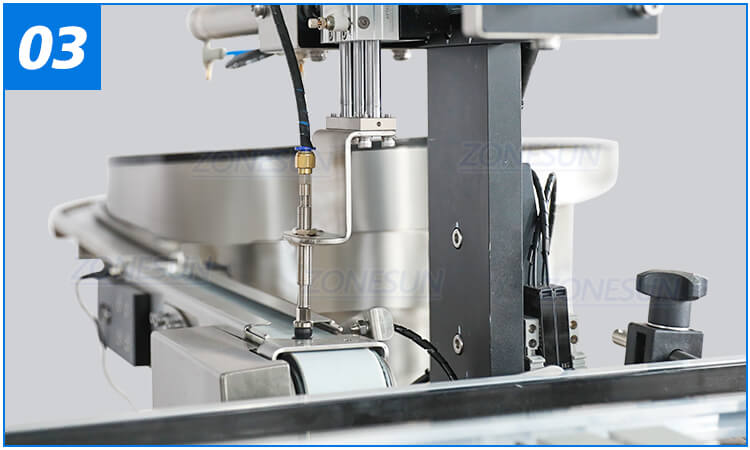

Stopper Inserting Structure
Imitating human hands to place and press inner lids, improves working accuracy.

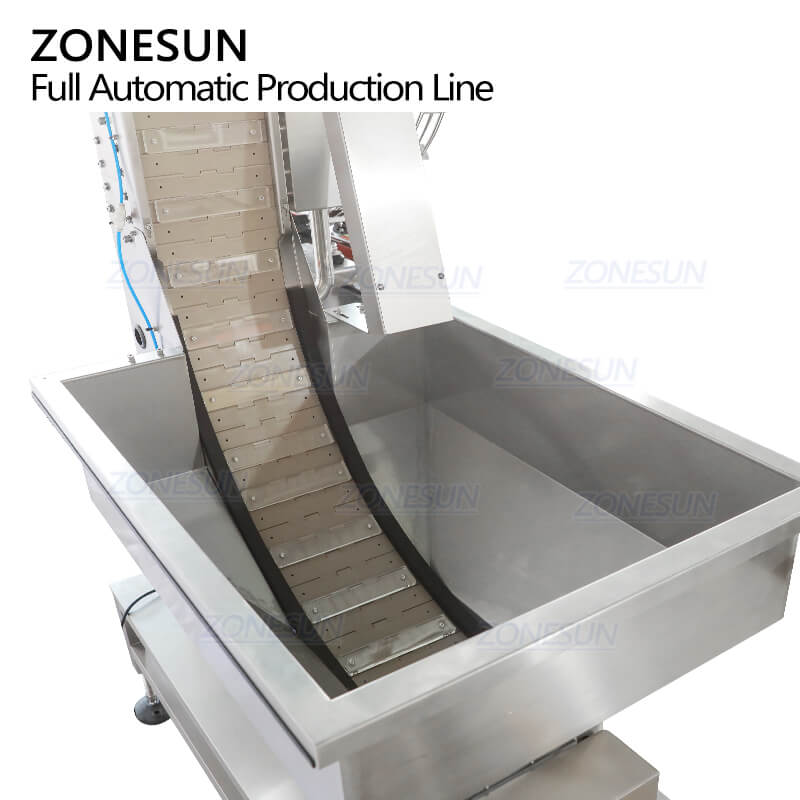

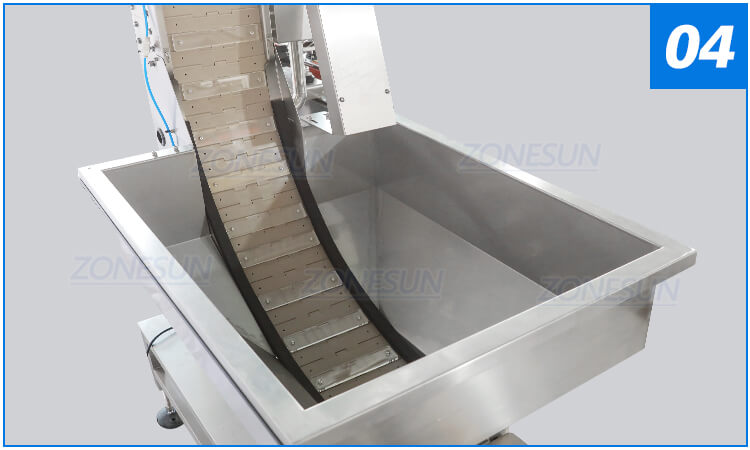

Cap Elevator
Supply outer cover in time to ensure the smooth production, it is customizable.
Capping Structure
Servo motor controls capping work, capping torsion is adjustable according to production need.

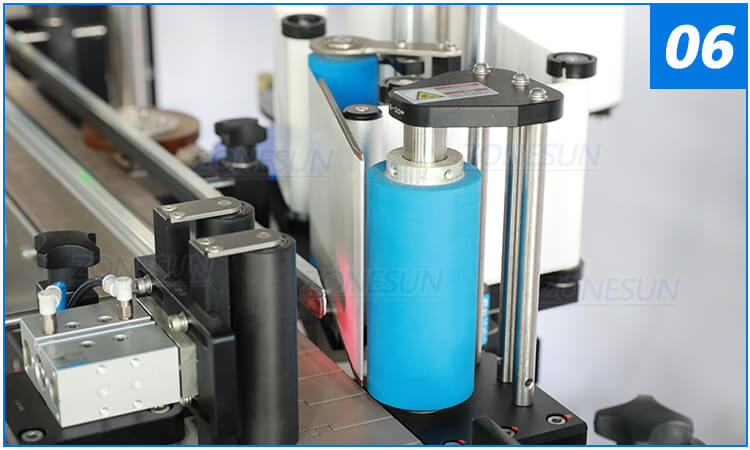

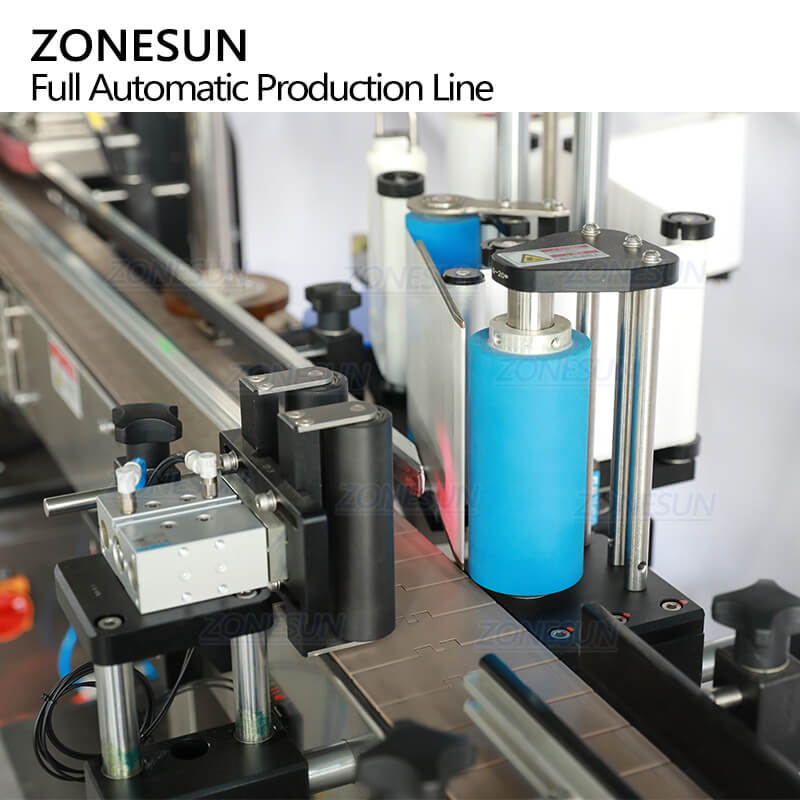

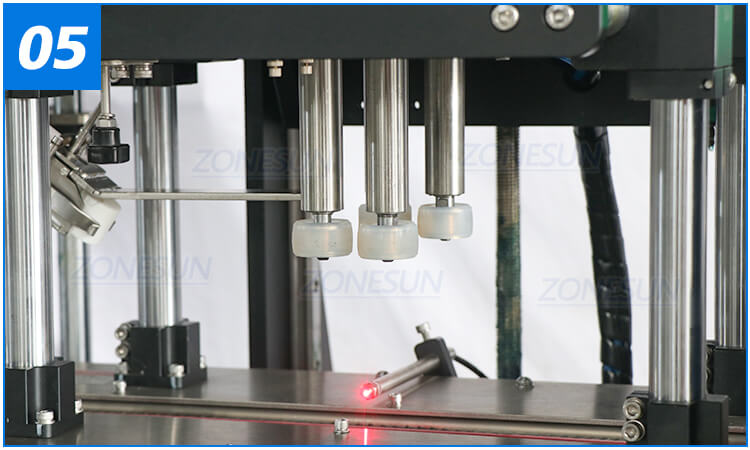

Labeling Structure
Three roller bar finish labeling work, it suits single side, double sides and wrap-around labeling, can reach 20-50BPM.

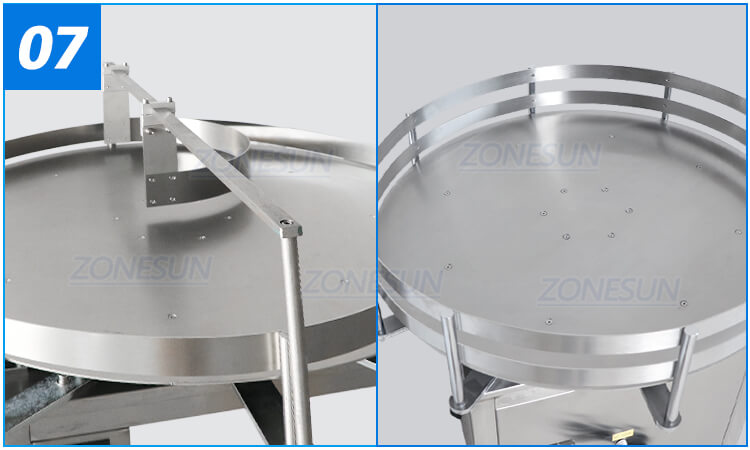

Bottle Turntable
Size of turntable machine is customizable based on production, saves working labor.
