Corrosive Liquid Filling Capping Machine

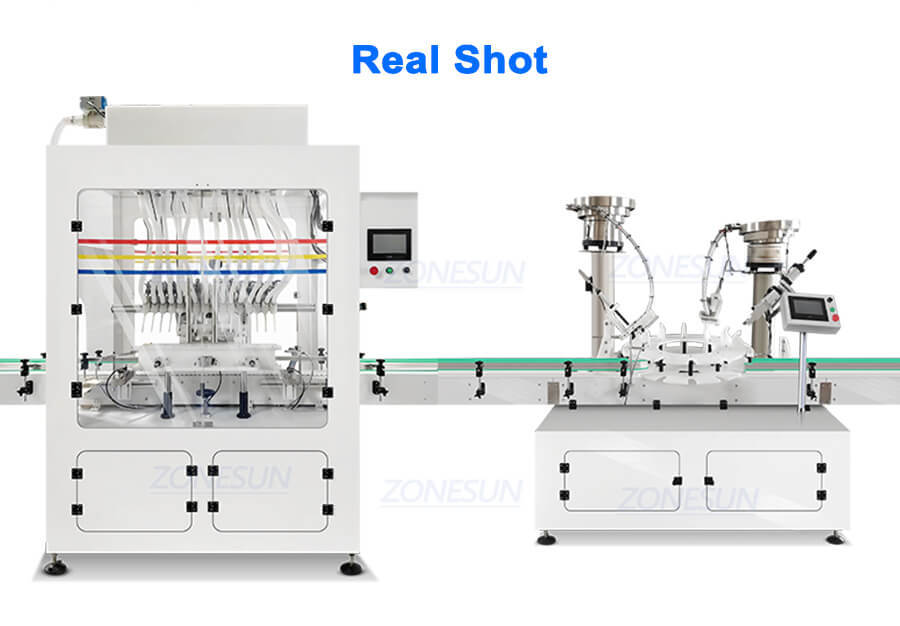

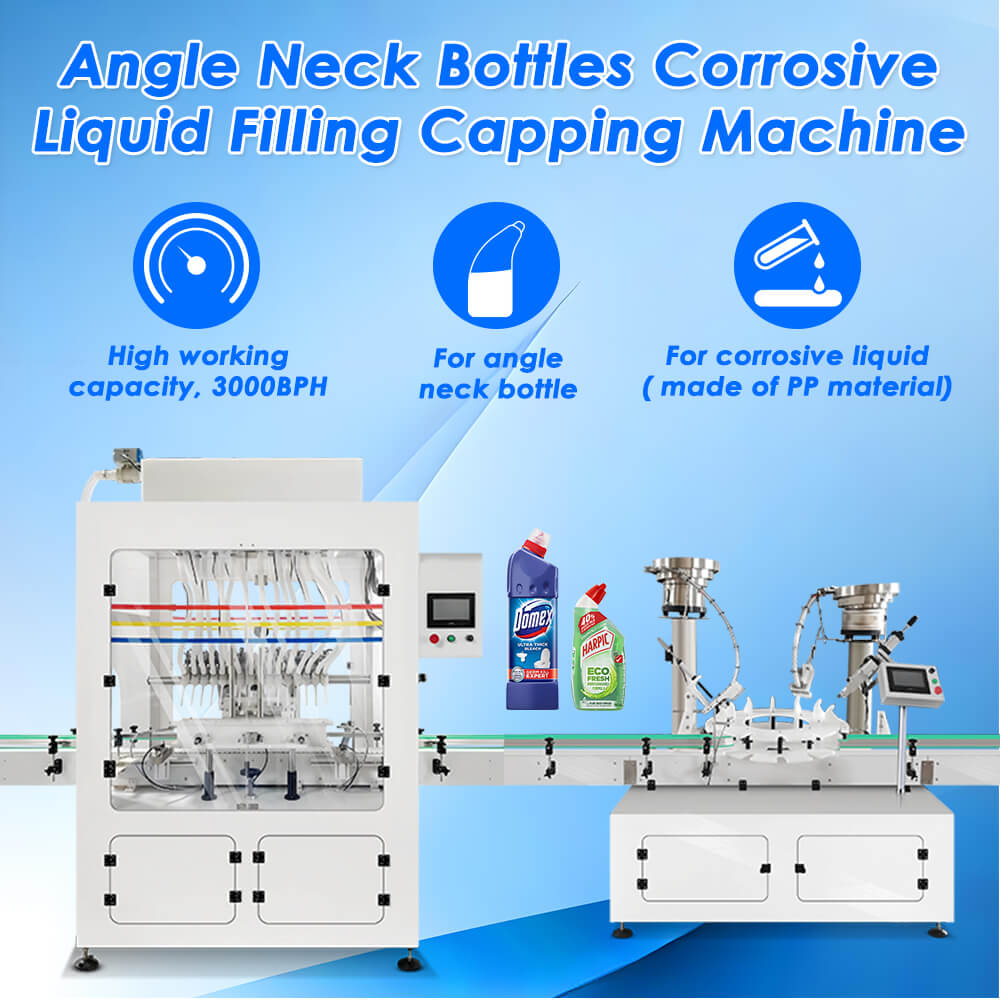

This packaging system is consist of 16 heads liquid filling machine and angle neck bottle capping machine, it is designed for packaging corrosive liquid like toilet cleaner. This packaging system can reach 3000BPH, suits small & medium scale production.
$37,999.00
Share to
This packaging system is consist of 16 heads liquid filling machine and angle neck bottle capping machine, it is designed for packaging corrosive liquid like toilet cleaner. This packaging system can reach 3000BPH, suits small & medium scale production.
| Machine model | ZS-YTCR16C |
| Machine voltage | 220/380V 50-60HZ 2.4KW |
| Filling volume | 10ml-5L(customizable) |
| Suitable bottle size | Customizable |
| Suitable bottle neck | φ30mm+ |
| Filling nozzle quantity | 4/6/8/10/12/14/16(customizable) |
| Working capacity | 3200BPH(based on 500ml) |
| Filling accuracy | ±0.3% |
| Machine main material | PP |
| Air pressure | 0.6-0.8MPa |
| Machine size | About 2100*1100*800mm |
| Machine weight | About 800kg |
| Machine model | ZS-XG25V |
| Machine voltage | 220/380V 50-60HZ 2.4KW |
| Suitable bottle size | customizable |
| Working capacity | 50-80BPM |
| Suitable bottle neck | φ30mm+ |
| Machine main material | PP |
| Air pressure | 0.6-0.8MPa |
| Machine size | About 1700*1300*1650mm |
| Machine weight | About 500kg |
Control Panel
Makes parameter setting more intuitively, simplifies machine operation and debugging.
Filling Nozzles
Designed for angle neck bottles, ensures smooth filling. Quantity of filling nozzles is customizable.
Anti-corrosive Chain Conveyor
Conveyor is made of PP material to ensure safety operation.Length and width is customizable as production need.
Starwheel
Stopper pressing, cap placing & screwing are finished through starwheel, compact machine body and has high working accuracy.
