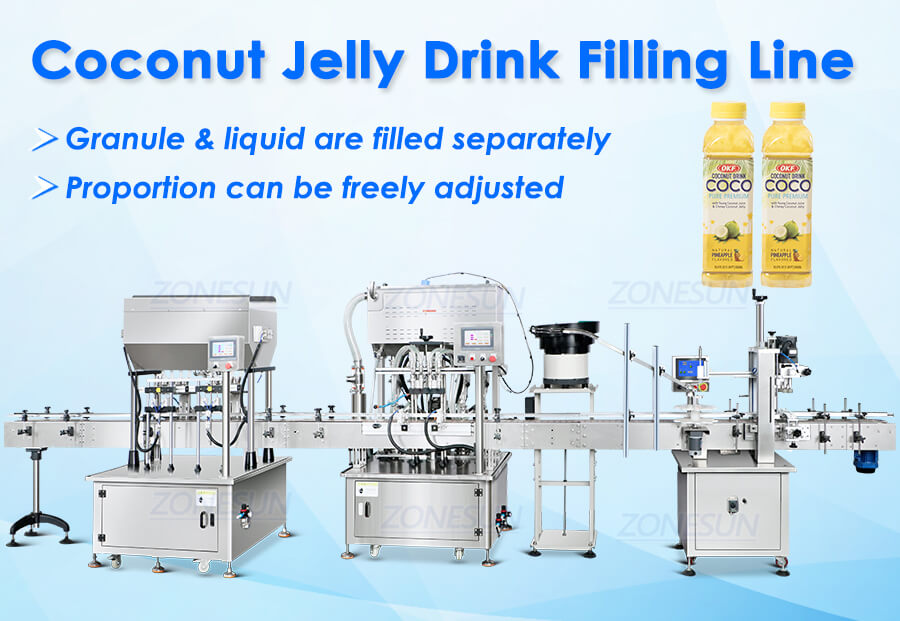

Coconut Jelly Drink Filling Line

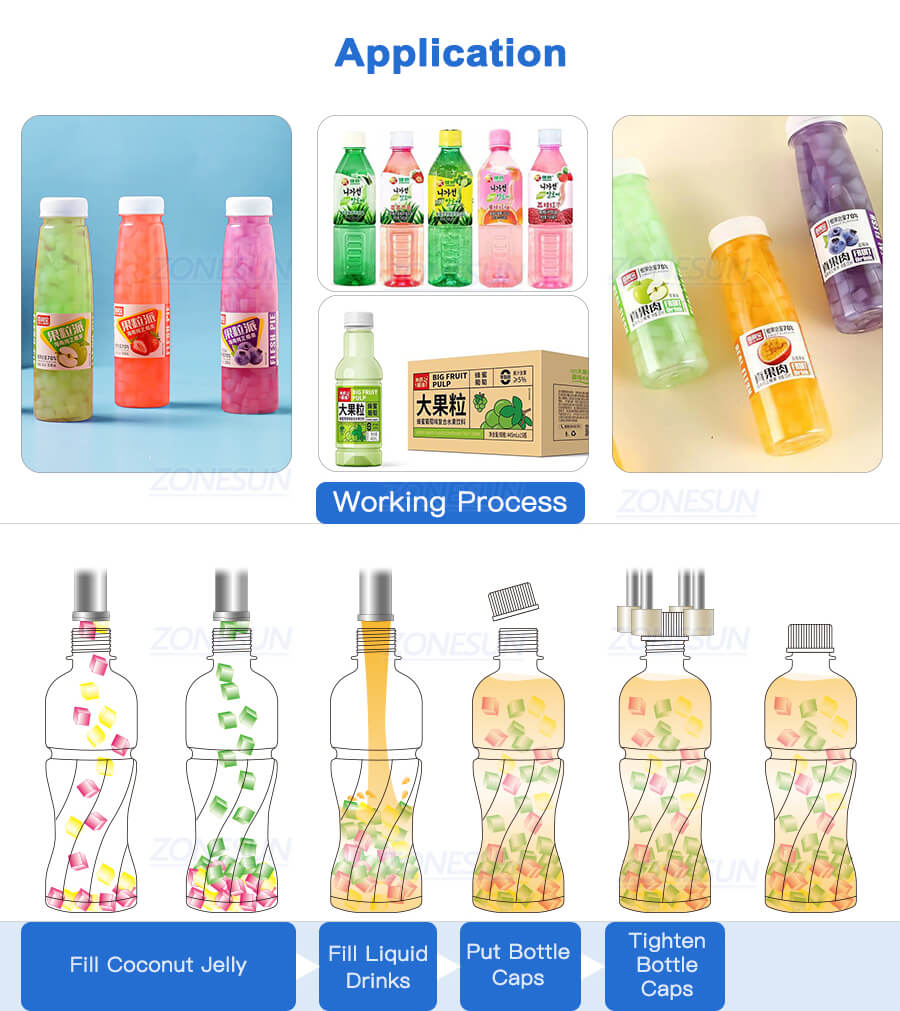

We divide the filling process into two parts, namely filling coconut jelly first and then filling liquid drinks. With a four-wheel capping machine, this production line is suitable for small and medium-sized production of coconut jelly beverages.
Share to
Product Description:
We divide the filling process into two parts, namely filling coconut jelly first and then filling liquid drinks. With a four-wheel capping machine, this production line is suitable for small and medium-sized production of coconut jelly beverages.
Product Parameters:
|
Machine model
|
ZS-VTGT8
|
|
Machine voltage
|
110/220V 50-60HZ 2KW
|
|
Working speed
|
5-20BPM
|
|
Filling nozzle quantity
|
4*2
|
|
Hopper size
|
22.5L*2
|
|
Package size
|
About 1820*1030*2040mm
|
|
Package weight
|
About 430kg
|
|
Machine model
|
ZS-YT4T-4PX
|
|
Voltage
|
110/220V 50-60HZ 1KW
|
|
Filling range
|
10-180ml/30-500ml/100-1000ml
|
|
Working speed
|
About 30-50 bottles/min
|
|
Filling pump
|
Piston pump
|
|
Air pressure
|
0.6-0.8MPa
|
|
Filling accuracy
|
±1%
|
|
Suitable temperature range
|
≤80℃
|
|
Filling Nozzle
|
4(can be customized)
|
|

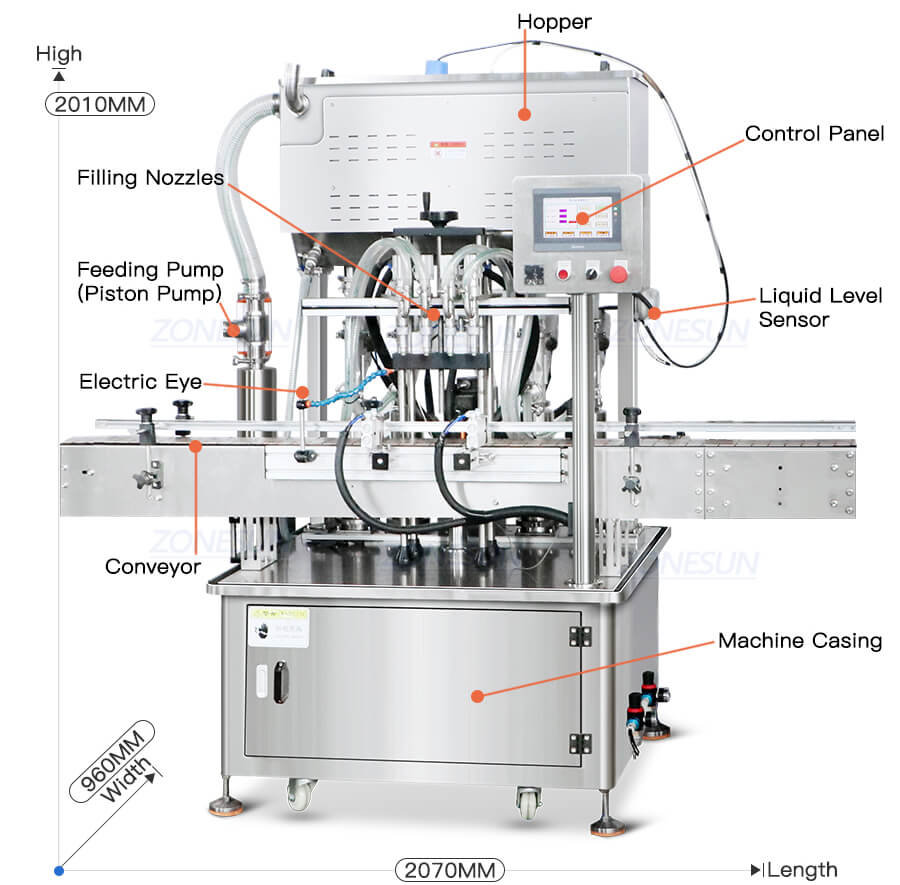

Machine size
|
About 2000*800*1800mm
|
|
Machine weight
|
About 200kg
|
|
Packaging size
|
About 2070*960*2010mm
|
|
Packaging weight
|
About 392kg
|
|

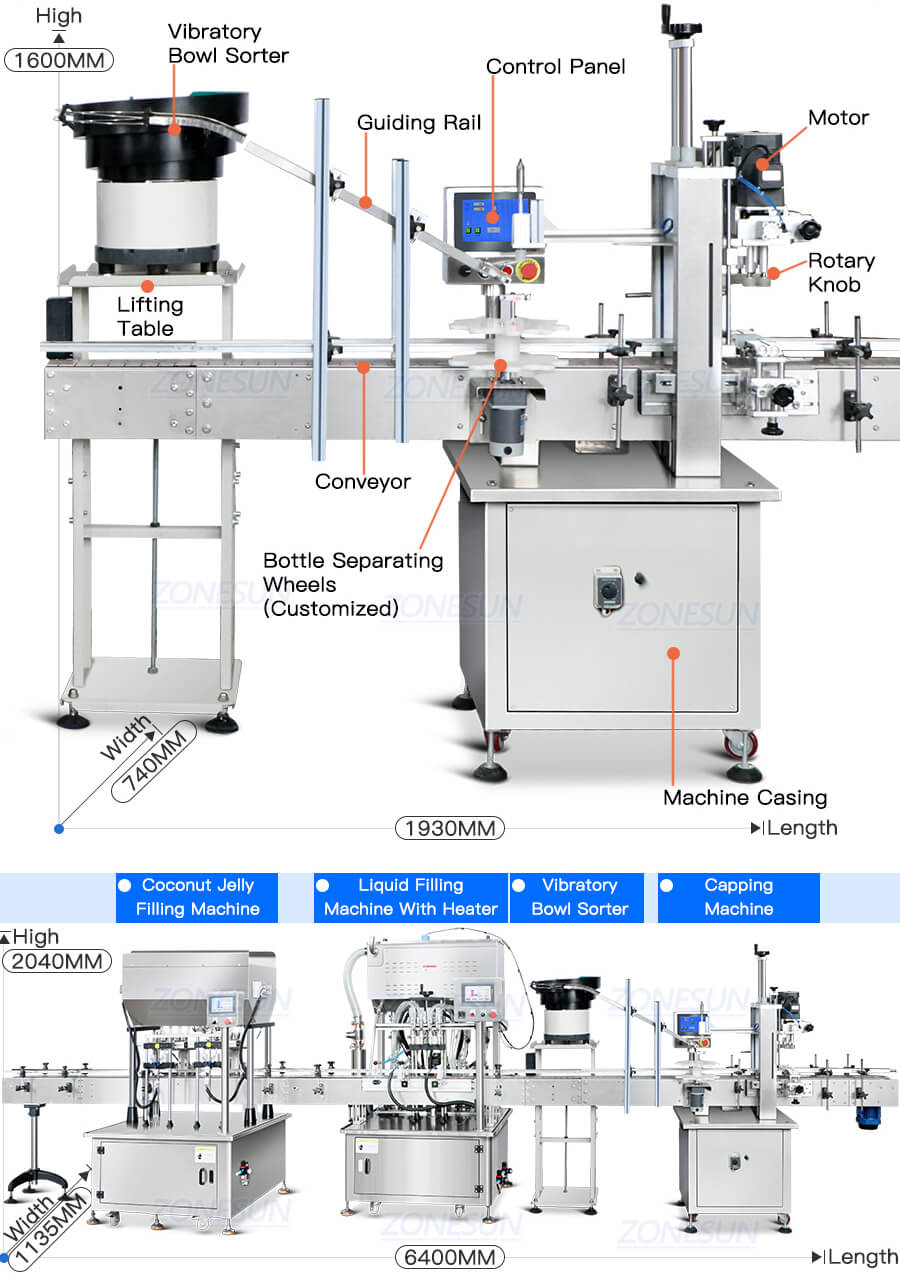

Machine model
|
ZS-XG16V
|
|
Bottle height
|
30-300mm
|
|
Cap Diameter
|
18-70mm
|
|
Botle Diameter
|
20-160mm
|
|
Working speed
|
20-60 bottles / minute (depending on bottle and cap size and shape)
|
|
Working voltage
|
AC220V/110V 50-60HZ
|
|
Wokingn pressure
|
0.4-0.6MPa
|
|
Machine size
|
About 1930*740*1600mm
|
|
Package size
|
About 2000*820*1760mm
|
|
Machine weight
|
About 150kg
|
Product Details:

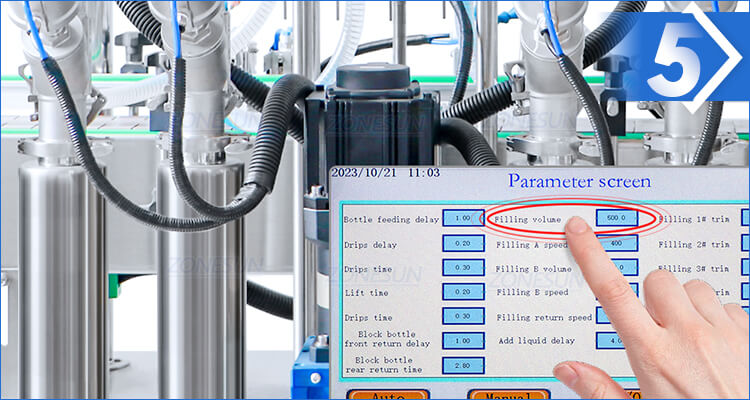

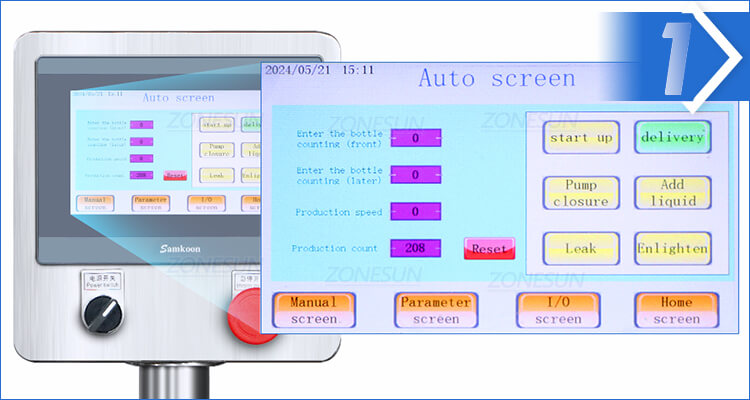

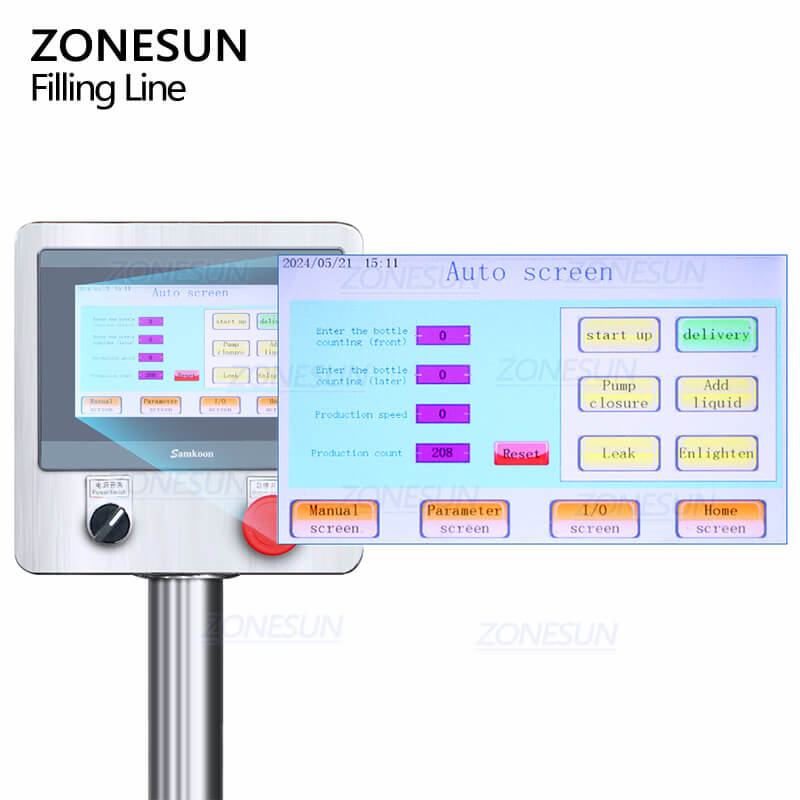

Touch Screen Control Panel
Customizable interface simplifies machine operation

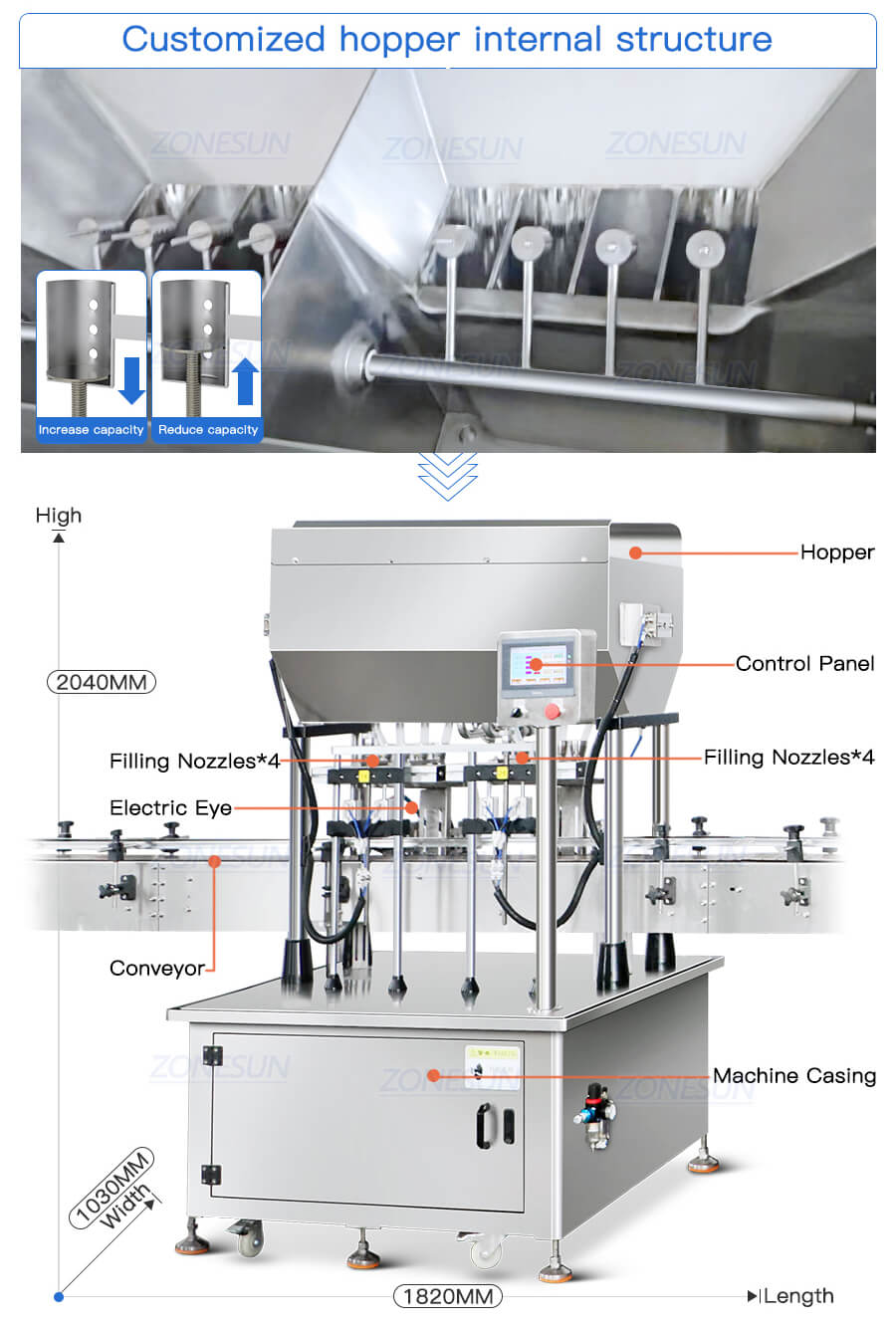

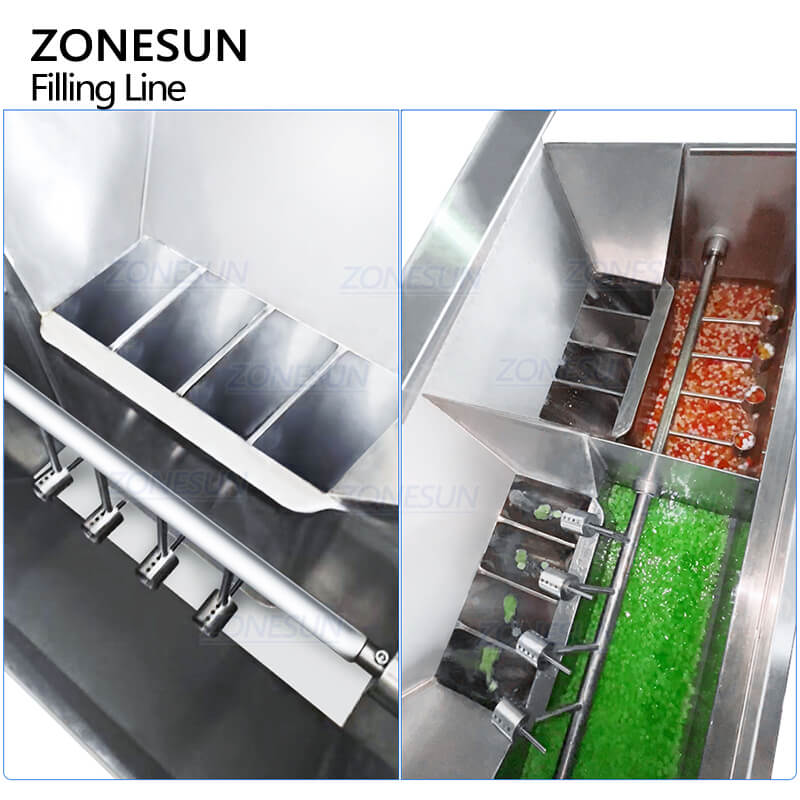

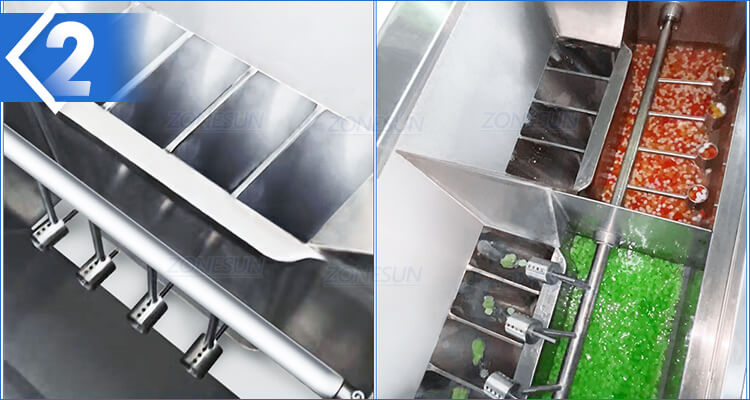

Customized Hopper
Measuring cups ensure filling accuracy, separated hoppers suits different kinds of coconut jelly

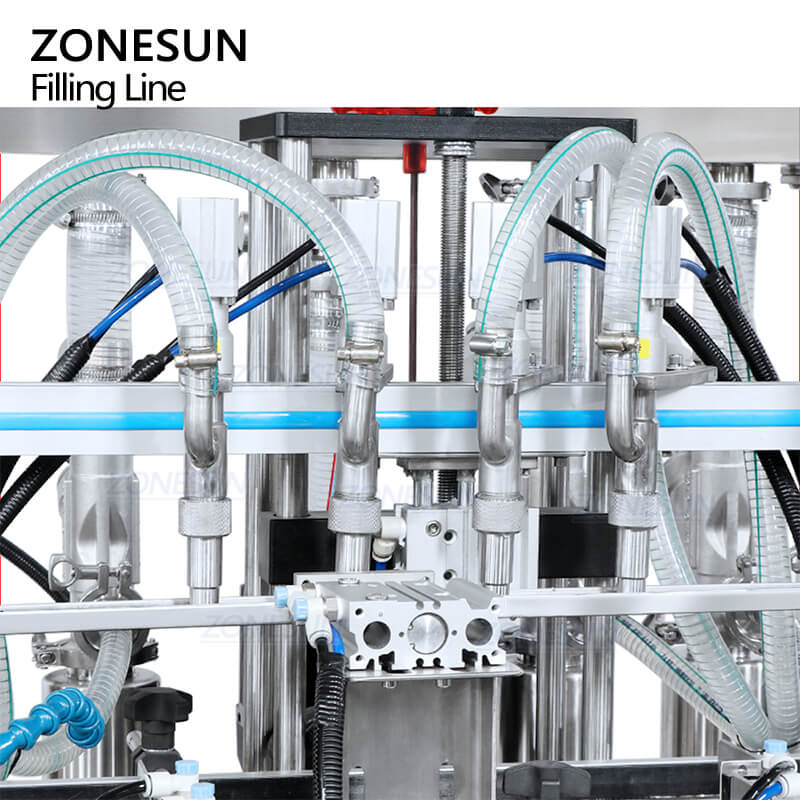

Multi Filling Nozzles
Quantity of filling nozzles can be customized to improve working efficiency
Feeding Pump
It can supply filling material in time, heating function is customized for smooth filling
Servo Motor
Servo motor controls liquid filling work, machine operation will be easier and has high filling accuracy

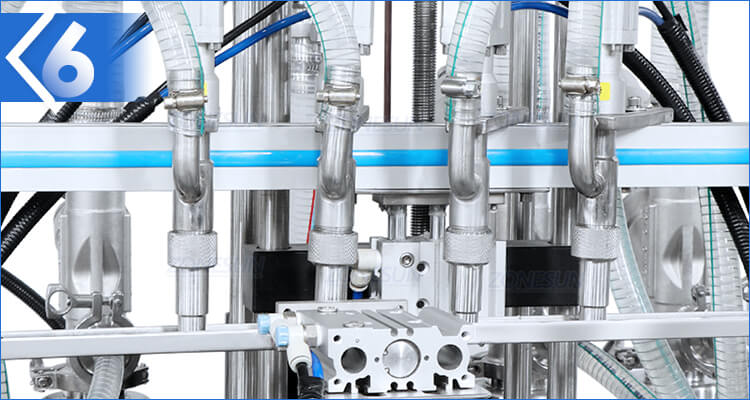

Anti-dripping Filling Nozzle
Can efficiently prevent liquid beverage from dripping onto the exterior of the containers or the filling machinery

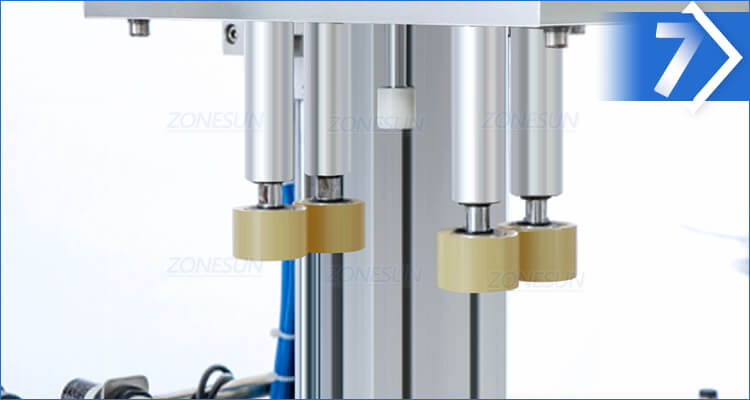

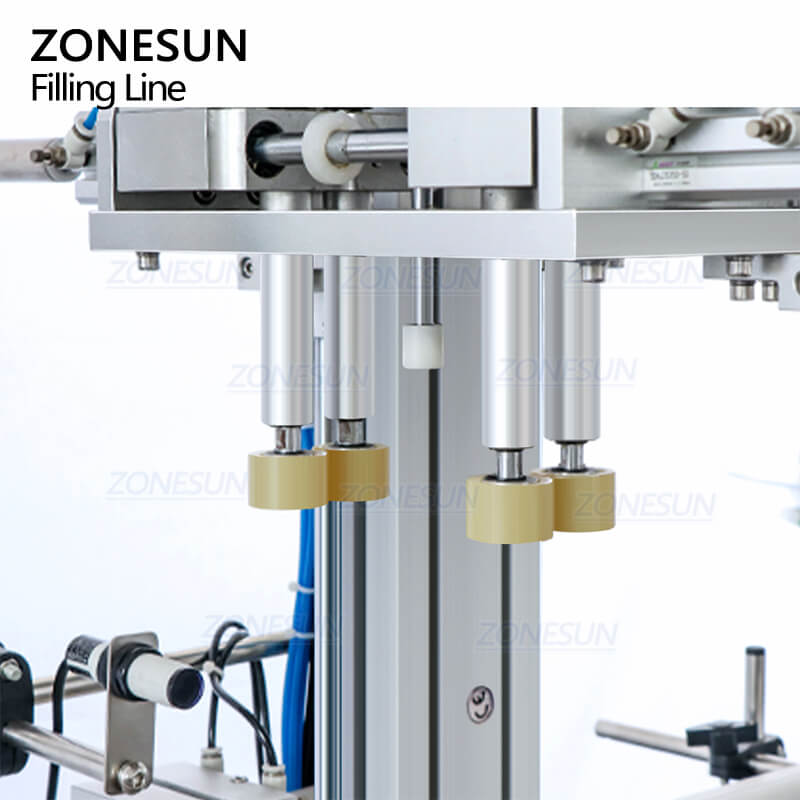

Capping Structure
Suitable for screw-on bottle caps, capping structure can adjusted according to cap size
