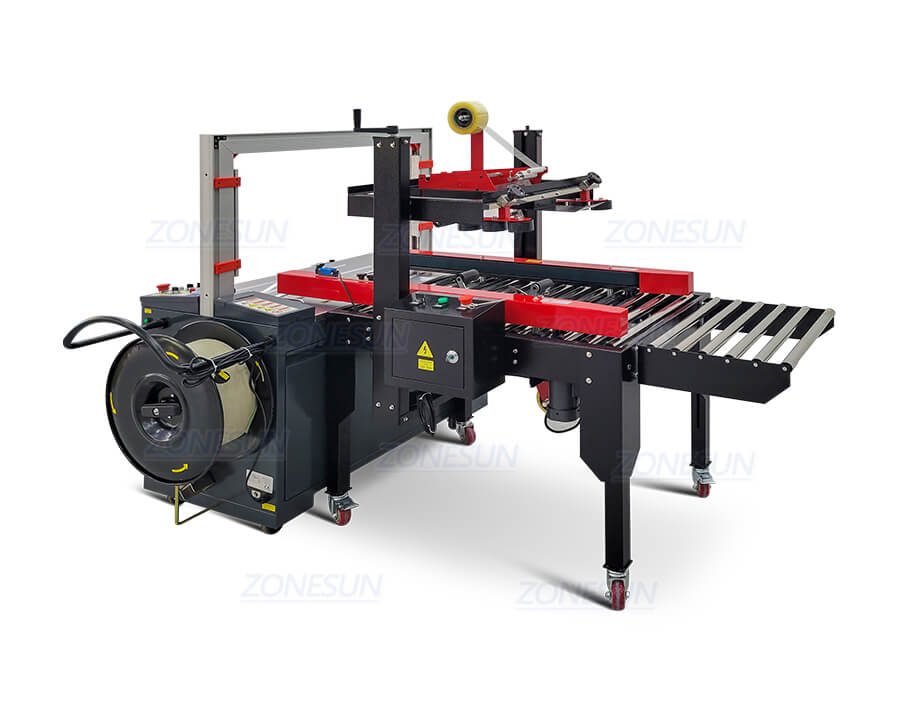

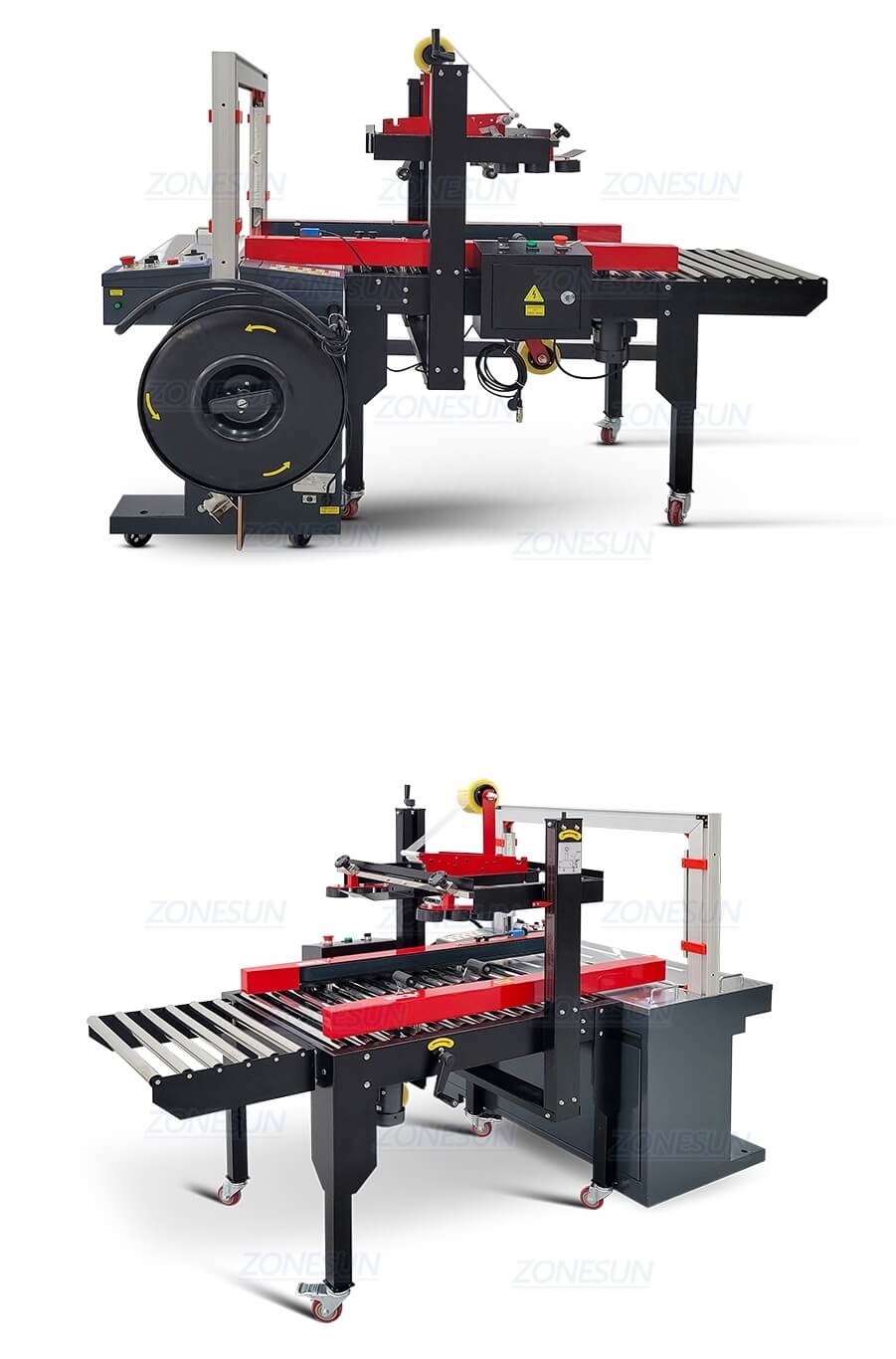

Carton Sealing Strapping Packaging Machine

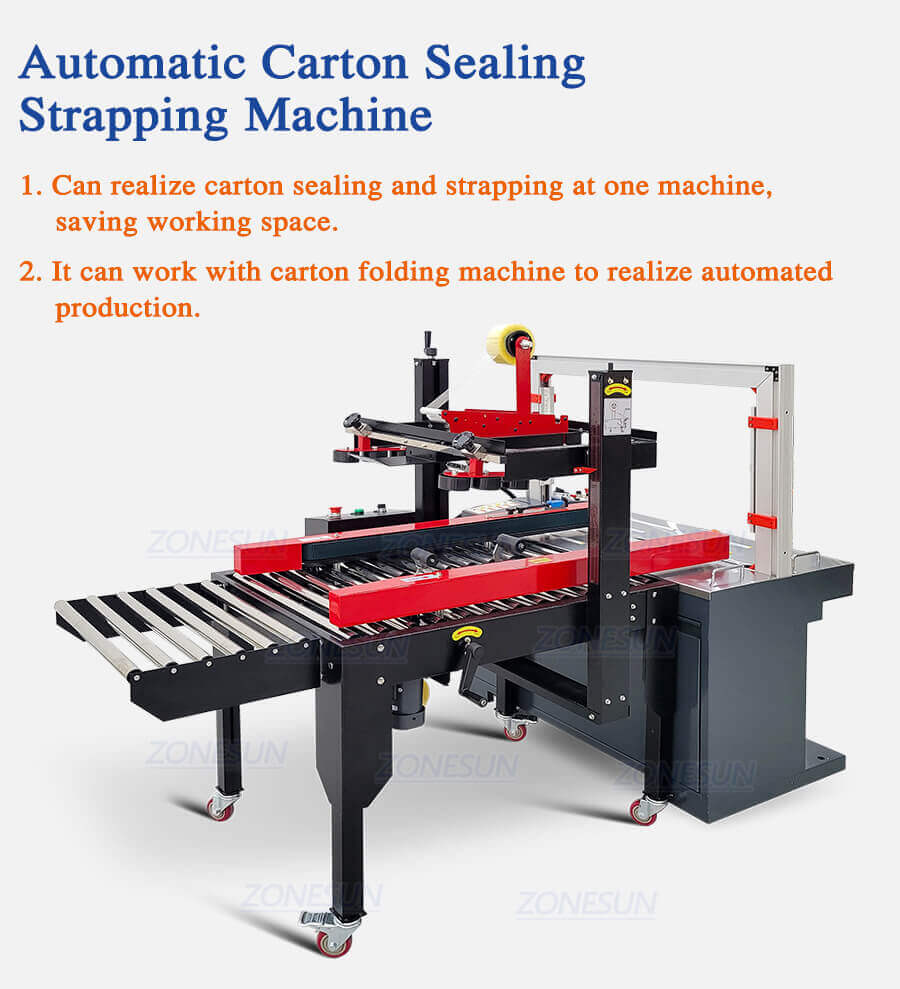

This machine is specifically designed for automatic sealing of cartons. It can significantly save labor and time, thereby improving work efficiency and ensuring production quality.

Machine Video Click Here:

Send email to us

Product Detail

Product Tags

Carton Sealing Strapping Packaging Machine-ZONESUN TECHNOLOGY LIMITED

Description:
This machine is specifically designed for automatic sealing of cartons. It can significantly save labor and time, thereby improving work efficiency and ensuring production quality.

Carton Sealing Strapping Packaging Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

	Model	ZS-FK5050S	ZS-FK8060S
	Power	110V 220-240V/50-60Hz	110V 220-240V/50-60Hz
	Power consumption	180W+400W	240W+400W
	Working height	750mm
Carton Sealing Machine	Conveying speed	0-20m/min	0-23m/min
	Maximum packaging size	*W500H500mm**	W800*H600mm
	Minimum packaging size	*W150H130mm**	W130*H130mm
	Tape width	1/1.5/2.5cm	3.6-7.2cm
	Dimension	*About 9907001430mm*	–
	Machine weight	About 138kg	–
Strap Banding Machine	Bearing capacity	80 kg
	Strap width	9 mm -15 mm
	Strap coil	Coil inner diameter 200 mm-210 mm Outside diameter400mm-450 mm Width (face)170 mm-190 mm
	Strapping speed	≤2.5 s/beat
	Strapping specifications	W80 mm H 60mm(Min. package size) W800H600mm(Max. package size)
	Adhesion technique	Hot melting
	Adhesion type	Bottom adhesion adhesion surface>90% adhesion positional deviation≤2 mm
	Strapping force	0-50 kg
	Noise emission	≤75 dB(A)
	Adjustable items	Arch size, strap width
	Machine size	About 14006201435mm
	Net weight	About 150kg
	Package size	About 15007001600mm

Carton Sealing Strapping Packaging Machine-ZONESUN TECHNOLOGY LIMITED

Product Detail:

Carton Sealing Strapping Packaging Machine-ZONESUN TECHNOLOGY LIMITED

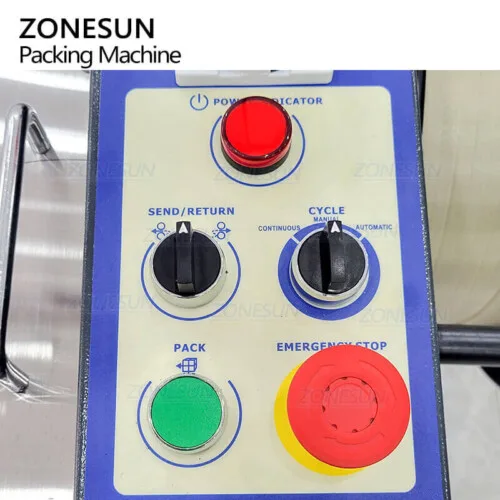

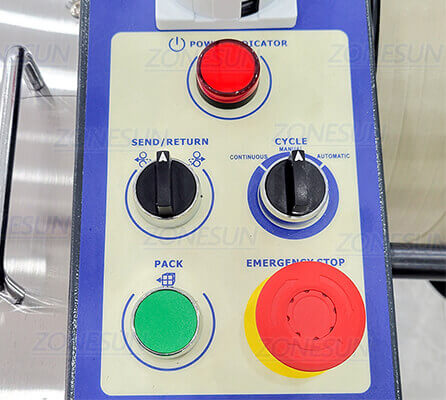

The simple control panel makes it easy to operate the machine. Additionally, the emergency stop button prevents damage in case of malfunction, ensuring production safety.

Carton Sealing Strapping Packaging Machine-ZONESUN TECHNOLOGY LIMITED

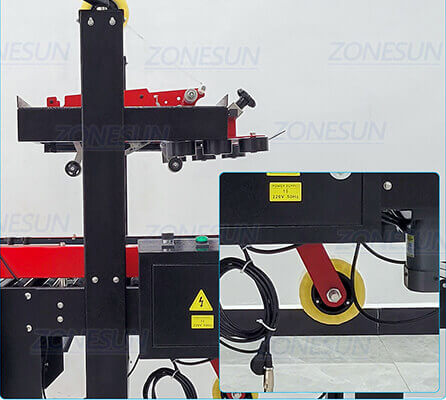

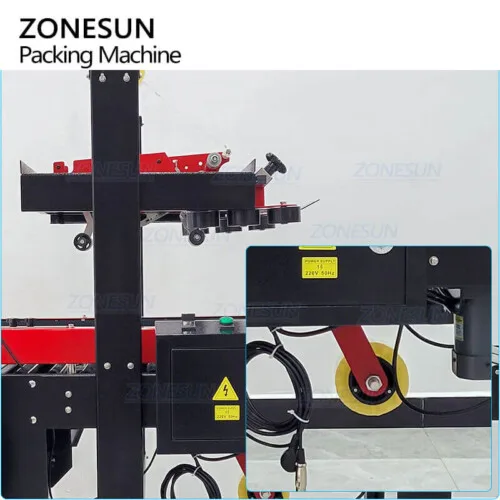

This machine comes with two tapes, allowing you to seal the top and bottom of cartons simultaneously. The tape position can be adjusted based on your production needs.

Carton Sealing Strapping Packaging Machine-ZONESUN TECHNOLOGY LIMITED

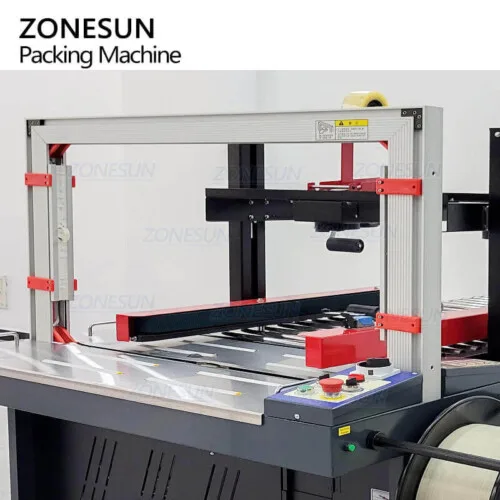

This product is specifically designed for strapping cartons, with a maximum packaging size of 800mm in width and 600mm in height.

Carton Sealing Strapping Packaging Machine-ZONESUN TECHNOLOGY LIMITED

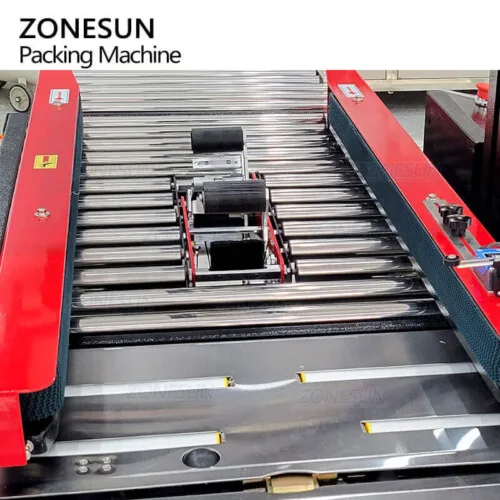

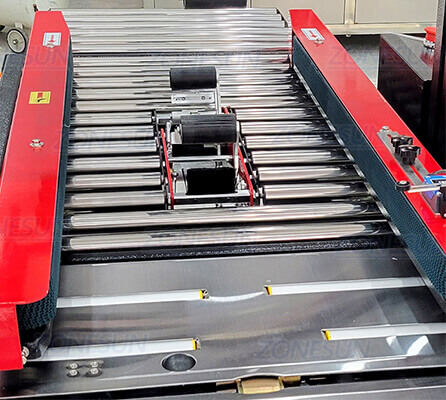

The conveyor belt is of high-quality, boasting a large loading capacity for stable product transport. The width of the feed inlet can be adjusted to suit your production needs.
