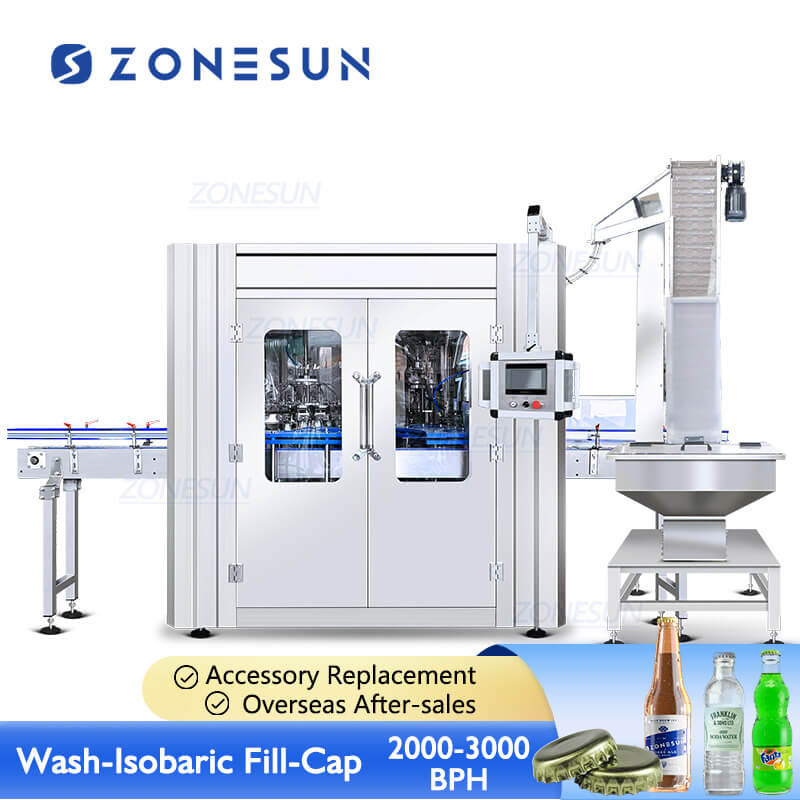

Product Parameters:
|
Machine Model
|
ZS-AFC883B
|
|
Voltage
|
220V/380V
|
|
Power
|
About 5.07KW
|
|
Production Speed
|
About 2000-3000 BPH(depending on bottle size and filling materials)
|
|
Filling Range
|
100-500ml (Can be customized)
|
|
Filling Method
|
Isobaric Filling
|
|
Liquid Level Error
|
±2.5mm
|
|
Bottle Diameter
|
Φ50-Φ100mm
|
|
Bottle Height
|
150-320mm
|
|
Water Consumption
|
1T/H for washing structure
2T/H for filling structure
|
|
Air Pressure
|
0.3-0.4MPA
|
|
Machine Size
|
About 4100*1930*2340mm
|

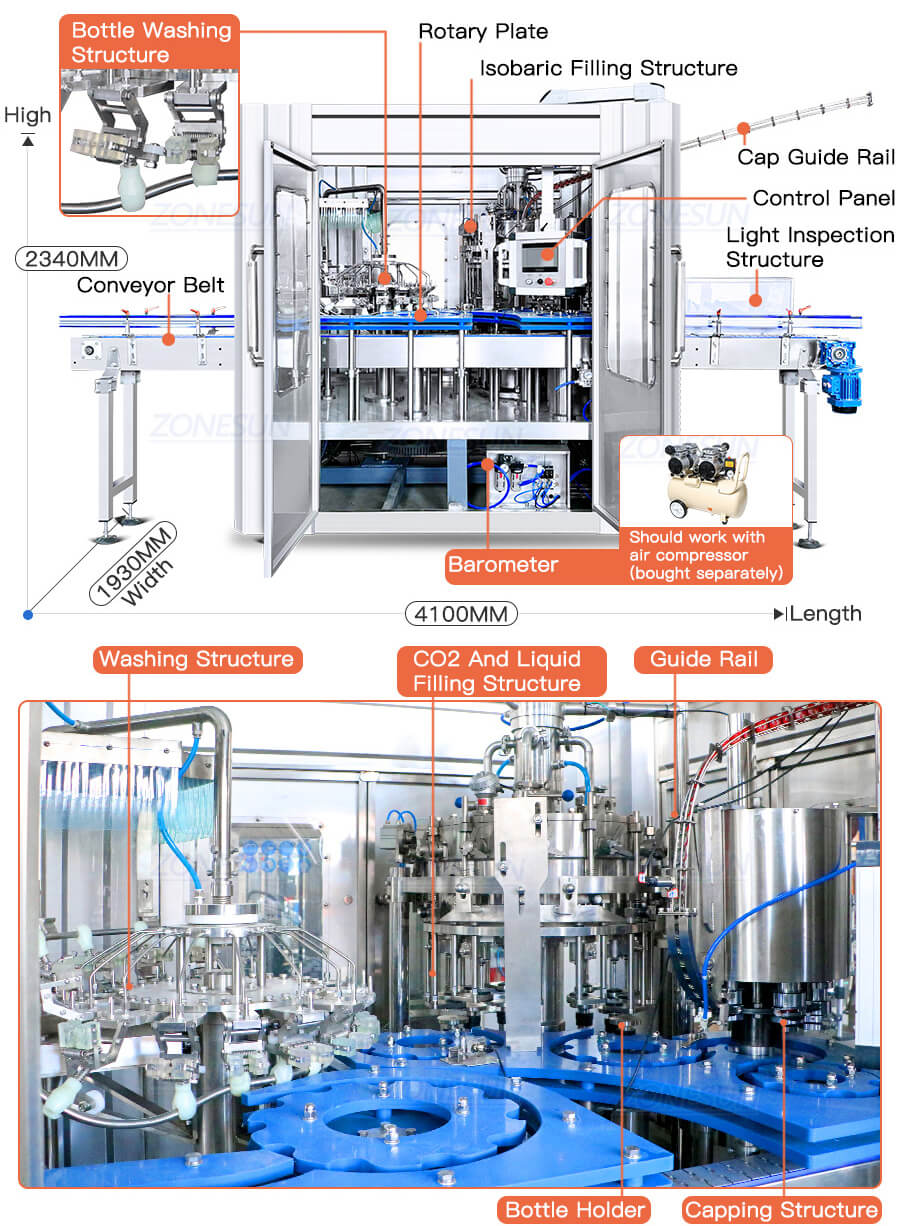

Product Details:

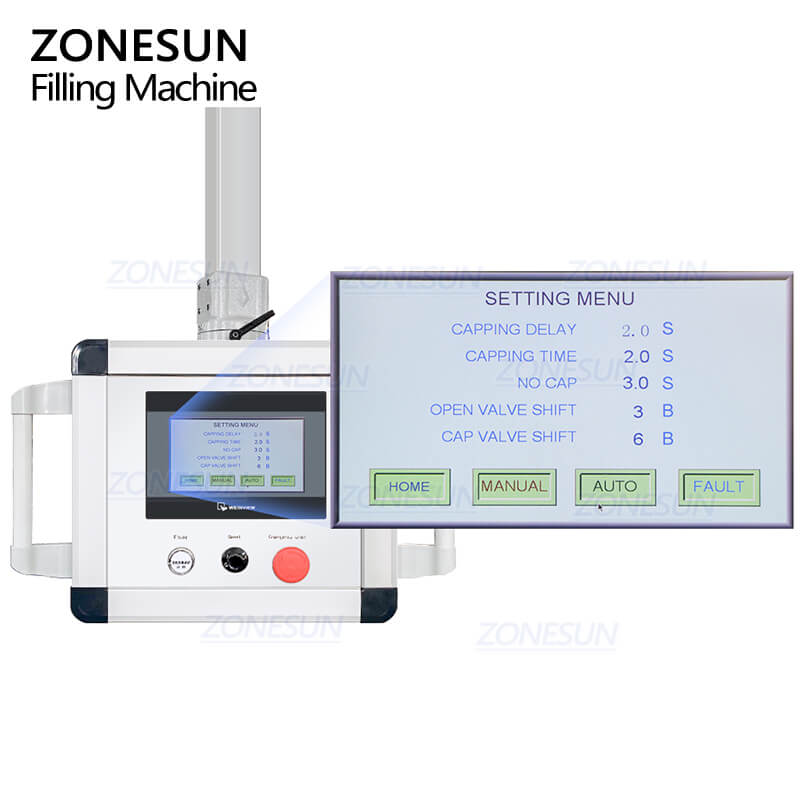

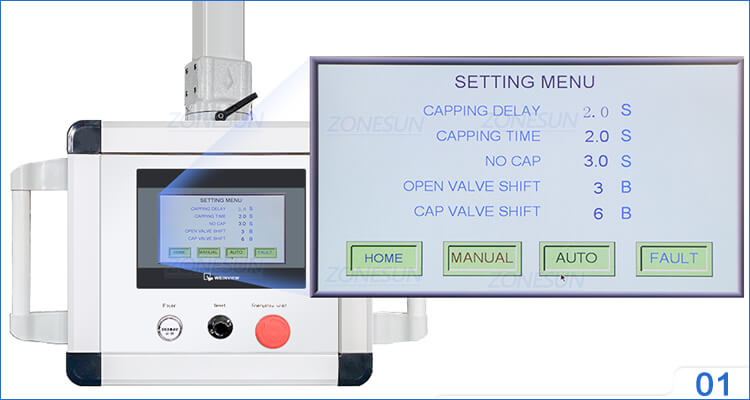

Touchscreen Panel
Intuitive control panel for parameter setting. The language of panel can be customized.

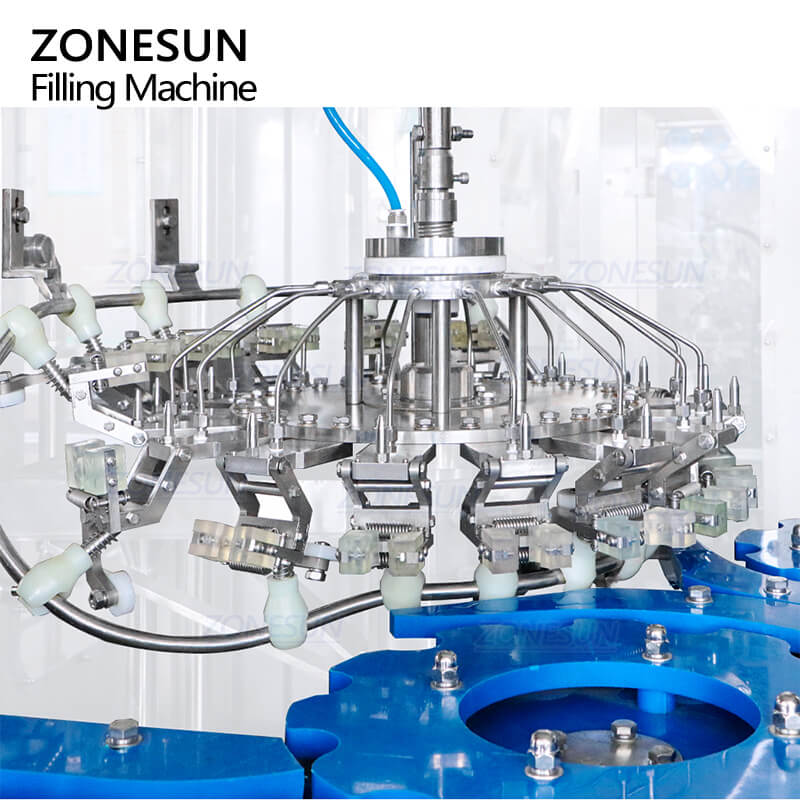

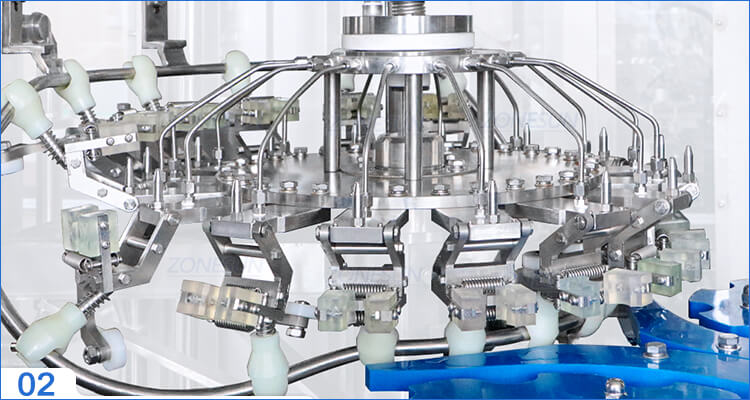

16 Washing Heads
Can wash the inside and outside of bottles. The quantity of washing heads can be customized.

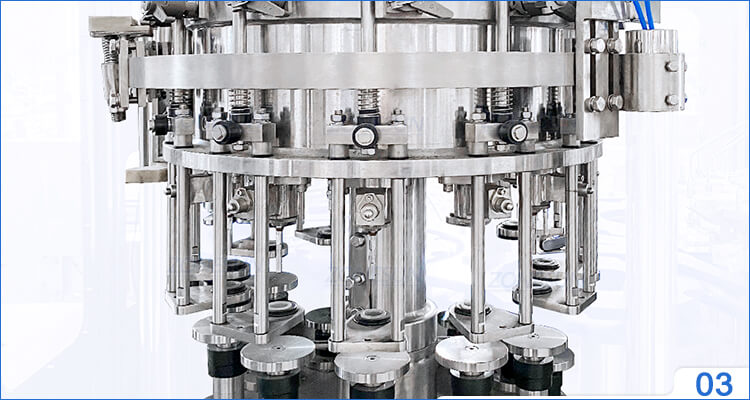

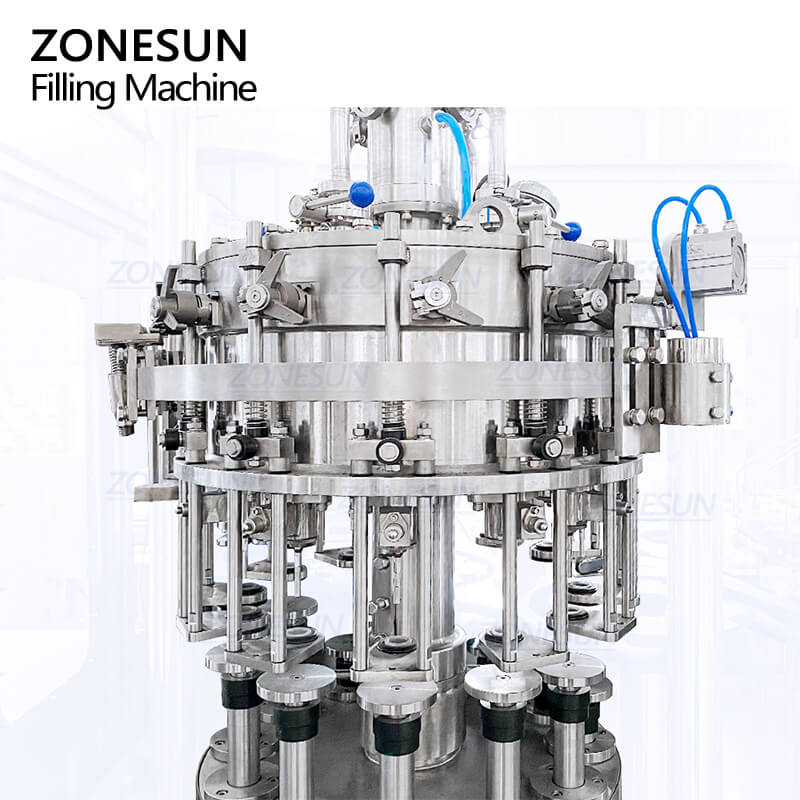

12 Filling Heads
Isobaric filling, it can fill liquid to the same level. The quantity of filling heads can be customized.

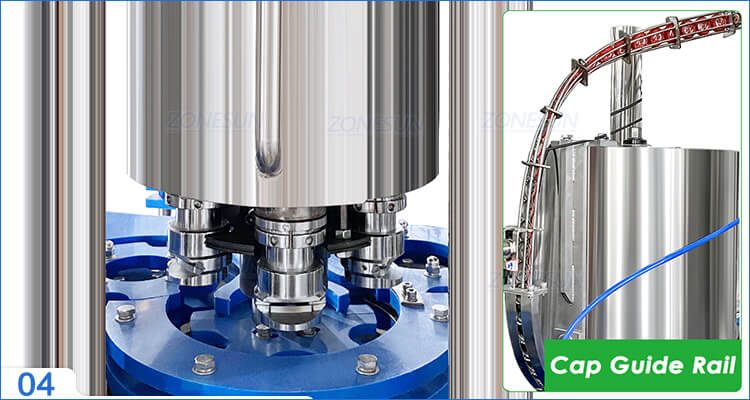

6 Capping Heads
Can feed and crimp crown caps automatically. The capping structure can be customized according to your products.
Light Inspection Structure
Can make impurities and suspended solids in bottles shown clearly, thus eliminating unqualified products.

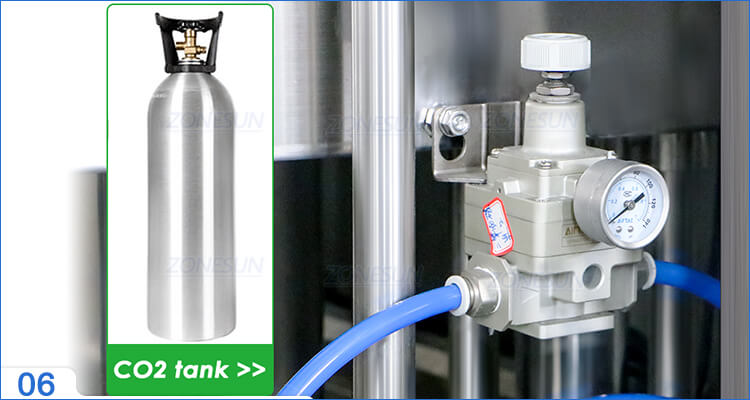

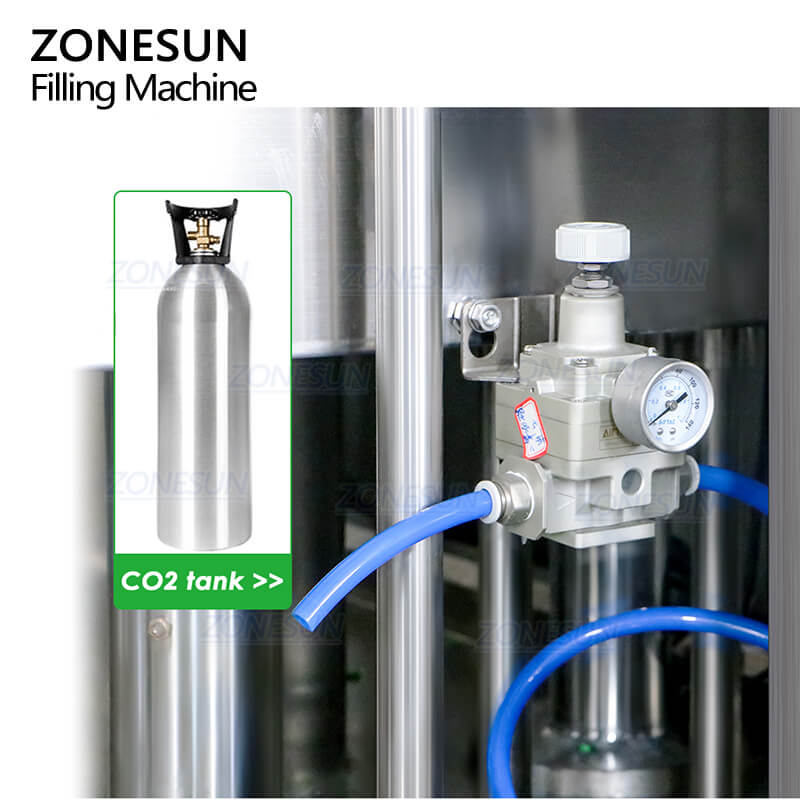

Connector
This machine should work with CO2 tank, which should be bought separately. Please contact us if you need it.
