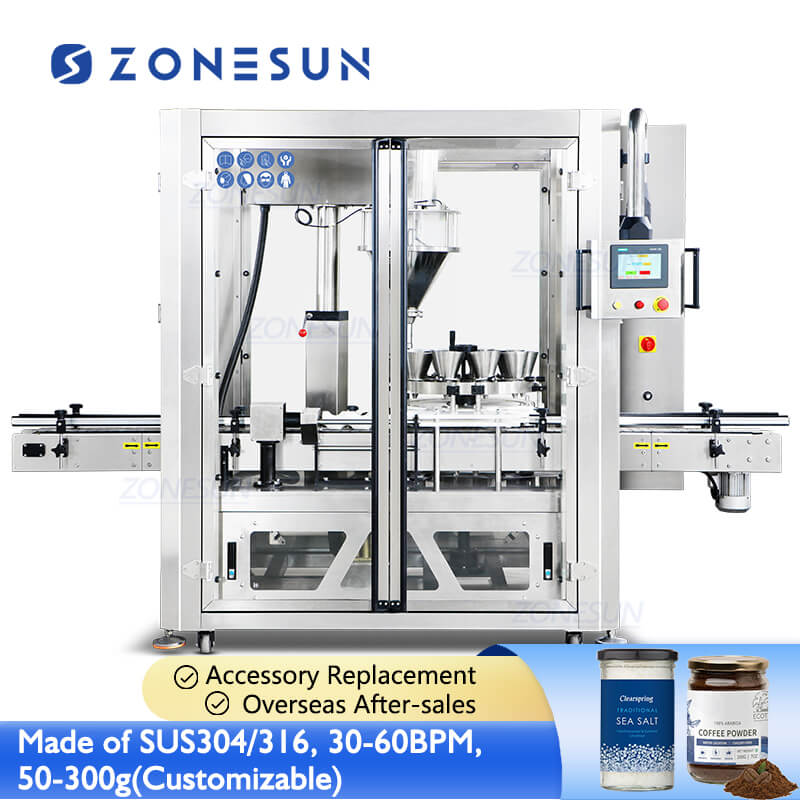

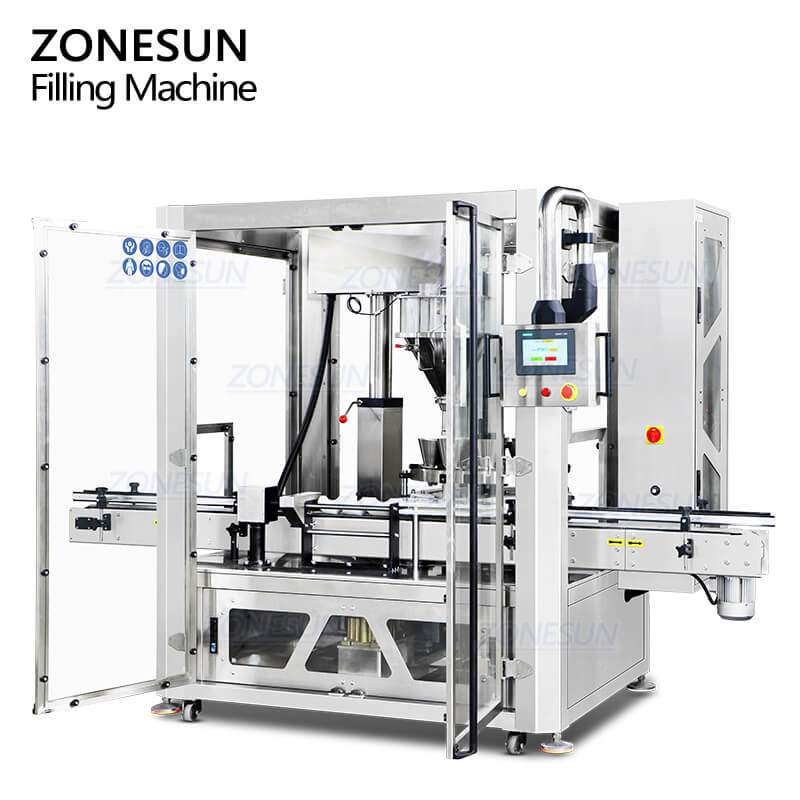

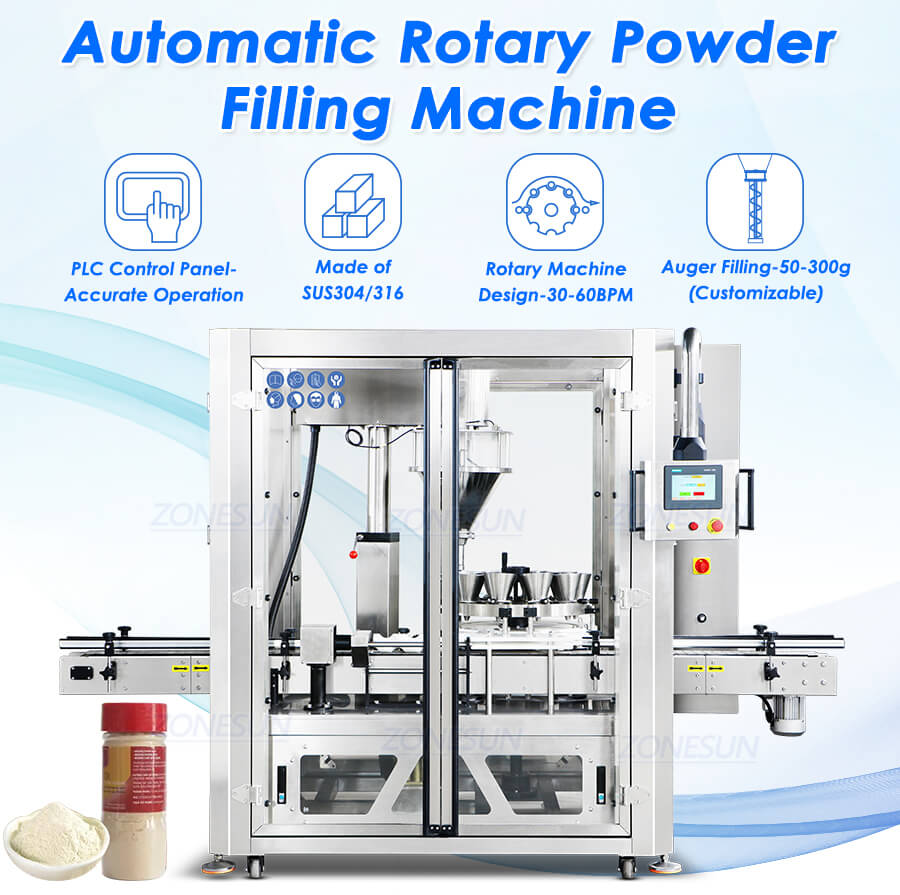

Product Description:
This automatic filling machine can form an assembly line with bottle unscrambler, capping machine, labeling machine and other equipment. It is suitable for filling powdered materials in the food, cosmetics, daily necessities and other industries. Such as milk powder, protein powder, cocoa powder, coffee powder, and other powdered materials.

Product Parameters:

Machine Model	ZS-FM7A
Machine Voltage	220/380V 50-60HZ 2.2KW
Filling Range	5-50/50-300/300-1000/1000-5000g(Change auger)
Working Capacity	30-60BPM
Measuring Method	Auger Filling
Number of filling heads	1 head (multiple heads are optional)
Measurement error	±1%

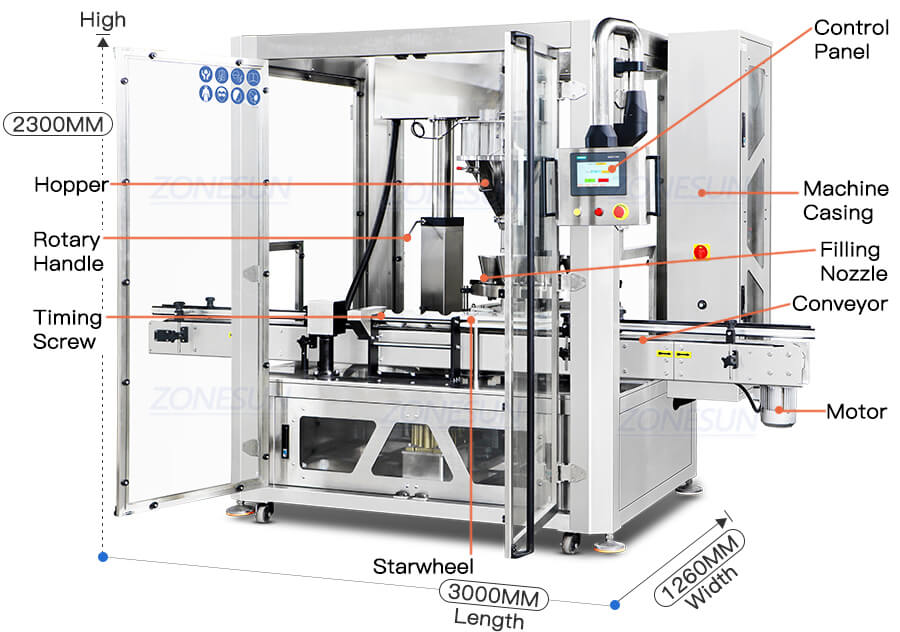

Machine size	About 3000*1260*2300mm
Machine weight	About 400kg

Filling Machine Configuration
Component	Country of origin	Brand
PLC	Germany	Siemens
Touch panel	China/Germany	China/Siemens
Servo motor	China/Japan	Inovance/Mitsubishi
Pneumatic part	Taiwan	AirTAC
Sensor	South Korea/Germany	Autonics/SICK
Inverter	China/Germany	Cocan/Siemens
Repeater	Japan	Omron

Product Details:

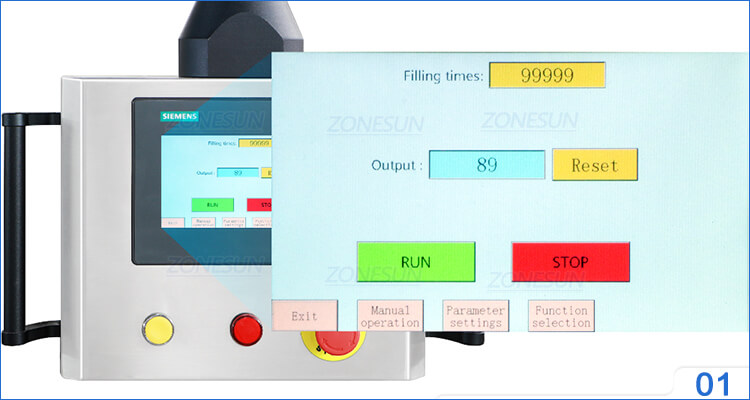

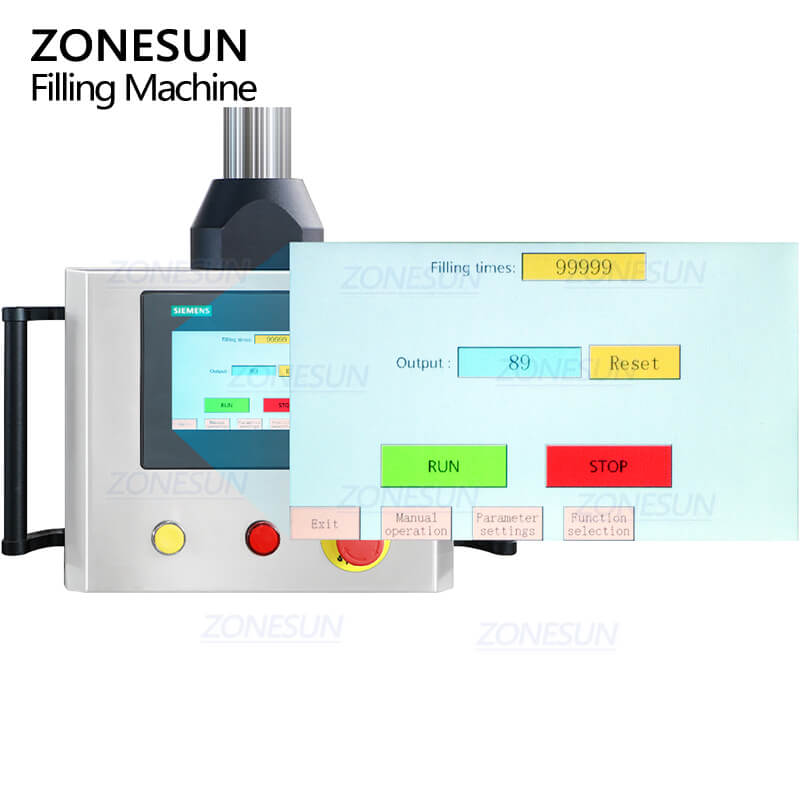

Control Panel
Human-Machine Interface for real-time monitoring and control.

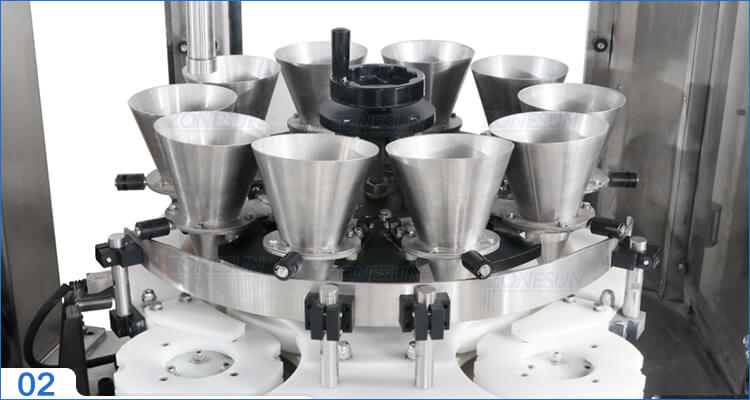

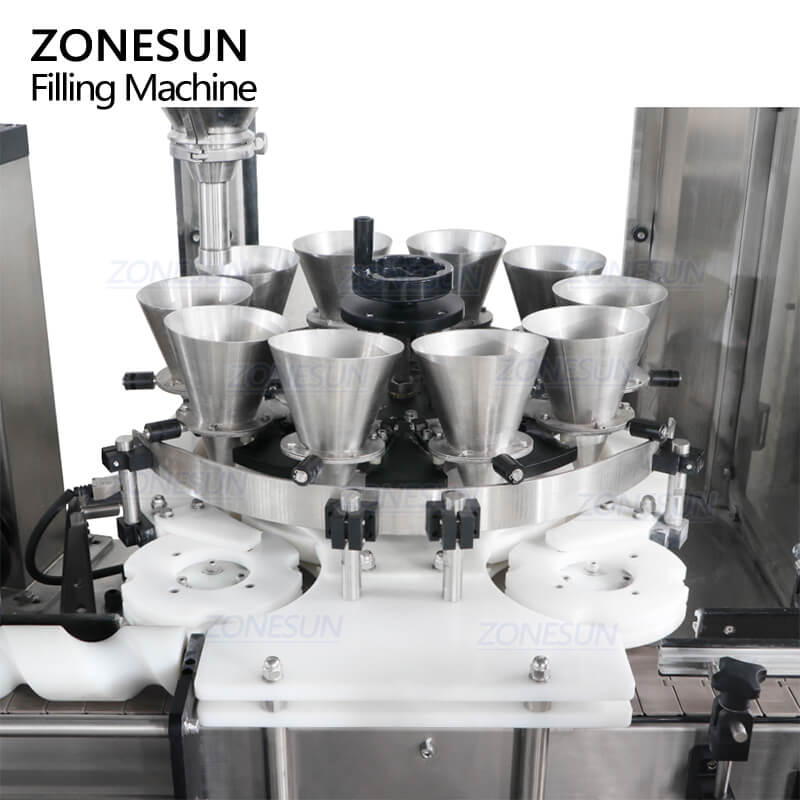

Rotary Machine Design
It saves working space and can reach 30-60BPM.

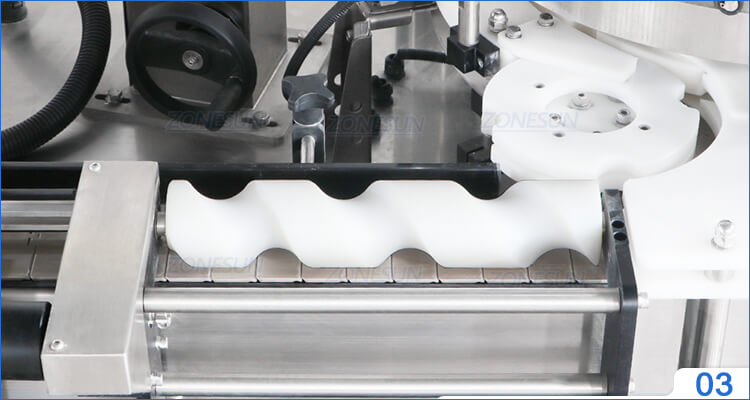

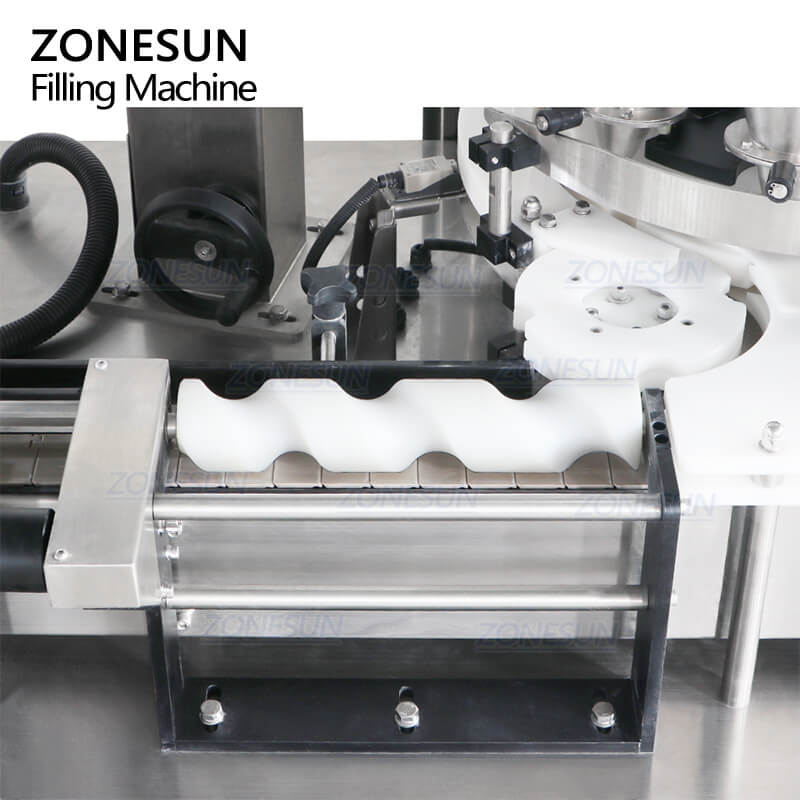

Timing Screw
Ensures accurate separation and positioning of products

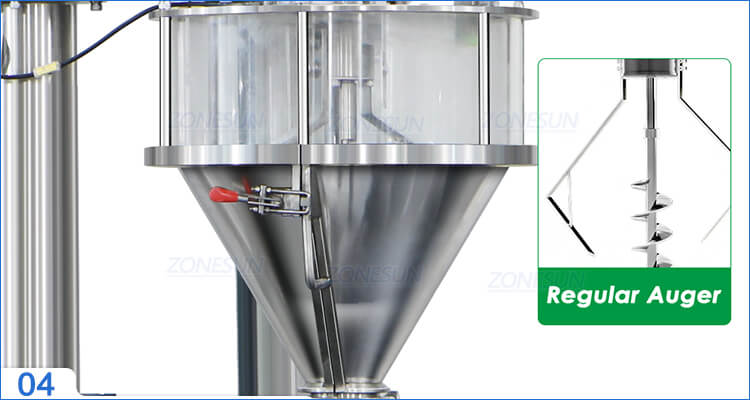

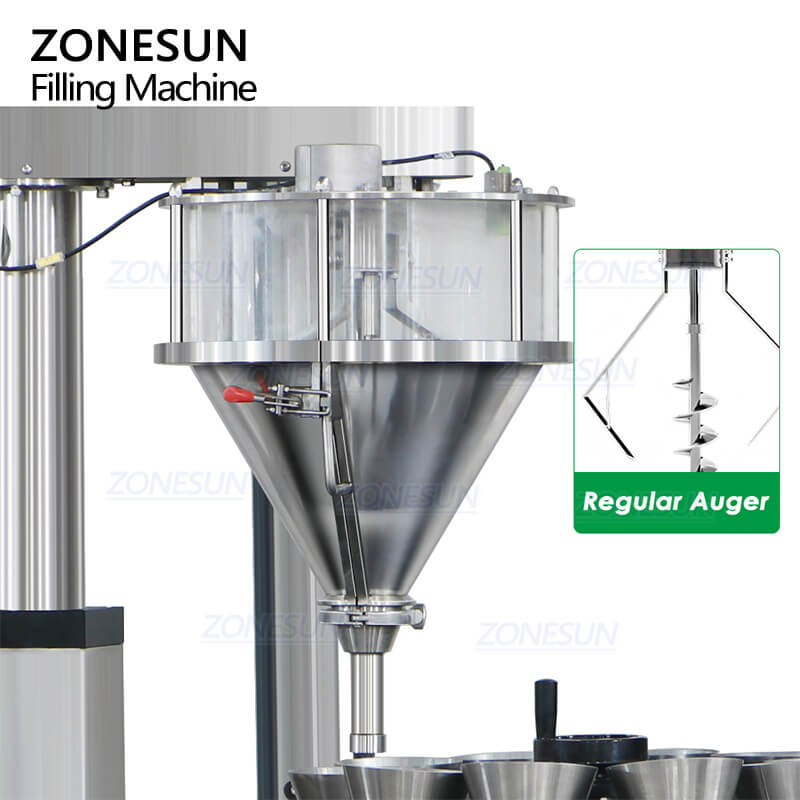

Auger Filling
Control predetermined number of revolutions to fill material, it has high filling accuracy.

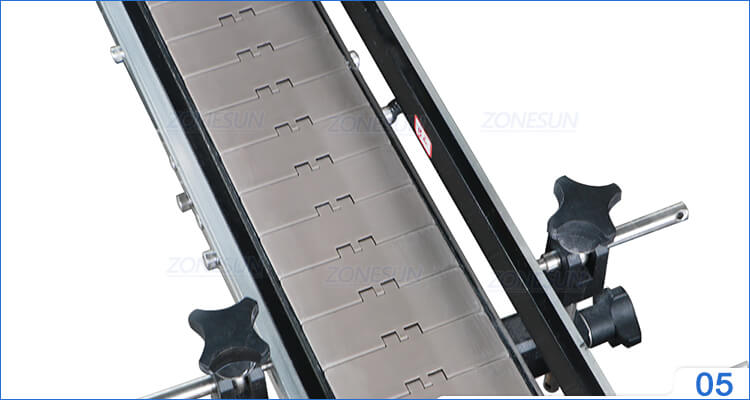

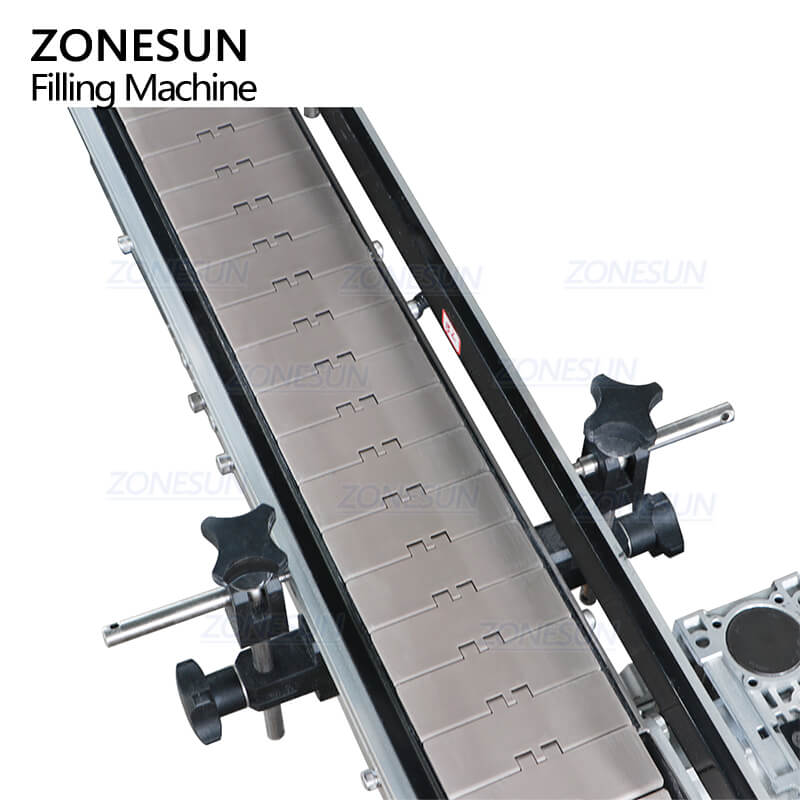

Chain Conveyor
Length and width are customizable, it has large weight capacity.
