Product Description:

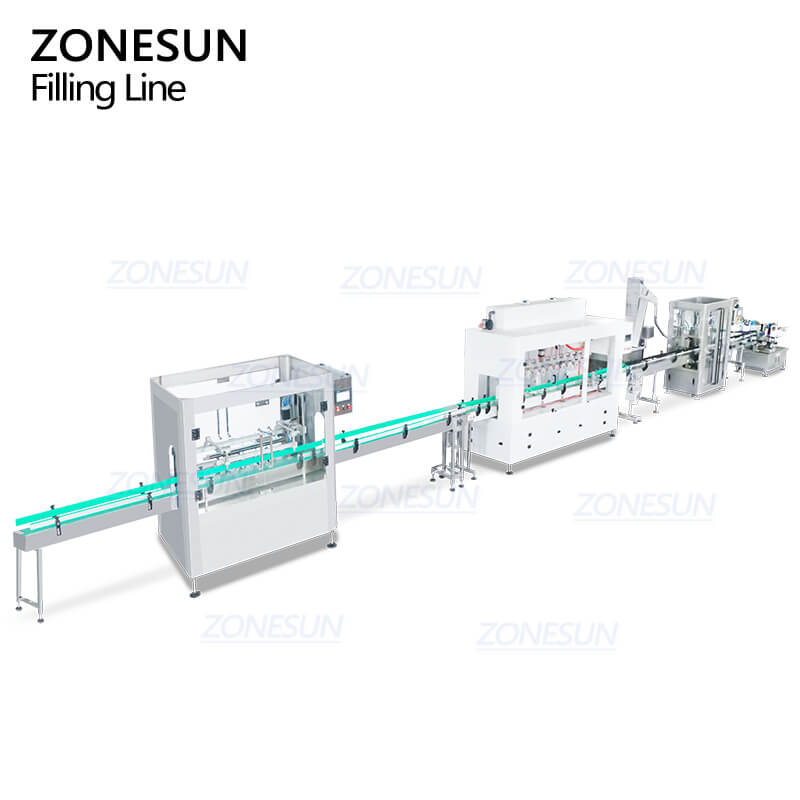

This filling system is designed for the automated filling of corrosive liquids into containers. It inlcudes bottle rinsing machine, corrosive liquid filling machine, capping machine and labeling machine.This system are commonly used in industries where the handling of aggressive chemicals, acids, bleaches, and other corrosive substances is required.

Product Parameters:

Bottle Rinsing Machine

Machine model	ZS-WB4
Voltage	380V 750W
Suitable bottle size	Customize
Working capacity	About 2000BPH
Machine size	About 5820*1900*1180mm
Machine weight	About 350kg

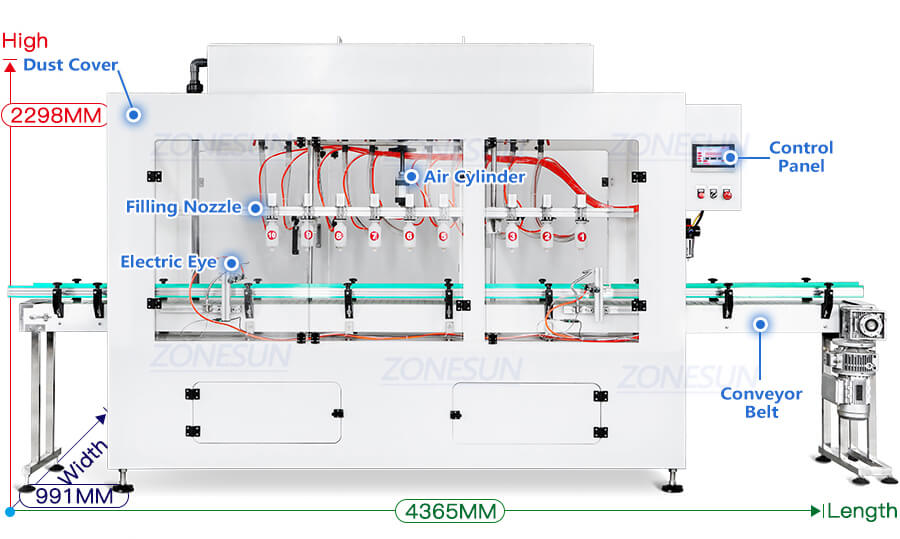

10 Heads Filling Machine

Machine model	ZS-YTCR10A
Voltage	110/220V 50-60HZ 1.5KW
Air pressure	0.4-0.7MPa
Suitable bottle diameter	Φ30mm–φ120mm
Suitable bottle height	40mm–350mm
Hopper size	About 2000*350*300mm(Customized)
Filling range	100ml–3000ml
Filling speed	600 BPH (based on filling volume)
Machine dimension	About 4365*991*2298mm

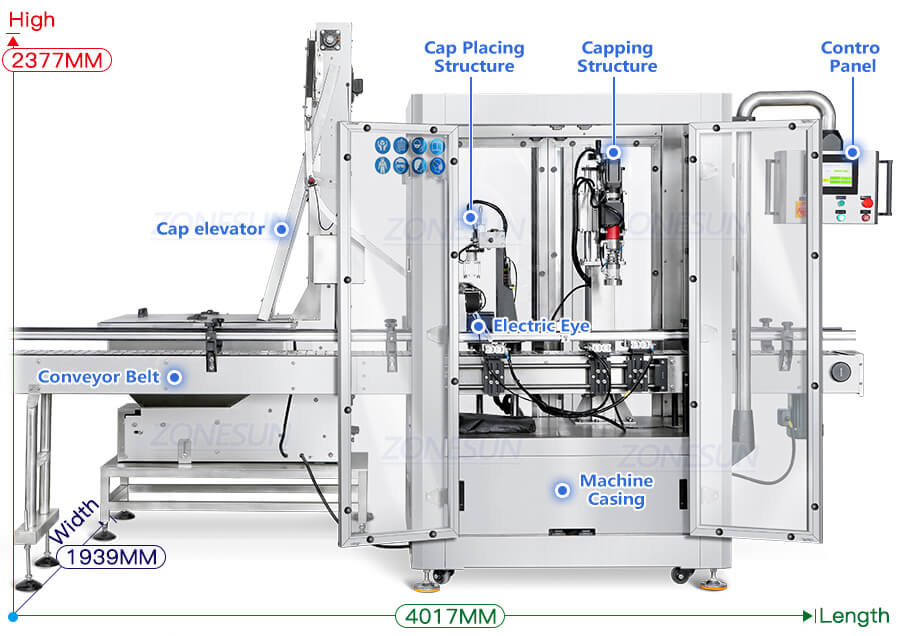

Automatic Capping Machine

Machine model	ZS-XG440F
Machine voltage	110/220V 50-60HZ 2KW
Suitable cap size	30-120mm(Can be customized)
Suitable bottle height	Customized
Air pressure	0.7MPa
Working capacity	5-15BPM
Machine size	About 2000*700*1600mm
Machine weight	About 350kg

Bottle Capping Machine Configuration
Machine Component	Brand	Origin
PLC	Mitsubishi/Siemens	Japan/Germany
Control Panel	Siemens	Germany
Pneumatic Components	Airtac	Taiwan,China
Intermediate Relay	Omron	Japan

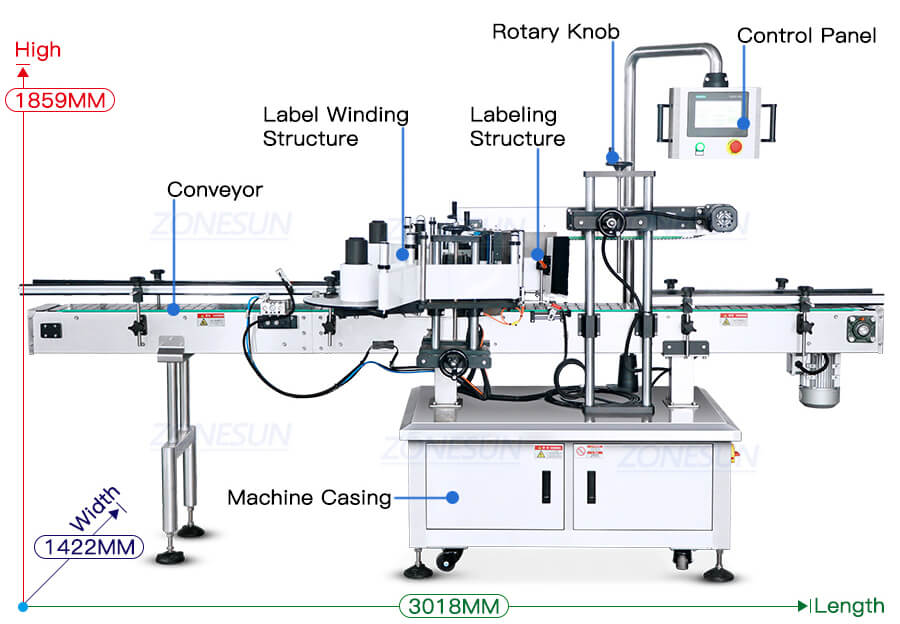

Automatic Labeling Machine

Machine Model	ZS-TB300R
Voltage	220V/110V 50-60Hz
Power	About 2500W
Labeling Speed	About 10-60 bottles/min (depending on bottle and label size)
Suitable Product Size	About 150-310mm(H)*150-250(W)
Label Size	15-300mm(W)*15-200mm(H)
Label Roll Inner Diameter	Φ75mm
Label Roll Outer Diameter	Φ350mm
Machine Size	About 3018*1422*1859mm

Labeling Machine Configuration
Machine Component	Brand	Origin
PLC	Siemens	Germany
Control Panel	Siemens	Germany
Label Sensor	SICK	Germany
Inverter	Siemens	Germany

Product Details:

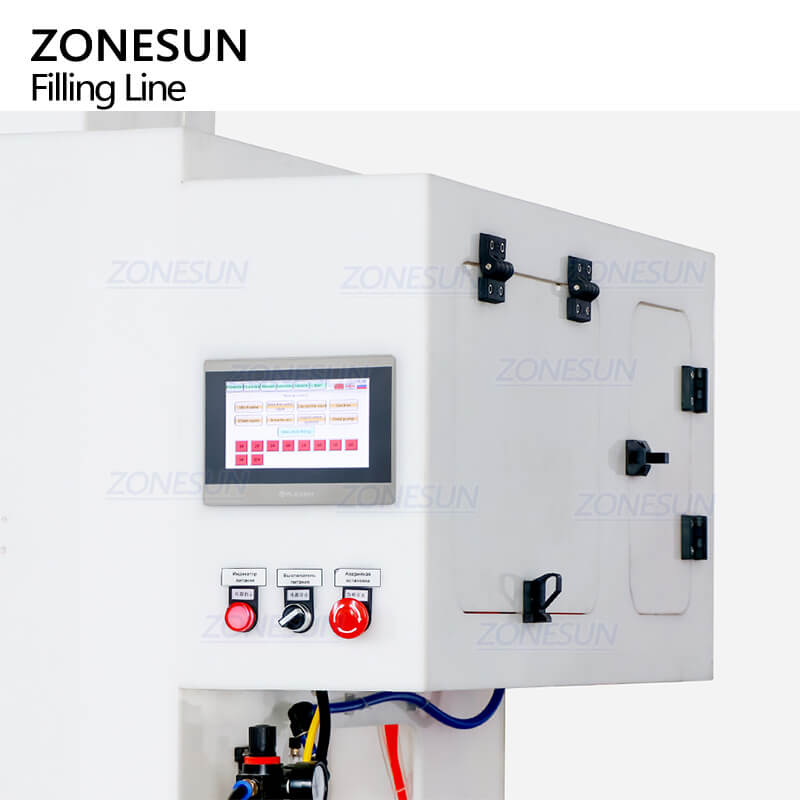

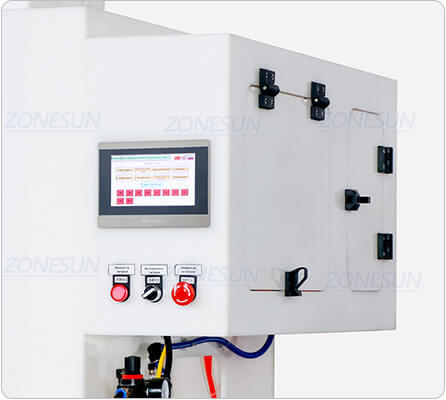

Equipped with touch screen control panel, operators can monitor the machine’s performance in real time, allowing for immediate adjustments and maintenance, thus minimizing downtime.

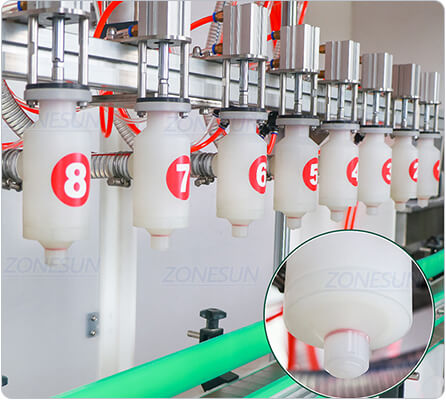

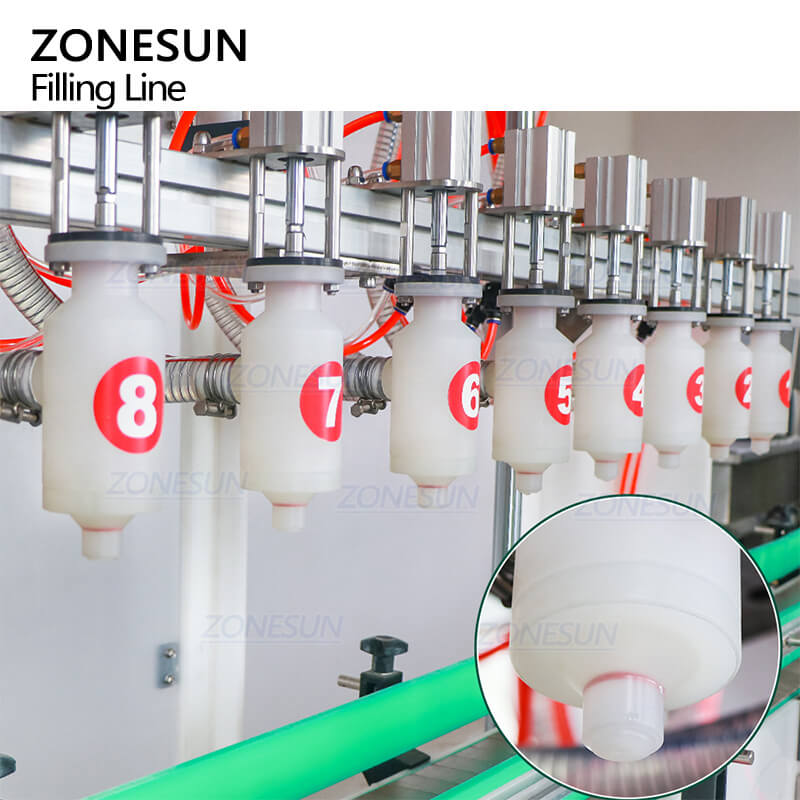

Equipped with anti-dripping filling nozzles, these can minimize spills, anti-dripping nozzles help maintain a cleaner workspace, reducing the risk of slips and chemical burns.

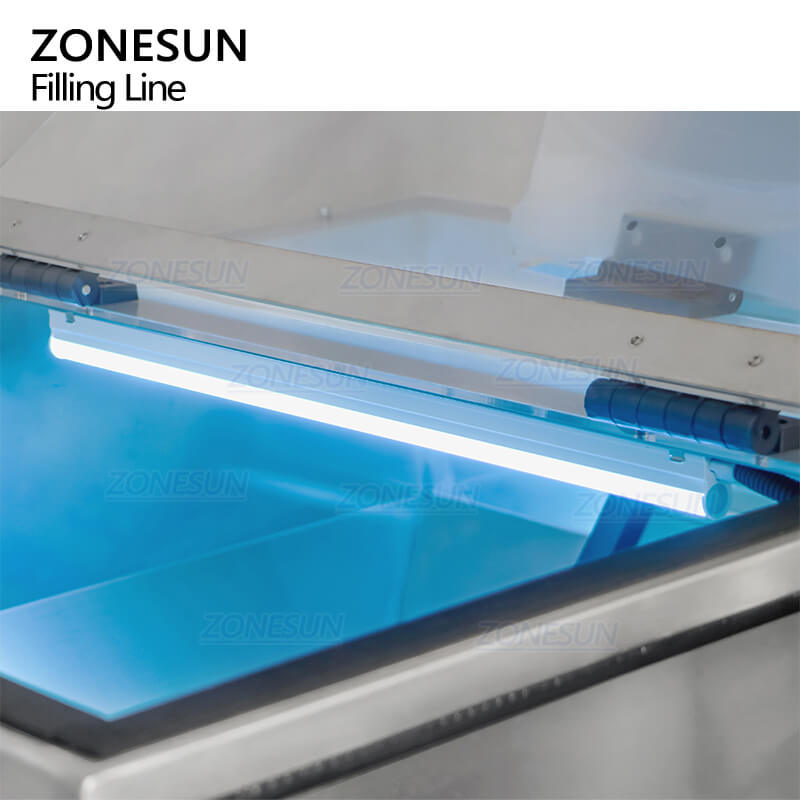

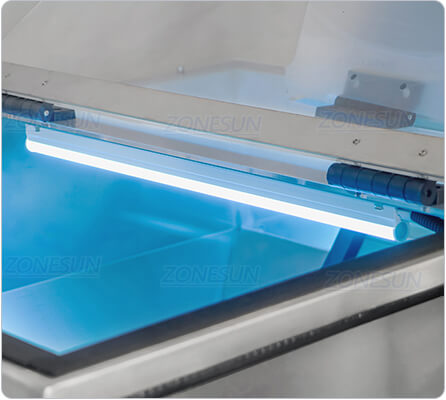

UV sterilization helps to kill bacteria, viruses, and other microorganisms that may be present on the caps, ensuring that they are clean and safe for use. The cap elevator can lifts caps from a hopper and moves them to the capping area, it saves working labor.

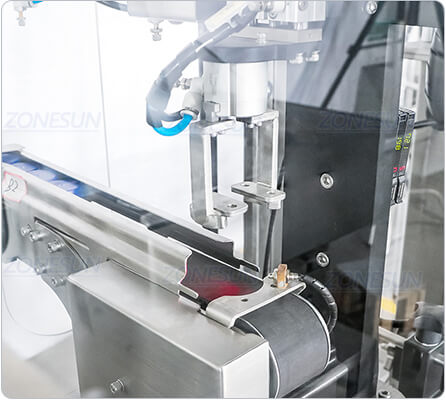

Misalignment of caps can lead to improper sealing or damage to the caps and containers. The cap placing structure helps prevent misalignment by guiding caps into the correct position before they are applied to the jerry cans.

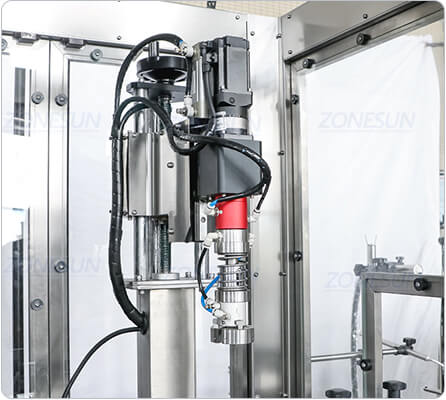

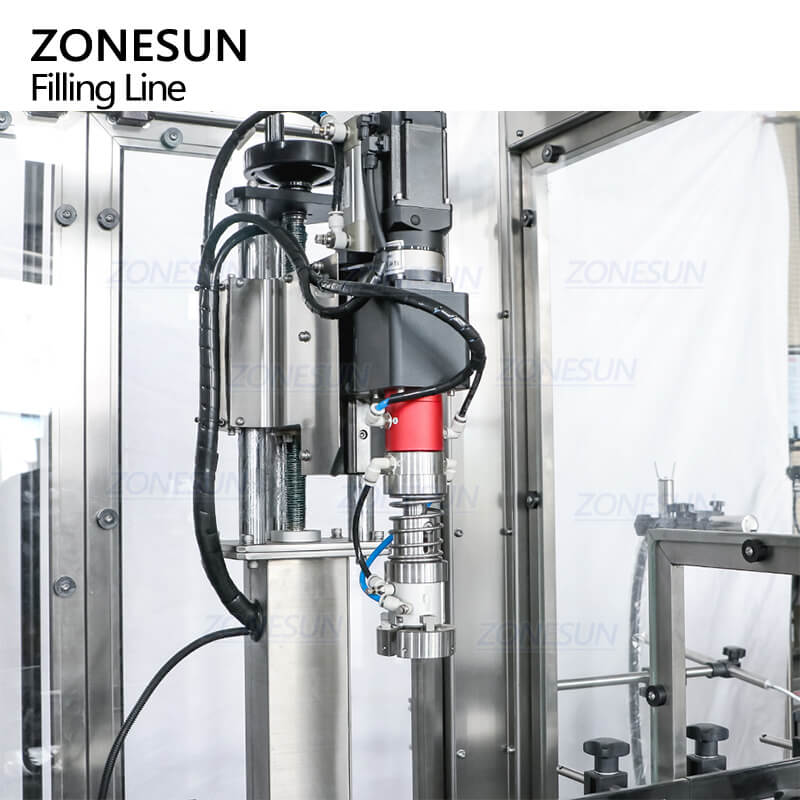

The capping work is controlled by servo motor, the capping torsion can be controlled more accurately. This precision allows for accurate positioning of caps onto jerry cans, improving packaging quality. Size of capping chuck can be customized according to cap size.

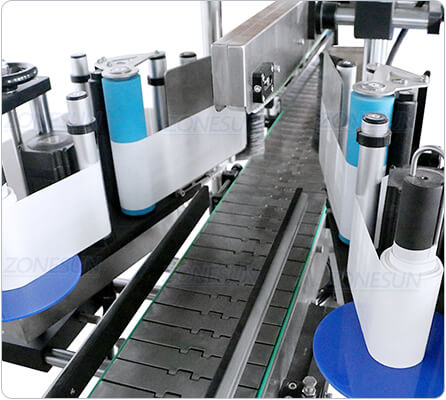

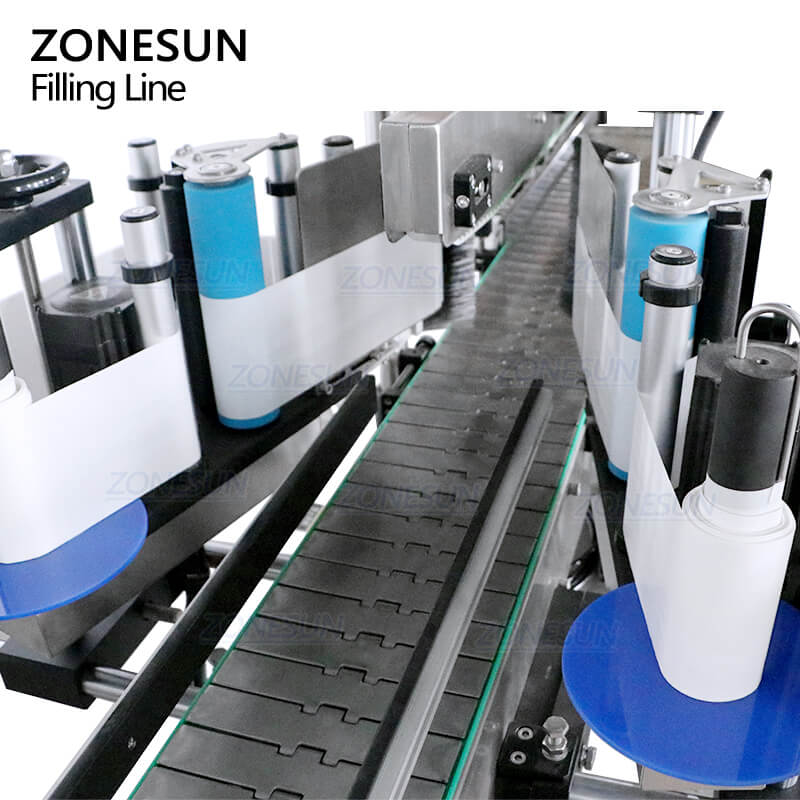

Designed for double sides labeling on larger flat bottle, one side of labeling structure can work separately, so it is also suitable for single side on the flat bottles.
