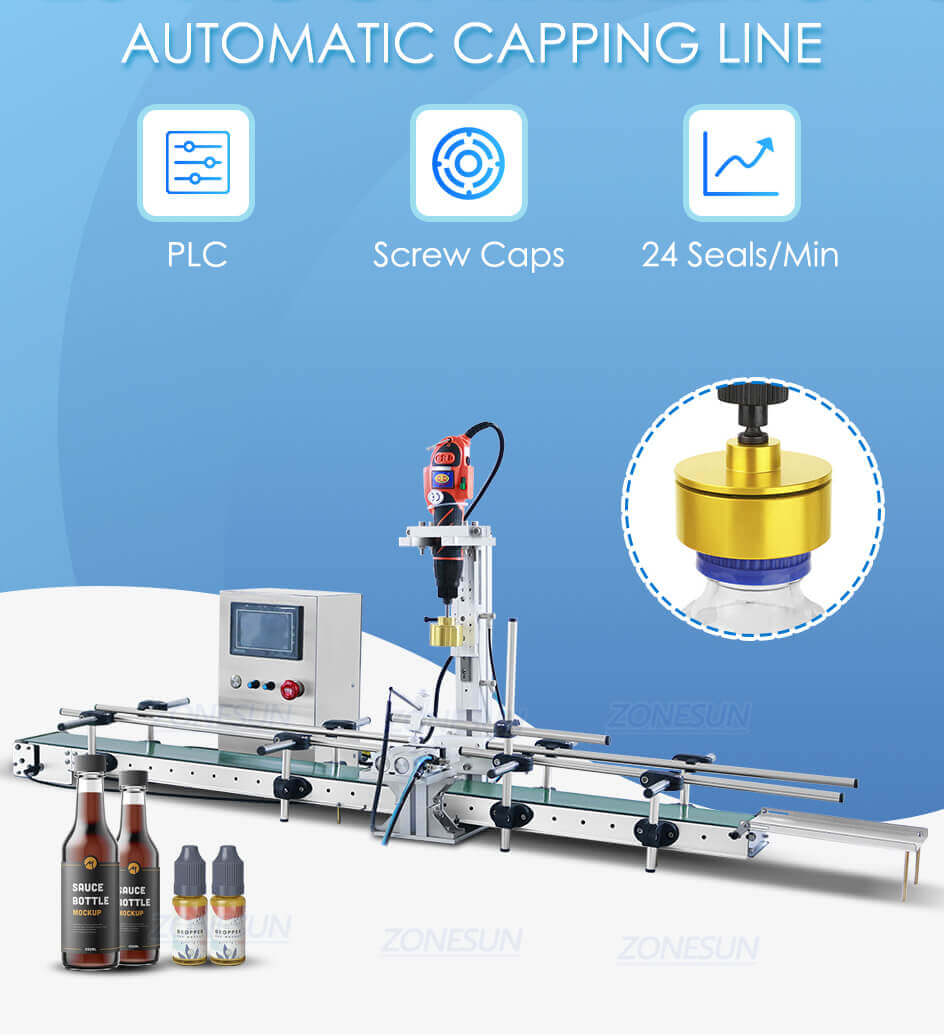

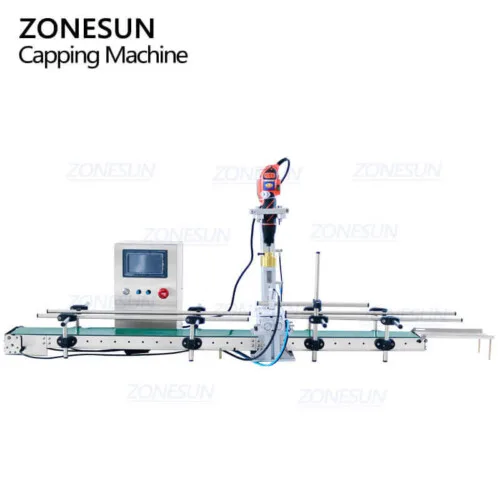

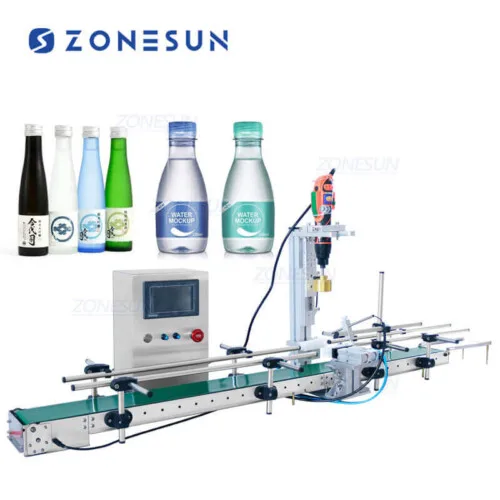

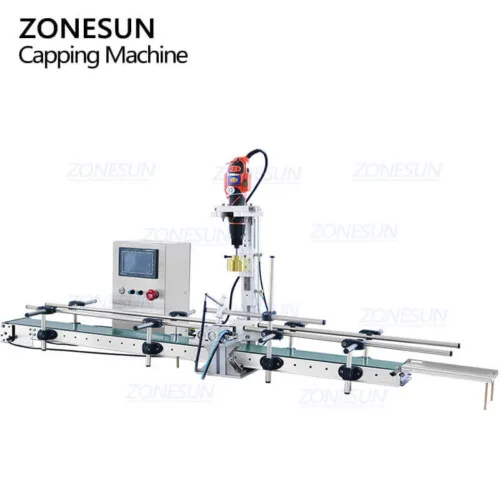

Automatic Bottle Capping Machine

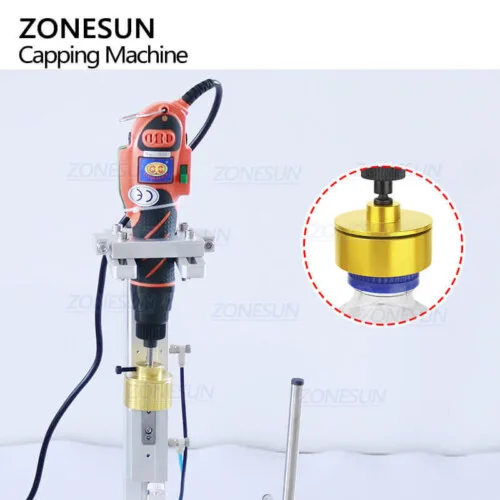

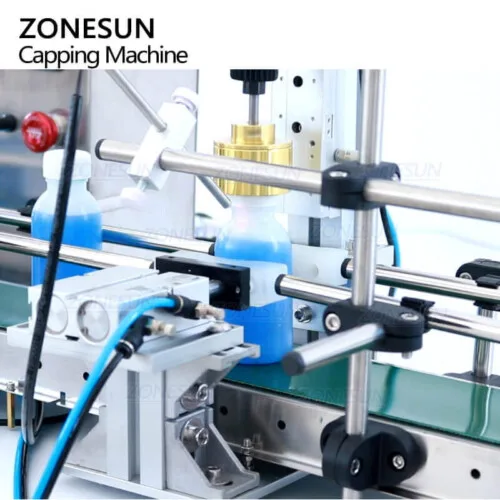

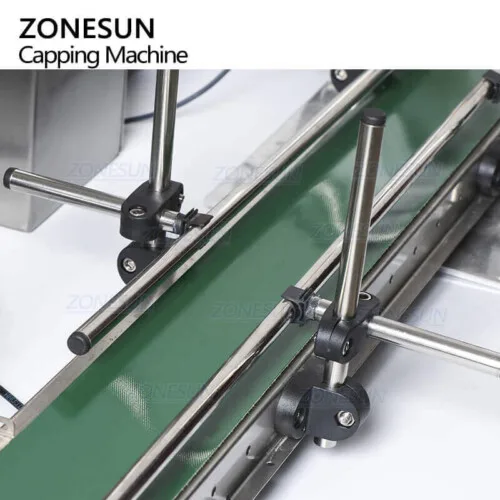

This capping machine is designed for efficient and precise capping of screw caps in small production runs. The capping tool is electric and is raised and lowered by the pneumatic lifting mechanism, ensuring precise control over the height of the capping tool and consistent capping results. The conveyor belt is designed to handle small batch production runs, and the photoelectric eye ensures that the capping process is initiated only when a bottle is present.

Machine Video Click Here:

Product Detail

Product Tags

Automatic Bottle Capping Machine-ZONESUN TECHNOLOGY LIMITED

Description:

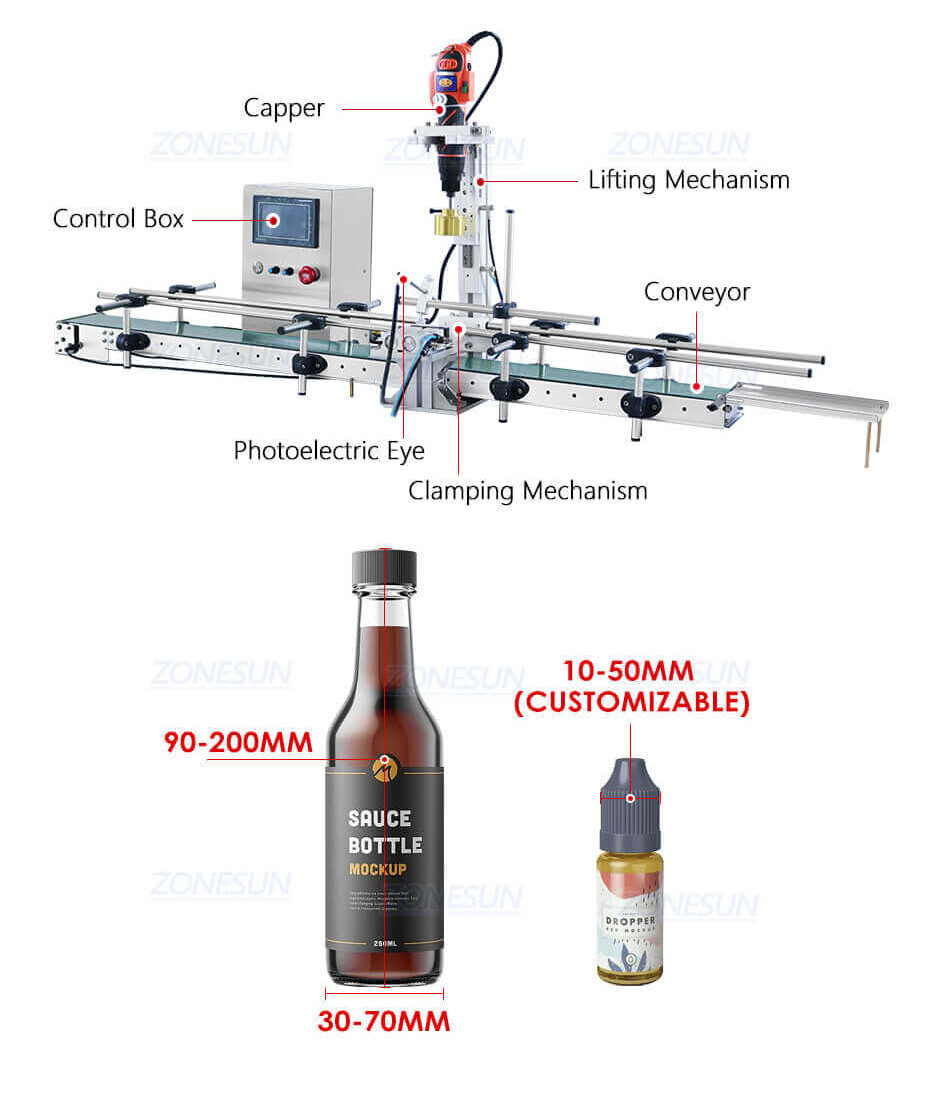

This capping machine is designed for efficient and precise capping of screw caps in small production runs. The capping tool is electric and is raised and lowered by the pneumatic lifting mechanism, ensuring precise control over the height of the capping tool and consistent capping results. The conveyor belt is designed to handle small batch production runs, and the photoelectric eye ensures that the capping process is initiated only when a bottle is present.

Automatic Bottle Capping Machine-ZONESUN TECHNOLOGY LIMITED

Model
ZS-XGC1
Voltage
110/220V, 50-60Hz
Capacity
15-24 seals/min
Cap Diameter
Standard: 10-50mm (Customizable)
Bottle Diameter
30-70mm
Bottle Height
90-200mm
Capper
100W, 3-40kgf/cm²
Conveyor Size
1200*100mm
Conveyor Payload
6kg
