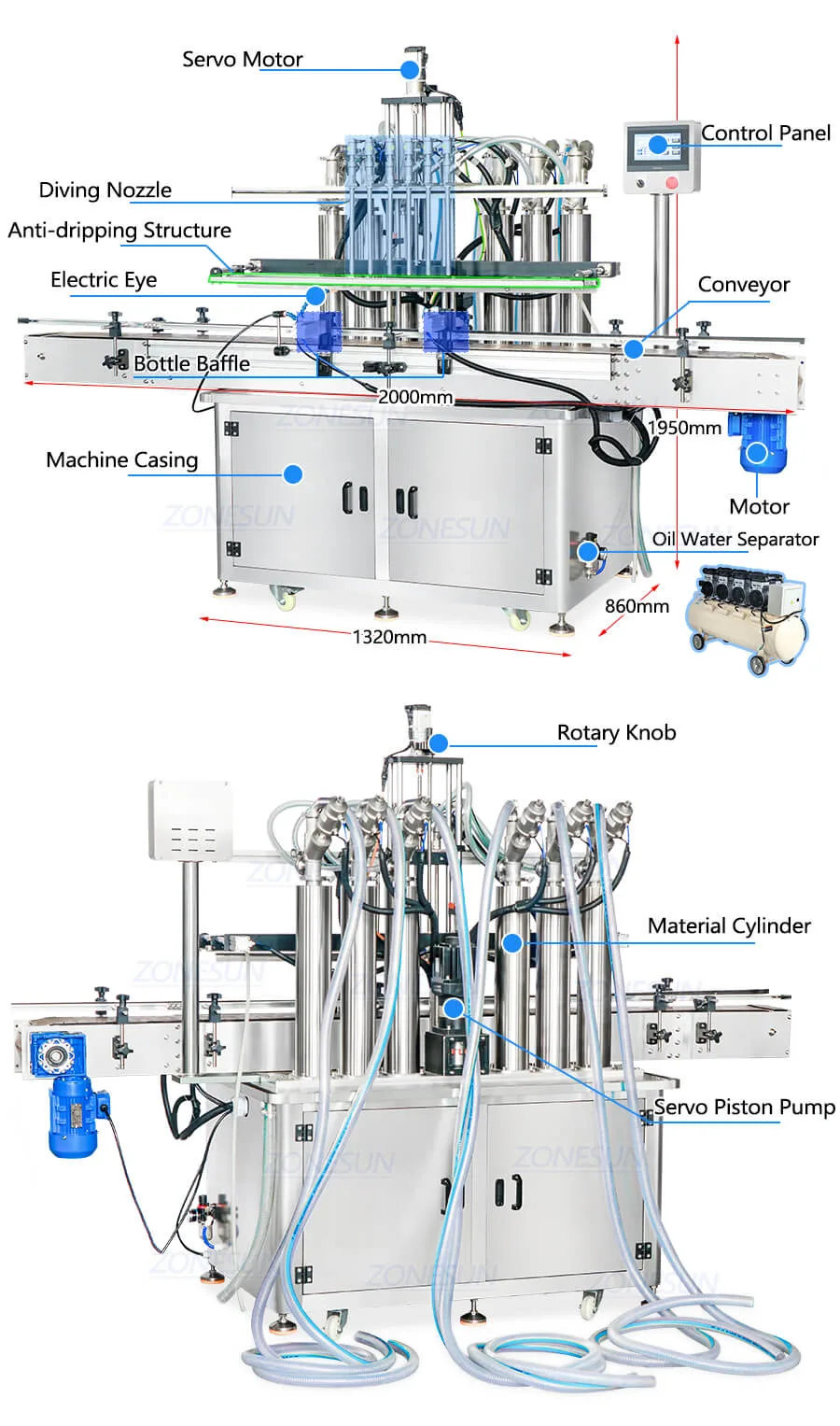

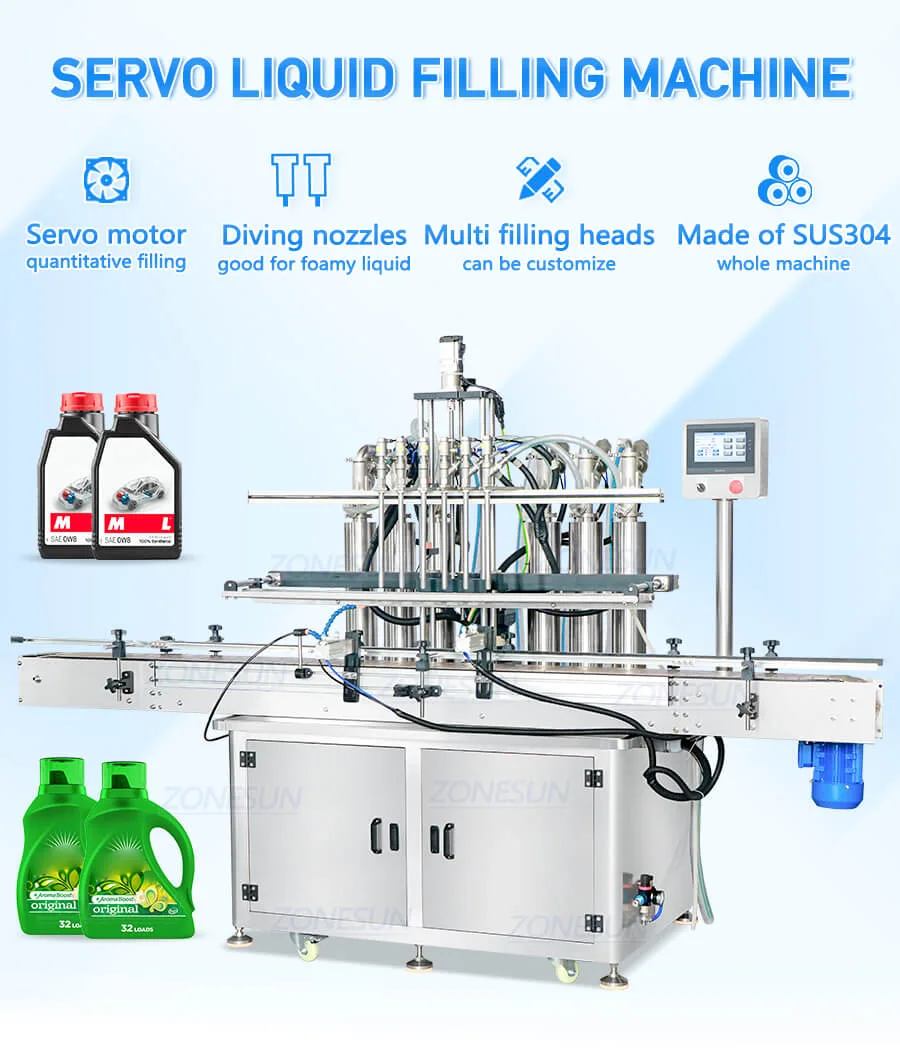

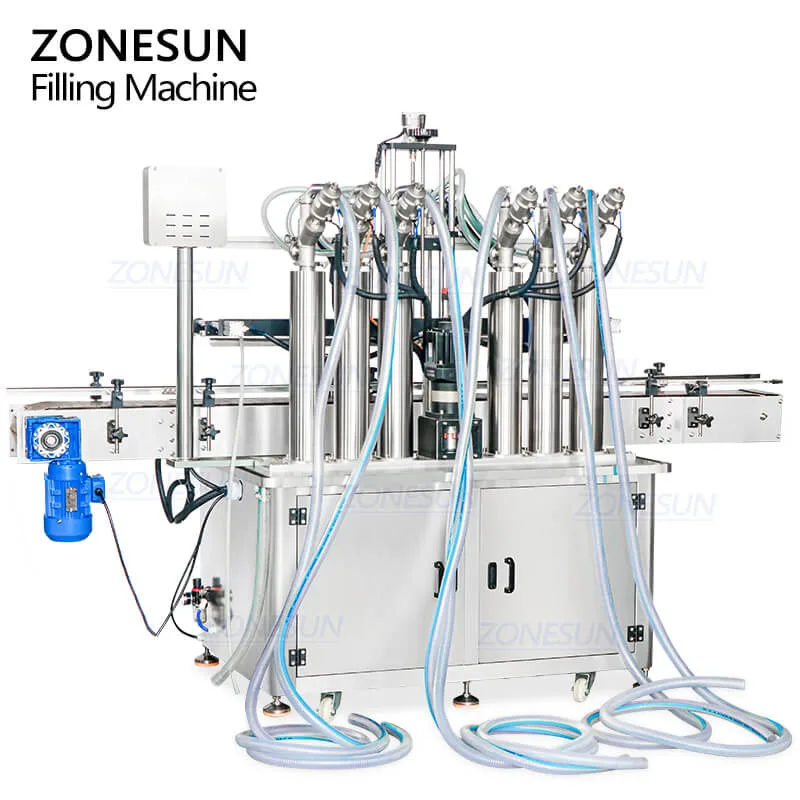

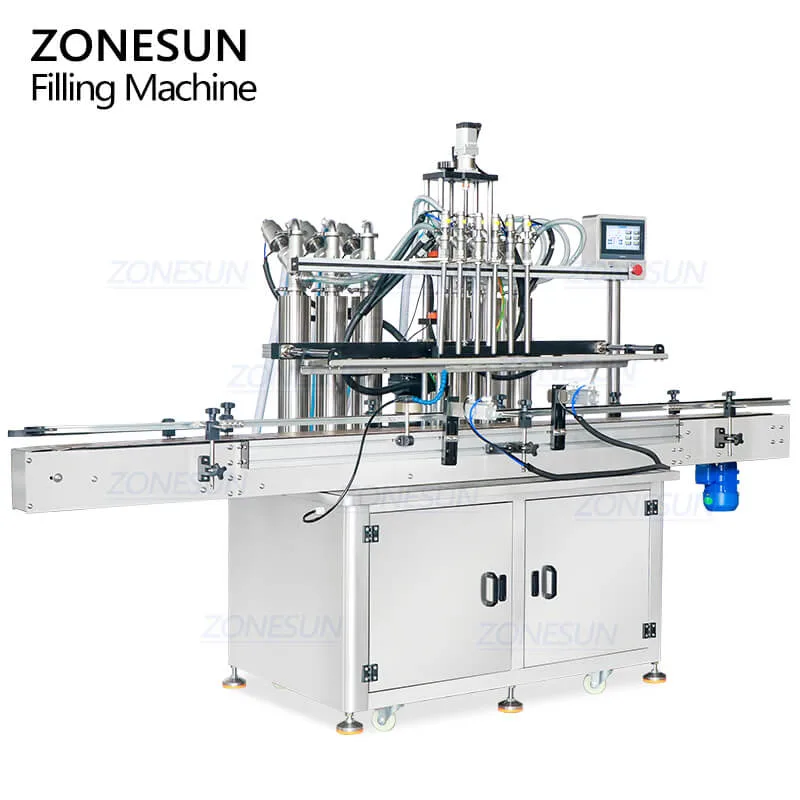

6 Heads Servo Liquid Filling Machine
This piston filler, driven by a servo motor, is designed for quantitative filling of liquid products like soap, engine oil, detergent, and lotion. It typically works in conjunction with an automatic capping and labeling machine to complete the packaging process.
Price range: $8,899.00 through $9,099.00
Share to
This piston filler, driven by a servo motor, is designed for quantitative filling of liquid products like soap, engine oil, detergent, and lotion. It typically works in conjunction with an automatic capping and labeling machine to complete the packaging process.
| Machine model | ZS-SV6HS |
| Voltage | 220V/110V 50-60Hz |
| Power | About 3.5kW |
| Filling Range | 400-4000ml(Can be customized) |
| Filling Speed | About 20-40 bottles/min(depending on bottle size and filling material) |
| Filling Error | About±0.5% |
| Air Pressure | 0.5-0.8Mpa |
| Conveyor Belt Size | About 114*2000mm(W*L) |
| Machine Size | About 2000*860*1950mm |
| Package Size | About 1980*980*2100mm |
| Package Weight | About 501kg |

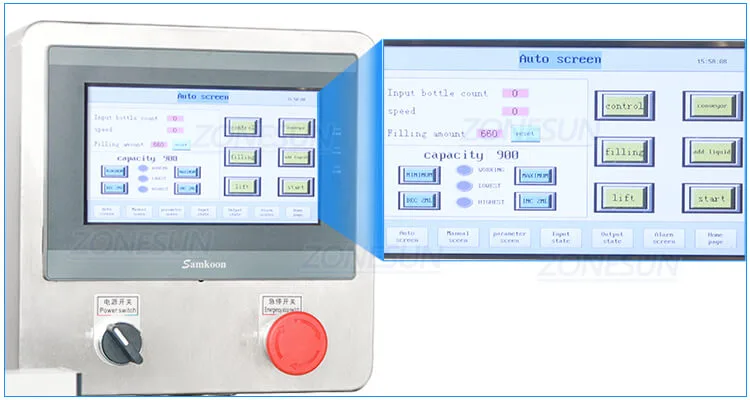

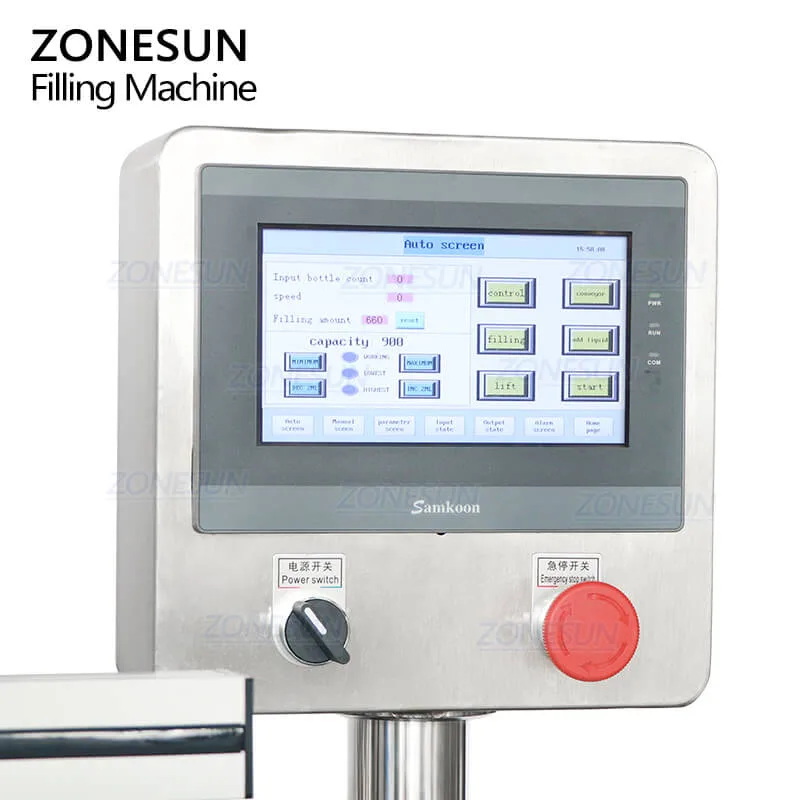

Touch Screen Control Panel
Set filling volume through control panel directly, more convenient.

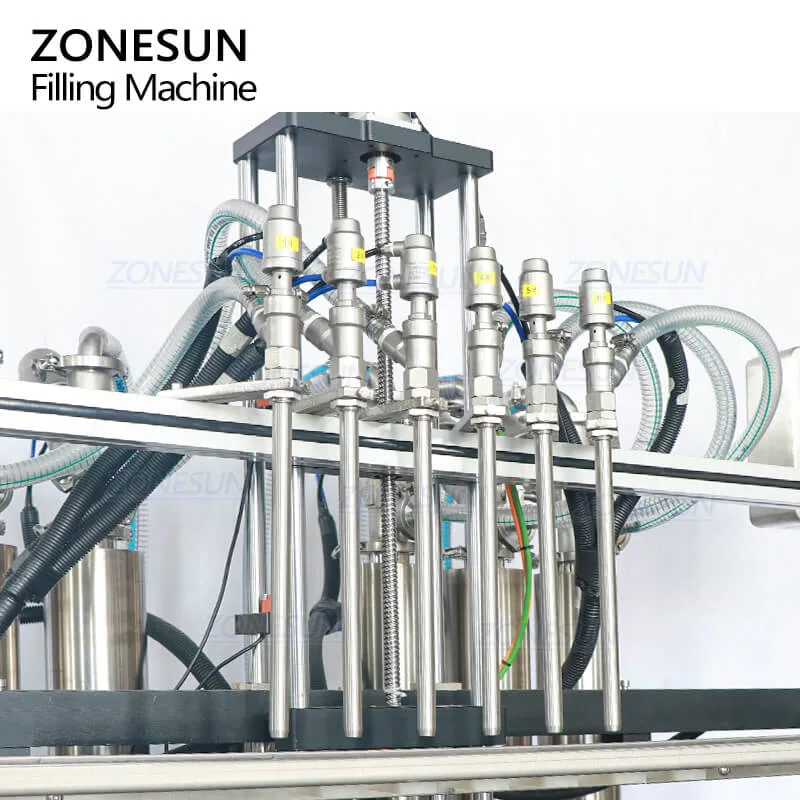

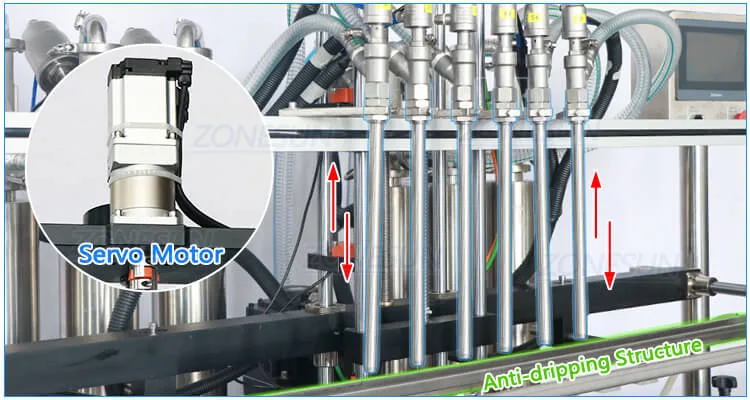

Diving Filling Nozzles
Can automatically lift and down, good for foamy liquid.With anti-dripping structure to improves working quality.

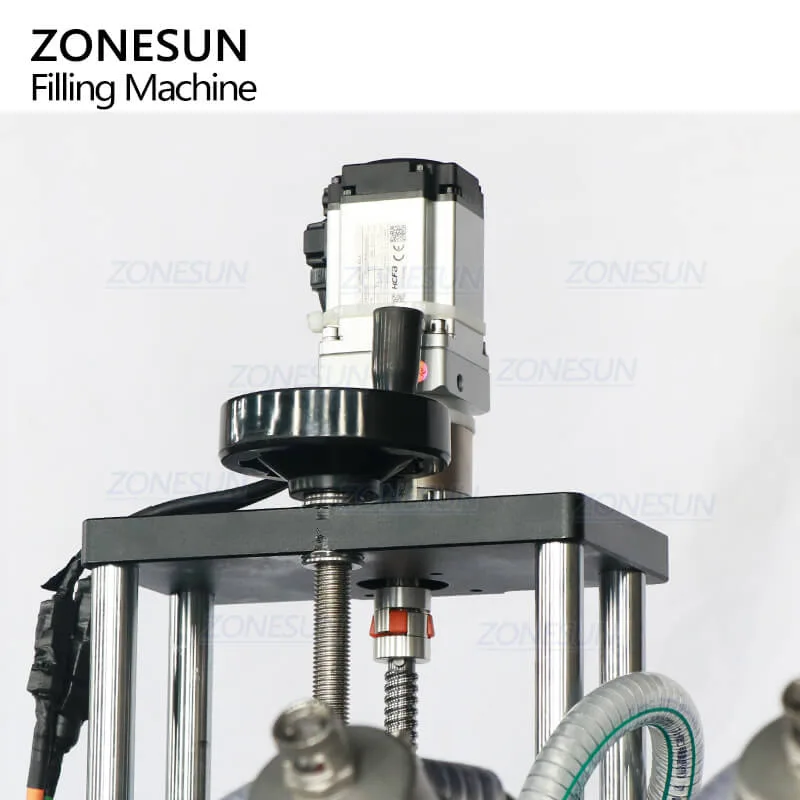

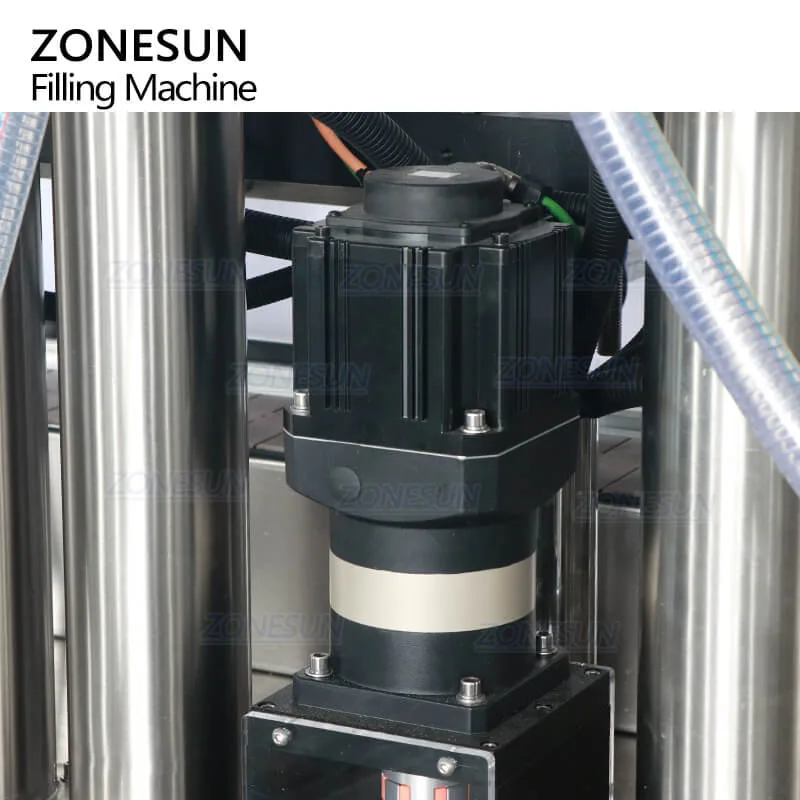

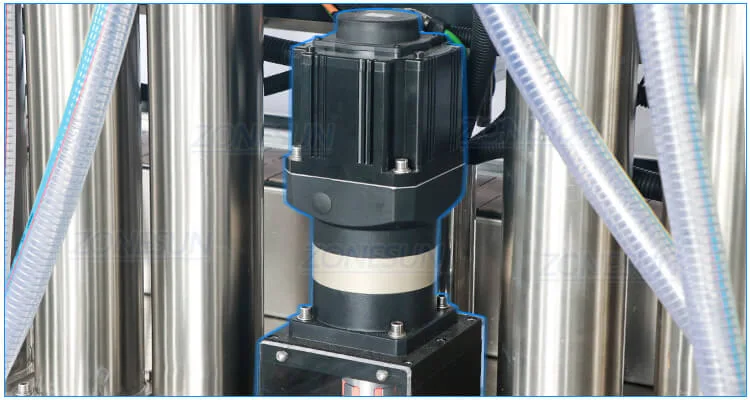

Servo Piston Pump
Makes machine operation more conveniently and improves filling accuracy

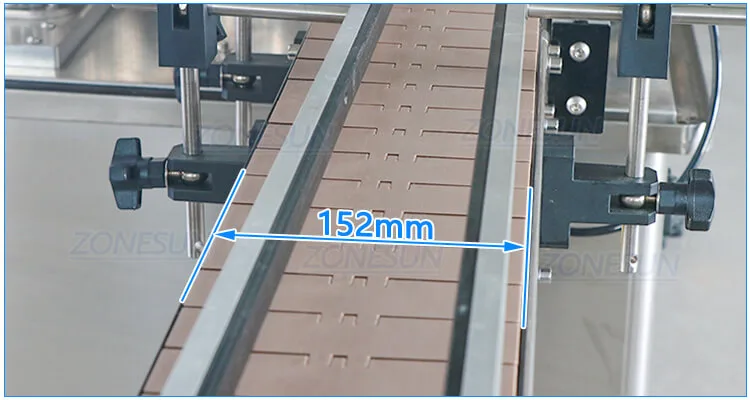

Chain Conveyor
Length and width can be customized as need. It has higher weight capacity.

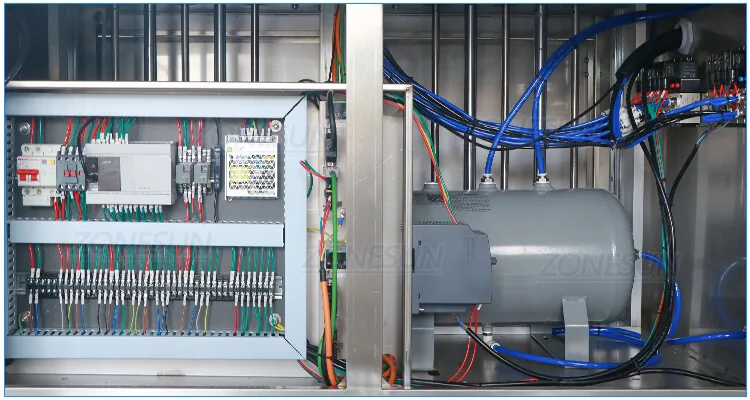

Electric Circuit
Electric circuit are connected orderly to ensure stable working status.
