6 Head Ampoule Bottle Filling Machine

6 Head Ampoule Bottle Filling Machine

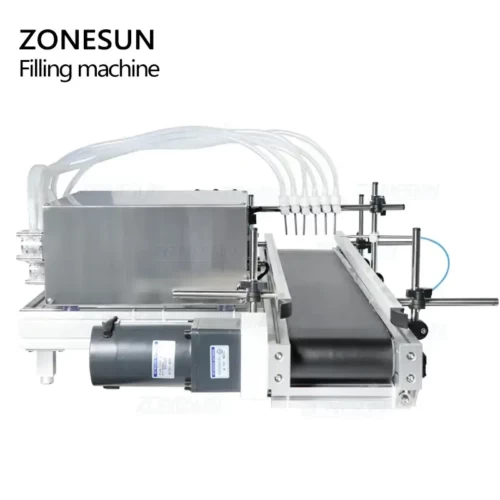

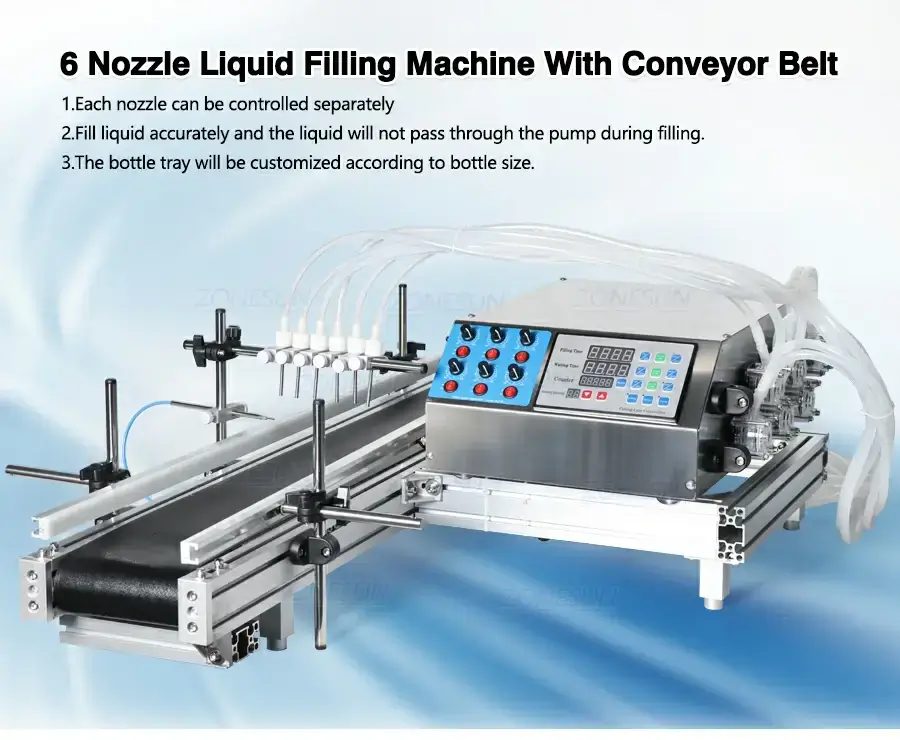

The 6 nozzle peristaltic pump is designed with automatic conveyor belt to realize automated production.It is suitable for small volume liquid like eye drops,essential oil.Each nozzle of this machine can be controlled separately.The peristaltic pump can ensure the liquid cleaness and filling accuracy.

Product Detail

Product Tags

6 Head Ampoule Bottle Filling Machine-ZONESUN TECHNOLOGY LIMITED

Description:

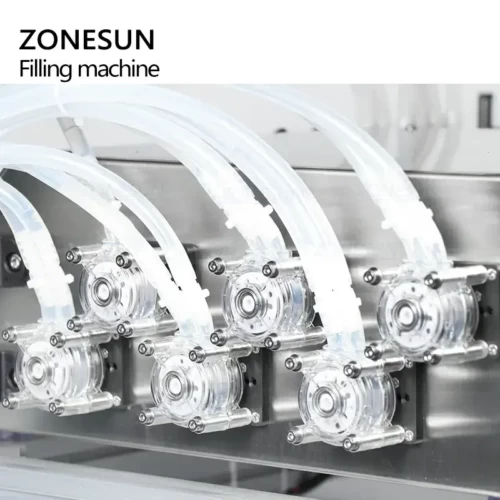

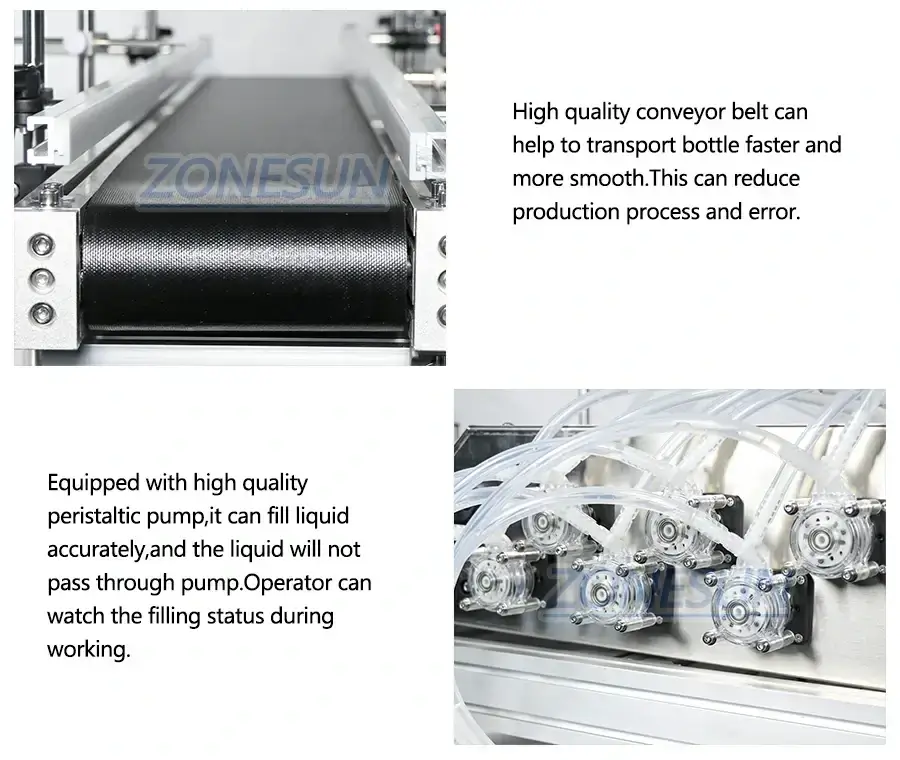

The 6 nozzle peristaltic pump is designed with automatic conveyor belt to realize automated production.It is suitable for small volume liquid like eye drops,essential oil.Each nozzle of this machine can be controlled separately.The peristaltic pump can ensure the liquid cleaness and filling accuracy.

6 Head Ampoule Bottle Filling Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

Machine modelZS-DTPP6B
Power supplyAC110V/220V 50Hz-60Hz 60W*6
Filling Range≤50ml

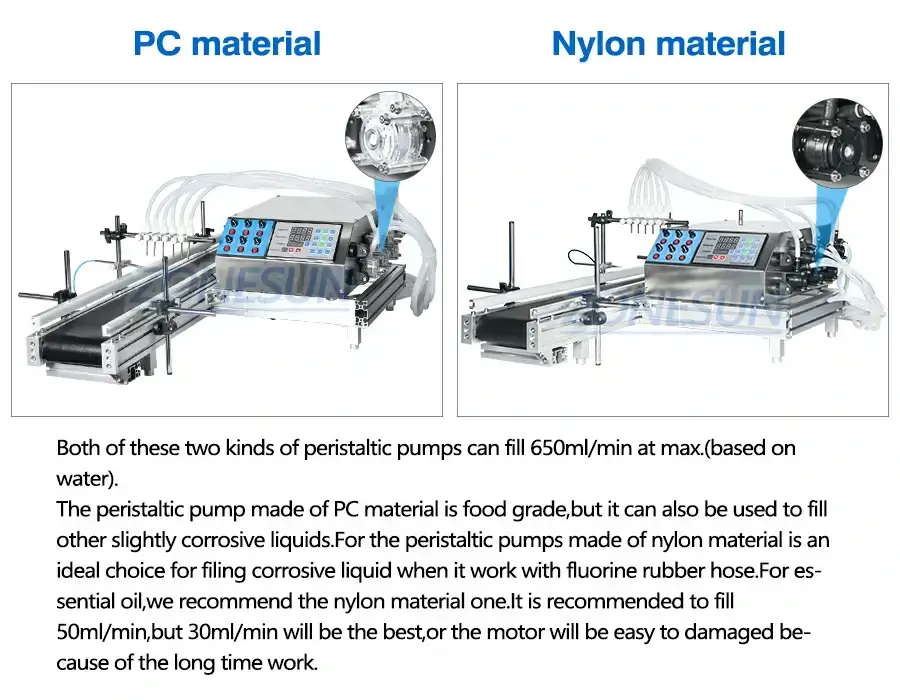

Maximum flow650ml/min for each nozzle (based on water )

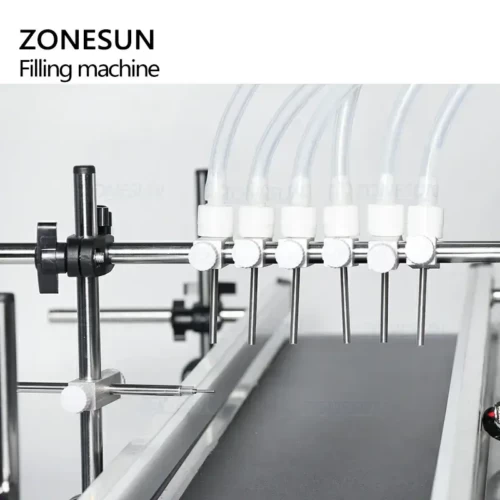

Filling nozzles6(we can customize nozzles based on your demands)
Working speed40-50bottles/min(based on 50ml-water)
Filling accuracy≤±1% (For water)

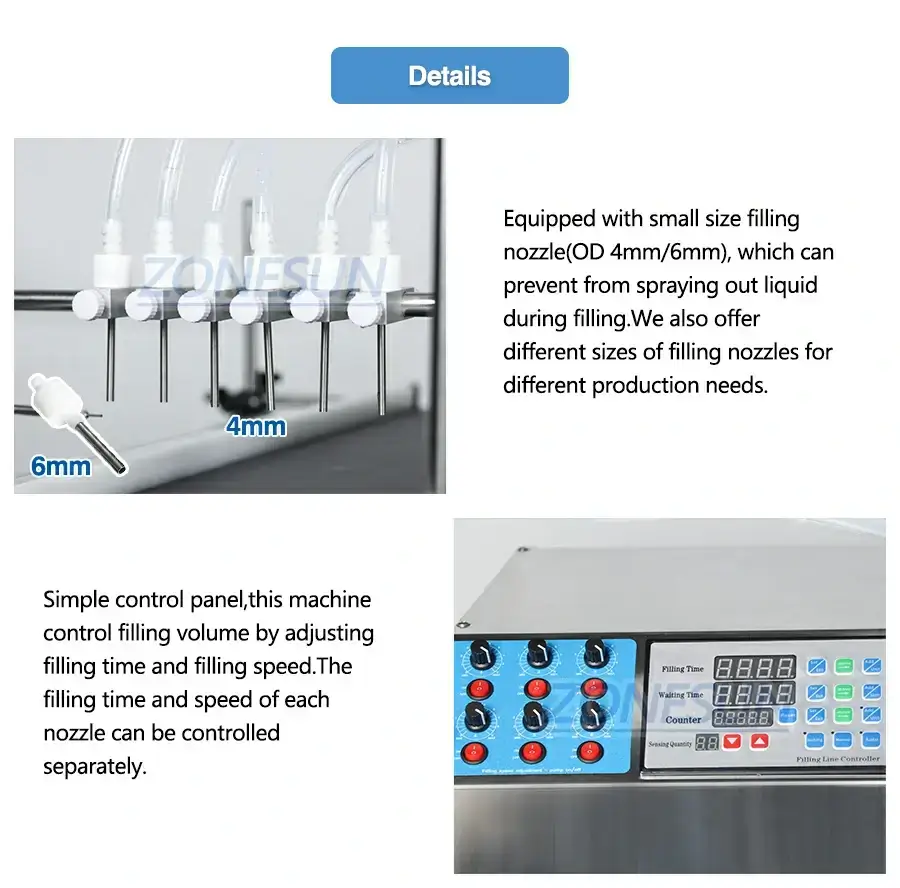

Diameter of filling nozzle4mm
Delay range0.01-999.9s

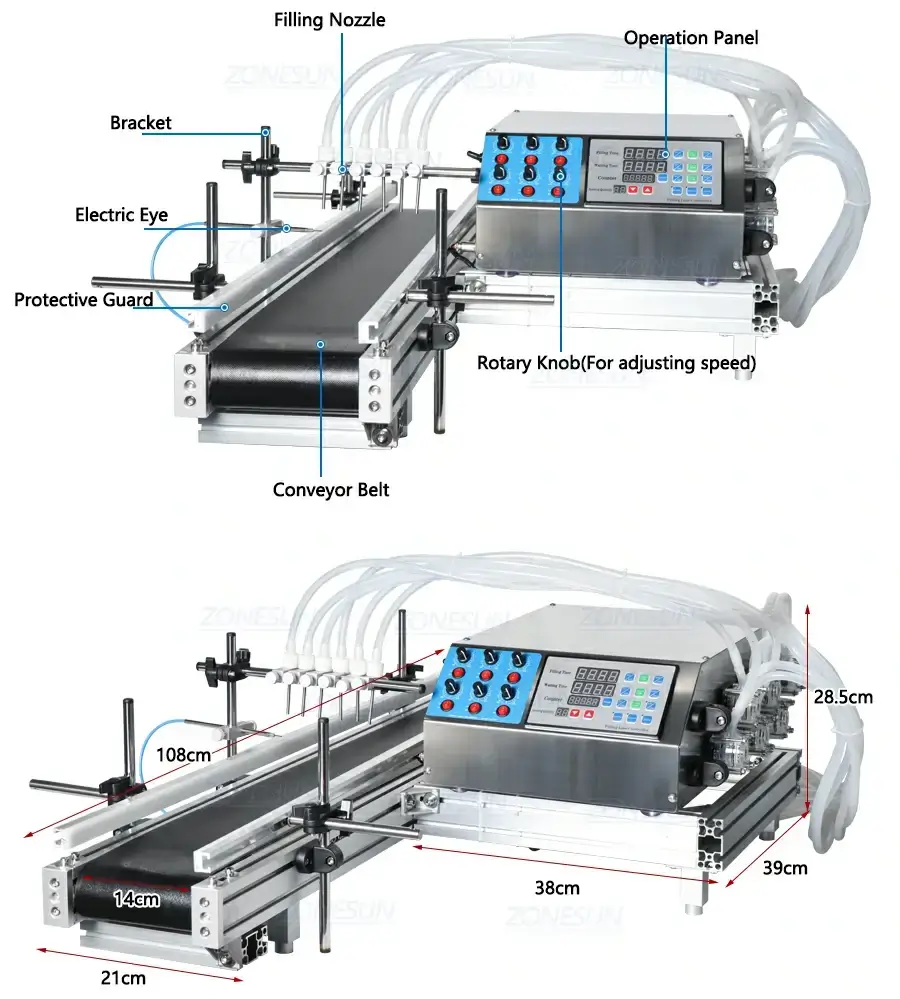

Conveyor size1080*140mm(L*W)
Machine sizeAbout 380*390*285mm(Without conveyor belt)
Package sizeAbout 1105*665*320mm
Net weight/Gross weightAbout 31kg/43kg

6 Head Ampoule Bottle Filling Machine-ZONESUN TECHNOLOGY LIMITED6 Head Ampoule Bottle Filling Machine-ZONESUN TECHNOLOGY LIMITED6 Head Ampoule Bottle Filling Machine-ZONESUN TECHNOLOGY LIMITED6 Head Ampoule Bottle Filling Machine-ZONESUN TECHNOLOGY LIMITED6 Head Ampoule Bottle Filling Machine-ZONESUN TECHNOLOGY LIMITED6 Head Ampoule Bottle Filling Machine-ZONESUN TECHNOLOGY LIMITED
