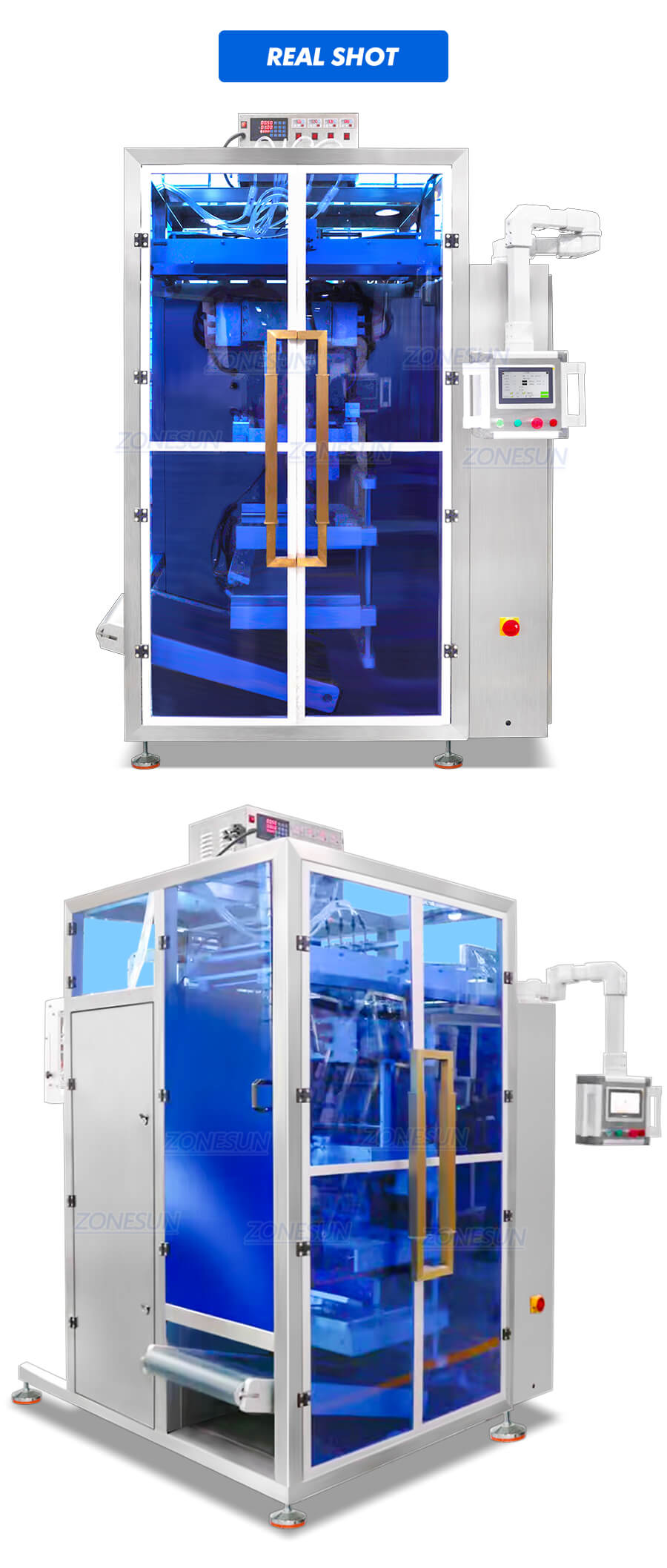

ZONESUN ZS-FS350Y-2 Double Lane Sauce Sachet Filling Sealing Machine
This dual-lane four-side seal sachet filling and sealing machine is designed for small-dose liquid packaging. It features a Siemens PLC control system with fault alarm and data storage. Servo-driven film pulling and precise ceramic piston filling ensure stable operation at 30–50 sachets per minute.It is suitable for packaging sauce, honey, syrup and so on.
El precio original era: $24,599.00.$23,799.00El precio actual es: $23,799.00.
Compartir con
This dual-lane four-side seal sachet filling and sealing machine is designed for small-dose liquid packaging. It features a Siemens PLC control system with fault alarm and data storage. Servo-driven film pulling and precise ceramic piston filling ensure stable operation at 30–50 sachets per minute.It is suitable for packaging sauce, honey, syrup and so on.
| Modelo de máquina | ZS-FS350Y-2 |
| Fuente de alimentación | AC 380V / 50Hz / 60Hz |
| Packaging Type | Four-side seal |
| Dosing Method | Pneumatic ceramic piston pump(Customizable as needed) |
| Rango de llenado | 1-12 ml |
| Precisión de llenado | ±5-7% (depending on product and packaging material) |
| Longitud de la bolsa | 40-180 mm |
| Ancho de la bolsa | 60 mm |
| Velocidad de embalaje | 30-50 bags/min (depending on product and packaging material) |
| Consumo de energía | 6.8 kW |
| Air Pressure Requirement | ≥0.6 MPa |

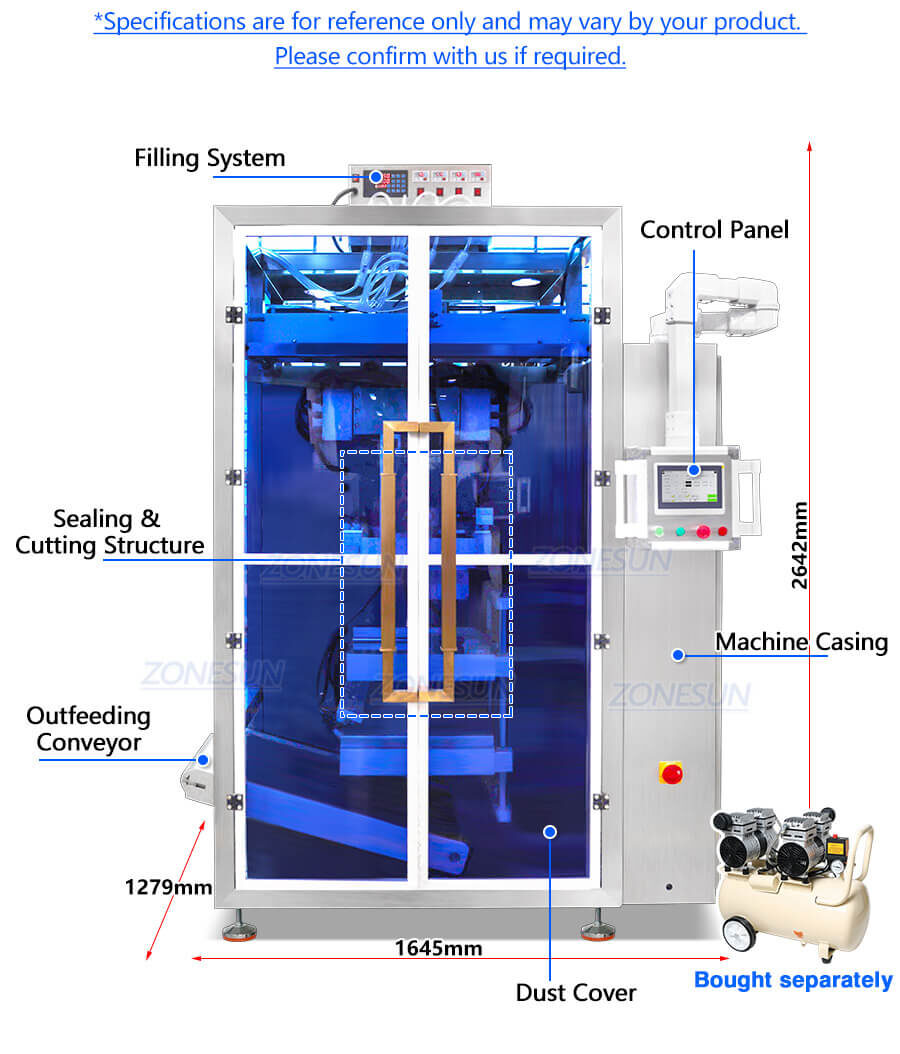

| Dimensiones de la máquina | About 1645*1279*2642 mm(L*W*H) |
| Peso de la máquina | About 800 kg |

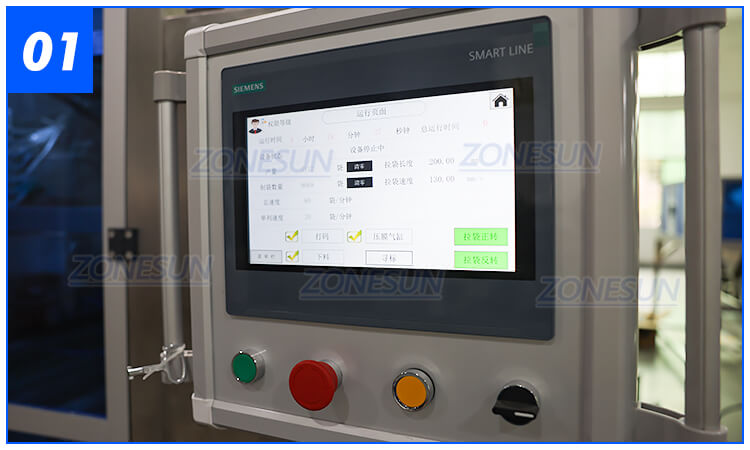

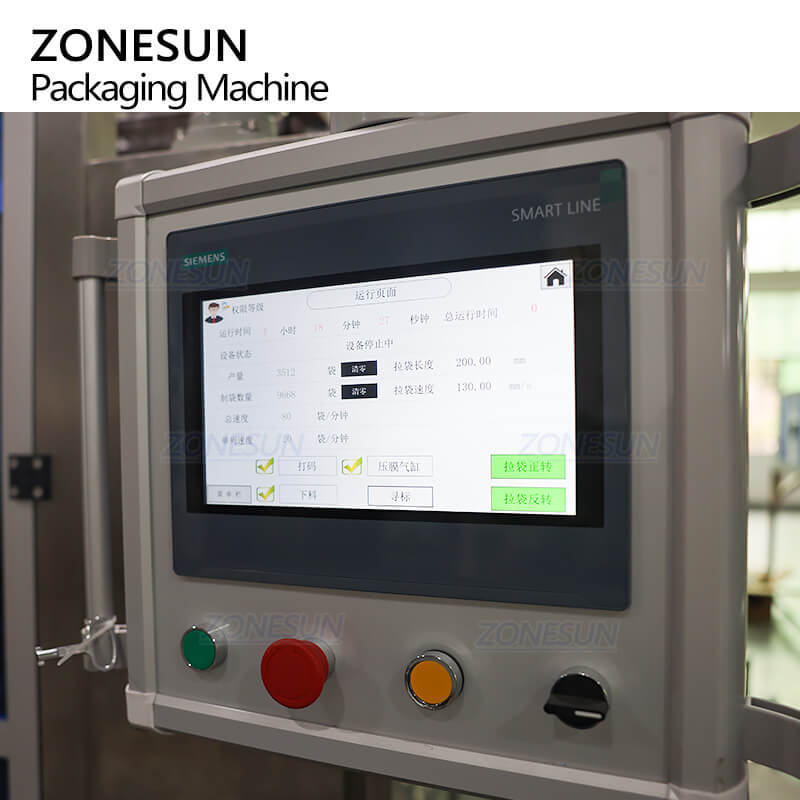

Panel de control
The Siemens PLC system supports fault alerts, data storage, and self-diagnostic functions for intuitive and user-friendly operation.

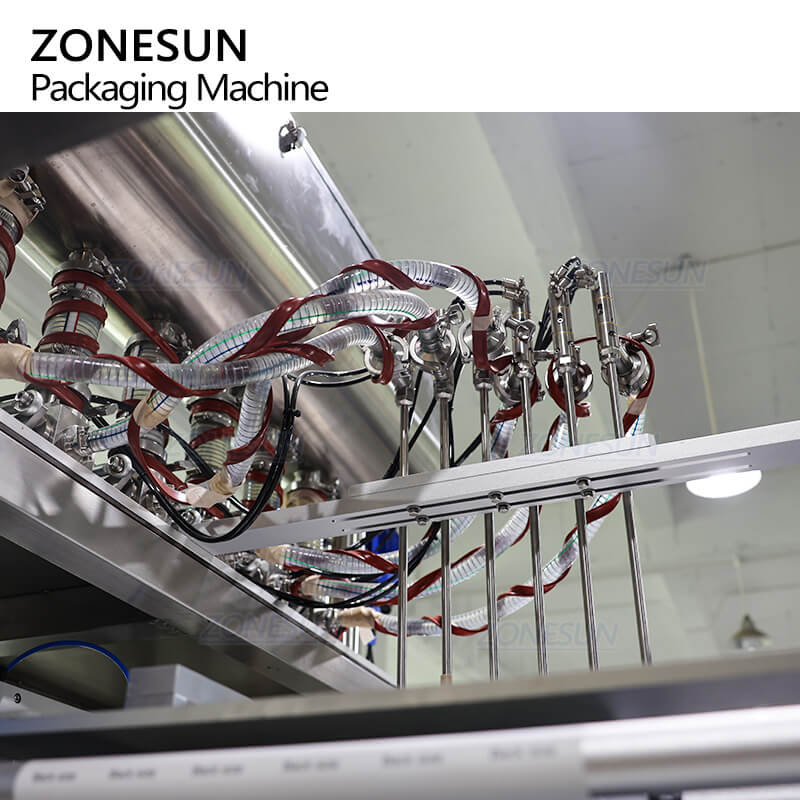

Sistema de llenado
Pneumatic ceramic piston pumps enable precise filling from 1–12 ml, ideal for small-dose liquid products.

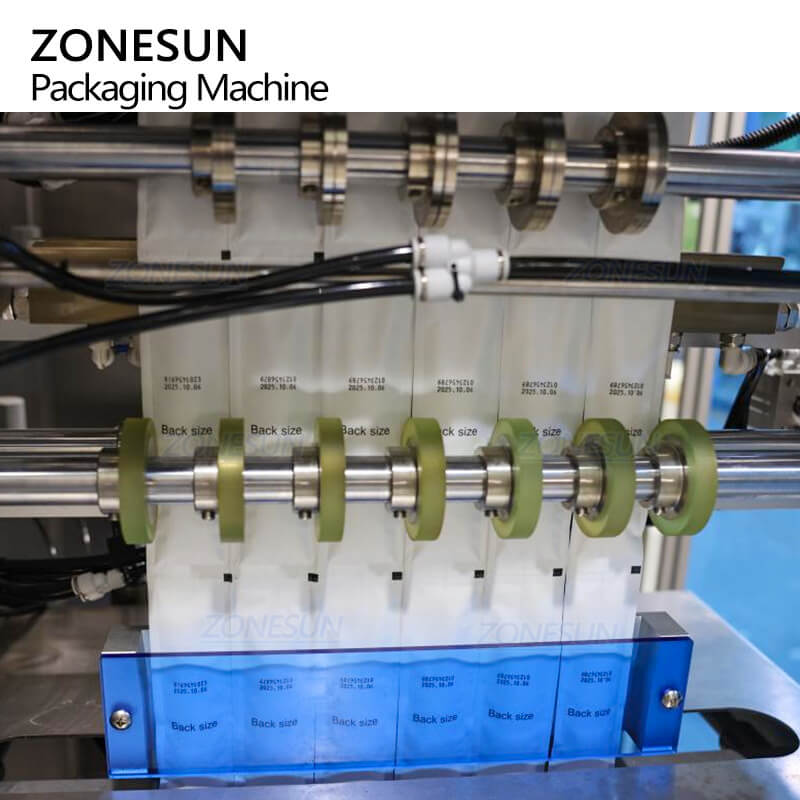

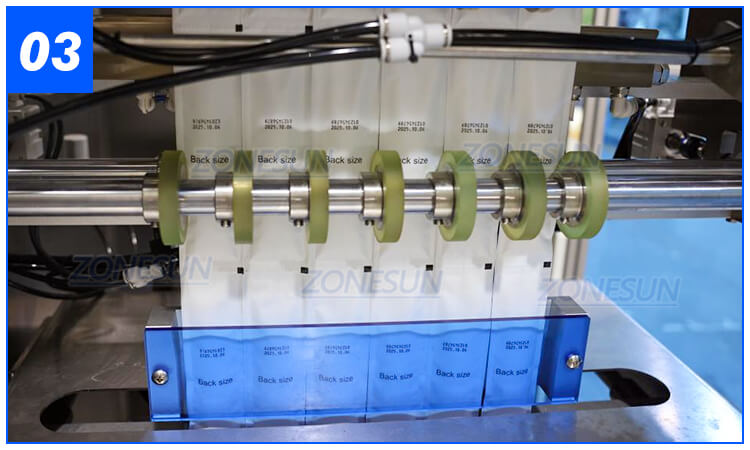

Lane Separation Assembly
Upper metal separators and lower guide plates prevent multi-lane film adhesion and deviation, ensuring neat sachet forming and uniform spacing across all lanes.

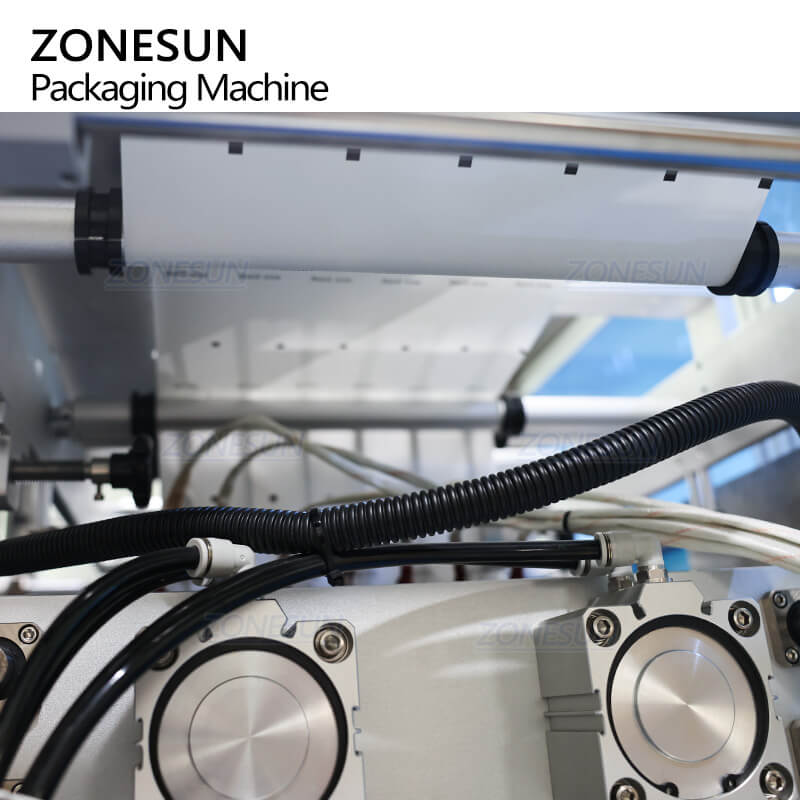

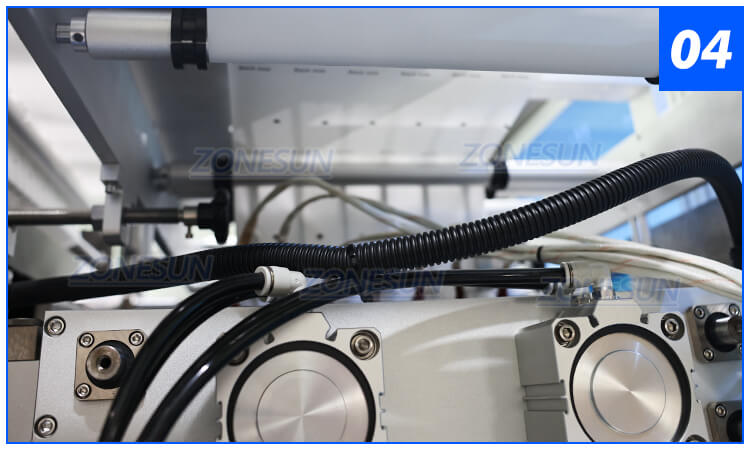

Film Pulling System
A Siemens servo motor combined with photoelectric sensors tracks color marks accurately for uniform bag length and pattern alignment.
