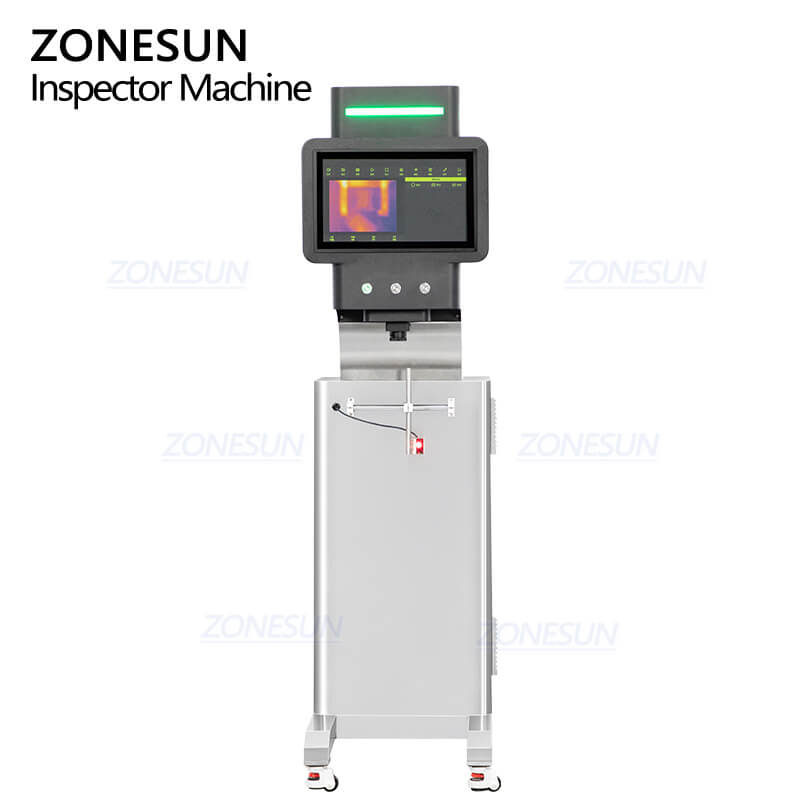

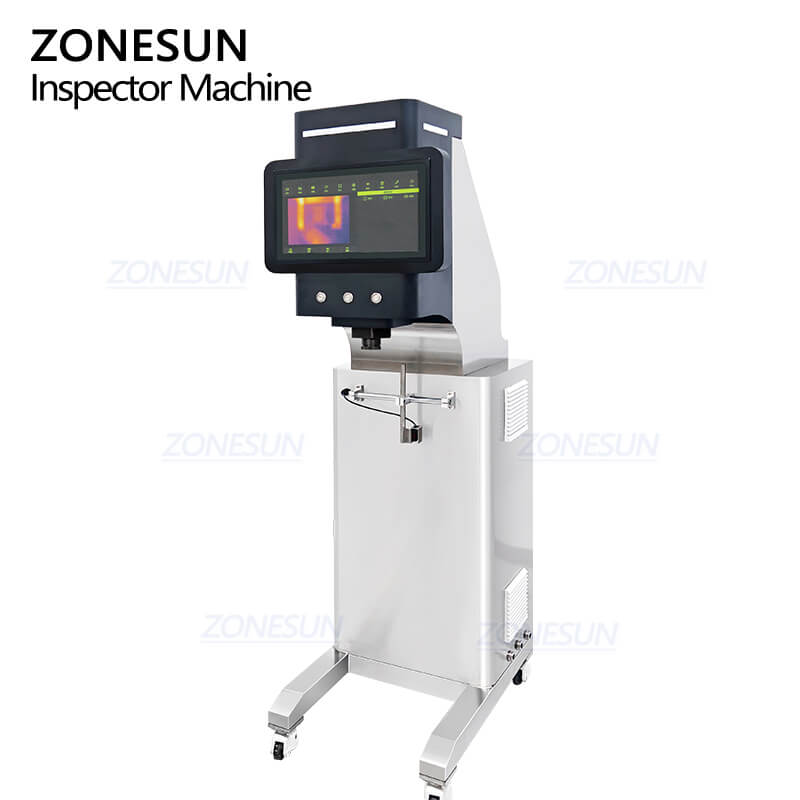

ZONESUN ZS-MD50 Aluminum Foil Sealing Inspection Machine
This aluminum foil seal inspection machine uses non-contact infrared thermal imaging to inspect induction or heat-sealed closures in real time. It accurately detects sealing defects without touching the product, making it ideal for cosmetics, food, and beverage production lines.
$16,999.00
Поделиться
This aluminum foil seal inspection machine uses non-contact infrared thermal imaging to inspect induction or heat-sealed closures in real time. It accurately detects sealing defects without touching the product, making it ideal for cosmetics, food, and beverage production lines.
| Модель машины | ZS-MD50 |
| Источник питания | AC 220V ±10%, 50/60Hz(Customizable) |
| Потребляемая мощность | ≤ 1 kW |
| Applicable Cap Size | φ 10–150 mm |
| Применимый размер бутылки | Height 50–350 mm; Diameter ≤ 300 mm |
| Maximum Inspection Speed | 200 bottles/min (actual speed depends on product size) |
| Pass Rate | ≥ 99.99% |
| False Reject Rate | ≤ 0.5% (depends on packaging material and operating conditions) |
| Image Accuracy | ± 0.03 mm |
| Operating Temperature | –15°C to 65°C |
| Camera Speed | 50 Hz, full temperature range |
| Inspection Types | No cap, missing foil seal, skewed cap, high cap, loose cap, reversed foil, double foil, damaged foil at bottle rim, lifted foil edge, under-sealing due to low sealing power, over-sealing due to excessive sealing power |
| Compressed Air Requirement | 0.6–0.8 MPa, ≥ 0.6 m³/min (supplied by user) |
| Размеры машины | About 600 (L) × 450 (W) × 1720 (H) mm |

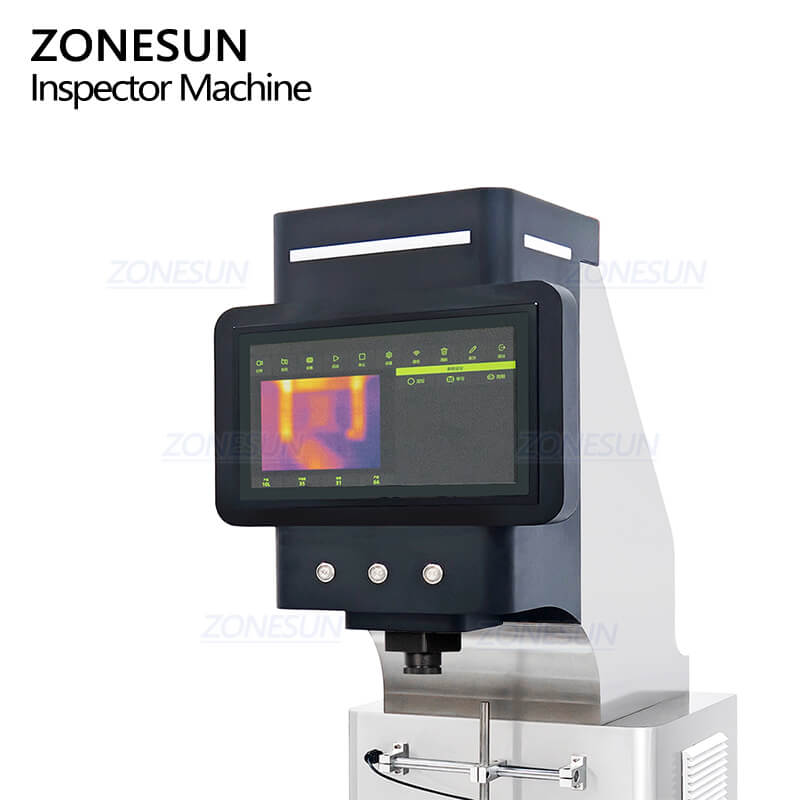

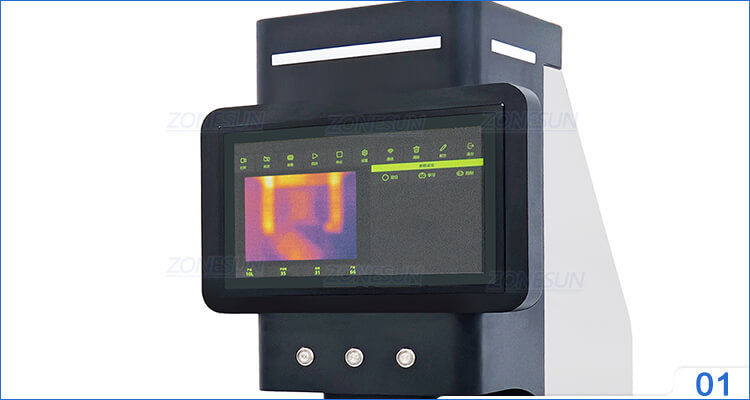

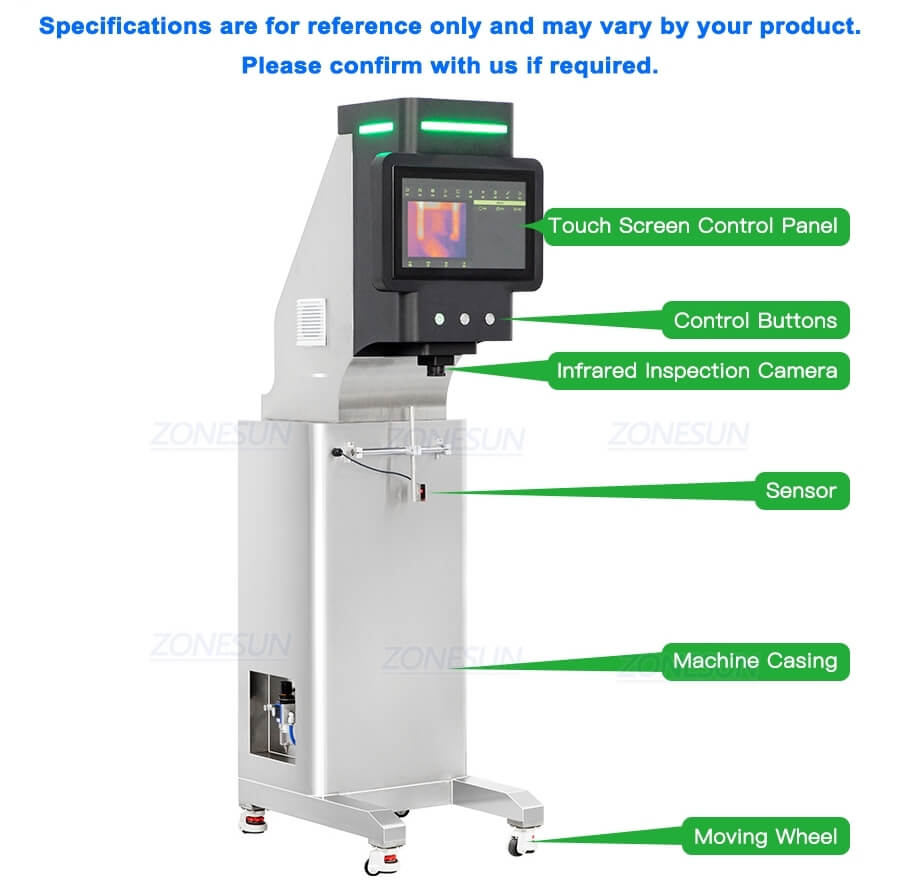

Touchscreen Control Interface
Displays thermal images, inspection results, alarms, and system status in real time.

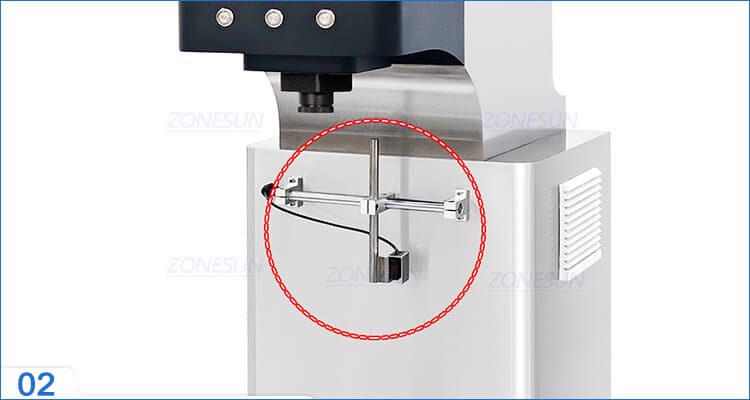

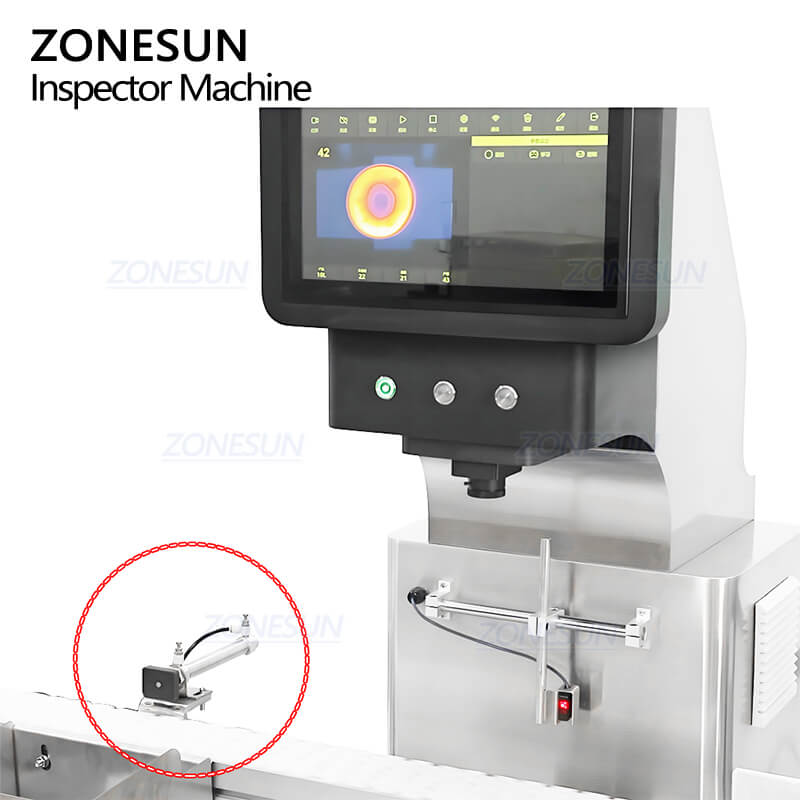

Датчик
This is designed for detecting passing by bottles and control the automated production.

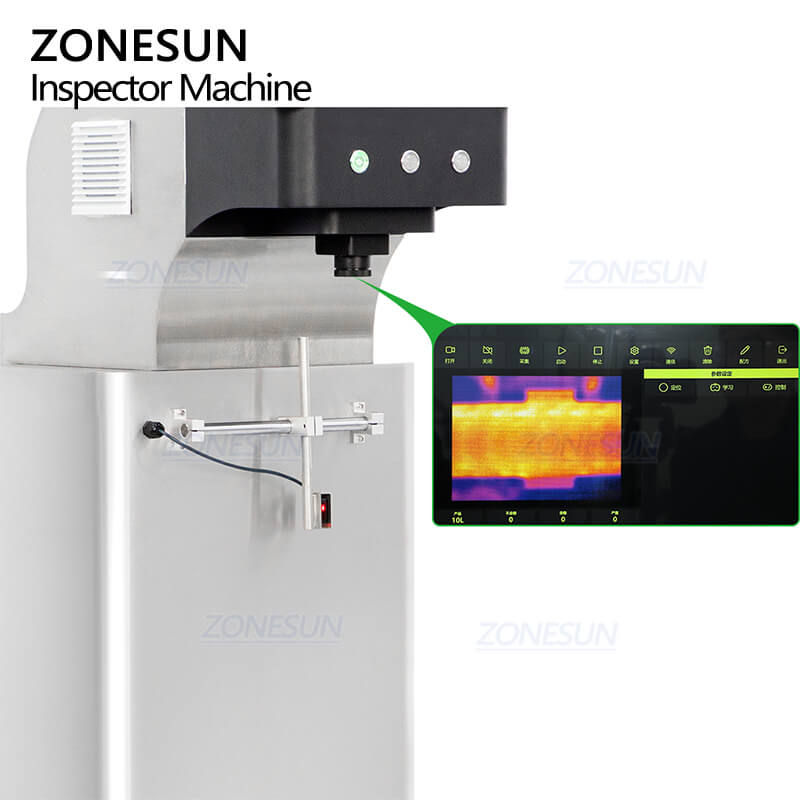

Infrared Thermal Imaging Camera
Scans the seal area without contact to detect temperature distribution and sealing quality.

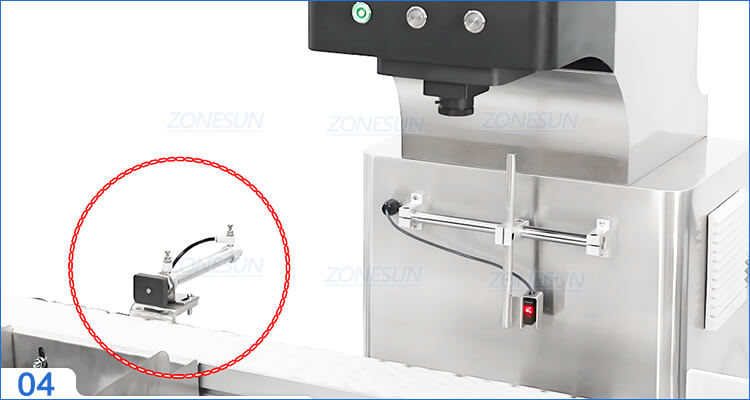

Rejection System Interface
Connects to reject mechanisms to automatically remove defective products.
