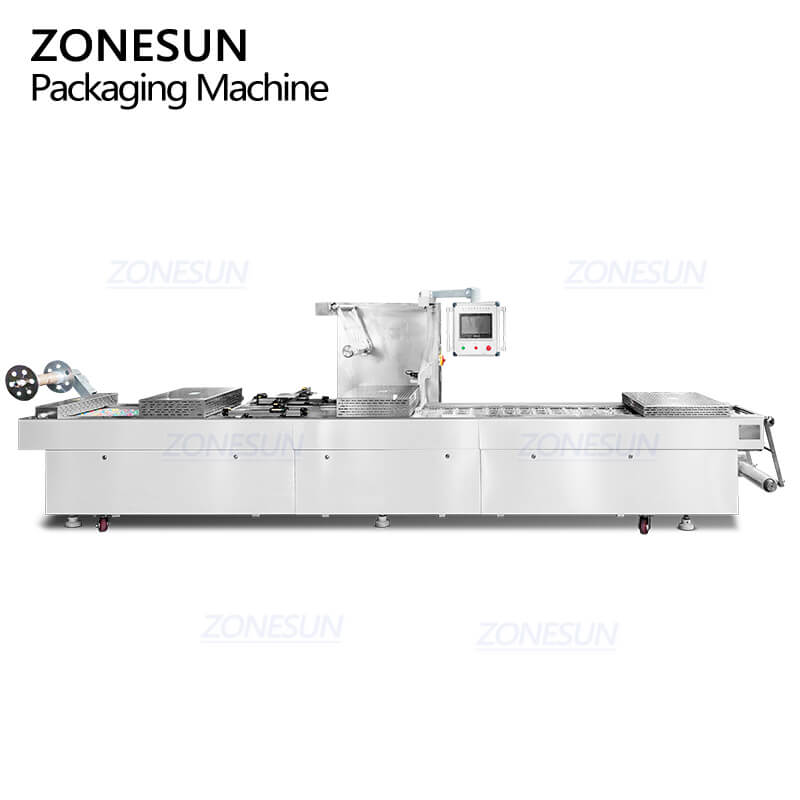

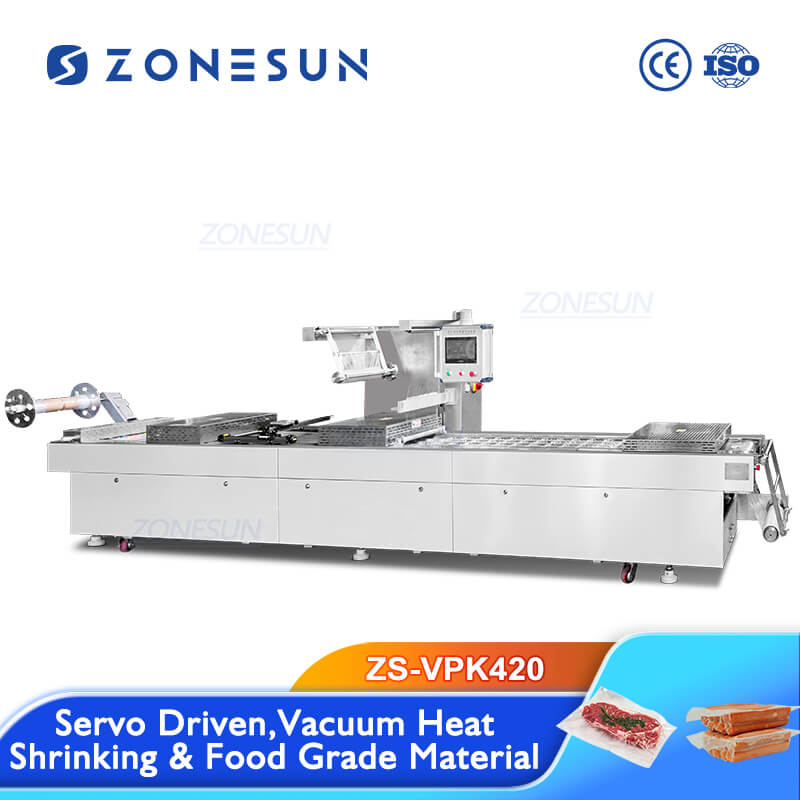

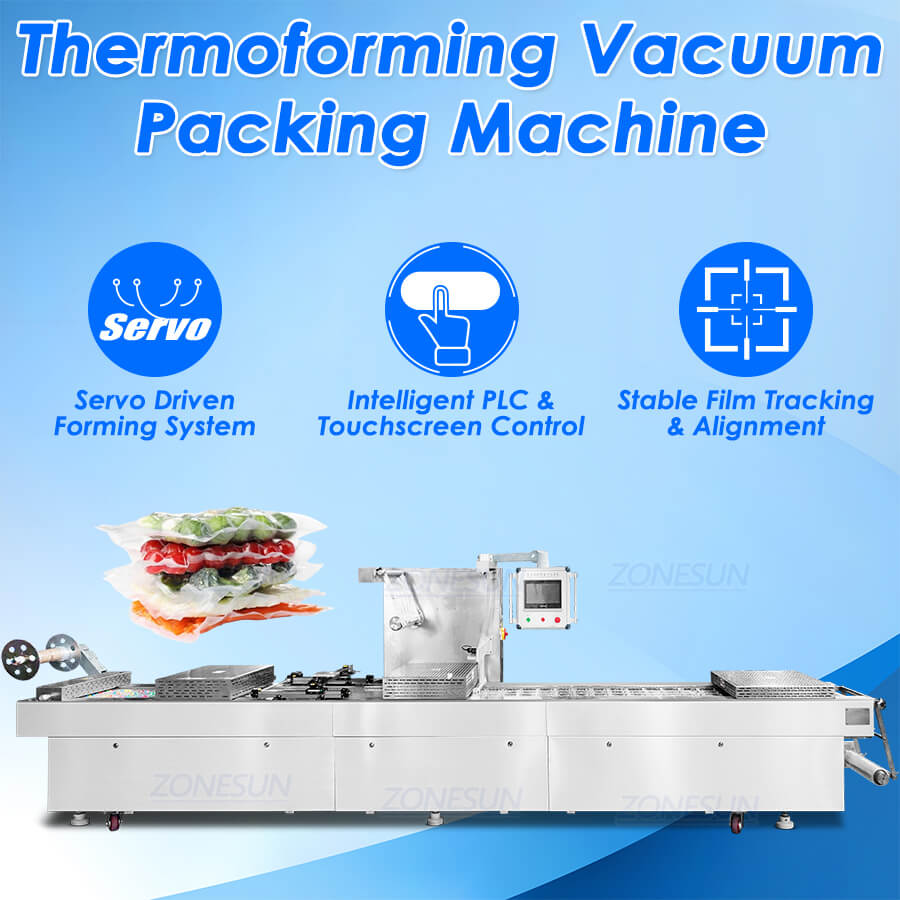

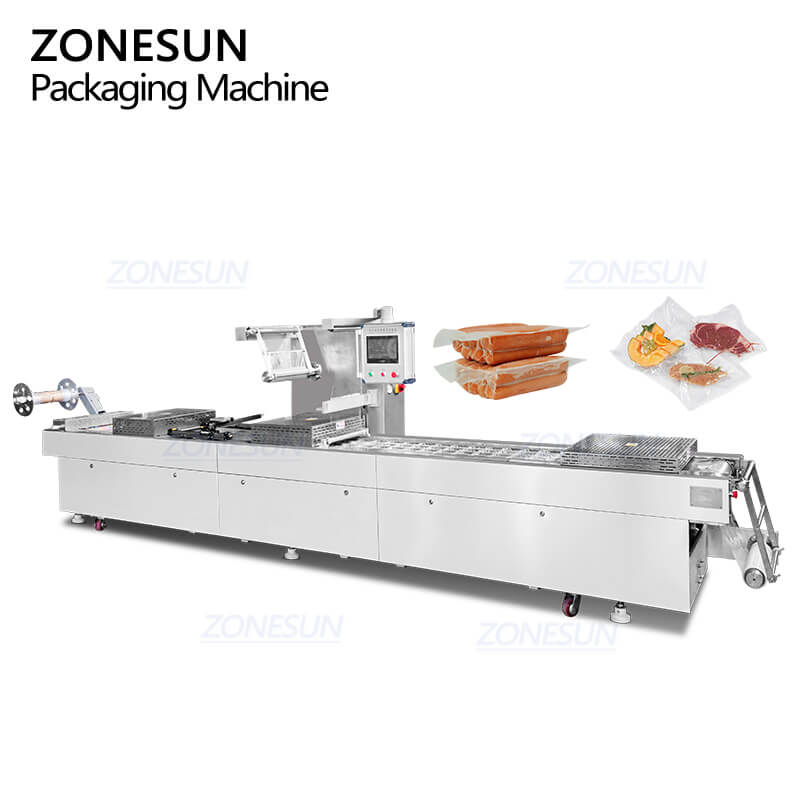

ZONESUN ZS-VPK420 Servo Shrink Thermoforming Vacuum Packaging Machine
This thermoforming vacuum packaging machine forms packages from film, then seals, shrinks, and cuts them in one continuous process. It is suitable for foods such as cheese blocks, steaks, and meatballs, offering stable operation, precise control, and efficient automated packaging for modern food production lines.
Il prezzo originale era: $54,499.00.$53,999.00Il prezzo attuale รจ: $53,999.00.
Condividi su
Descrizione del prodotto:
This thermoforming vacuum packaging machine forms packages from film, then seals, shrinks, and cuts them in one continuous process. It is suitable for foods such as cheese blocks, steaks, and meatballs, offering stable operation, precise control, and efficient automated packaging for modern food production lines.
Parametri del prodotto:
| Modello macchina | ZS-VPK420 |
| Tensione di alimentazione | 380V / 50Hz |
| Potenza totale | 10 kW(Maximum power ) |
| Working efficiency | 5–7 times/min |
| Forming temperature | 70–120°C |
| Forming pressure | 0.15 MPa |
| Heat sealing temperature | 125–150°C |
| Heat sealing pressure | 0.15 MPa |
| Forming time | 1–2 s |
| Heat sealing time | 1.5–2.5 s |
| Vacuum degree | ≤200 Pa |
| Main frame material | SUS304 |
| Pressione dell'aria compressa | ≥0.6 MPa |
| Peso della macchina | About 2000 kg |
| Machine dimensions | About 6000*1100*1860 mm |

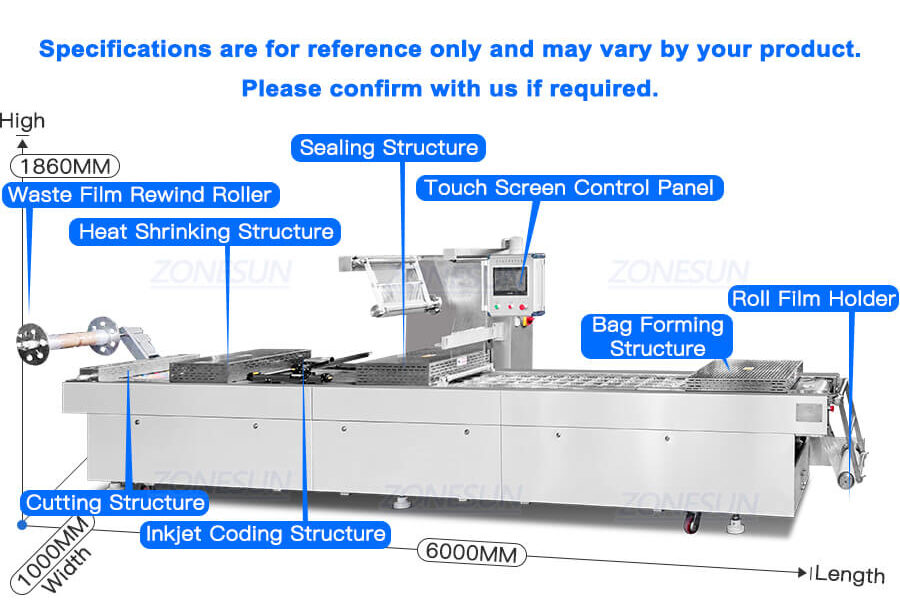

Dettagli del prodotto:

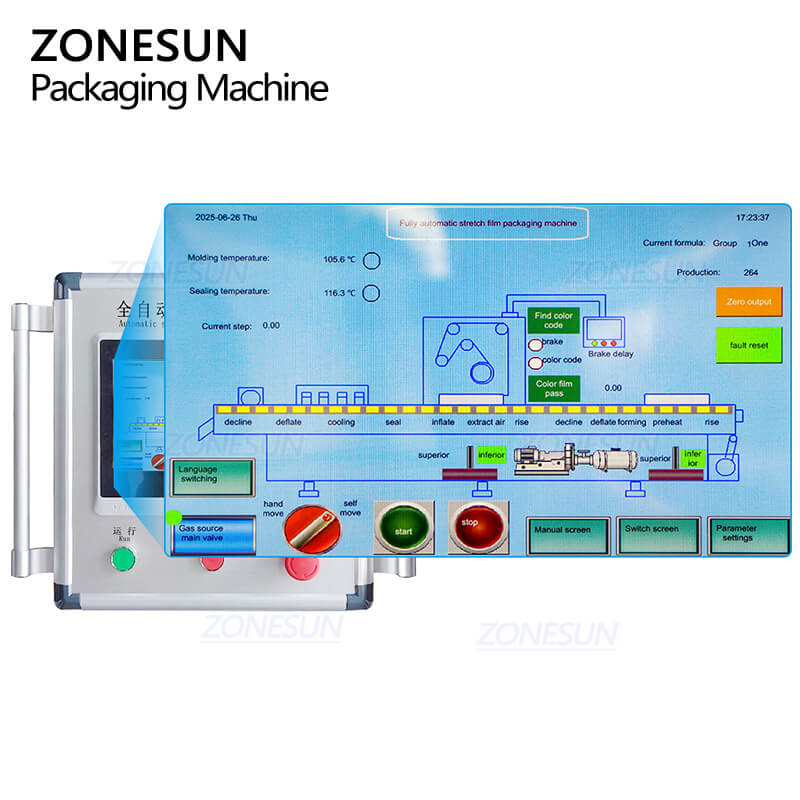

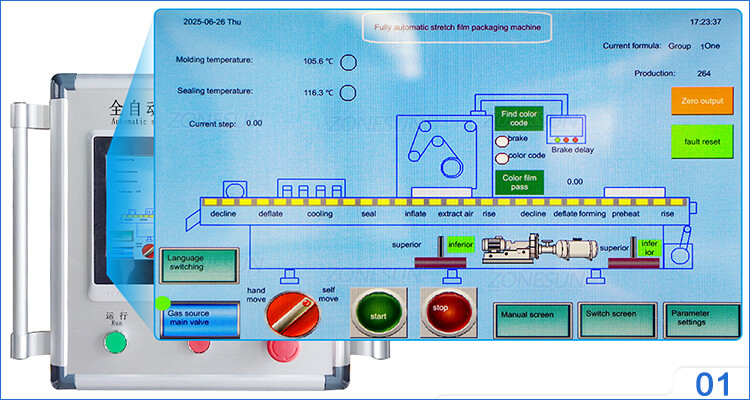

Pannello di controllo touchscreen
A 10.4-inch HMI allows centralized control, parameter setting, and real-time monitoring.

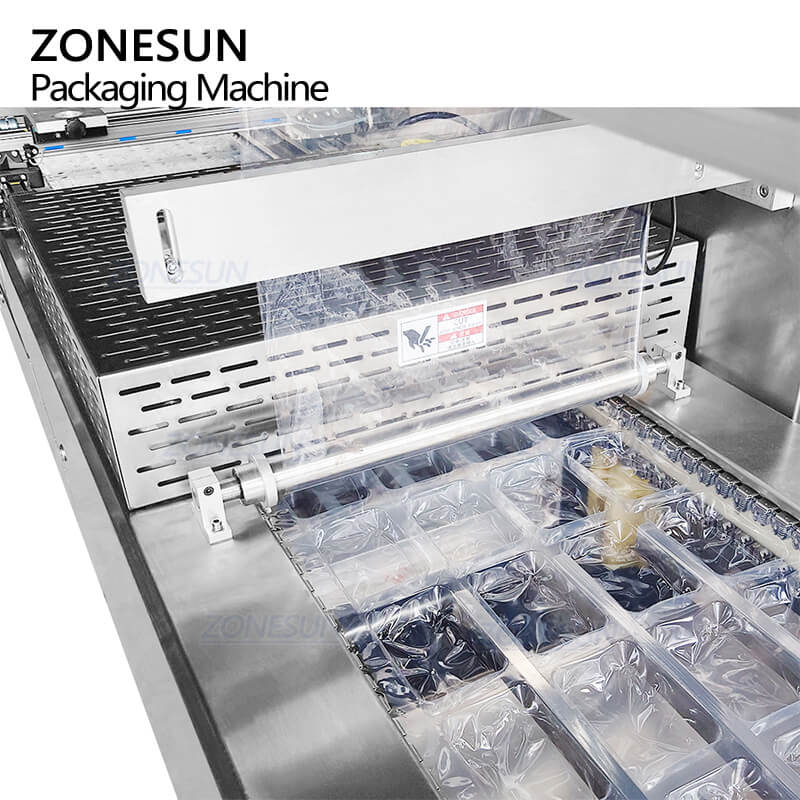

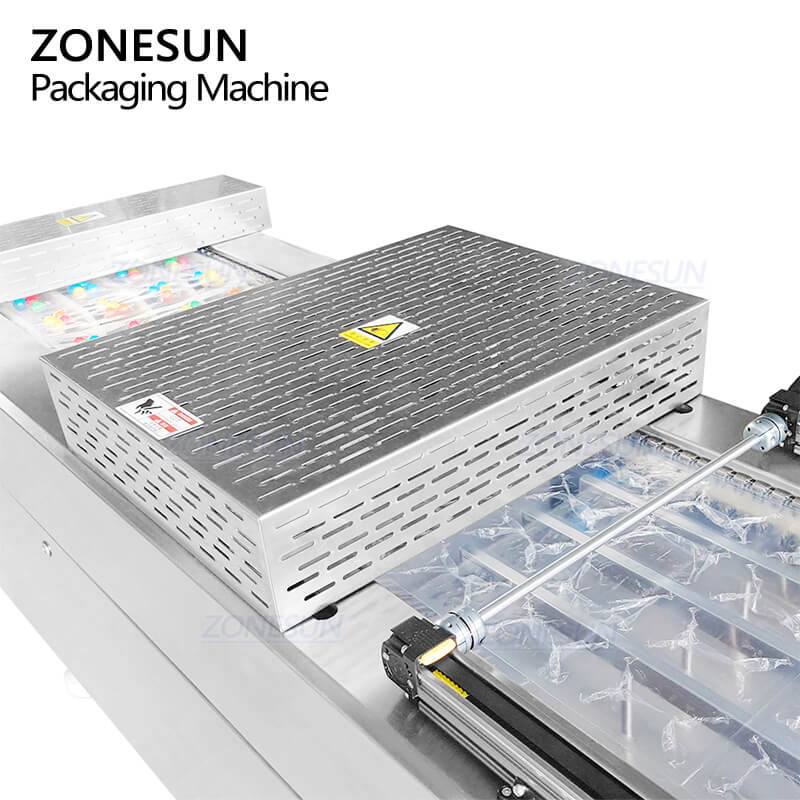

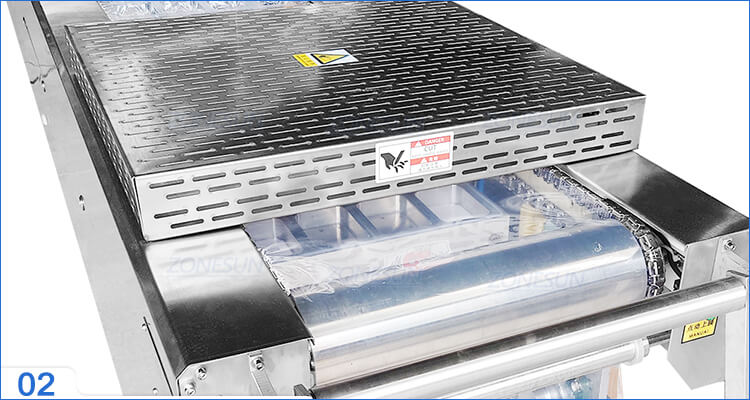

Forming Structure
Heats and forms the bottom film into cavities that match the product shape.

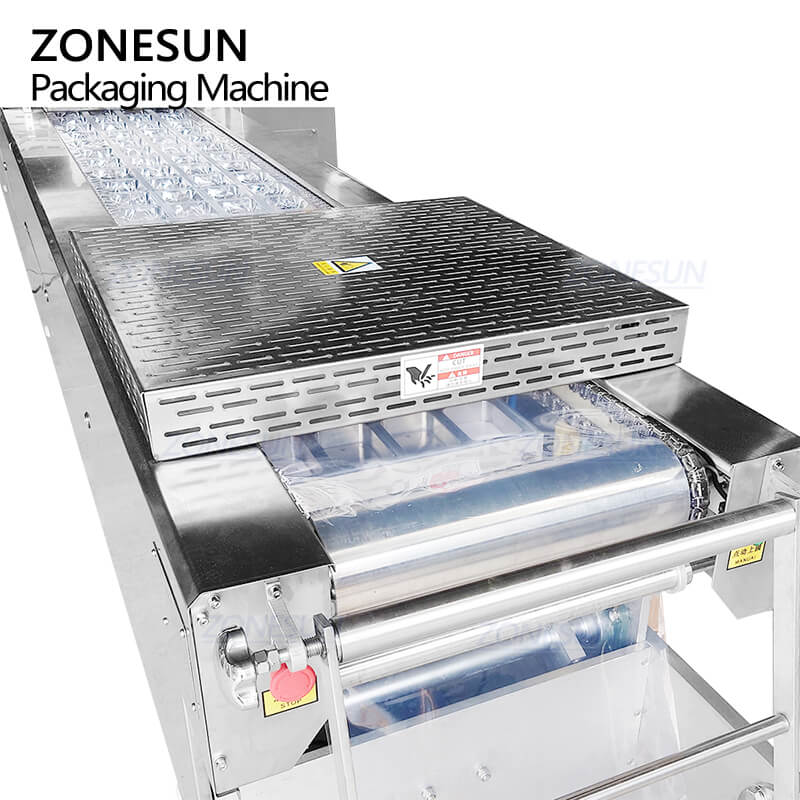

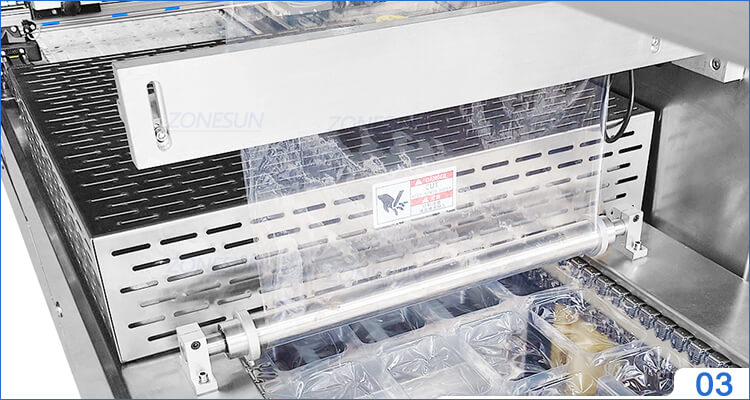

Struttura di tenuta
Applies controlled heat and pressure to ensure reliable airtight sealing.

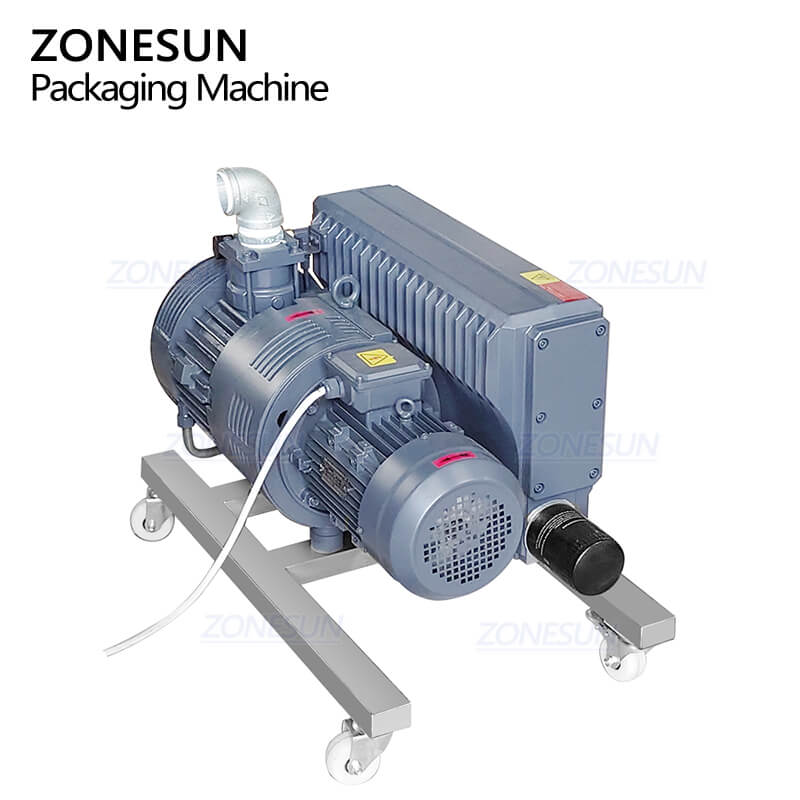

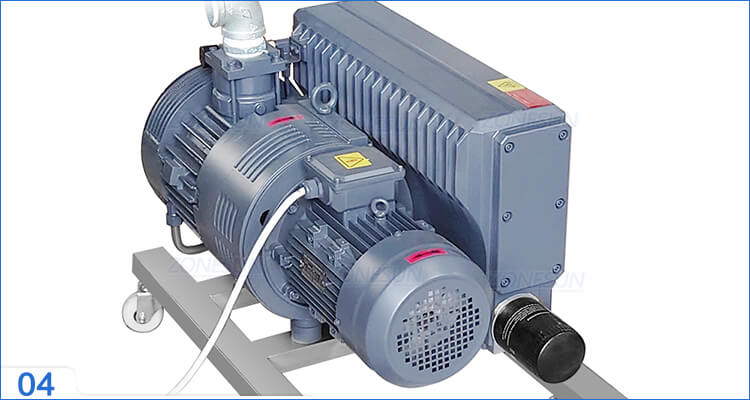

Vacuum Compressor
Provides stable vacuum pressure to ensure tight sealing and maintain packaging quality during operation.

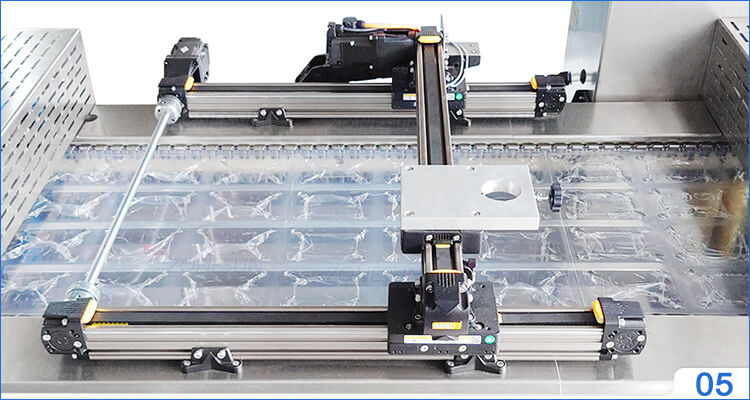

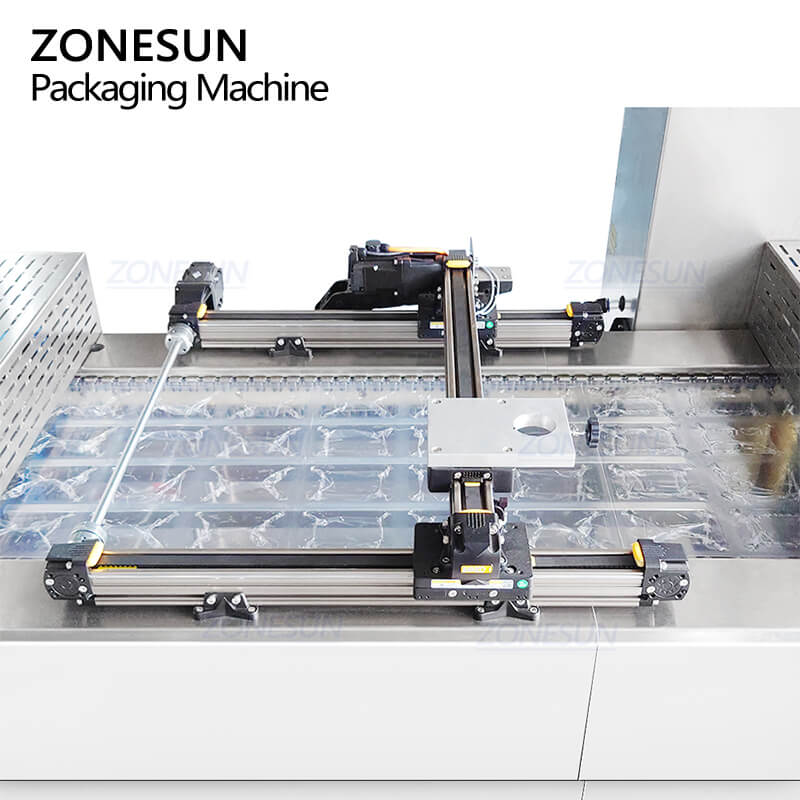

Inkjet Coding Structure
Prints production date, batch number, or codes directly on the film during packaging.

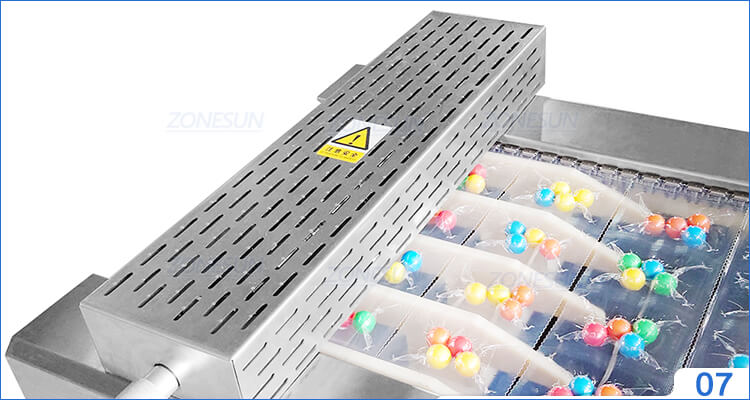

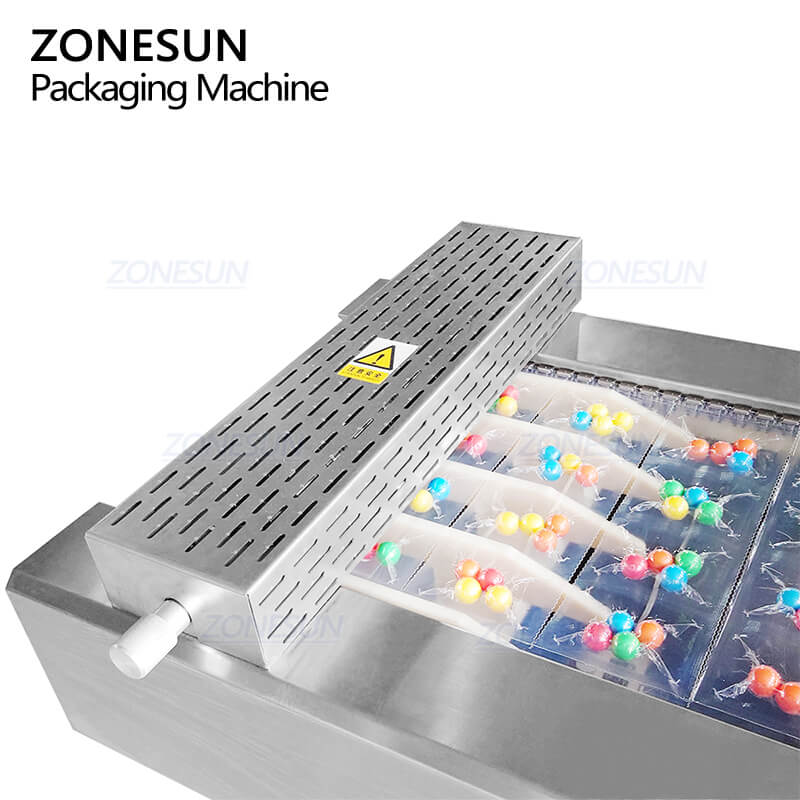

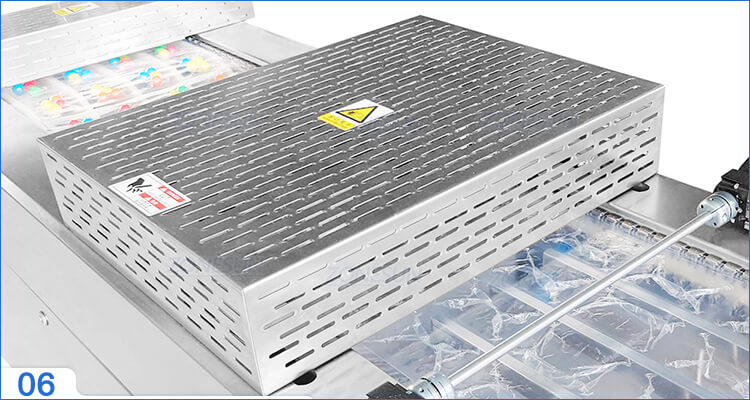

Heat Shrink Structure
Enhances package appearance and tightness after sealing.
Struttura di taglio
Separates finished packs precisely using independent cross and longitudinal cutters.
