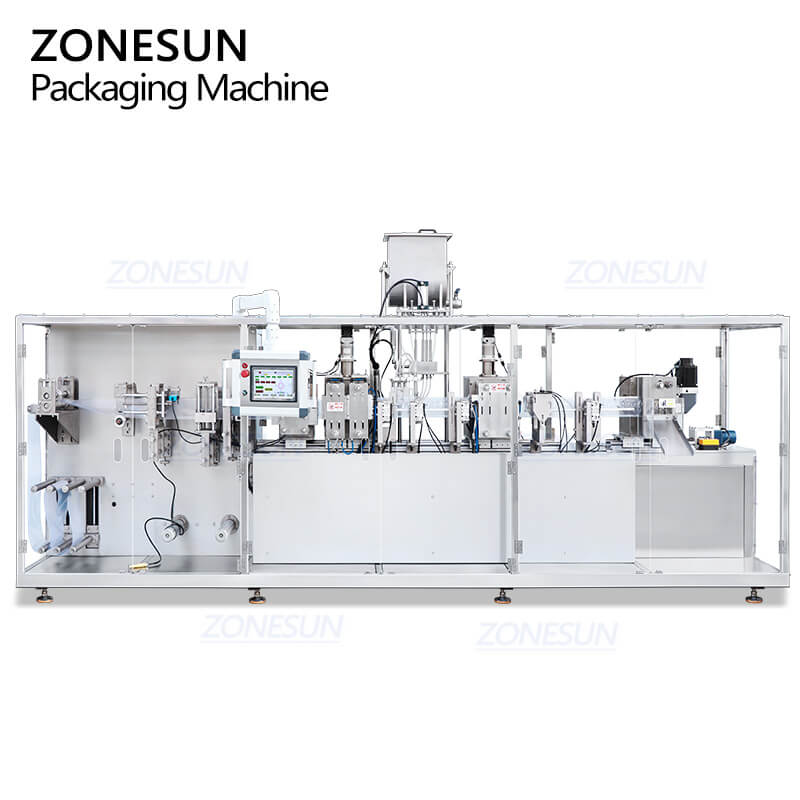

ZONESUN ZS-DDP300 Blister Form Filling Sealing Machine

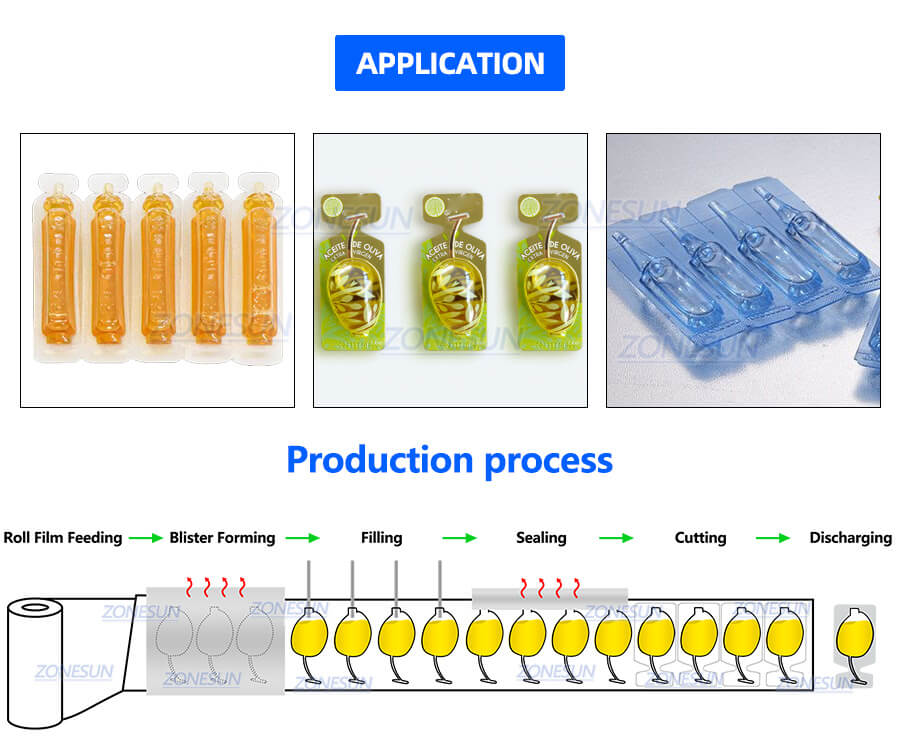

This blister packing machine is specially designed for filling various types of liquid into blister packs. It features a PLC control system and independent servo motor operation for each station, enabling precise and efficient performance in forming, filling, sealing, date printing, cutting, and product discharge. Equipped with a photoelectric eye sensor, the machine ensures accurate sealing and cutting. Suitable for PS, PET, and PVC sheet materials.
$59,999.00
Condividi su
This blister packing machine is specially designed for filling various types of liquid into blister packs. It features a PLC control system and independent servo motor operation for each station, enabling precise and efficient performance in forming, filling, sealing, date printing, cutting, and product discharge. Equipped with a photoelectric eye sensor, the machine ensures accurate sealing and cutting. Suitable for PS, PET, and PVC sheet materials.
| Modello | ZS-DDP300 |
| Frequenza di taglio | Circa 10โ15 volte/min |
| Potenza motore | 16kW |
| Pressione dell'aria | 0,8 MPa |
| Volume dell'imballaggio | Personalizzabile |
| Consumo d'aria | โฅ 1 mยณ/min |
| Raffreddamento dello stampo | Acqua del rubinetto o acqua riciclata |
| Area e profonditร di modellatura massime | 160 x 200 x 20 mm |

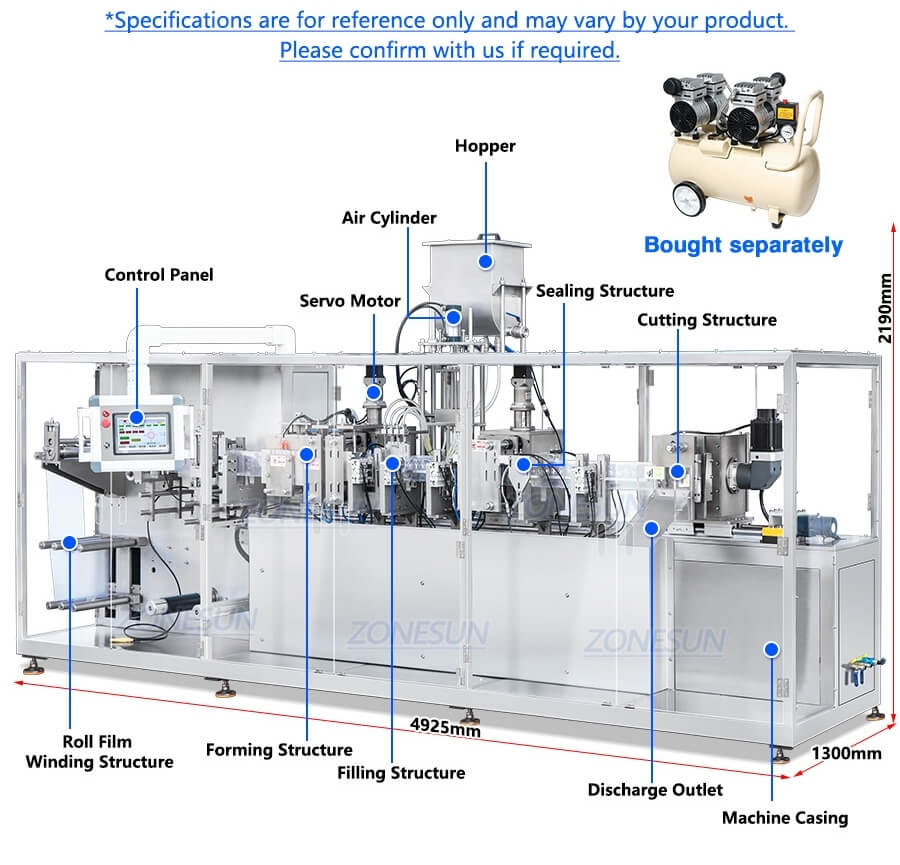

| Dimensioni della macchina (LรLรA) | About 4925 * 1300 * 2190 mm(L*W*H) |
| Peso della macchina | Circa 1500 kg |

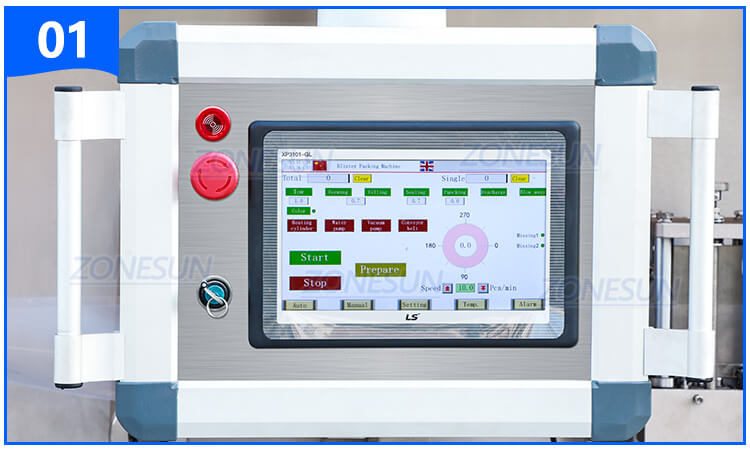

Pannello di controllo del braccio oscillante
Ergonomic swing arm panel enables flexible positioning and convenient operation during production.

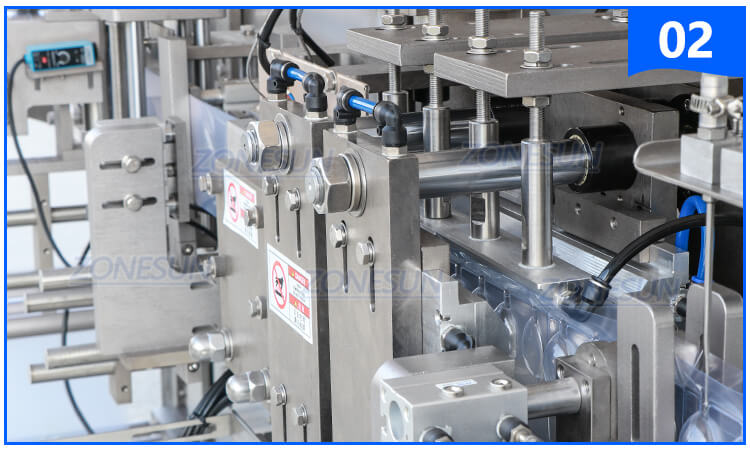

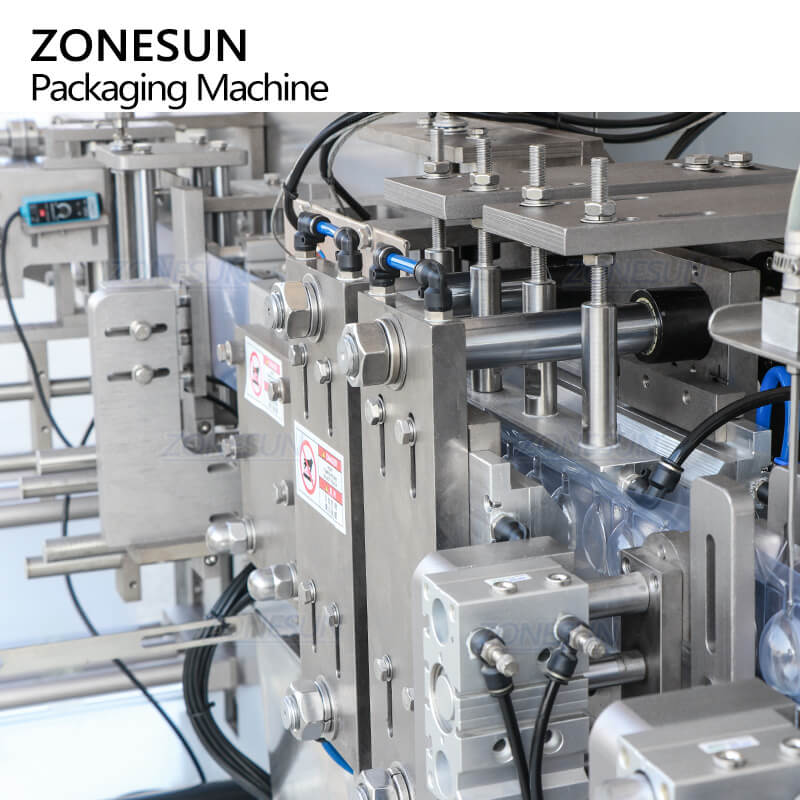

Blister Forming Structure
Precisely forms blisters to securely contain filling material with consistent cavity shape and depth.

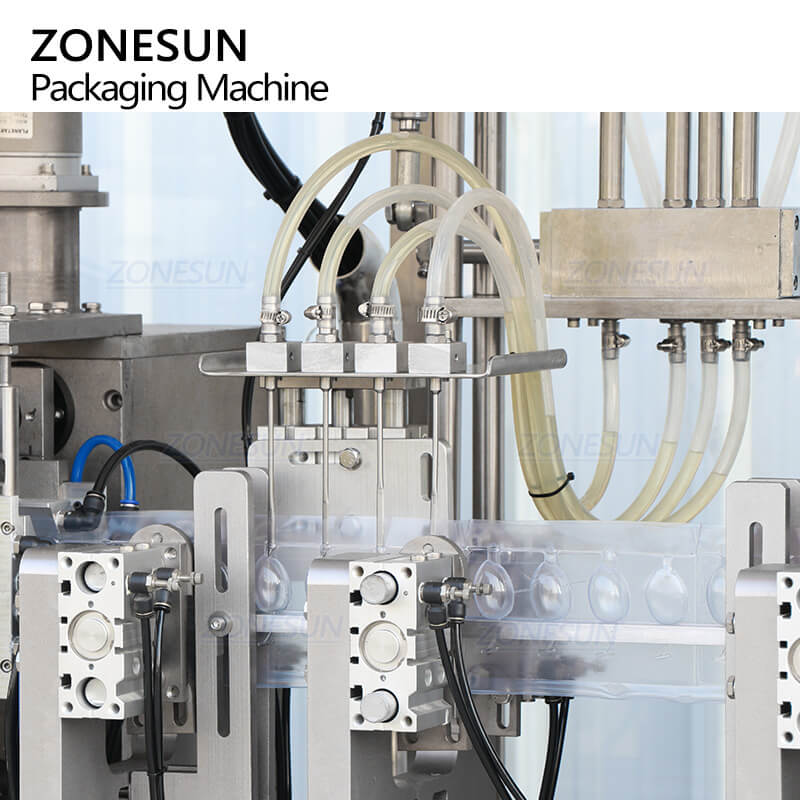

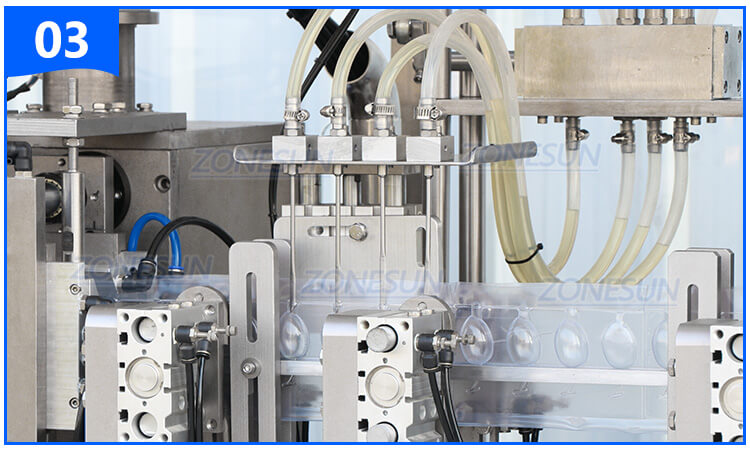

Struttura di riempimento
Supports liquid filling with precise servo-driven control.Quantity of filling heads is customizable.

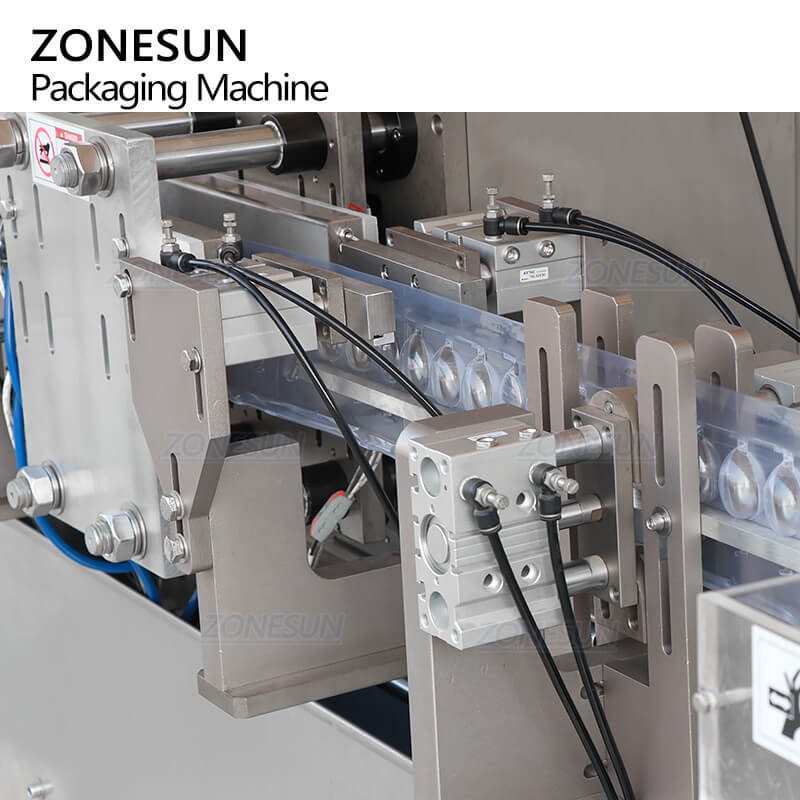

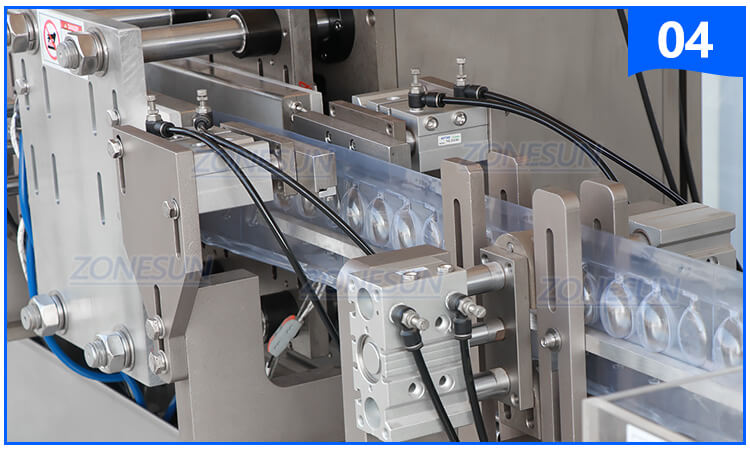

Struttura di tenuta
Applies stable heat and pressure to ensure strong, leak-proof blister sealing.

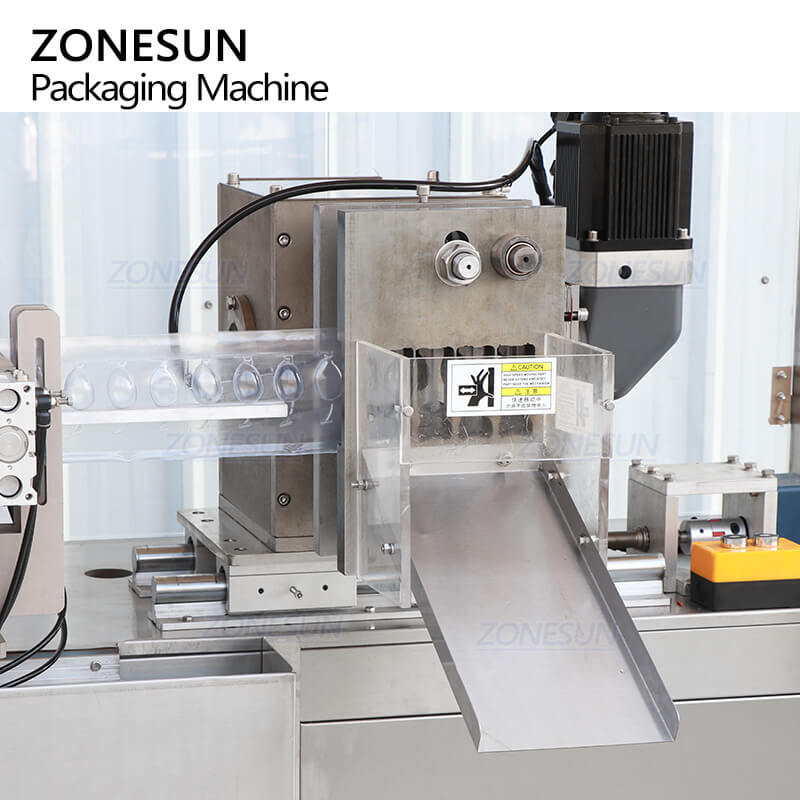

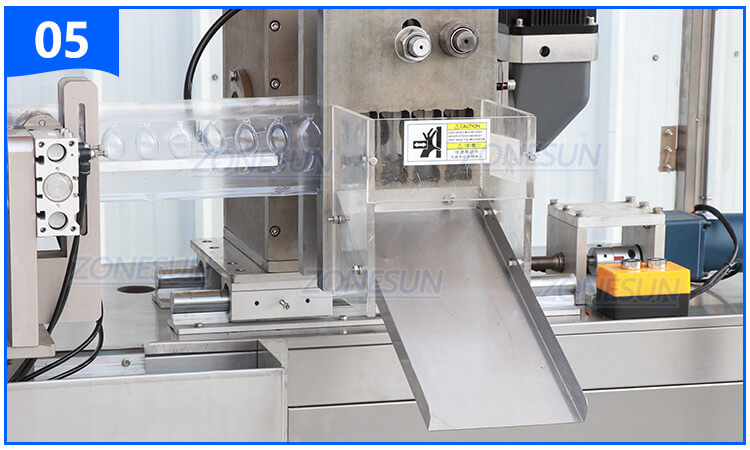

Multi-Lane Cutting Structure
Four-lane cutting system produces four packs per cycle, with cutting shapes customizable via dedicated molds.

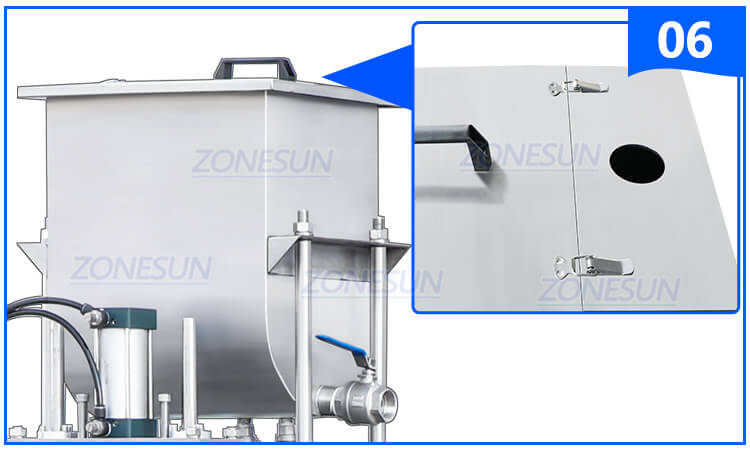

Material Hopper
Feeds filling material smoothly and can work with existing feeding machine to realize continuous packaging work.
