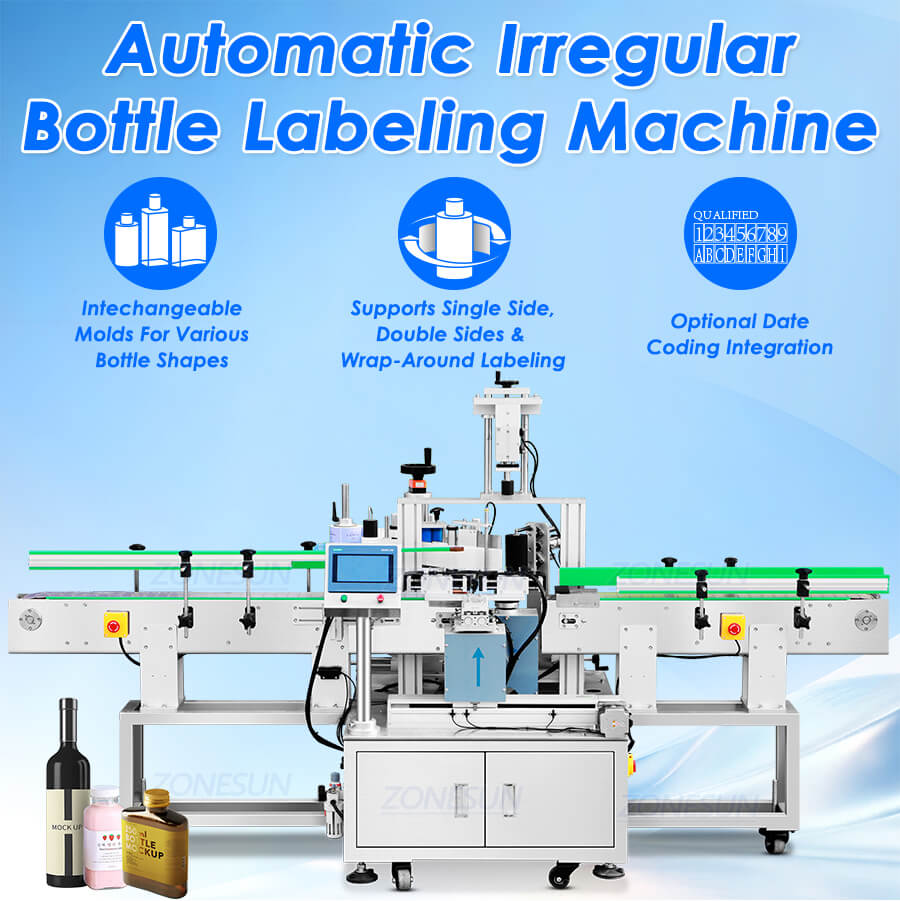

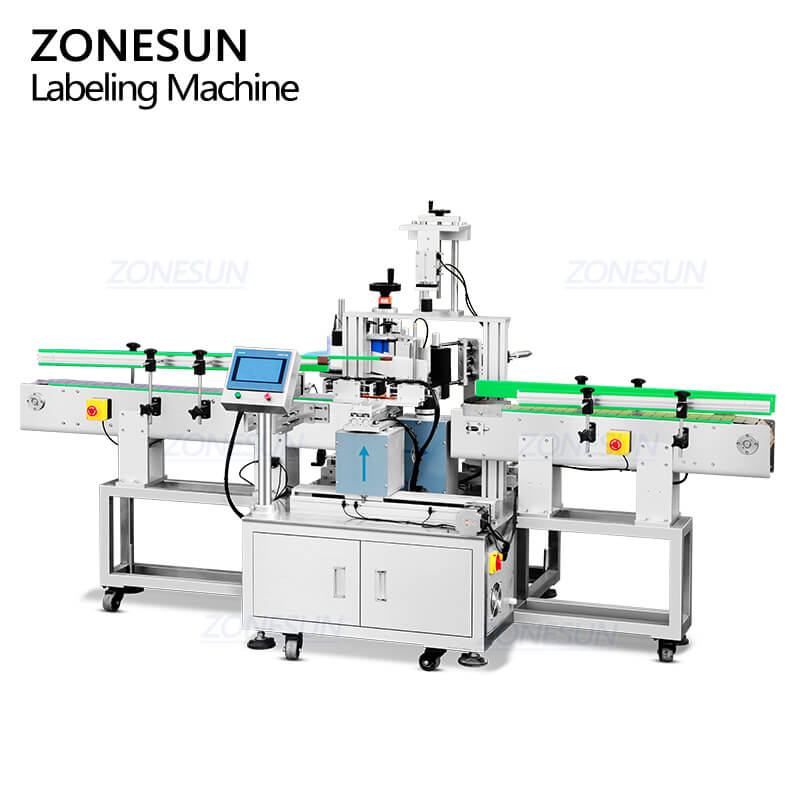

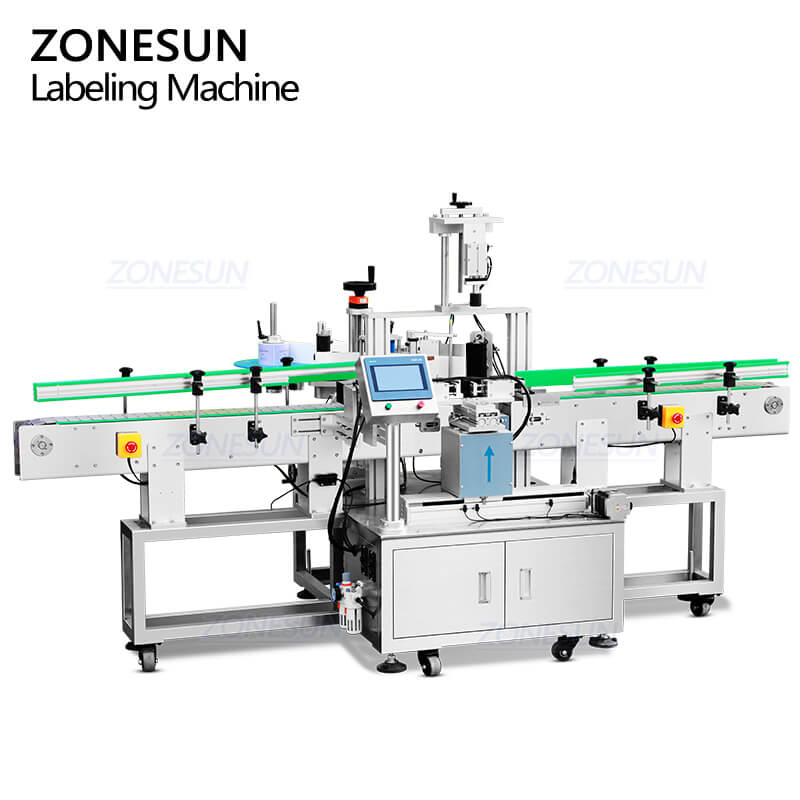

ZONESUN ZS-SL25 Robotic Square Round Bottle Labeling Machine
This labeling machine is designed for cylindrical and irregular column-shaped bottles, such as oval or specially shaped containers, by changing molds. It applies self-adhesive labels and supports single label, front-and-back label, and full wrap labeling. Optional date printing devices include ribbon coder, inkjet printer, or laser marker, making it suitable for food, beverage, and daily chemical packaging.
Plage de prix : $9,799.00 à $11,199.00
Partager sur
This labeling machine is designed for cylindrical and irregular column-shaped bottles, such as oval or specially shaped containers, by changing molds. It applies self-adhesive labels and supports single label, front-and-back label, and full wrap labeling. Optional date printing devices include ribbon coder, inkjet printer, or laser marker, making it suitable for food, beverage, and daily chemical packaging.
| Modèle de machine | ZS-SL25 |
| Alimentation | 220V 50-60HZ (Customizable) |
| Stepper traction | 570W |
| Labeling accuracy (mm) | ±1 mm |
| Labeling speed (pcs/min) | 25–45pcs/min(Stepper Motor)
30–60pcs/min(Servo Motor) |
| Conveying speed (m/min) | 5–18m/min |
| Taille d'étiquette appropriée | 20–290mm(W)*20–130mm(H) |
| Suitable label roll inner diameter (mm) | φ76mm |
| Suitable label roll outer diameter (mm) | φ280mm |
| Suitable product dimensions | φ=25–110mm* H= 25-150mm (Customizable according to product) |

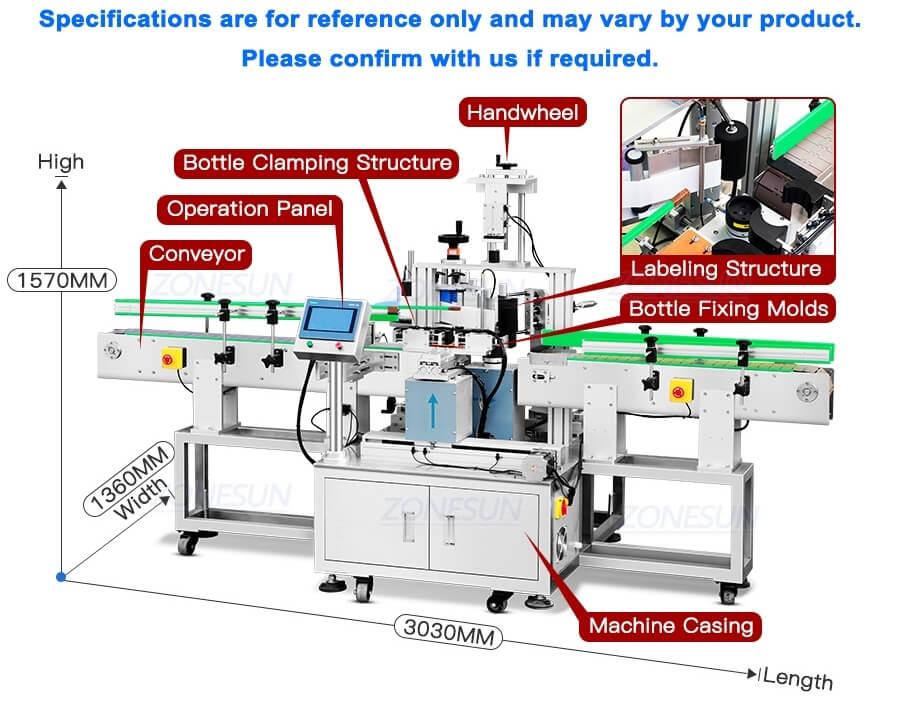

| Taille de la machine | À propos de 3030*1360*1570mm(L*W*H) |
| Poids de la machine | Environ 200kg |
| Taille du paquet | À propos de 3050*1600*1840mm(L*W*H) |
| Poids du colis | Environ 680 kg |

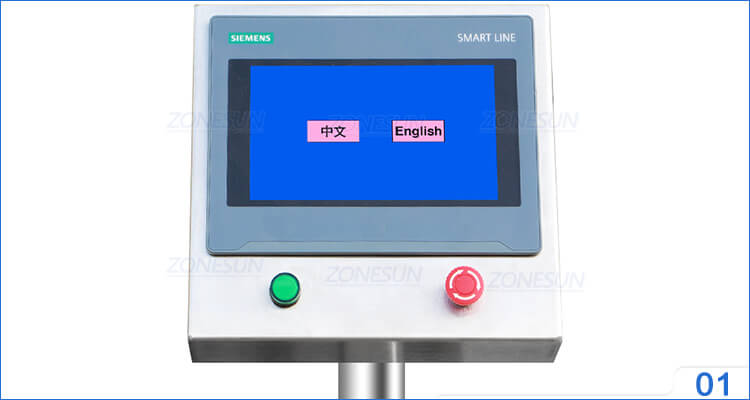

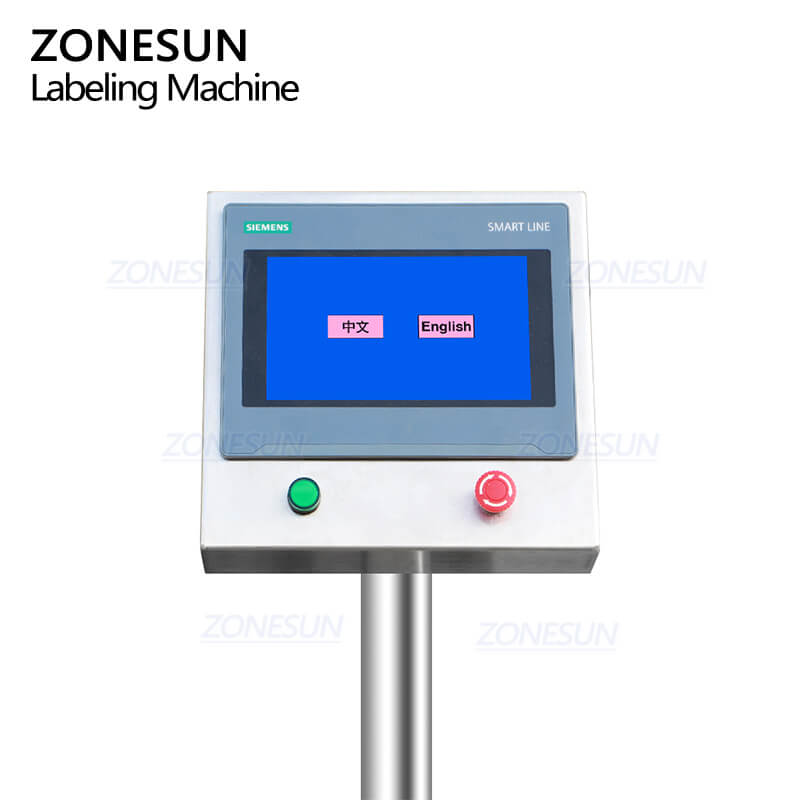

Panneau de configuration
Offers a user-friendly interface, it allows intuitive parameter setting and real-time status monitoring.

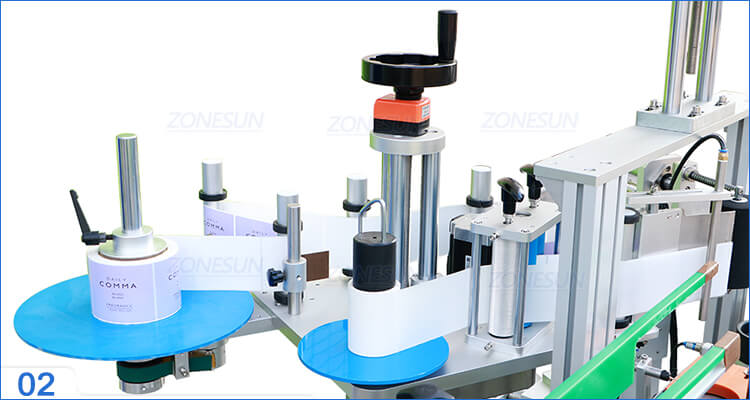

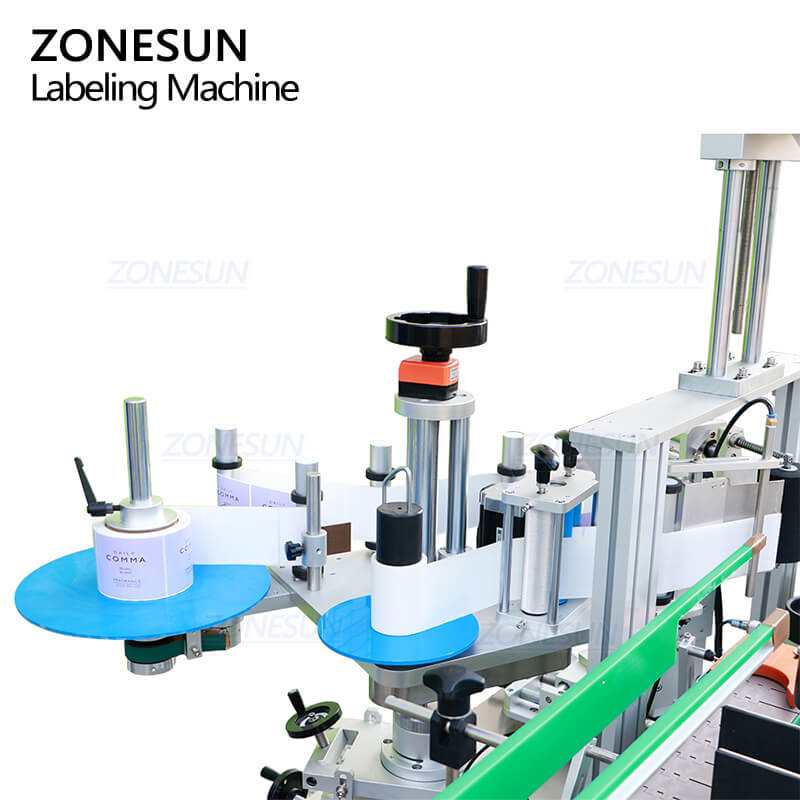

Label Roll Feeding Module
Ensures smooth and stable dispensing of self-adhesive labels.

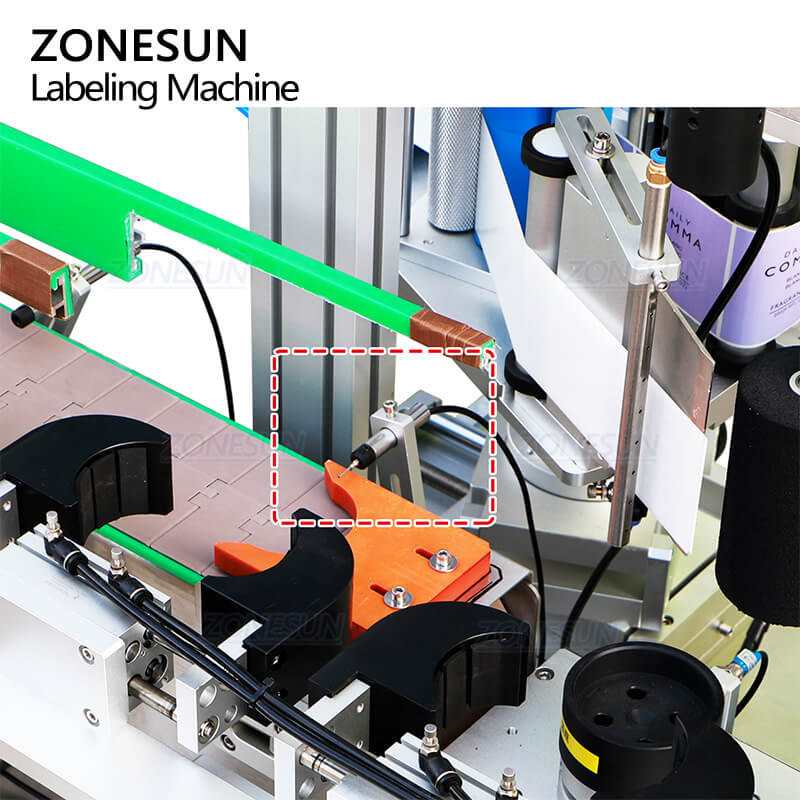

Product Detection Sensor
Detects passing by bottle position accurately and trigger precise label operation.

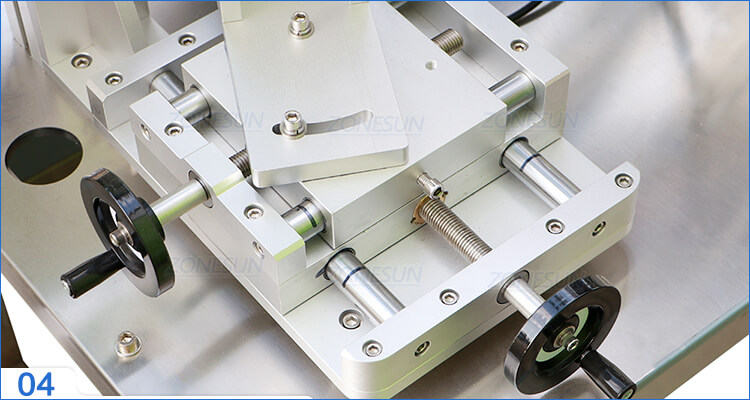

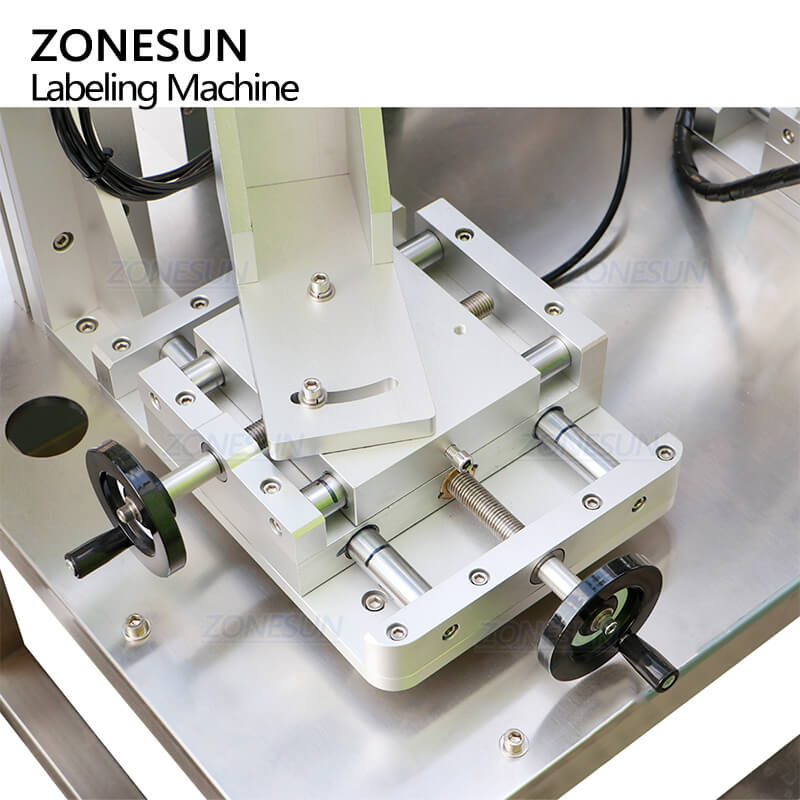

Volants de réglage
Enable quick and precise manual adjustment of labeling angle and position.

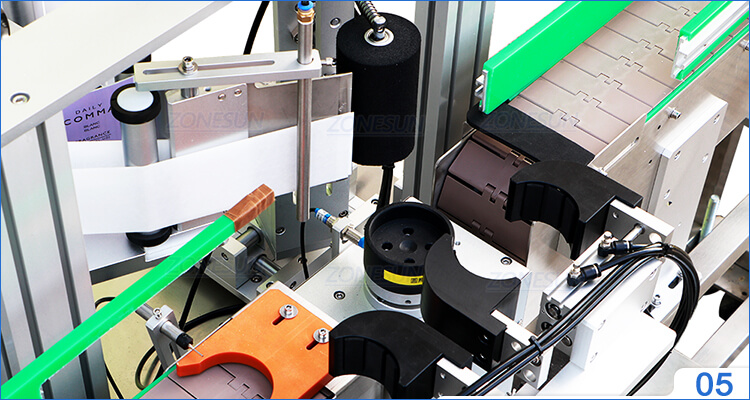

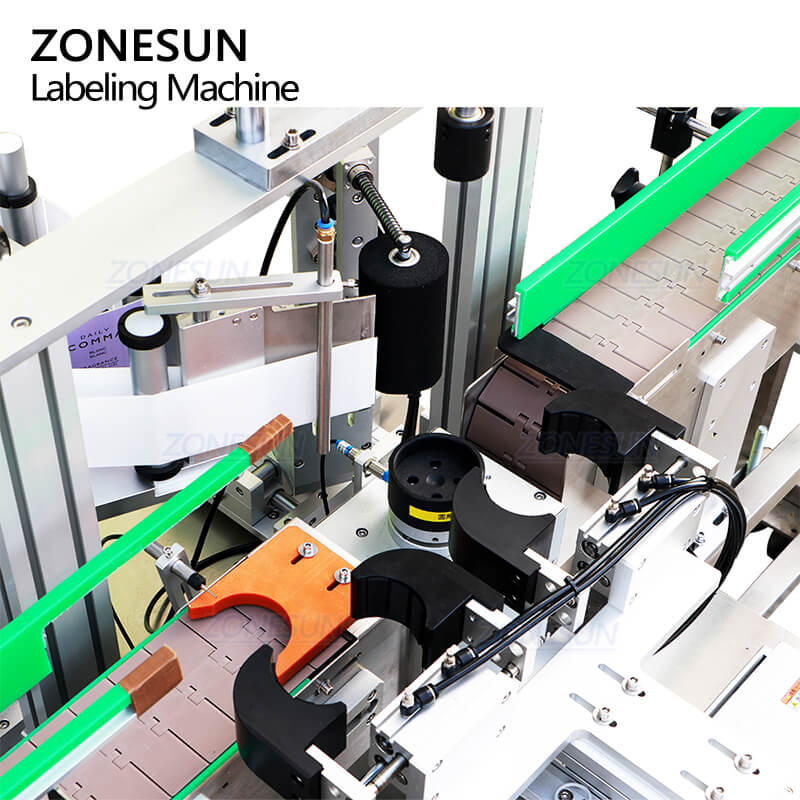

Structure d'étiquetage
Allows fast mold replacement to accommodate oval and irregular bottle shapes.

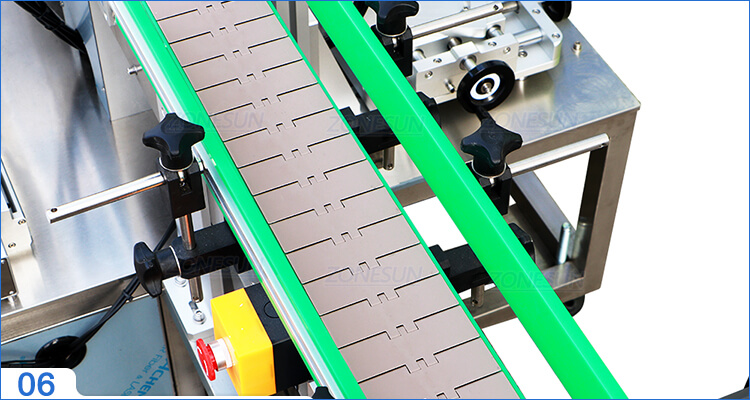

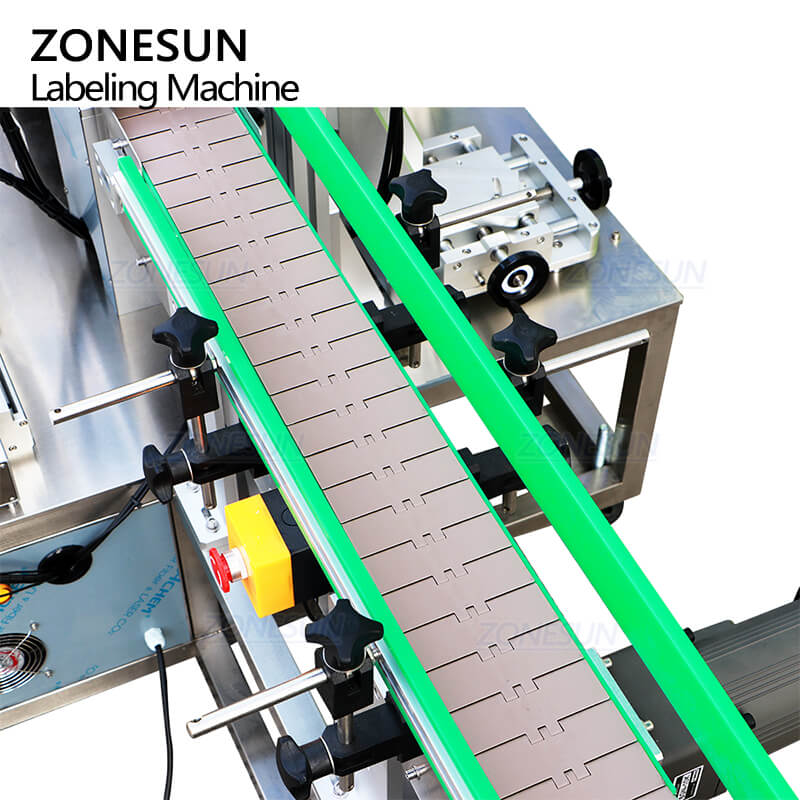

Conveyor System
Transports bottles steadily through the labeling process and connects to filling and capping machine
