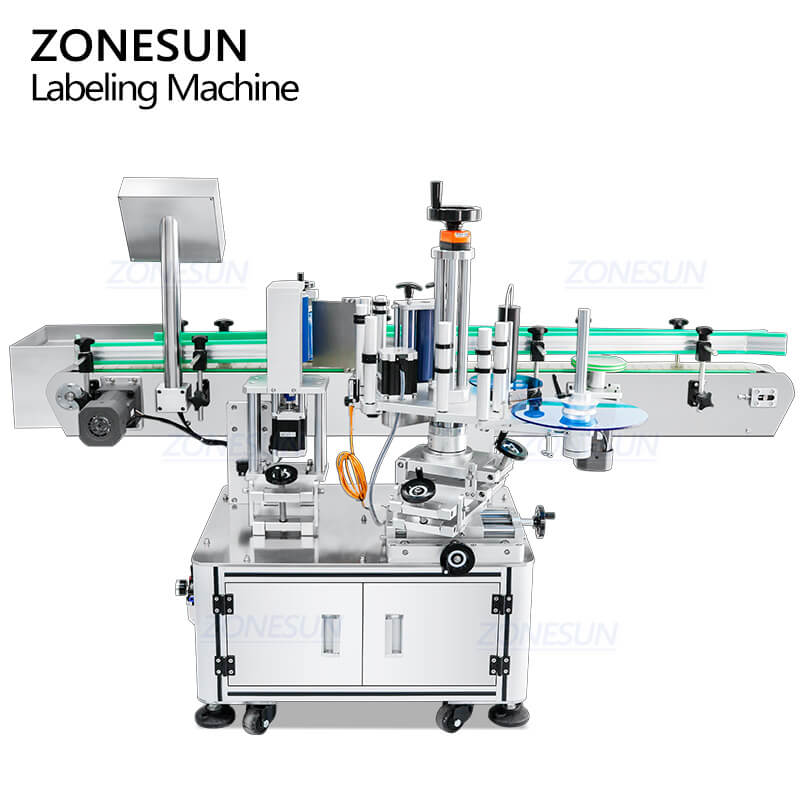

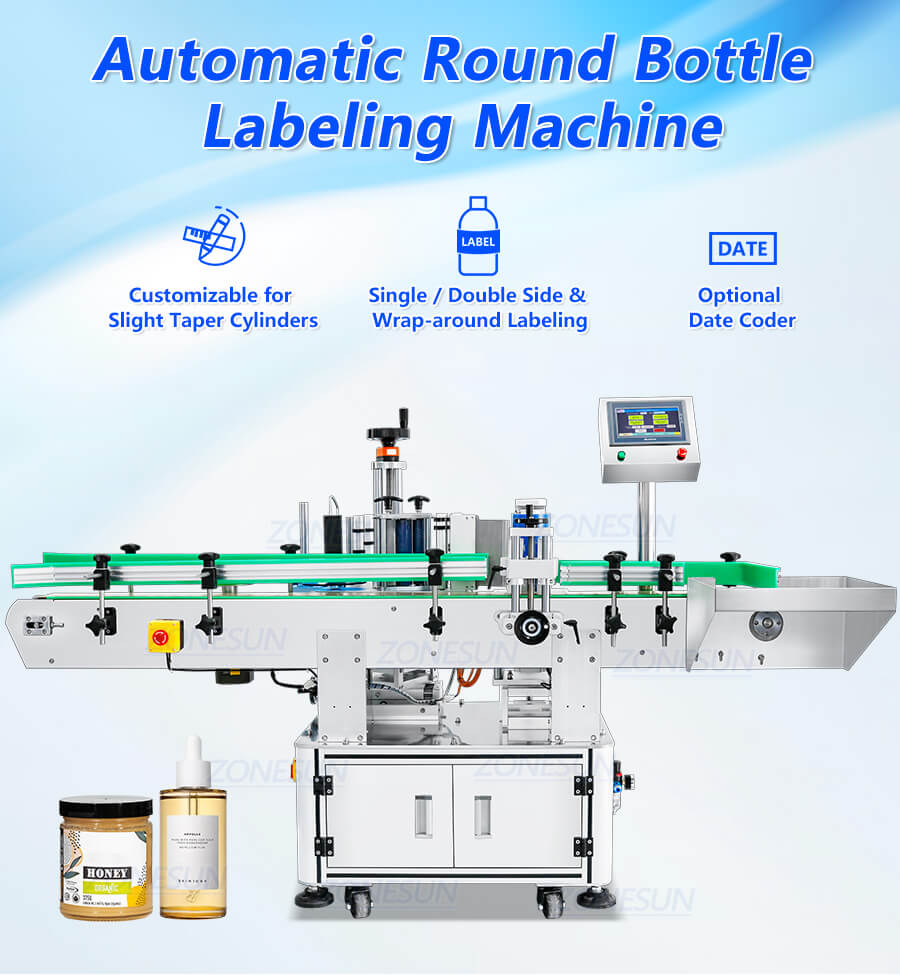

Automatische Rundflaschen-Etikettiermaschine
This automatic labeling machine is suitable for cylindrical bottles or cans. It is suitable for both single-sided and double-sided labeling, with adjustable spacing between the front and back labels. The machine can be equipped with a circumferential positioning detection device for labeling at specific locations. Additionally, it can be equipped with a date printer for printing production dates and batch numbers.It is widely used in food, daily chemical, cosmetics and beverage industries.
$5,499.00
Teilen mit
This automatic labeling machine is suitable for cylindrical bottles or cans. It is suitable for both single-sided and double-sided labeling, with adjustable spacing between the front and back labels. The machine can be equipped with a circumferential positioning detection device for labeling at specific locations. Additionally, it can be equipped with a date printer for printing production dates and batch numbers.It is widely used in food, daily chemical, cosmetics and beverage industries.
| Maschinenmodell | ZS-TB822 |
| Spannung | 220V / 50Hz |
| Macht | 570W |
| Etikettiergenauigkeit | ±1,0 mm |
| Etikettiergeschwindigkeit | 25-45 Flaschen/Min. |
| Anwendbare Produktgröße | φ=15-φ120 mm (Round bottle), H=25-300mm |

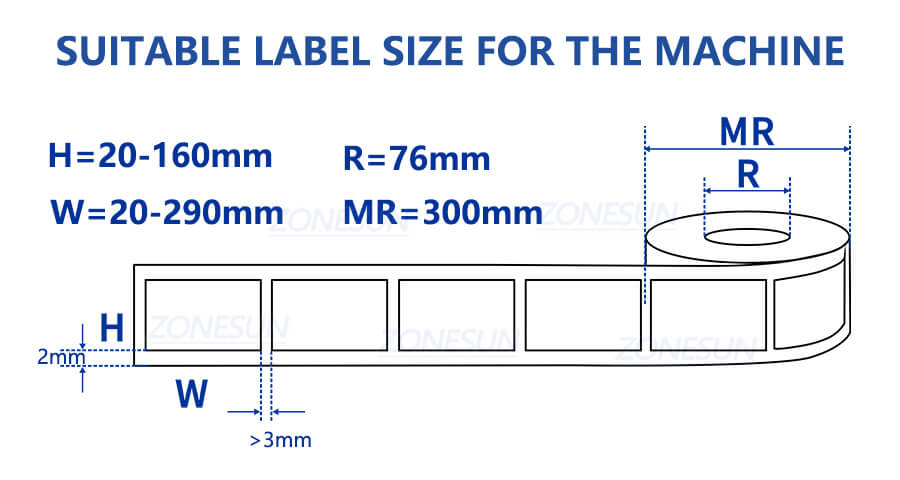

| Etikettengröße | (W)20-290 mm, (H)20-160 mm |
| Etikettenrollen-ID | φ76 mm |
| Etikettenrollen-Außendurchmesser | φ300 mm |

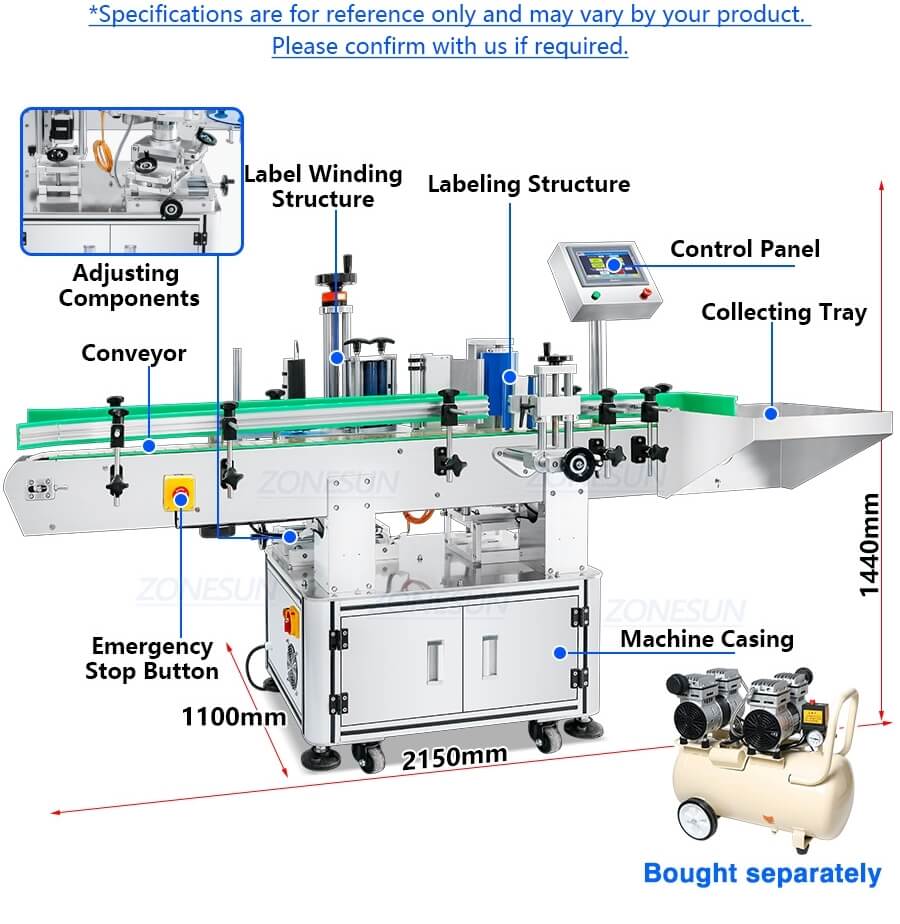

| Maschinengröße | About 2150*1100*1440 mm (L*W*H) |
| Maschinengewicht | About 222 kg |
| Verpackungsgröße | About 2100*1310*1550 mm |
| Verpackungsgewicht | About 366 kg |

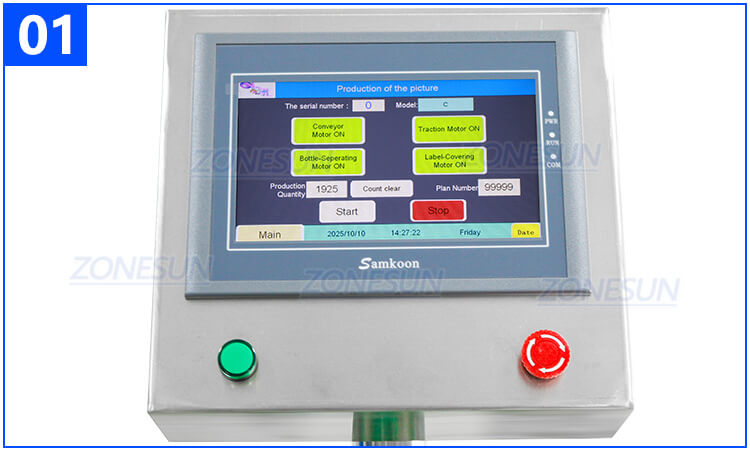

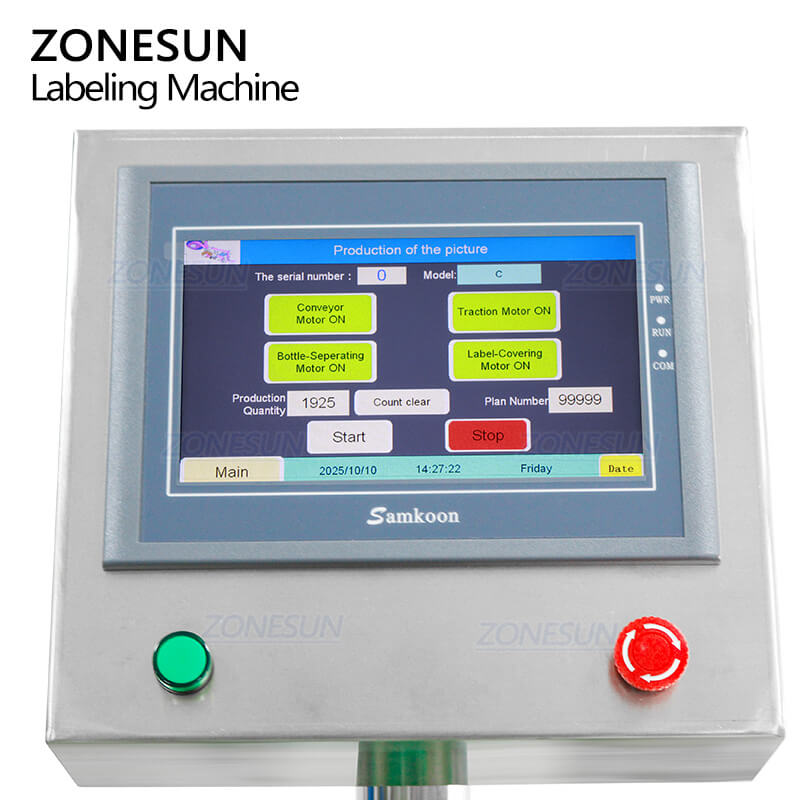

Systemsteuerung
Touch screen interface for easy parameter setting, operation monitoring, and quick changeover.

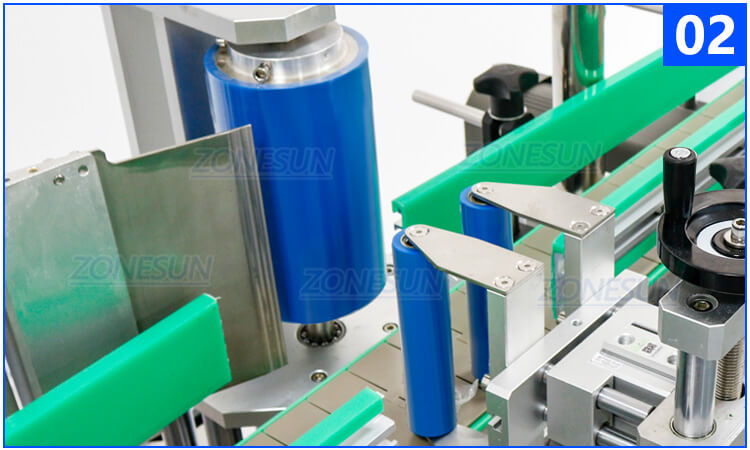

Beschriftungsstruktur
Precision labeling unit designed for cylindrical and slightly tapered containers, supporting wrap-around, single-side, and front & back labeling.

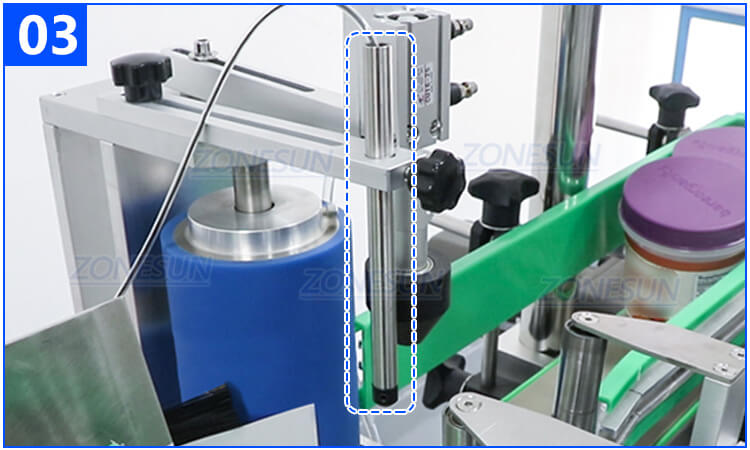

Product Detection Sensor
Photoelectric sensor accurately detects container position to trigger precise label dispensing.

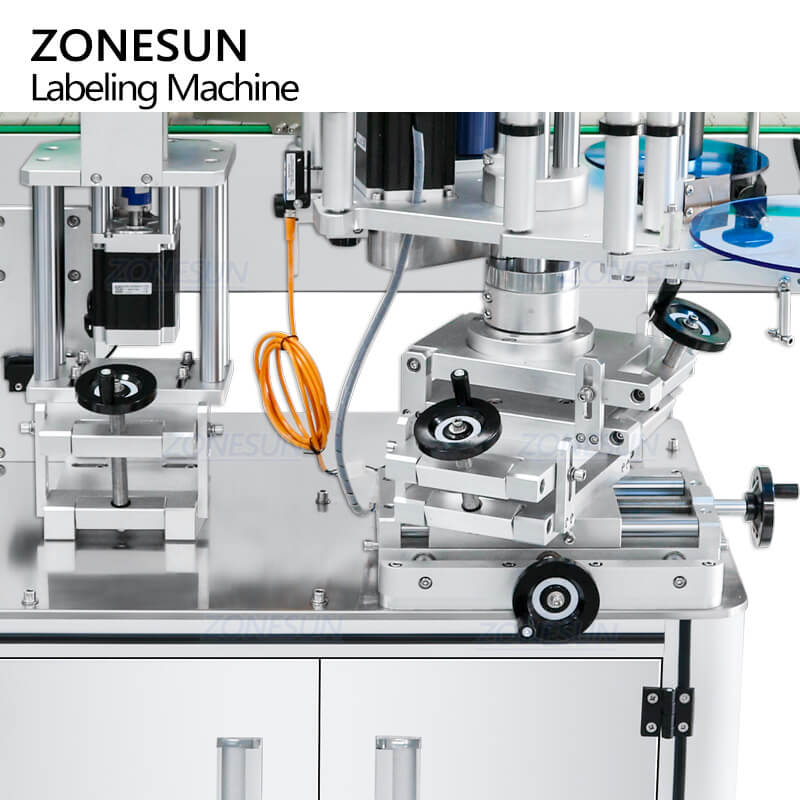

Universal Adjustment Knob
Handwheel-based universal adjustment system allows fine tuning of the labeling head in height, depth, angle, and left-right position.

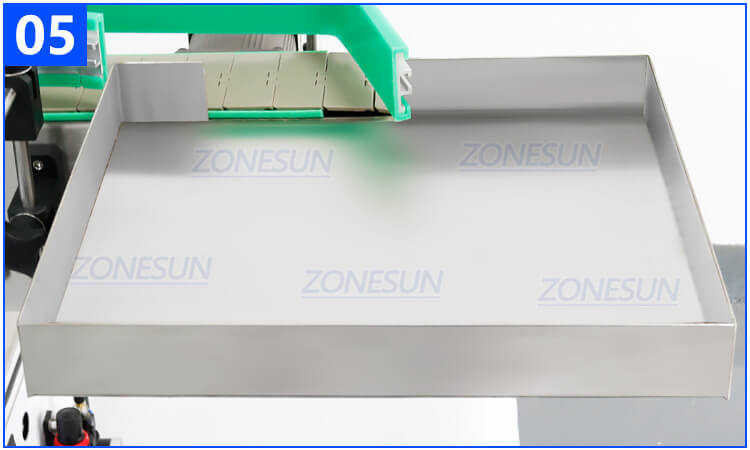

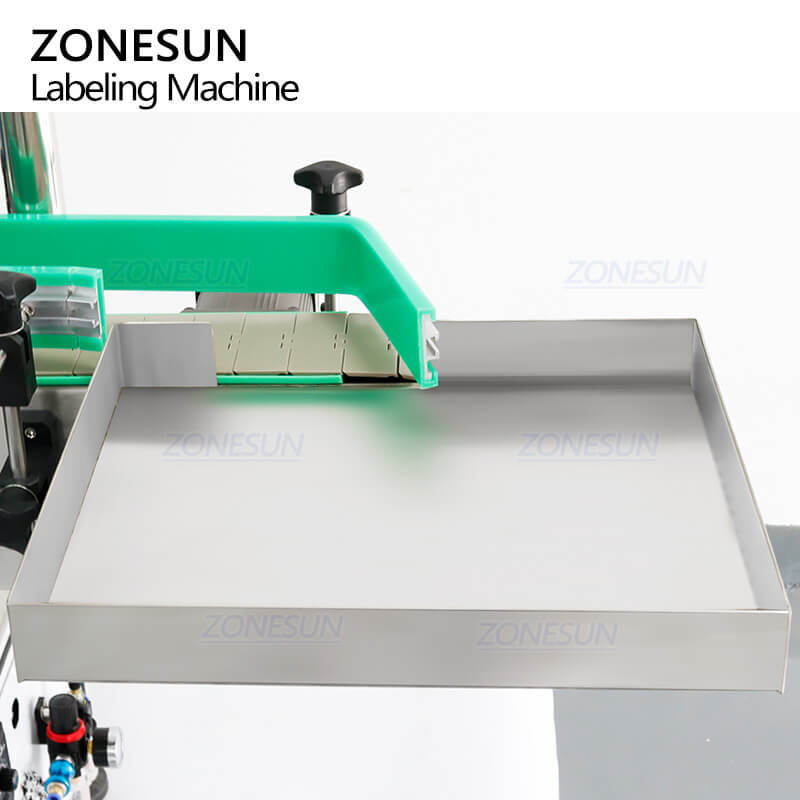

Auffangschale
Collects finished products smoothly to maintain stable labeling and continuous operation.
Conveyor System
Stable conveyor with adjustable speed ensures smooth bottle transfer and accurate labeling alignment.
