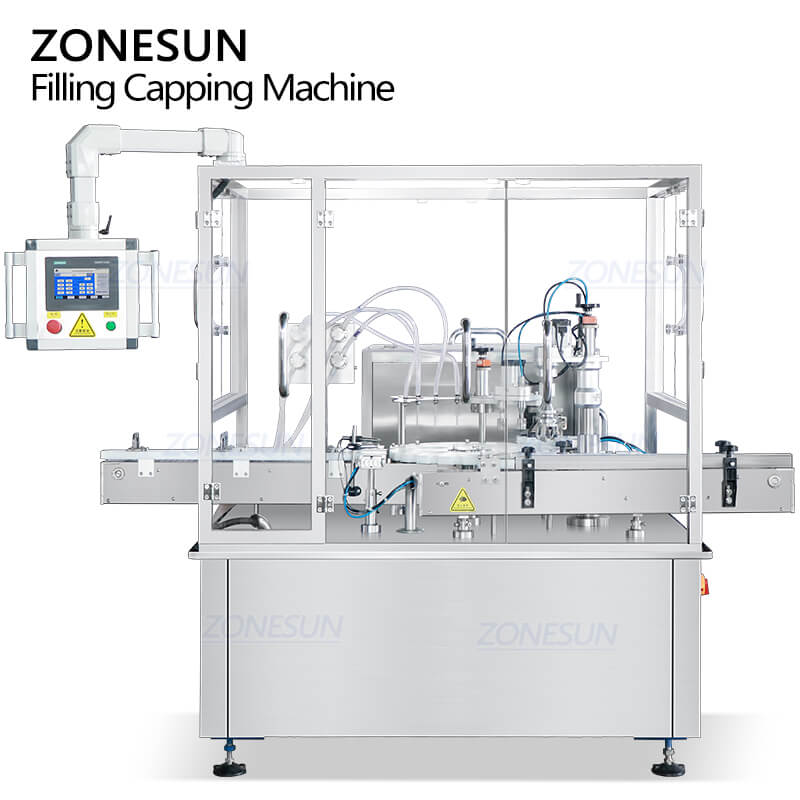

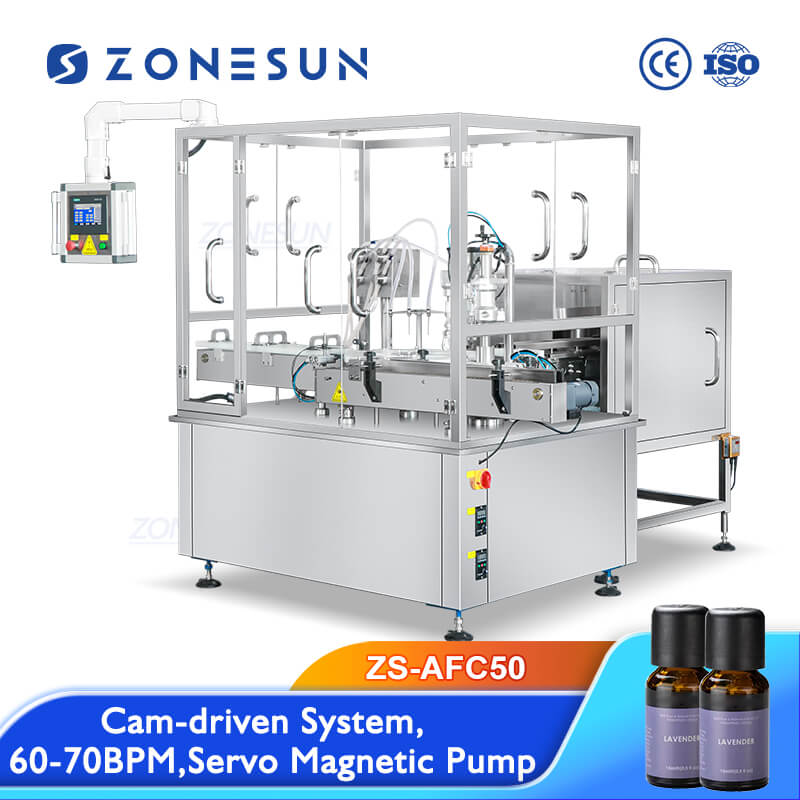

ZONESUN ZS-AFC50 Essential Oil Filling Capping Machine
$29,799.00
Teilen mit

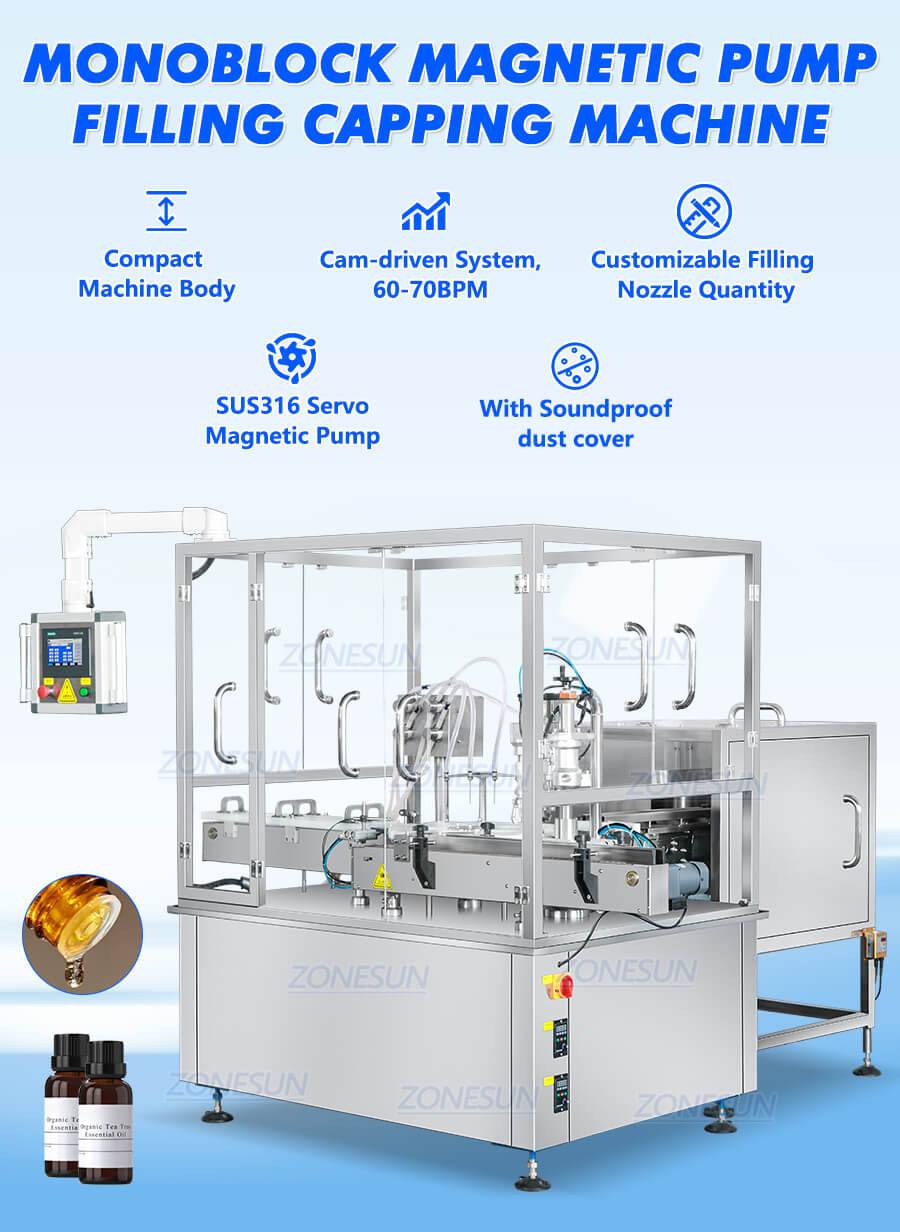

This monoblock filling capping machine machine is controlled by cam system, features 4 magnetic pump filling heads for high-precision liquid filling of essential oil, massage oil, cosmetic serum. With a compact rotary design, it integrates bottle feeding, filling, cap placing, and capping in one system, ensuring smooth,and accurate production for liquid products.
|
Maschinenmodell
|
ZS-AFC50
|
|
Spannung
|
220V/110V 50-60Hz
|
|
Macht
|
About 3kW/H
|
|
Produktionsgeschwindigkeit
|
About 30-60 bottles/min(depending on bottle size and filling materials)
|
|
Füllbereich
|
15-100 ml (Can be customized)
|
|
Füllpumpe
|
316 Magnetic Pump
|
|
Maximale Durchflussrate
|
3 L/min(based on water)
|
|
Geeignete Flaschengröße
|
Kann individuell angepasst werden
|
|
Flaschenverschlussgröße
|
Kann individuell angepasst werden
|
|
Luftdruck
|
0,6-0,8 MPa
|
|

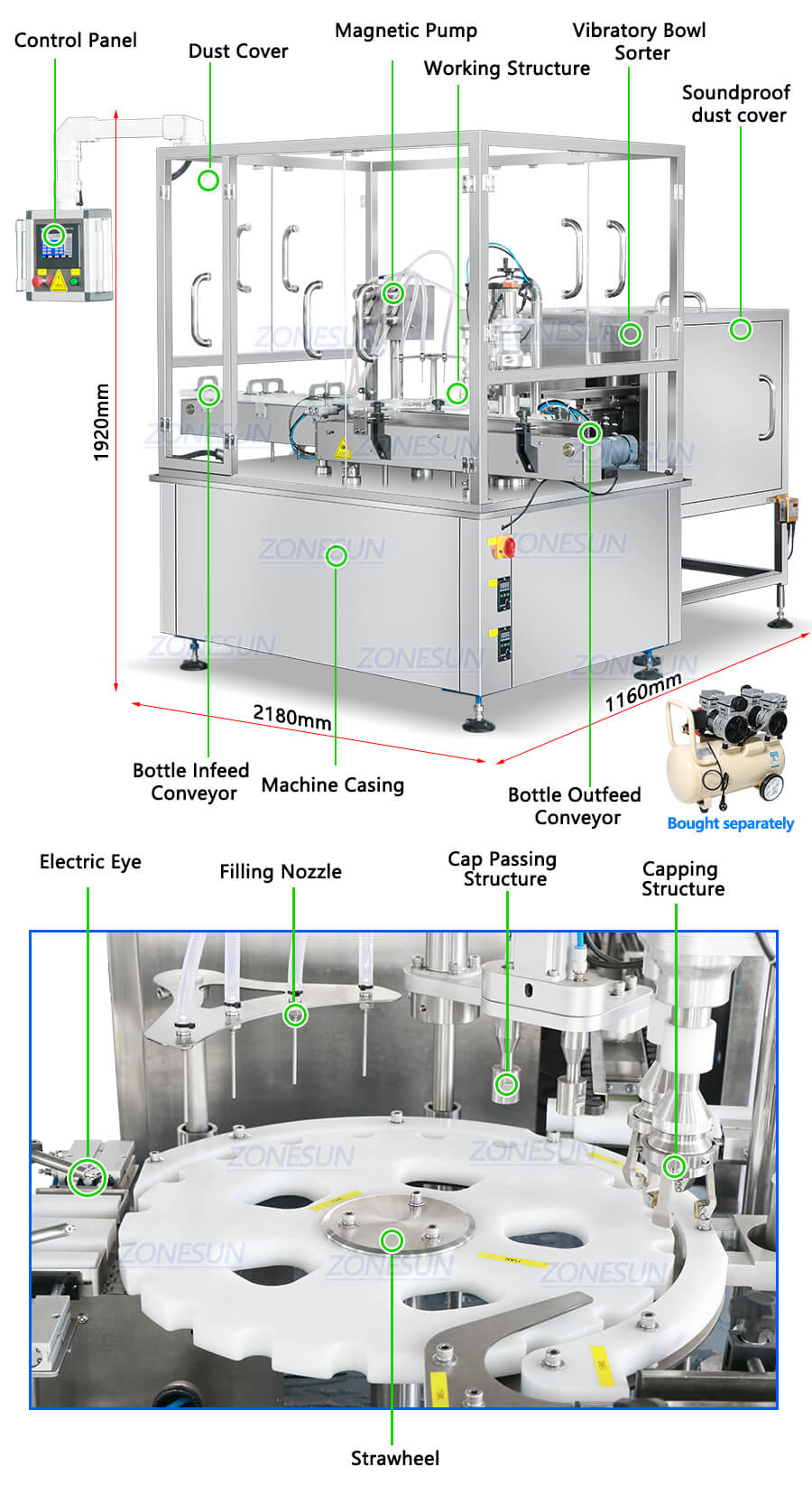

Maschinengröße
|
About 2180*1160*1920 mm
|
|
Maschinengewicht
|
Ungefähr 600 kg
|
|
Packungsgröße
|
About 2300*1030*1440mm(Vibratory Bowl Sorter)+2330*1430*2120mm(Main Machine)
|
|
Paketgewicht
|
About 415kg(Vibratory Bowl Sorter)+960kg(Main Machine)
|
|
*Die technischen Daten dienen nur als Referenz und können je nach Produkt variieren. Bitte bestätigen Sie dies bei Bedarf mit uns.
|
|

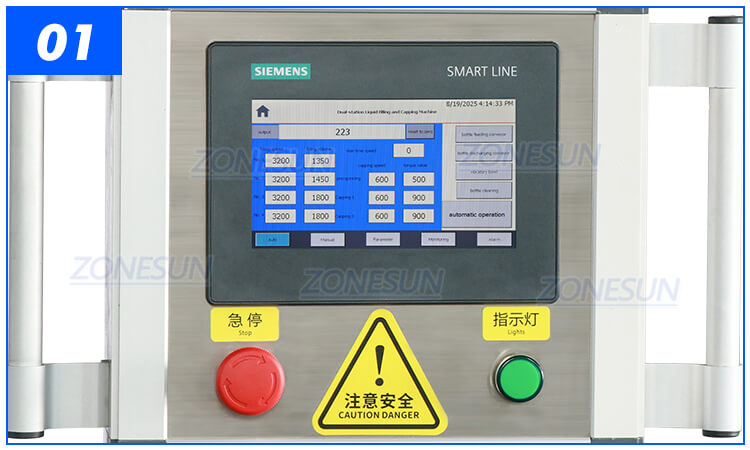

Systemsteuerung
Touchscreen interface, intuitive operation and parameter adjustment.

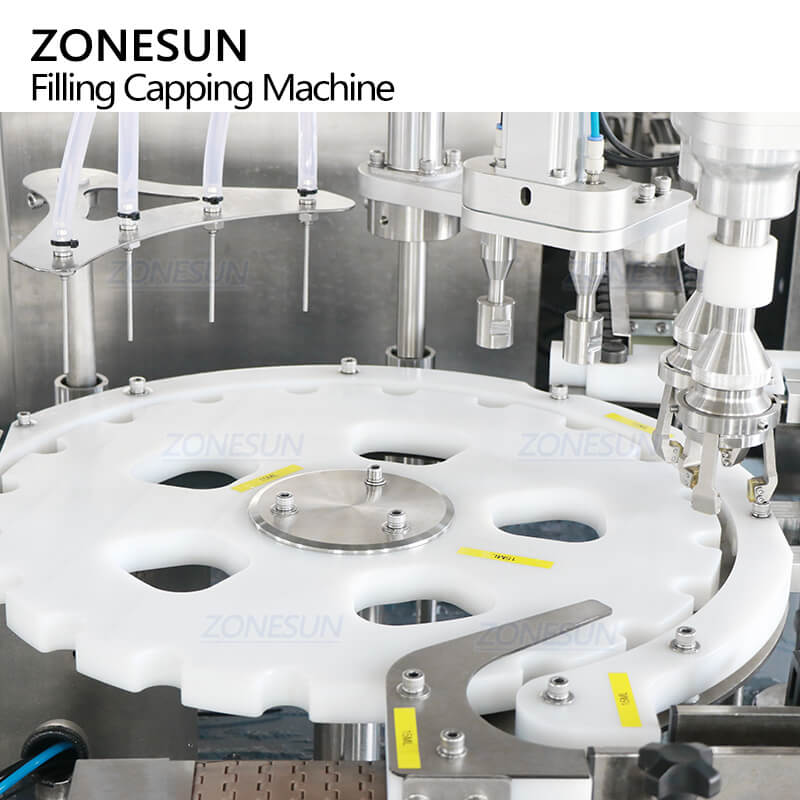

Integrated Rotary Table
Driven by high-precision cam indexer for synchronized motion.

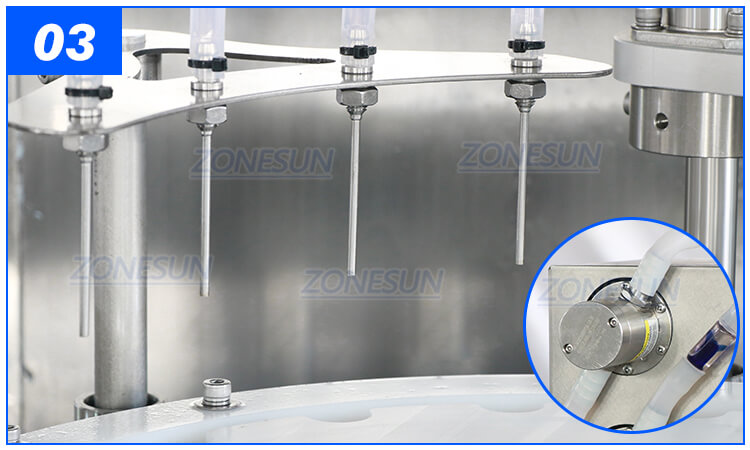

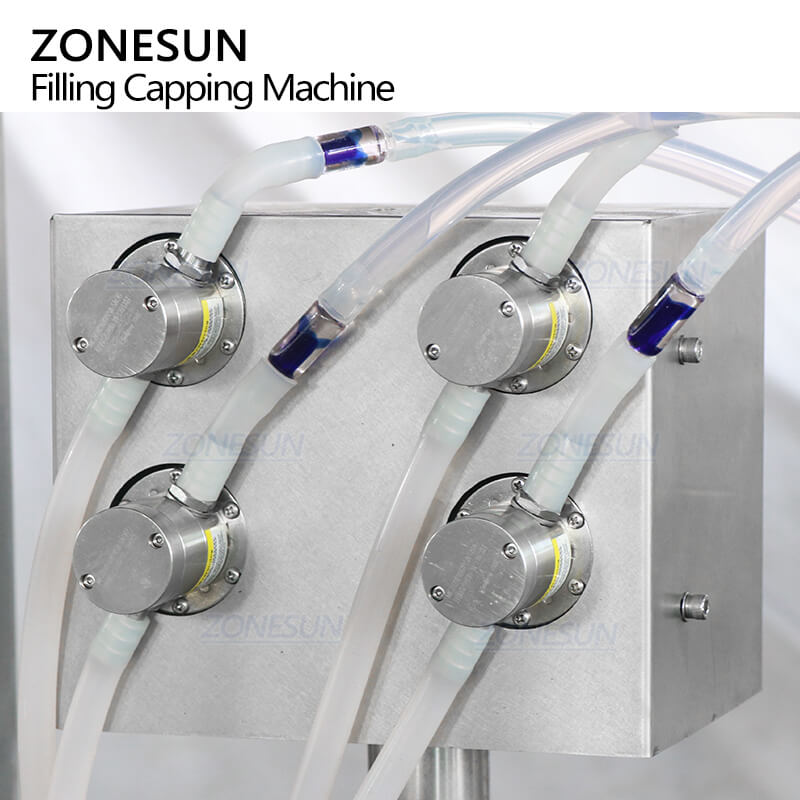

Füllstruktur
4-heads servo magnetic pump for accurate and clean liquid filling.
Cap Picking & Capping Structure
Pneumatic pick-and-place system with cam-driven gripper for secure sealing.

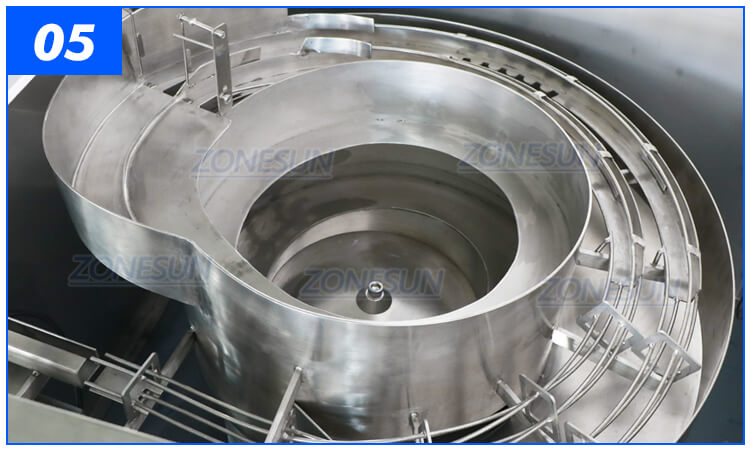

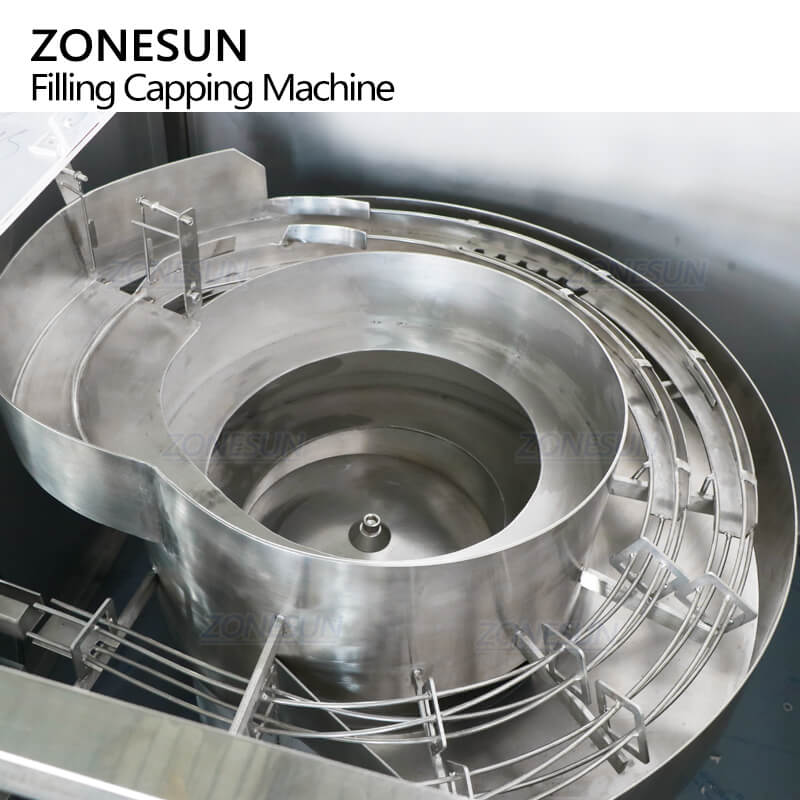

Vibratory bowl
With soundproof dust cover, it automatically arranges and feeds caps for continuous operation.
Dual-track Bottle Feeding
Improves bottle infeeding speed, filters out bottles with incorrect sizes, ensures steady production flow.
